INFINITI FX35 2007 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-321
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured betw

Page 1698 of 4366

INFINITI FX35 2007 Service Manual EC-322
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS003PB
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Liste

Page 1699 of 4366

INFINITI FX35 2007 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-323
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

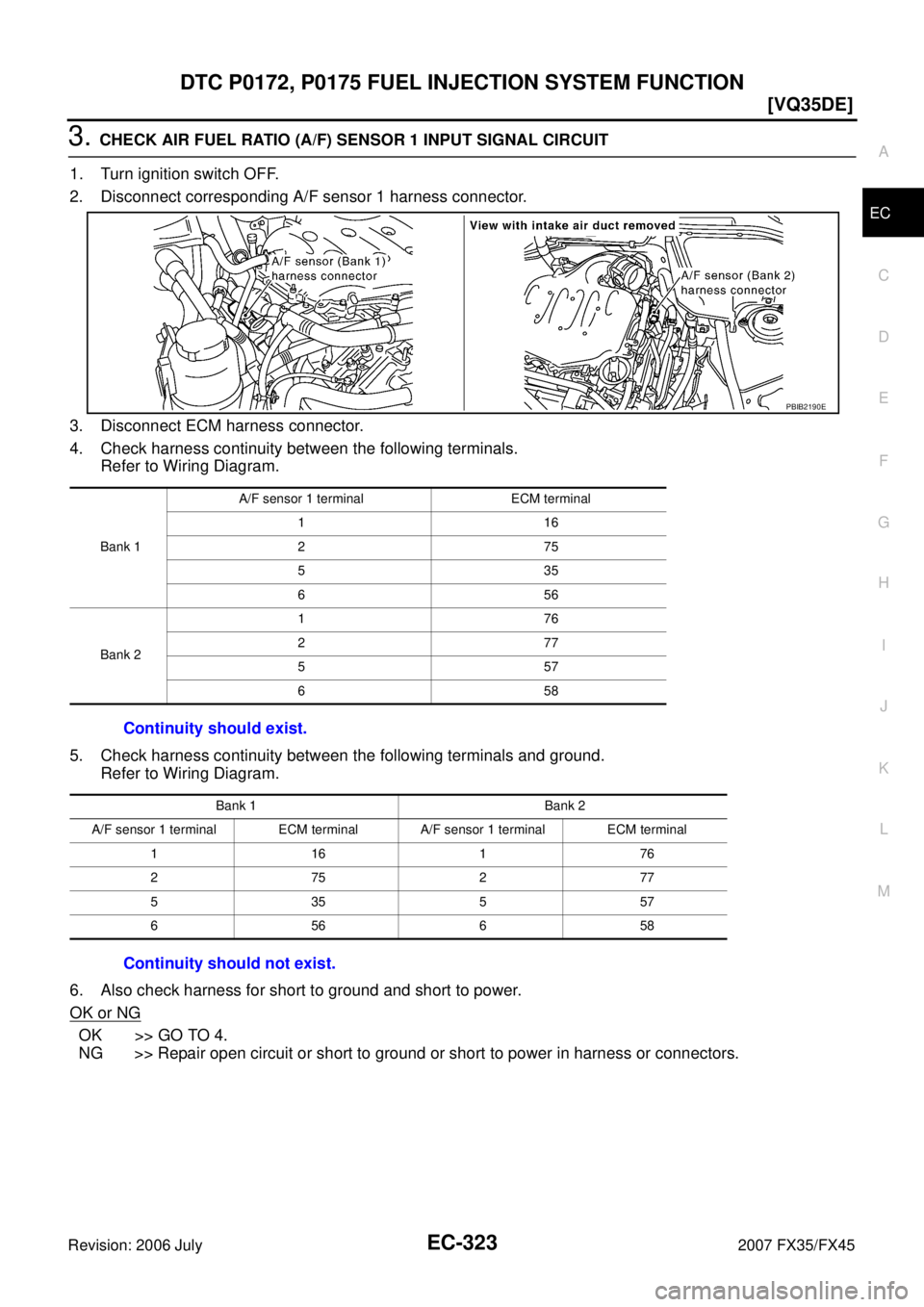

3. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT

Page 1700 of 4366

INFINITI FX35 2007 Service Manual EC-324
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 July 2007 FX35/FX45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-85, "
FUEL PRESSURE RELEASE"

Page 1701 of 4366

INFINITI FX35 2007 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-325
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
8. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II

Page 1702 of 4366

INFINITI FX35 2007 Service Manual EC-326
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 July 2007 FX35/FX45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between harness connector F251 as foll

Page 1703 of 4366

INFINITI FX35 2007 Service Manual DTC P0181 FTT SENSOR EC-327
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS003PC
The fuel tank temperature (F

DTC P0181 FTT SENSOR EC-327
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS003PC
The fuel tank temperature (FTT) sensor is used to detect the fuel
temperature inside the fuel tank. The sensor modifies a voltage sig-
nal from the ECM. The modified signal returns to the ECM as the
fuel temperature input. The sensor uses a thermistor which is sensi-
tive to the change in temperature. The electrical resistance of the
thermistor decreases as temperature increases.

*: This data is reference values and is measured between ECM terminal 107 (fuel
tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS003PD
DTC Confirmation ProcedureNBS003PE
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds. If the result is NG, go to EC-330, "
Diagnostic Procedure" .
If the result is OK, go to following step.
4. Check “COOLAN TEMP/S” value. If “COOLAN TEMP/S” is less than 60 °C (140 °F), the result will
be OK.
If “COOLAN TEMP/S” is above 60 °C (140 °F), go to the following
step.
5. Cool engine down until “COOLAN TEMP/S” is less than 60 °C
(140 °F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to EC-330, "
Diagnostic Procedure" .
PBIB1572E
Fluid temperature
° C ( °F) Voltage*
V Resistance
k Ω
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0181
0181 Fuel tank temperature
sensor circuit range/
performance Rationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage sig-
nals from engine coolant temperature sensor
and intake air temperature sensor.
Harness or connectors
(Fuel tank temperature sensor circuit is
open or shorted)
Fuel tank temperature sensor
Unified meter and A/C amp.
SEF174Y

Page 1704 of 4366

INFINITI FX35 2007 Service Manual EC-328
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2006 July 2007 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.
