INFINITI FX35 2007 Service Manual ENGINE OIL LU-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
ENGINE OILPFP:KLA92
InspectionNBS003J0
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle h

Page 3666 of 4366

INFINITI FX35 2007 Service Manual LU-8
[VQ35DE]
ENGINE OIL
Revision: 2006 July 2007 FX35/FX45
Crankshaft oil seals (front and rear)
Camshaft position sensor (PHASE)
OIL PRESSURE CHECK
WARNING:
Be careful not to get burn yourself, a

Page 3667 of 4366

INFINITI FX35 2007 Service Manual ENGINE OIL LU-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid

ENGINE OIL LU-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid gasket and tighten oil pressure switch to the specification. Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS003J1
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up the engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE
OIL LEAKAGE" .
3. Stop the engine and wait for 10 minutes.
4. Loosen oil filler cap and then remove drain plug.
5. Drain engine oil.
6. Install drain plug with new washer. Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil. Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:
When filling engine oil, do not pull out oil level gauge.
The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop the engine and wait for 10 minutes.
10. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
Oil pressure switch:
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
Oil pan drain plug: : 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul) 5.4 (5-3/4, 4-3/4)

Page 3668 of 4366

INFINITI FX35 2007 Service Manual LU-10
[VQ35DE]
OIL FILTER
Revision: 2006 July 2007 FX35/FX45
OIL FILTERPFP:15208
Removal and InstallationNBS003J2
REMOVAL
1. Remove front engine undercover with power tool.
2. Using oil filter wrench

Page 3669 of 4366

INFINITI FX35 2007 Service Manual OIL FILTER LU-11
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level, and adjust the level. R

Page 3670 of 4366

INFINITI FX35 2007 Service Manual LU-12
[VQ35DE]
OIL FILTER BRACKET (AWD)
Revision: 2006 July 2007 FX35/FX45
OIL FILTER BRACKET (AWD)PFP:15238

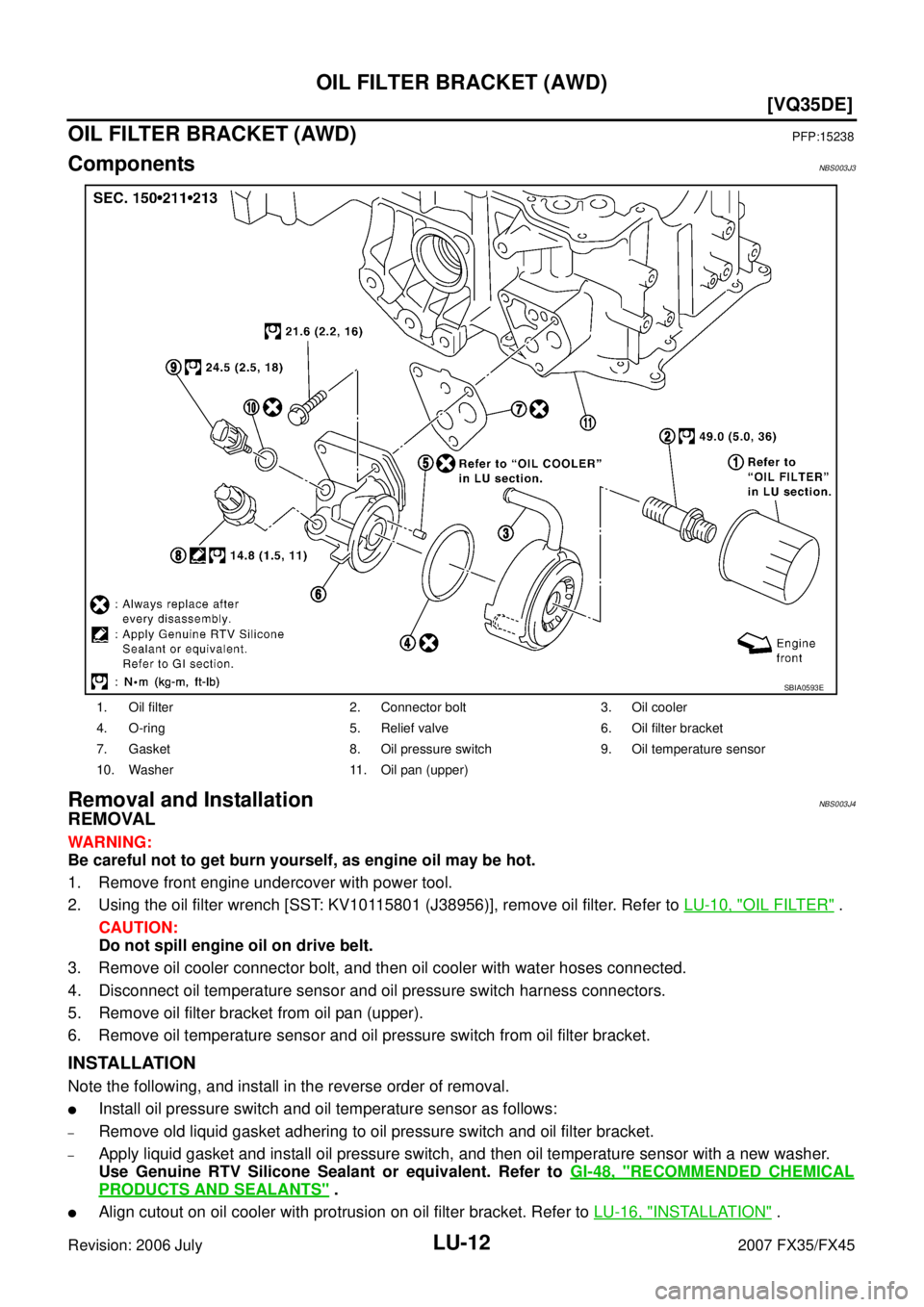

ComponentsNBS003J3
Removal and InstallationNBS003J4
REMOVAL
WARNING:
Be careful not to get

Page 3671 of 4366

INFINITI FX35 2007 Service Manual OIL FILTER BRACKET (AWD) LU-13
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and add engine oil. Refer

Page 3672 of 4366

INFINITI FX35 2007 Service Manual LU-14
[VQ35DE]
OIL COOLER
Revision: 2006 July 2007 FX35/FX45
OIL COOLERPFP:21305
ComponentsNBS003J5
2WD models

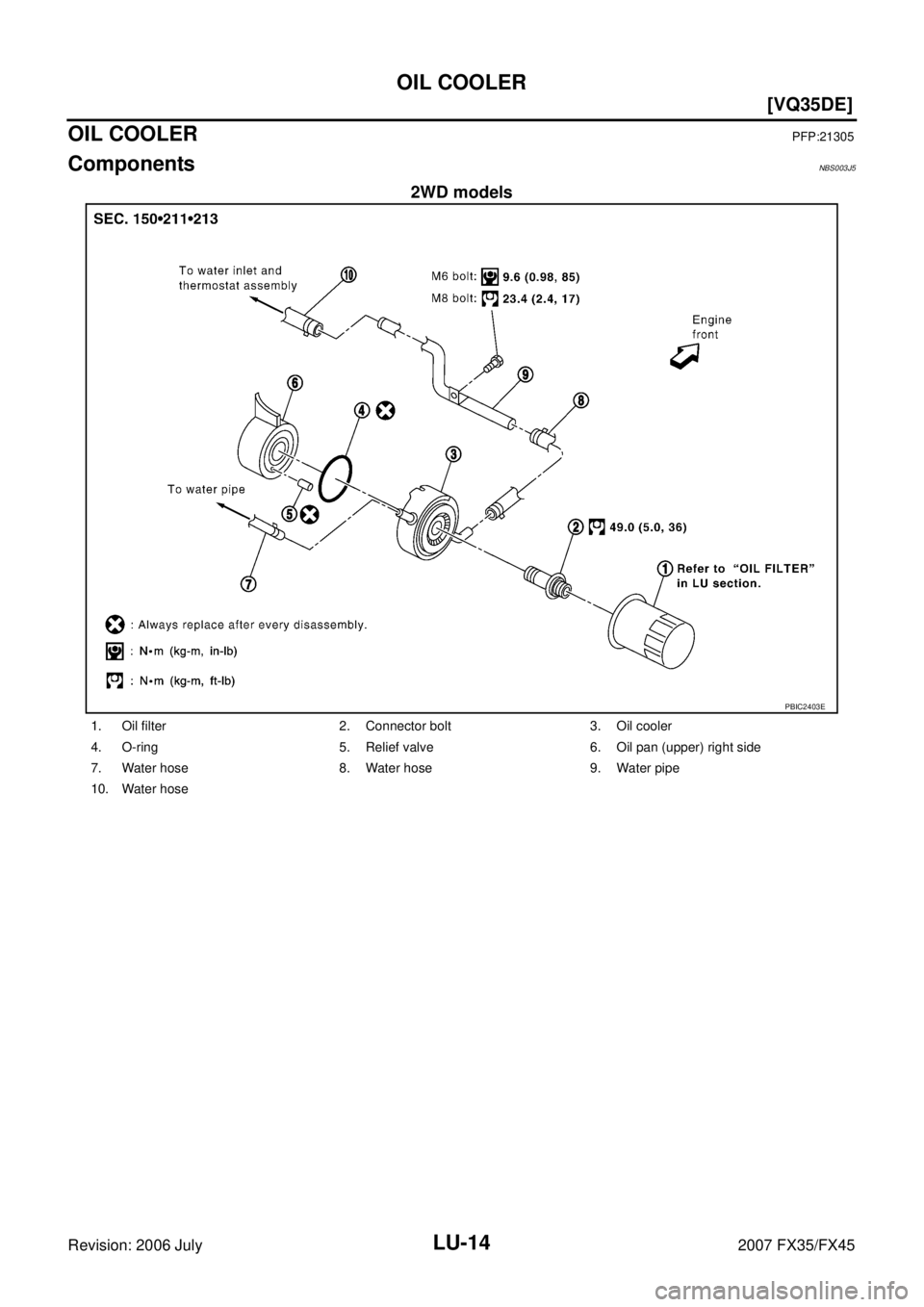

PBIC2403E
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil
