COMPONENTS FUNCTION DESCRIPTION
CAN CommunicationNDS0009X
SYSTEM DESCRIPTION
CAN (Controller Area Network) i

AWD SYSTEM TF-13
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 July 2007 FX35/FX45
COMPONENTS FUNCTION DESCRIPTION
CAN CommunicationNDS0009X
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
For details, refer to LAN-49, "
CAN System Specification Chart" .
Component parts Function
AWD control unit
Controls driving force distribution by signals from each sensor and switch from rear wheel driving
mode (0:100) to AWD mode (50:50).
2WD mode is available by fail-safe function if malfunction is detected in AWD system.
Wheel sensors Detects wheel speed.
AWD solenoid Controls electric controlled coupling by command current from AWD control unit.
Electric controlled coupling Transmits driving force to front final drive.
AWD warning lamp
Illuminates if malfunction is detected in electrical system of AWD system.
There is 1 blink in 2 seconds if rotation difference of front wheels and rear wheels is large.
There are 2 blinks in 1 second if load is still applied to driving parts.
ABS actuator and electric unit
(control unit) Transmits the following signals via CAN communication to AWD control unit.
Vehicle speed signal
Stop lamp switch signal (brake signal)
ECM Transmits the following signals via CAN communication to AWD control unit.
Accelerator pedal position signal
Engine speed signal
Unified meter and A/C amp. Transmits conditions of parking brake switch via CAN communication to AWD control unit.

Page 4218 of 4366

INFINITI FX35 2007 Service Manual TF-14
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSISPFP:00004
Fail-Safe FunctionNDS0009Y
If any malfunction occurs in AWD electrical system, and control unit detects the malfu

Page 4219 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS TF-15
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 July 2007 FX35/FX45

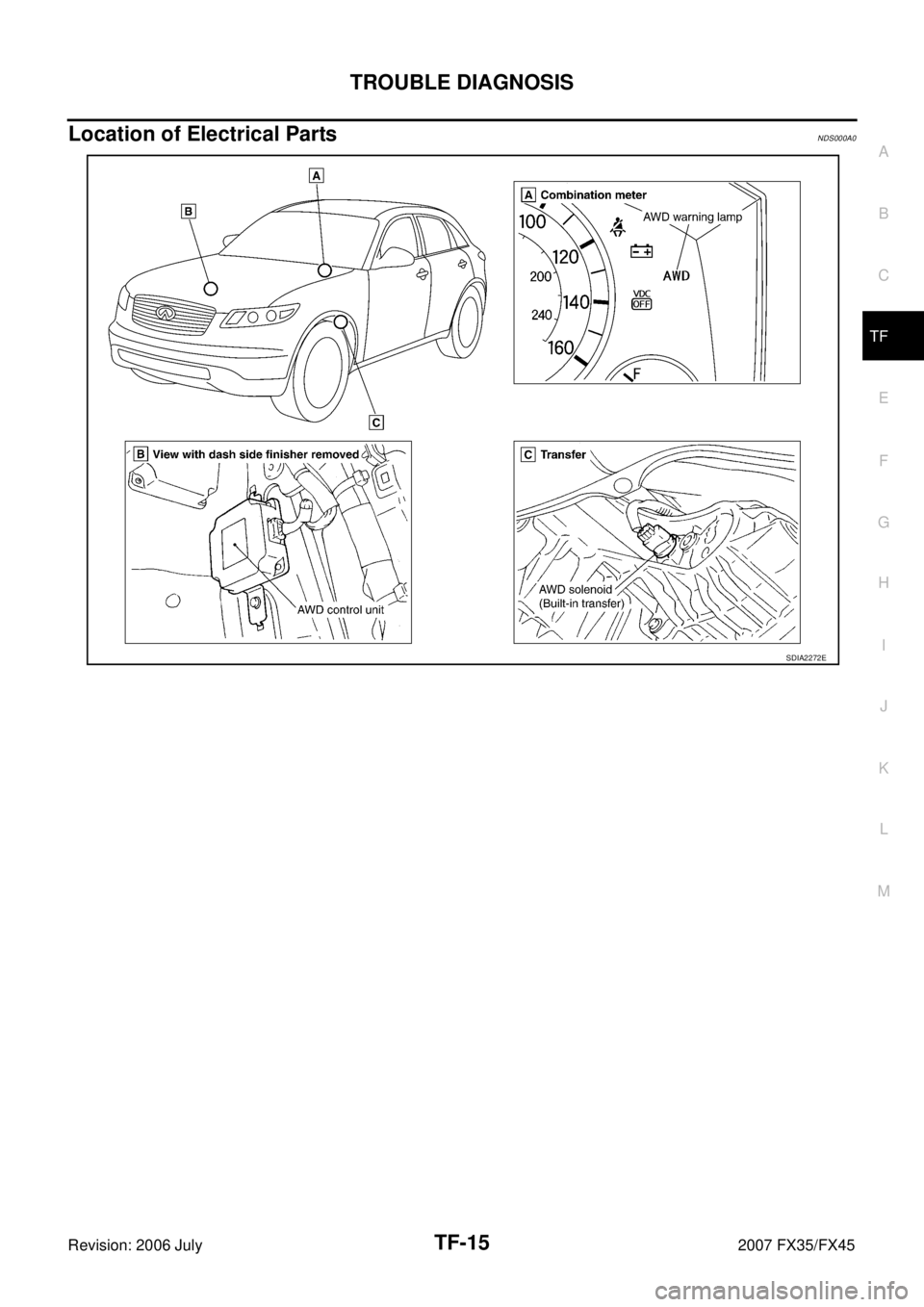

Location of Electrical PartsNDS000A0
SDIA2272E

Page 4220 of 4366

INFINITI FX35 2007 Service Manual TF-16
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

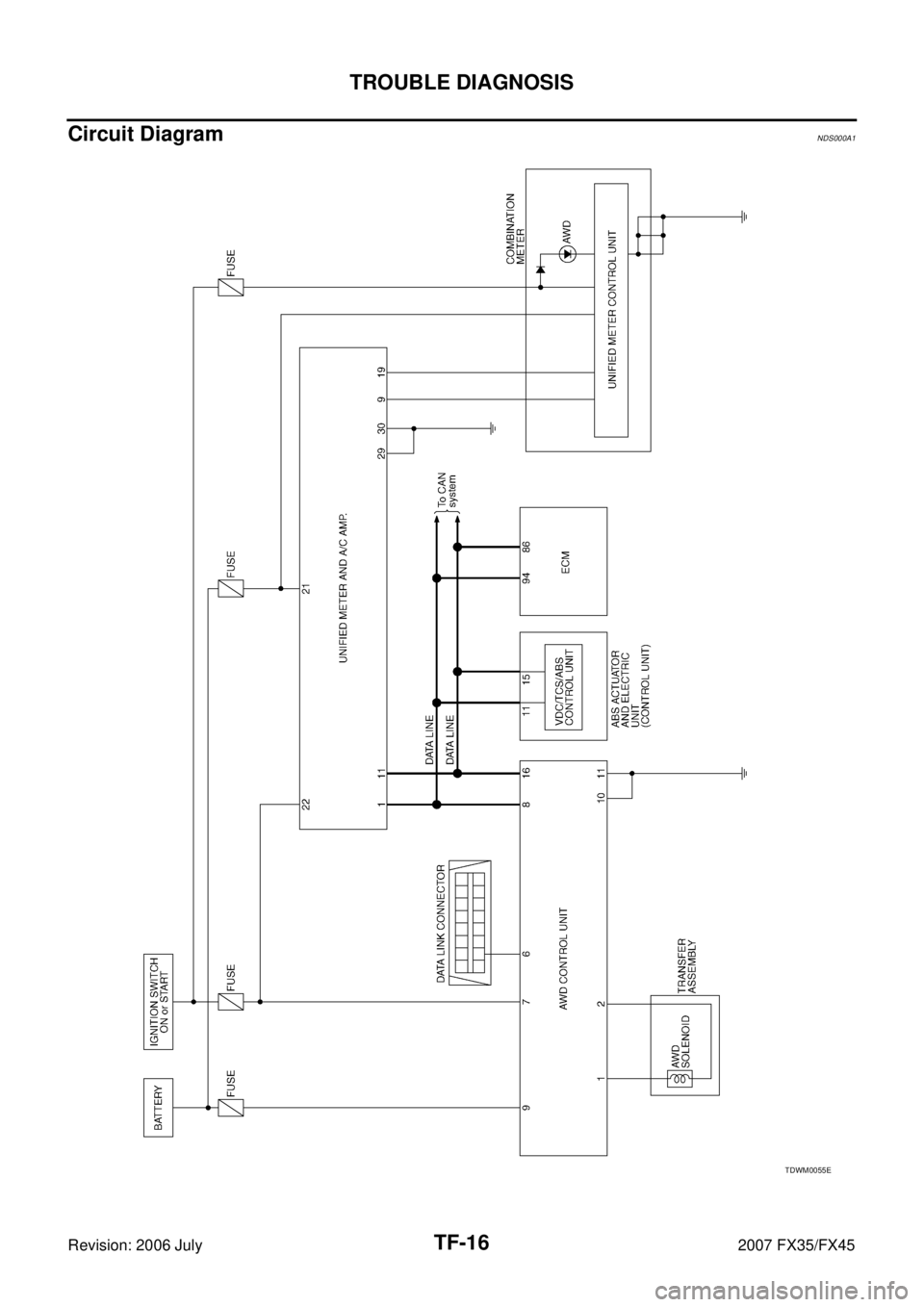

Circuit DiagramNDS000A1
TDWM0055E

Page 4221 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS TF-17
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 July 2007 FX35/FX45

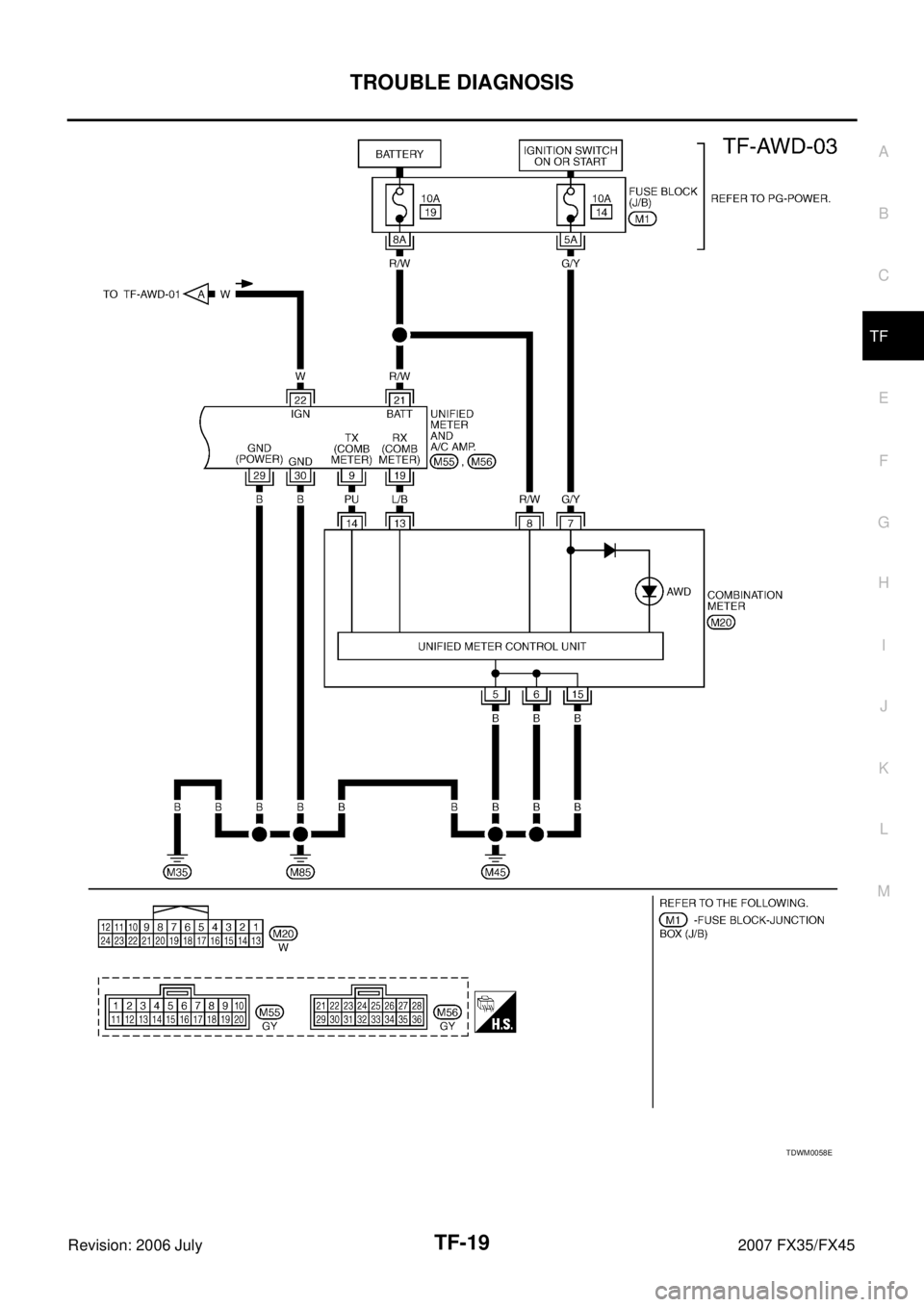

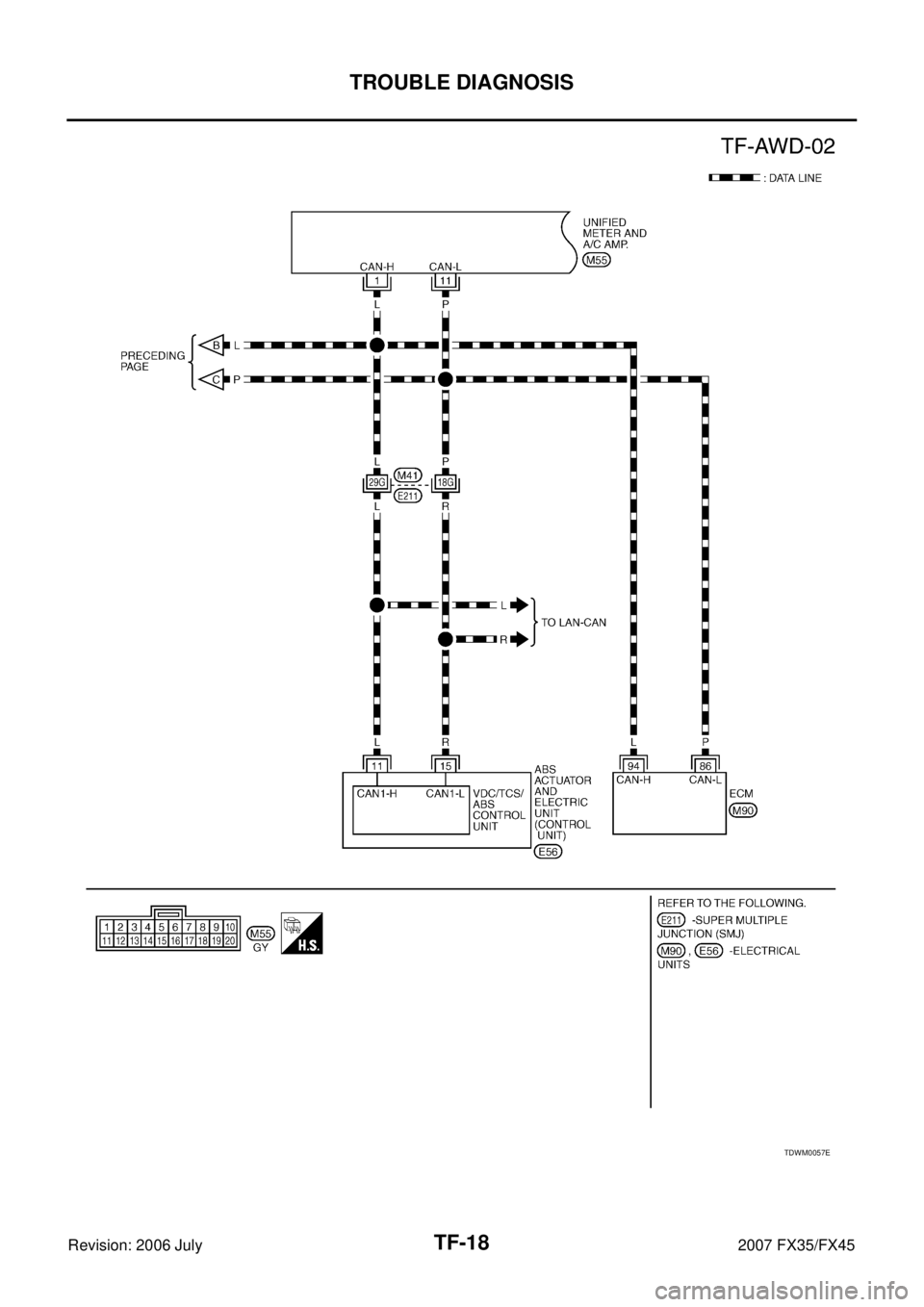

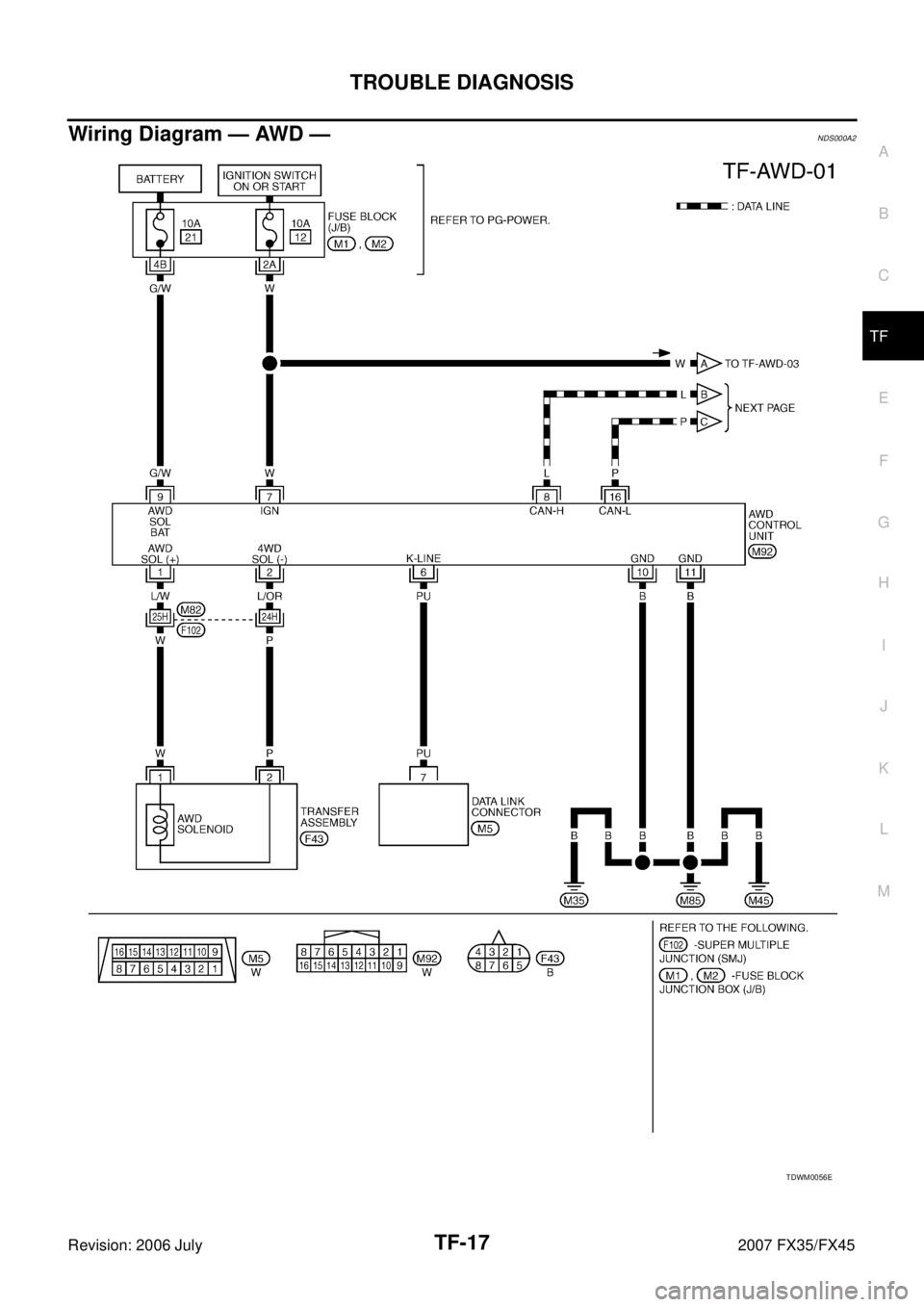

Wiring Diagram — AWD —NDS000A2
TDWM0056E

Page 4222 of 4366

INFINITI FX35 2007 Service Manual TF-18
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TDWM0057E

Page 4223 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS TF-19
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 July 2007 FX35/FX45
TDWM0058E

Page 4224 of 4366

INFINITI FX35 2007 Service Manual TF-20
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Trouble Diagnosis Chart for SymptomsNDS000A3
If AWD warning lamp turns ON, perform self-diagnosis. Refer to TF-22, "SELF-DIAG RESULT MODE" .

TF-20
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Trouble Diagnosis Chart for SymptomsNDS000A3
If AWD warning lamp turns ON, perform self-diagnosis. Refer to TF-22, "SELF-DIAG RESULT MODE" .
NOTE:
Light tight-corner braking symptom may occur depending on driving conditions. This is not malfunction. Symptom Condition Check item Reference page
AWD warning lamp does not turn ON when
the ignition switch is turned to ON.
(AWD warning lamp check) Ignition switch: ON CAN communication line
TF-33
Unified meter and A/C amp.
Unified meter control unit
AWD warning lamp does not turn OFF sev-
eral seconds after engine started. Engine running CAN communication line
TF-33
Power supply and ground for AWD con-
trol unit
Unified meter and A/C amp.
Unified meter control unit
AWD solenoid
AWD actuator relay (integrated in AWD
control unit)
Wheel sensor
Heavy tight-corner braking symptom occurs
when the vehicle is driven and the steering
wheel is turned fully to either side after the
engine is started. (See NOTE.)
While driving
Steering wheel is
turned fully to either
sides CAN communication line
TF-35Accelerator pedal position signal
AWD solenoid
Mechanical malfunction of electric con-
trolled coupling (clutch sticking etc.)
Vehicle does not enter AWD mode even
though AWD warning lamp turned to OFF. While driving AWD solenoid
TF-36
Mechanical malfunction of electric con-
trolled coupling (Mechanical engage-
ment of clutch is not possible.)
While driving, AWD warning lamp flashes
rapidly. (When flashing in approx. 1 minute
and then turning OFF.)
Rapid flashing: 2 times/second While driving Protection function is activated due to
heavy load to electric controlled cou-
pling. (AWD system is not malfunction-
ing. Also, optional distribution of torque
sometimes becomes rigid before lamp
flashes rapidly, but it is not malfunction.) TF-37
While driving, AWD warning lamp flashes
slowly. (When continuing to flash until turn-
ing ignition switch OFF)
Slow flashing: 1 time/2 secondsWhile driving
Vehicle speed: 20 km/h
(12 MPH) or more Tire size is different between front and
rear of vehicle. TF-37
