INFINITI FX35 2007 Service Manual FRONT TIMING CHAIN CASE EM-57
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
23. Remove O-rings from rear timing chain case.
24. Remove oil pan gasket (front). Re

Page 2850 of 4366

INFINITI FX35 2007 Service Manual EM-58
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 July 2007 FX35/FX45

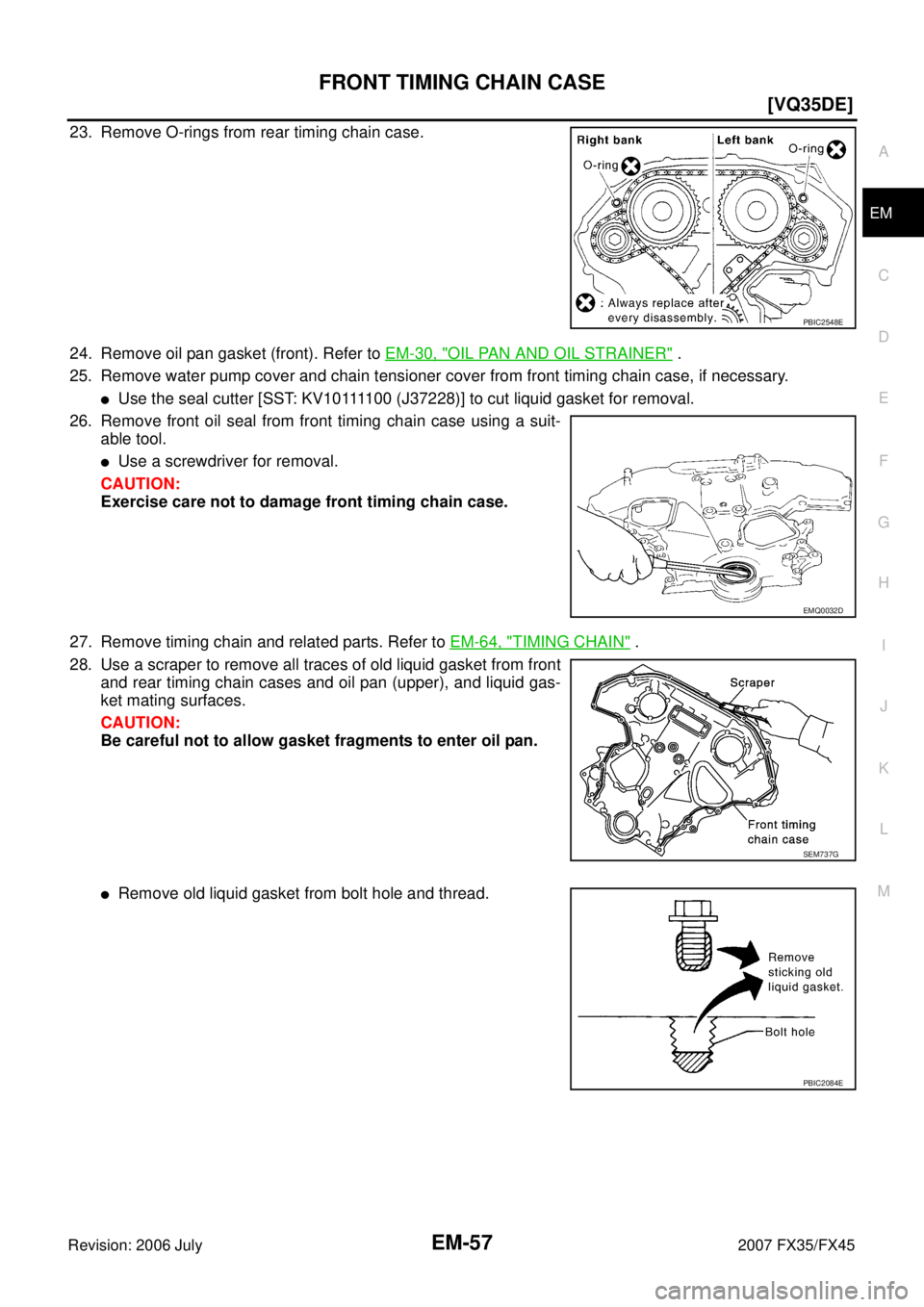

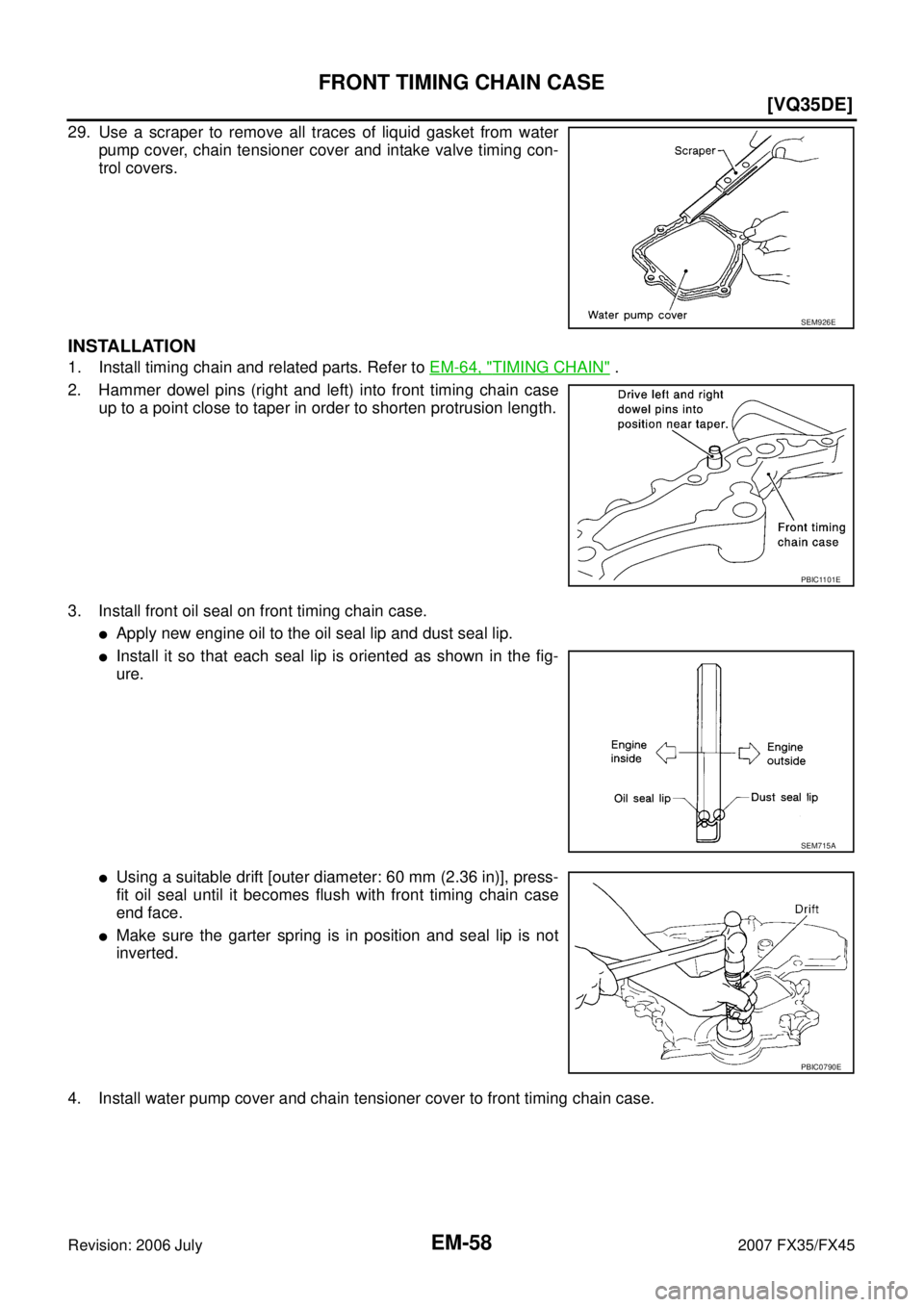

29. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing

Page 2851 of 4366

INFINITI FX35 2007 Service Manual FRONT TIMING CHAIN CASE EM-59
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

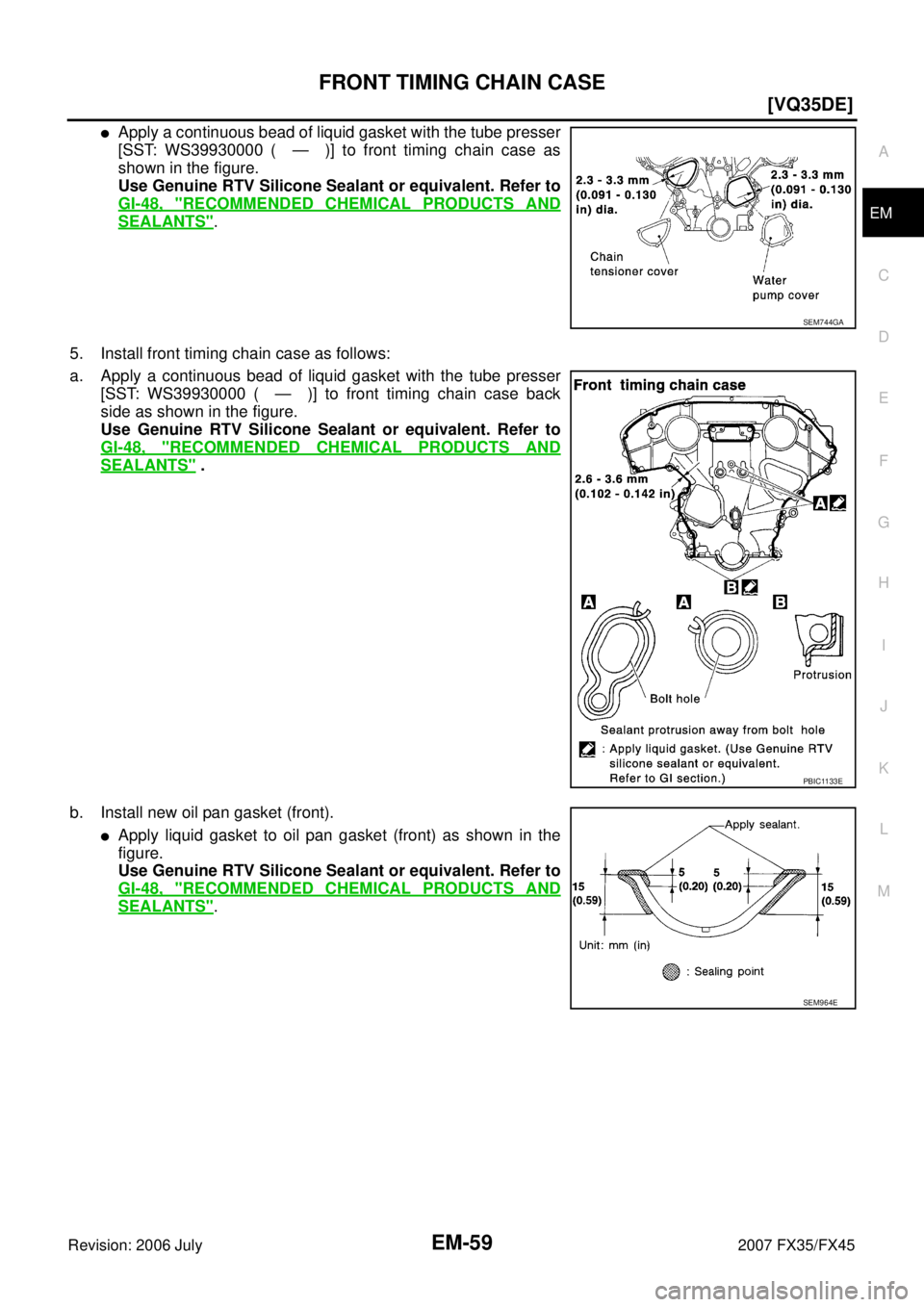

Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( �

Page 2852 of 4366

INFINITI FX35 2007 Service Manual EM-60
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 July 2007 FX35/FX45

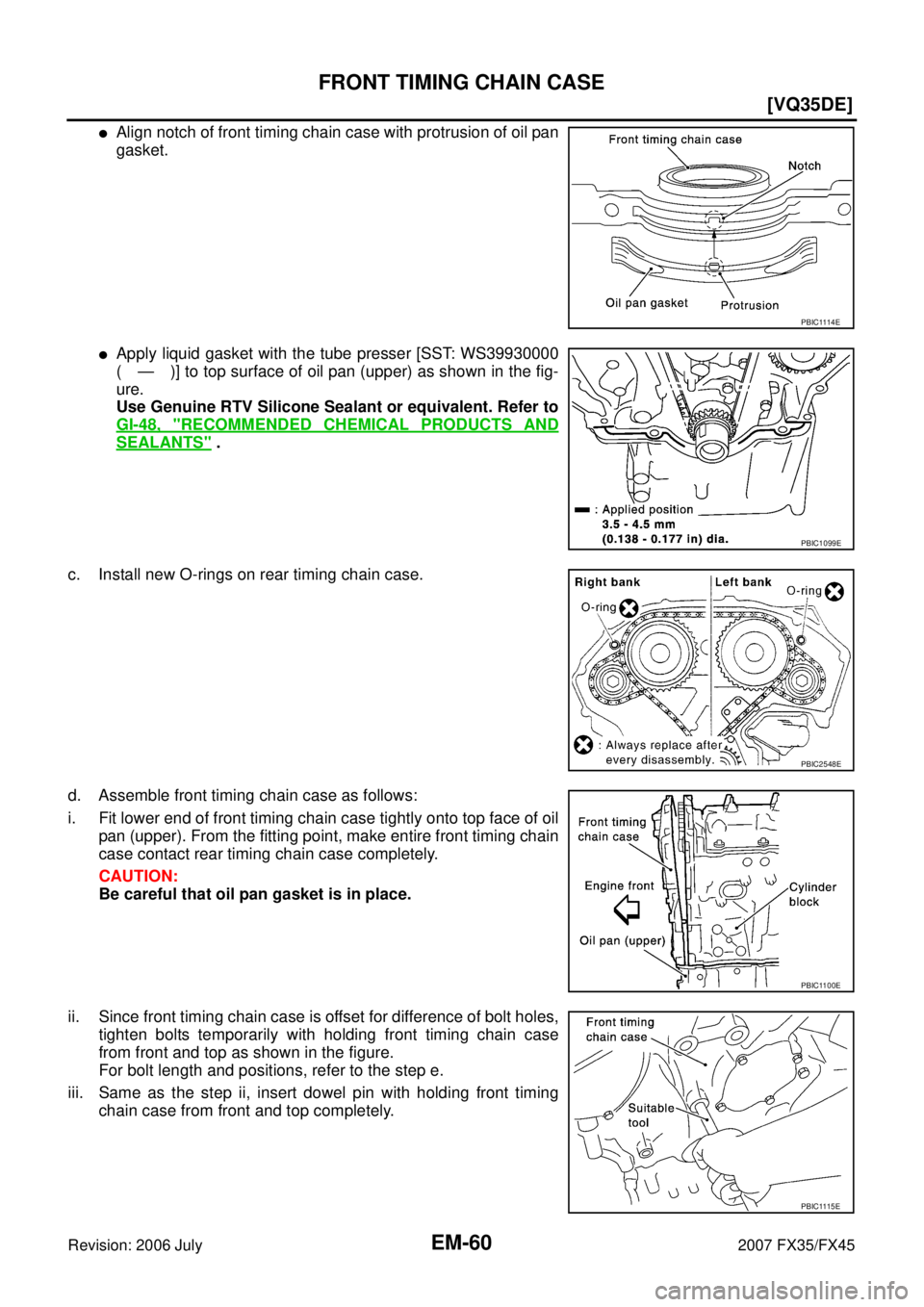

Align notch of front timing chain case with protrusion of oil pan
gasket.
Apply liquid gasket with the tube presser [SST: W

Page 2853 of 4366

INFINITI FX35 2007 Service Manual FRONT TIMING CHAIN CASE EM-61
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
e. Tighten mounting bolts to the specified torque in numerical order
as shown in the

Page 2854 of 4366

INFINITI FX35 2007 Service Manual EM-62
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 July 2007 FX35/FX45
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
9. Install crankshaft pulley as follows:
a. Fix cran

EM-62
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 July 2007 FX35/FX45
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
9. Install crankshaft pulley as follows:
a. Fix crankshaft using the ring gear stopper [SST: KV10117700 (J44716)].
b. Install crankshaft pulley, taking care not to damage front oil seal.
When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).
c. Tighten crankshaft pulley bolt.
d. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
e. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The
angle between two notches is 90 degrees.
10. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
11. For the following operations, perform steps in the reverse order of removal. NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in the guide may gener-
ate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The followings are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
PBIC0918E
: 44.1 N·m (4.5 kg-m, 33 ft-lb)
PBIC4821E

Page 2855 of 4366

INFINITI FX35 2007 Service Manual FRONT TIMING CHAIN CASE EM-63
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids

Page 2856 of 4366

INFINITI FX35 2007 Service Manual EM-64
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
TIMING CHAINPFP:13028

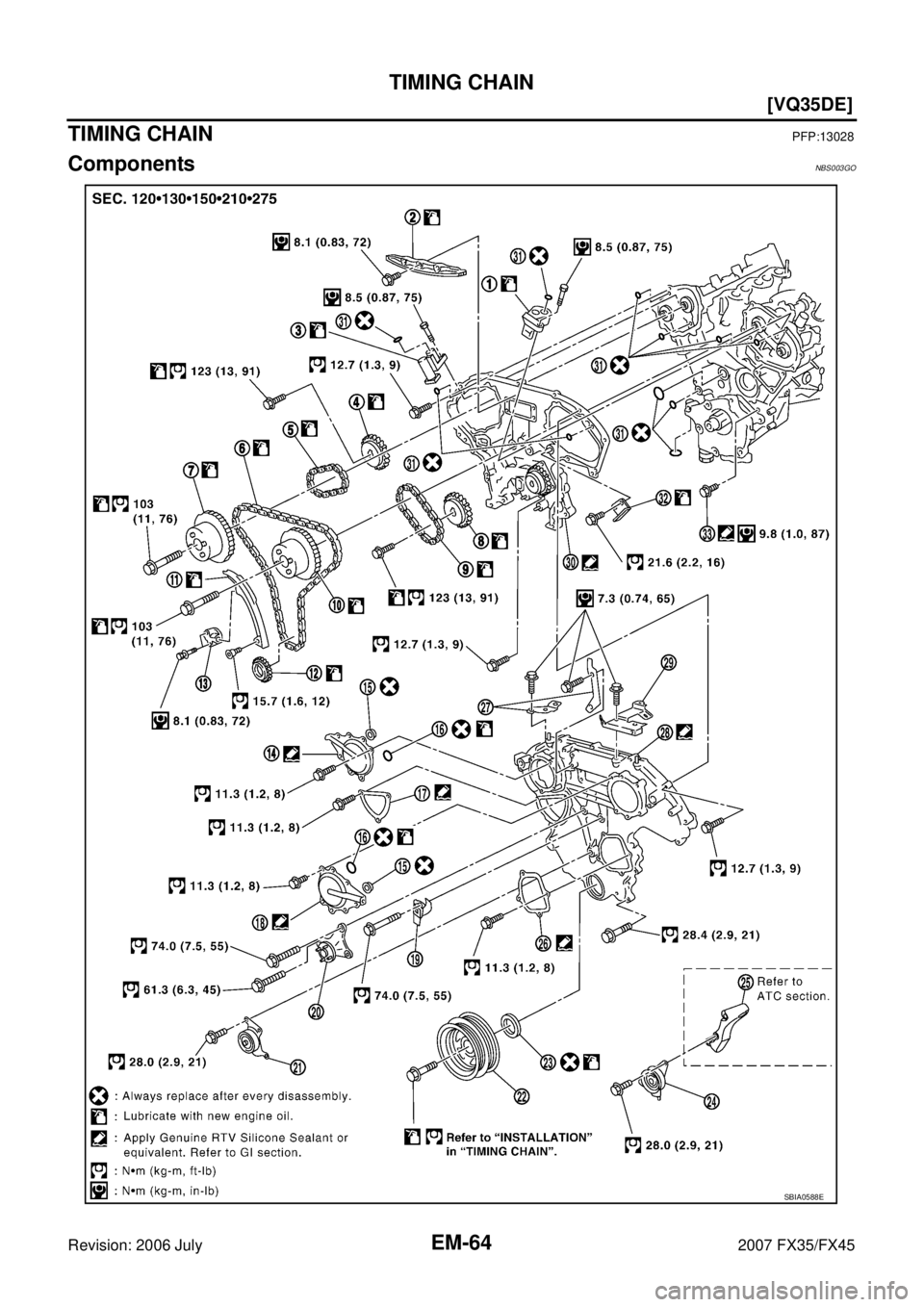

ComponentsNBS003GO
SBIA0588E
