INFINITI FX35 2007 Service Manual HOW TO USE THIS MANUAL GI-11 C D E F G H I J K L M B GI Revision: 2006 July 2007 FX35/FX45 ComponentsNAS0006C THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain t

Page 3194 of 4366

INFINITI FX35 2007 Service Manual GI-12 HOW TO USE THIS MANUAL Revision: 2006 July 2007 FX35/FX45 How to Follow Trouble DiagnosesNAS0006D DESCRIPTION NOTICE: Trouble diagnoses indicate work procedures required to diagnose problems ef

Page 3195 of 4366

INFINITI FX35 2007 Service Manual HOW TO USE THIS MANUAL GI-13 C D E F G H I J K L M B GI Revision: 2006 July 2007 FX35/FX45 3.Symbol used in illustration Symbols included in illustrations refer to measurements or proced

Page 3196 of 4366

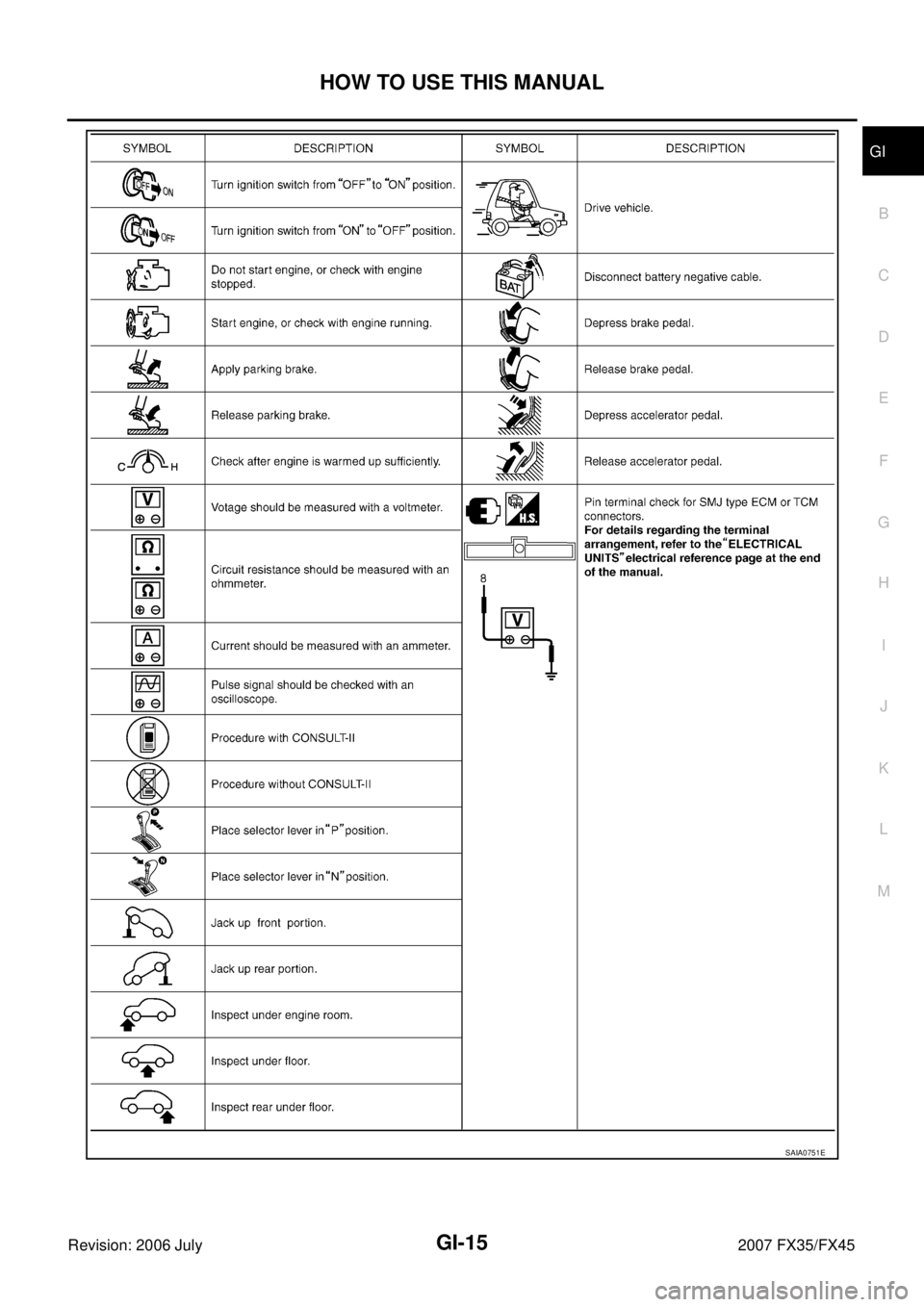

INFINITI FX35 2007 Service Manual GI-14 HOW TO USE THIS MANUAL Revision: 2006 July 2007 FX35/FX45 TYPE 2: Harness Wire Color and Connector Number are Shown in Text KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES SGI144A SAIA0750

Page 3197 of 4366

INFINITI FX35 2007 Service Manual HOW TO USE THIS MANUAL GI-15 C D E F G H I J K L M B GI Revision: 2006 July 2007 FX35/FX45 SAIA0751E

Page 3198 of 4366

INFINITI FX35 2007 Service Manual GI-16 HOW TO USE THIS MANUAL Revision: 2006 July 2007 FX35/FX45 How to Read Wiring DiagramsNAS0006E CONNECTOR SYMBOLS Most of connector symbols in wiring diagrams are shown from the terminal side. C

Page 3199 of 4366

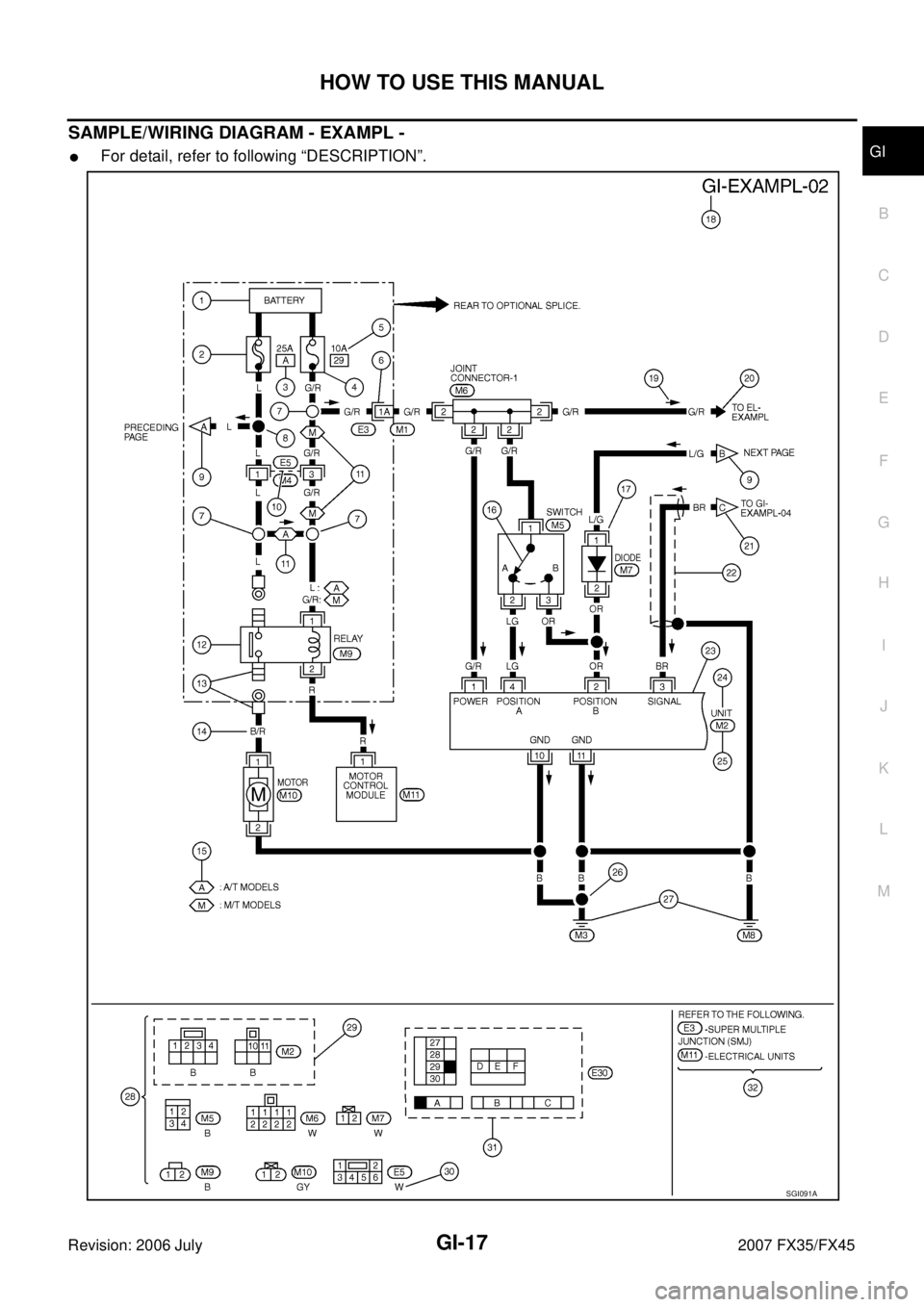

INFINITI FX35 2007 Service Manual HOW TO USE THIS MANUAL GI-17 C D E F G H I J K L M B GI Revision: 2006 July 2007 FX35/FX45 SAMPLE/WIRING DIAGRAM - EXAMPL - For detail, refer to following “DESCRIPTION”. SGI091A

Page 3200 of 4366

INFINITI FX35 2007 Service Manual GI-18 HOW TO USE THIS MANUAL Revision: 2006 July 2007 FX35/FX45 Optional Splice DESCRIPTION SGI942 Num- ber Item Description 1 Power condition This shows the condition when the system receives ba
