2007 INFINITI FX35 ECO mode

ACTION TEST ACS-11
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
ACTION TESTPFP:00000
ICC System Running TestNKS003EP
VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE
Set Checking
1. Press the MAIN switch for less than 1.5 seconds.
2. Drive the vehicle between 40 km/h (25 MPH) and 144 km/h (90 MPH).
3. Push the SET/COAST switch.
4. Confirm that the desired speed is set as hand is released from the SET/COAST switch.
NOTE:

When there is no vehicle ahead, drive at the set speed steadily.

When there is a vehicle ahead, control to maintain distance from the vehicle ahead, watching its speed.

The set vehicle speed is displayed on the ICC system indicator in the combination meter.
Check For Increase Of Cruising Speed
1. Set vehicle-to-vehicle distance control mode at desired speed.
2. Check if the set speed increases by 1 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed.
NOTE:
The maximum set speed of the vehicle-to-vehicle distance control mode is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set vehicle-to-vehicle distance control mode at desired speed.
2. Check if the set speed decreases by 1 km/h (1 MPH) as SET/COAST switch is pushed.
NOTE:

Vehicle-to-vehicle distance control mode is automatically turned off when the driving speed lowers to 32
km/h (20 MPH) due to the deceleration of the vehicle ahead.

The minimum set speed of the vehicle-to-vehicle distance control mode is 40 km/h (25 MPH).
Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Condi-
tion) In The Following Cases:

When the brake pedal is depressed after the system is turned ON.

When the selector lever is shifted to the “N” (Neutral) position.

When the MAIN switch is turned OFF.

When CANCEL switch is operated.
Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode Before
Cancellation
1. Cancel the system by depressing the foot brake. Then, check that the speed before cancellation is
restored when pressing RESUME/ACCELERATE switch with 40 km/h (25 MPH) or above.
2. Cancel the system by shifting the selector lever to “N” position. Then, check if the speed set before the cancellation is restored when RESUME/ACCELERATE switch is pushed up.
3. Check if the speed previously set is restored when RESUME/ACCELERATE switch is operated with driv- ing 40 km/h (25 MPH), after canceling vehicle-to-vehicle distance control mode by operating the CANCEL
switch.
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per- formed correctly.
2. Vehicle-to-vehicle distance control mode is displayed in combi- nation meter illuminates when MAIN switch is pressed “ON” for
less than 1.5 seconds and ready for operation. The illumination
goes off when MAIN switch is turned to OFF.
3. “CRUISE” illumination and ICC system display go off when the ignition switch is turned to OFF while MAIN switch is ON
(“CRUISE” illumination is ON and vehicle-to-vehicle distance
control mode is ready for operation).
SKIB8559E

ACS-12
[ICC]
ACTION TEST
Revision: 2006 July 2007 FX35/FX45
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
Check For Distance Switch
1. Start engine.
2. Press the MAIN switch for less than 1.5 seconds.
3. Press the DISTANCE switch.

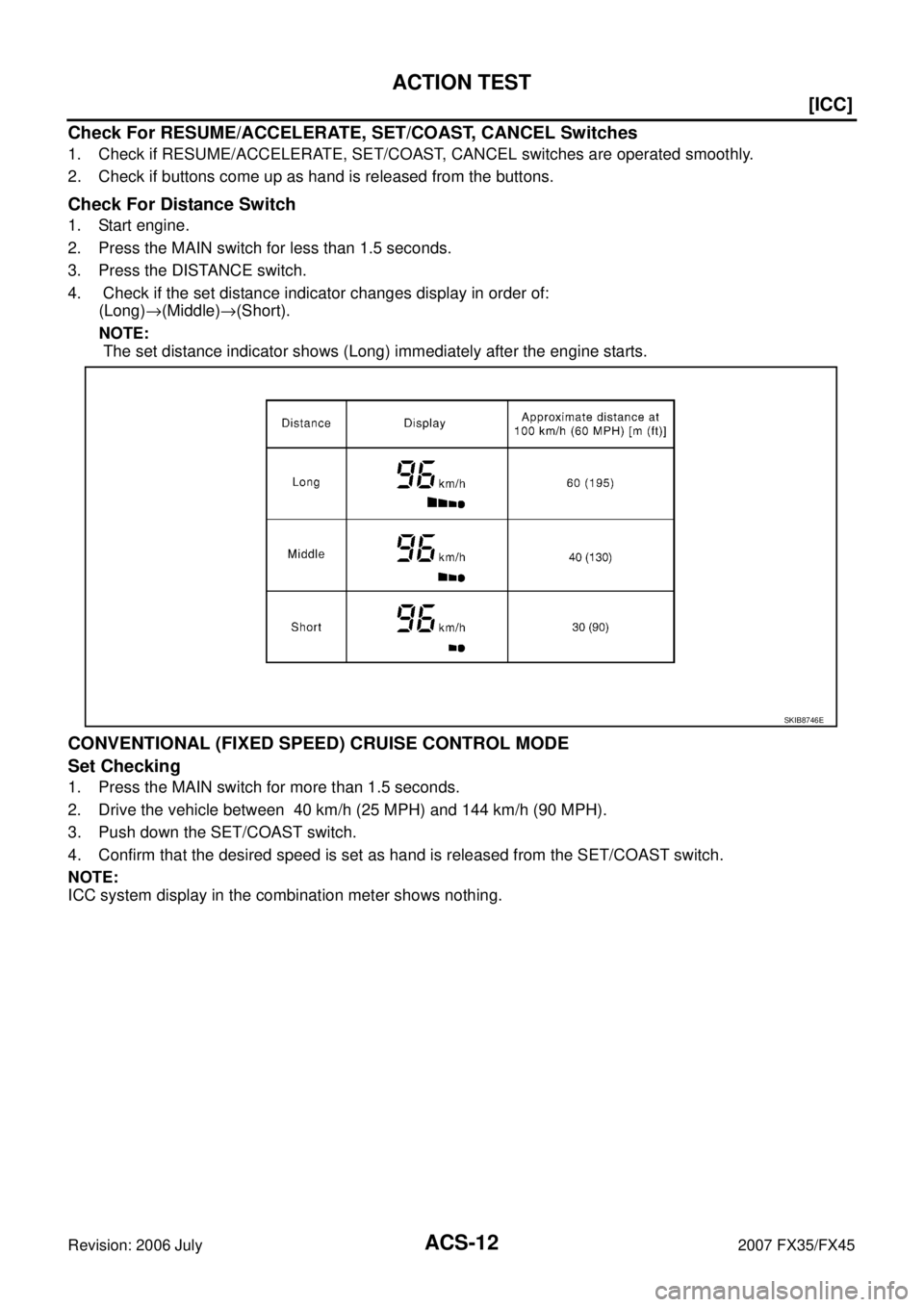

4. Check if the set distance indicator changes display in order of: (Long) →(Middle) →(Short).
NOTE:
The set distance indicator shows (Long) immediately after the engine starts.
CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
Set Checking
1. Press the MAIN switch for more than 1.5 seconds.
2. Drive the vehicle between 40 km/h (25 MPH) and 144 km/h (90 MPH).
3. Push down the SET/COAST switch.
4. Confirm that the desired speed is set as hand is released from the SET/COAST switch.
NOTE:
ICC system display in the combination meter shows nothing.
SKIB8746E

ACTION TEST ACS-13
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1.6 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed up.
NOTE:

If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.

The maximum set speed is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1.6 km/h (1 MPH) as SET/COAST switch is pushed down.
NOTE:

Conventional (fixed speed) cruise control mode is automatically turned off when the driving speed lowers
to 32 km/h (20 MPH).

The minimum set speed is 40 km/h (25 MPH).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-11, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-11, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and ICC system indicator goes off when MAIN switch is pressed “ON” for more than 1.5 seconds,
and then ready for operation. The illumination goes off when
MAIN switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
SKIB8560E

ACS-18
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 July 2007 FX35/FX45
5. When “U/D CORRECT” value indicates ±4, confirm that the margin of value remains within ±4 at least for
2 seconds with no equipment or hand touching the ICC sensor.
When “COMPLETED THE VERTICAL AIMING OF LASER
BEAM” appears on screen, touch “END”.
CAUTION:
Be sure that the margin of “U/D CORRECT” is within ±4 with
ICC sensor unit is untouched.
6. Confirm that “ADJUSTING AUTOMATIC HORIZONTAL LASER BEAM AIMING” is on screen and wait for a while (maximum: 10
seconds).
7. Confirm that “NORMALLY COMPLETED” is displayed on CON- SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by running test. Refer to ACS-11, "ICC System Running Test" .
SKIA1223E
SKIA1224E
SKIA1225E

ACS-32
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
WORK SUPPORT
Work Item
Cause of Auto-Cancel
1. Touch “WORK SUPPORT” on the “SELECT DIAG MODE” screen. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch “CAUSE OF AUTO-CANCEL” on the “SELECT WORK ITEM” screen.
3. Cause of automatic cancellation screen will be shown. CAUTION:
Last five cancel (system cancel) causes are displayed.
Display Item List
Laser Beam Adjust
For details, refer to ACS-14, "LASER BEAM AIMING ADJUSTMENT" .
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-42, "Diagnostic Trouble Code (DTC) Chart" .
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
SKIA6191E
Cause of cancellation Description
OPERATING WIPER Windshield wipers were operated at HI or LO speed operation.
OPERATING ABS ABS function was operated.
OPERATING TCS TCS function was operated.
OPERATING VDC VDC function was operated.
OPE SW VOLT CIRC Outside the standard control switch input voltage was detected.
ECM CIRCUIT ECM did not permit ICC operation.
LASER SUN BEAM Intense light such as sunlight entered ICC sensor light sensing part.
LASER TEMP Temperature around ICC sensor became low.
OP SW DOUBLE TOUCH ICC steering switches were pressed at the same time.
WHL SPD ELEC NOISE Wheel speed sensor signal caught electromagnetic noise.
VDC/TCS OFF SW VDC OFF switch was pressed.
WHEEL SPD UNMATCH Wheel speed became different from AT vehicle speed.
TIRE SLIP Wheel slipped.
PKB SW ON Parking brake is applied.
IGN LOW VOLT Power supply voltage became low.
SNOW MODE SW Snow mode switch was pressed.
NO RECORD —

ACS-36
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
BOOSTER SOL/V 3

Start engine.

Touch any of “MODE 1”, “MODE 2”, “MODE 3” to check that fol-
lowing operation condition is caused by operating monitor and
brake pedal.

“START” is displayed 10 seconds after operation start. (Active
test is completed.)
SKIA1233E
PKIA9821E

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-37
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Self-Diagnostic FunctionNKS003F2
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop vehicle, turn ignition switch OFF, then connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. With engine started, touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” on CON- SULT-II screen in this order.
CAUTION:
If “ICC” cannot be shown after several attempts, the ICC unit may have had malfunction. Repair or
replace it. Refer to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Self-diagnostic result appears on screen. If “NO DTC ···” is shown, check ICC warning lamp. If any mal- function is indicated, GO TO step 5.
5. According to ACS-42, "
Diagnostic Trouble Code (DTC) Chart" , perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start the engine and touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS”, and “ERASE” on CONSULT-II display in turn to erase the memory.
CAUTION:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp does not illuminate.
WITHOUT CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop the vehicle to start the self-diagnosis.
3. Turn ignition switch OFF.
4. From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/
COAST switch 5 times.
CAUTION:

Never start engine.

Never turn the MAIN switch ON.

When operation above is not completed from 5 seconds
through 15 seconds, start again from above go to 3.

If self-diagnosis mode cannot be started after several
attempts, the ICC unit may have had malfunction. Repair
or replace it. Refer to ACS-39, "
SELF-DIAGNOSIS BY ICC
SYSTEM DISPLAY WILL NOT RUN" .
PKIA9675E

ACS-38
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
5. When self-diagnosis mode is started, DTC are shown on set vehicle speed indicator.
CAUTION:

DTC will disappear after 5 minutes.

When more than one malfunction is detected, a maximum of 3 code numbers can be stored; the
latest malfunction will be displayed first.
6. Check ACS-42, "
Diagnostic Trouble Code (DTC) Chart" , and repair or replace if necessary.
7. After repair, erase DTC stored in the ICC unit.
8. DTC 55 will be shown.
9. Turn ignition switch OFF to exit the diagnosis.
10. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp (Orange) does not illuminate.
Self-Diagnostic Erasing Method
1. Stop the vehicle and turn the ignition switch OFF.
2. Turn ignition switch ON and start self-diagnosis.
3. During self-diagnosis mode, press CANCEL switch 5 times, and DISTANCE switch 5 times in this order. CAUTION:

Press them within 10 seconds after pressing CANCEL switch at first.

When operation is not completed within 10 seconds, start again from step 2 above.
4. DTC 55 will be shown.
CAUTION:
DTC of an existing malfunction will not be erased.
5. Turn ignition switch OFF to exit the diagnosis.
6. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC system warning lamp (Orange) does not illuminate.
PKIA9820E
