Page 3953 of 4366

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-23 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 7. Remove bearing caps. 8. Lift differential case assembly out with a suitable tool. Keep

Page 3954 of 4366

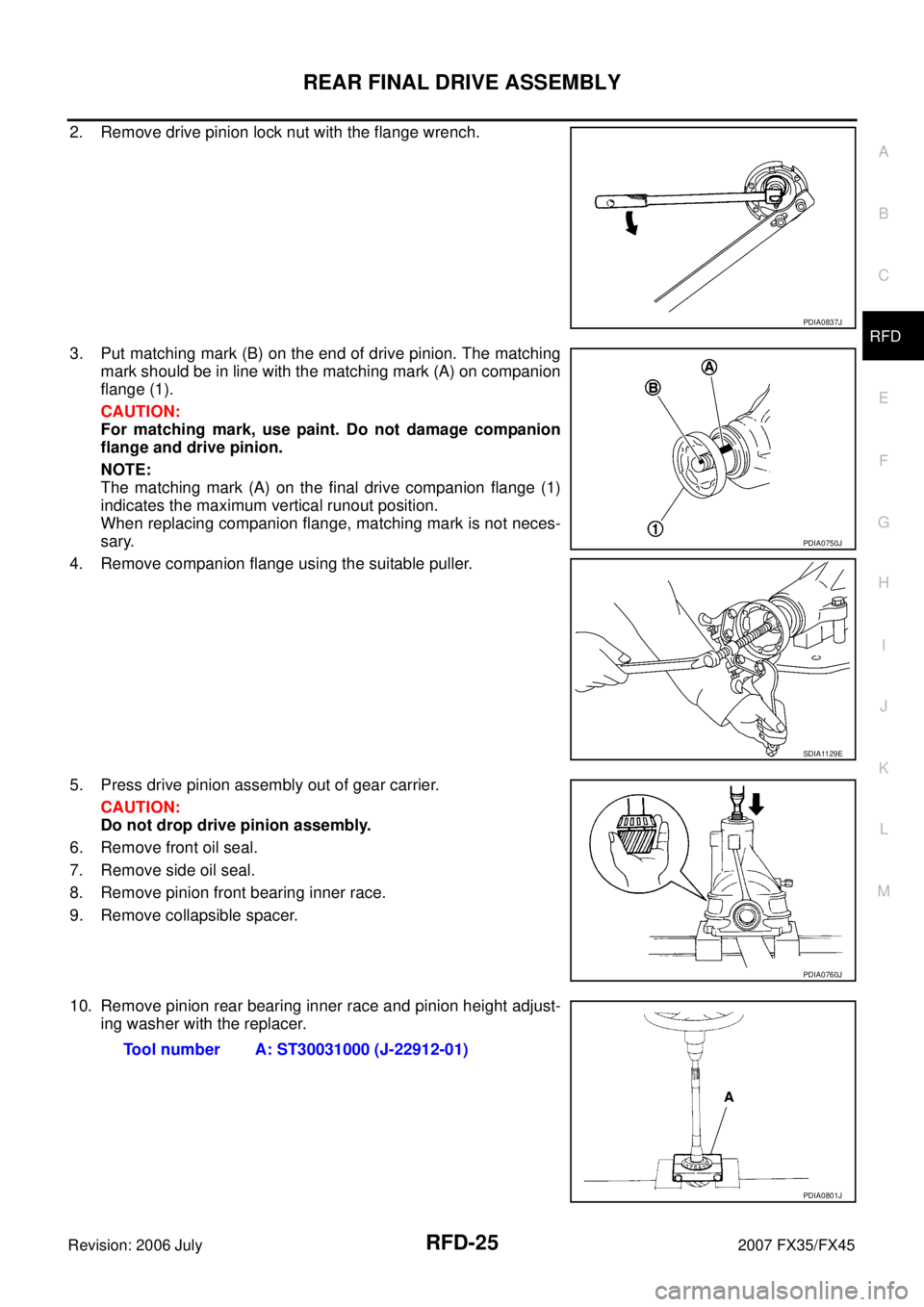

INFINITI FX35 2007 Service Manual RFD-24 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 10. For proper reinstallation, paint matching marks on one differen- tial case assembly. CAUTION: For matching marks, use paint.

Page 3955 of 4366

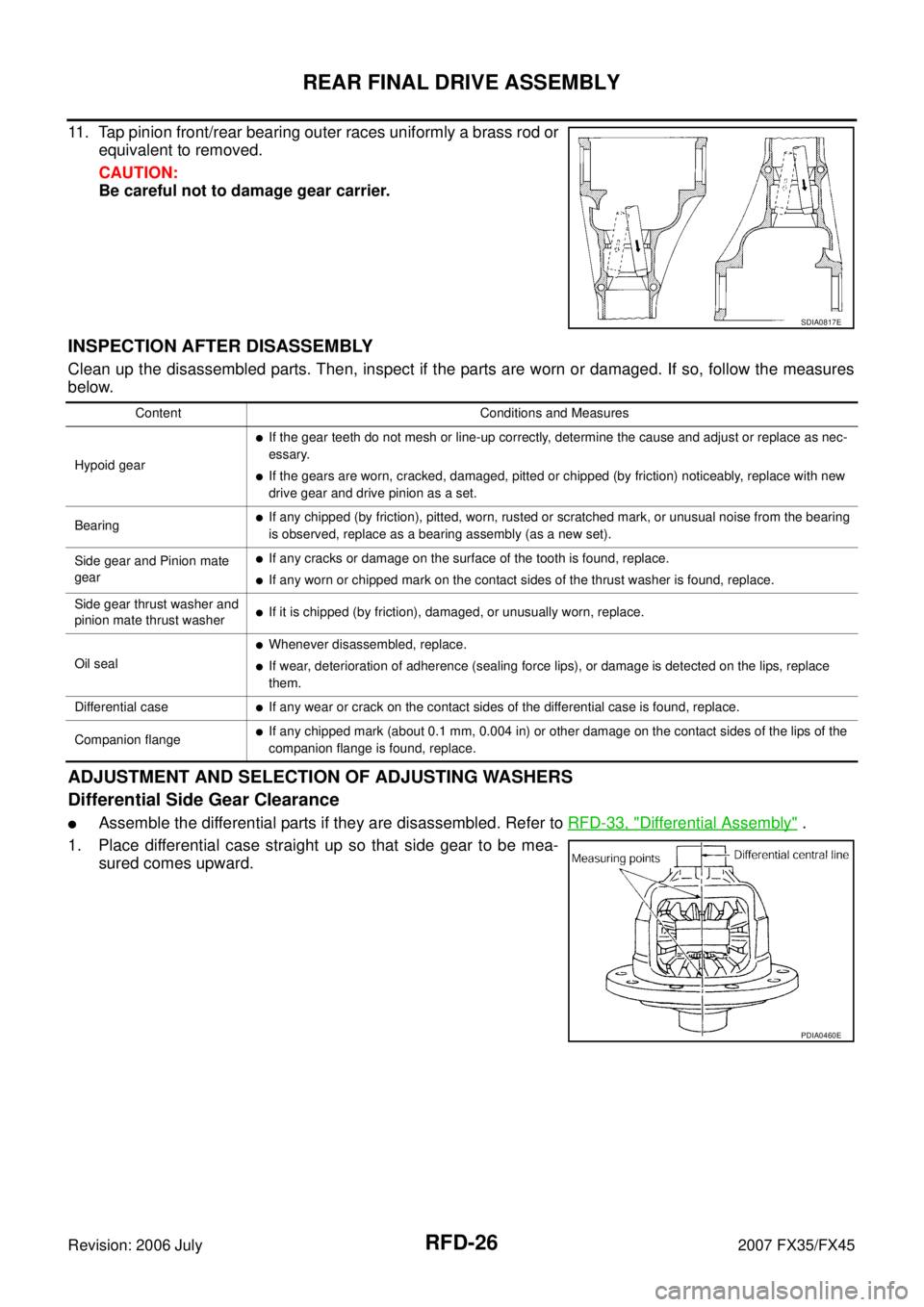

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-25 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 2. Remove drive pinion lock nut with the flange wrench. 3. Put matching mark (B) on the end

Page 3956 of 4366

INFINITI FX35 2007 Service Manual RFD-26 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 11. Tap pinion front/rear bearing outer races uniformly a brass rod or equivalent to removed. CAUTION: Be careful not to damage g

Page 3957 of 4366

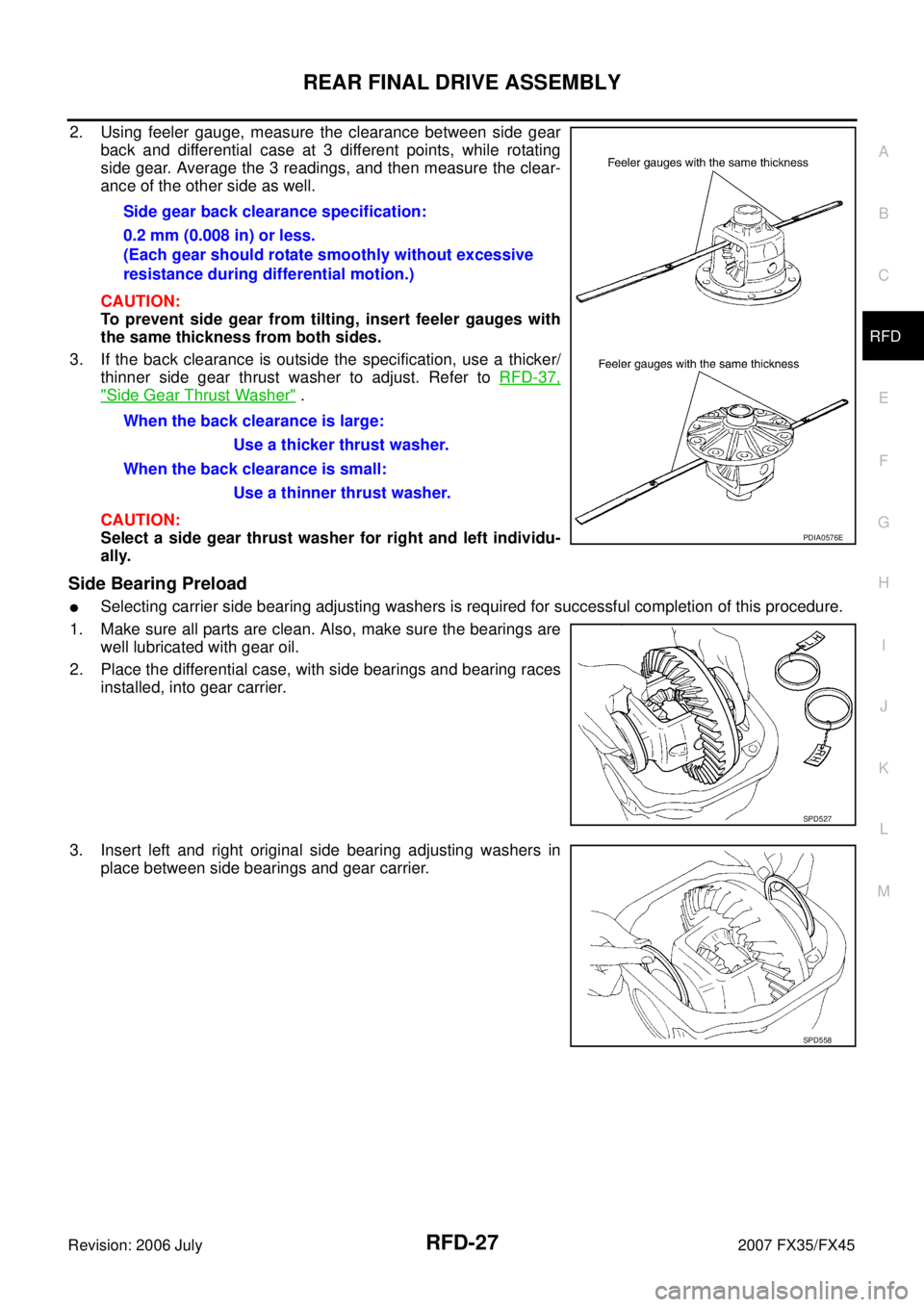

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-27 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 2. Using feeler gauge, measure the clearance between side gear back and differential case a

Page 3958 of 4366

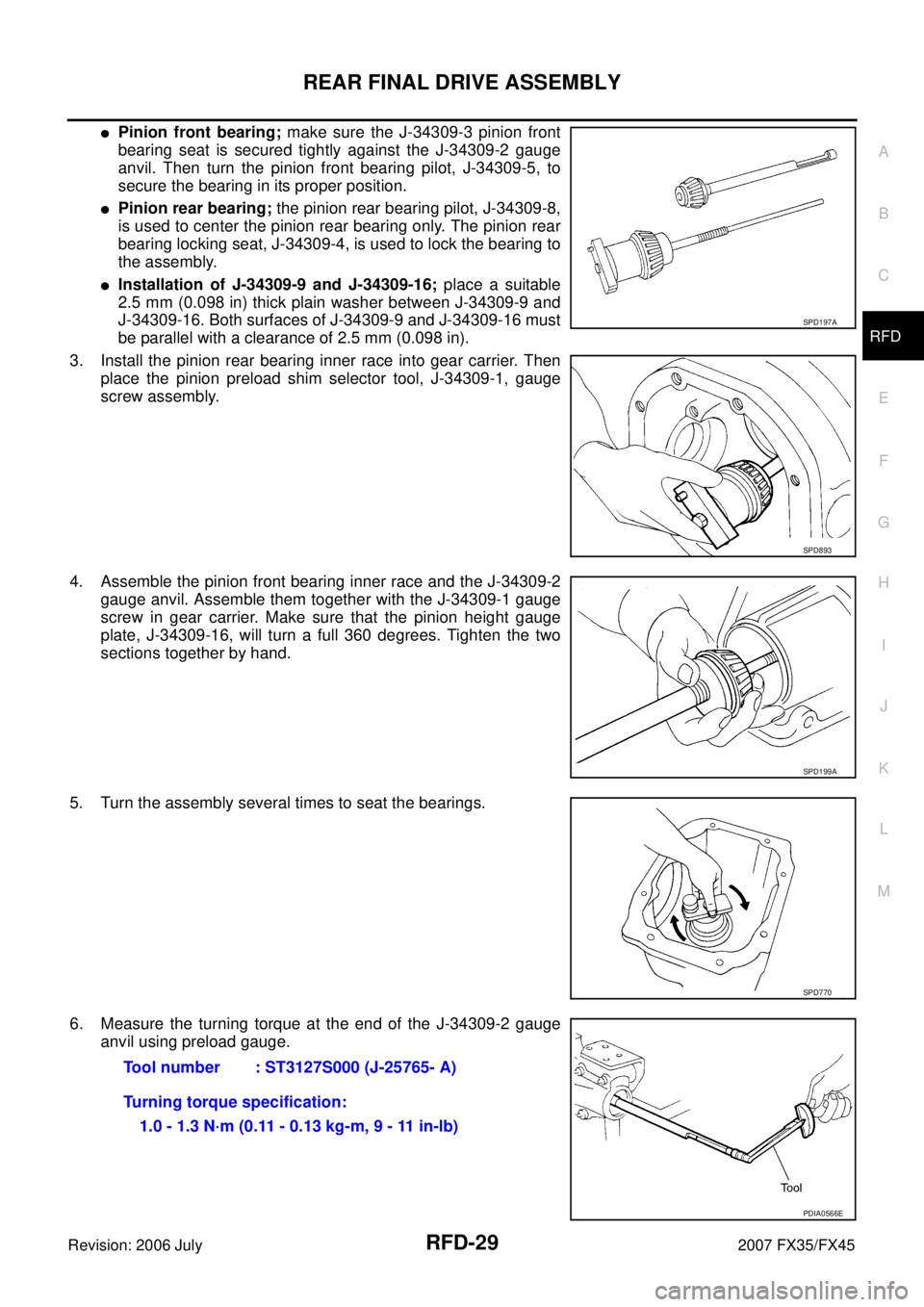

INFINITI FX35 2007 Service Manual RFD-28 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 4. Install bearing caps in their correct locations and tighten bearing cap mounting bolts to the specified torque. Refer to RFD-1

Page 3959 of 4366

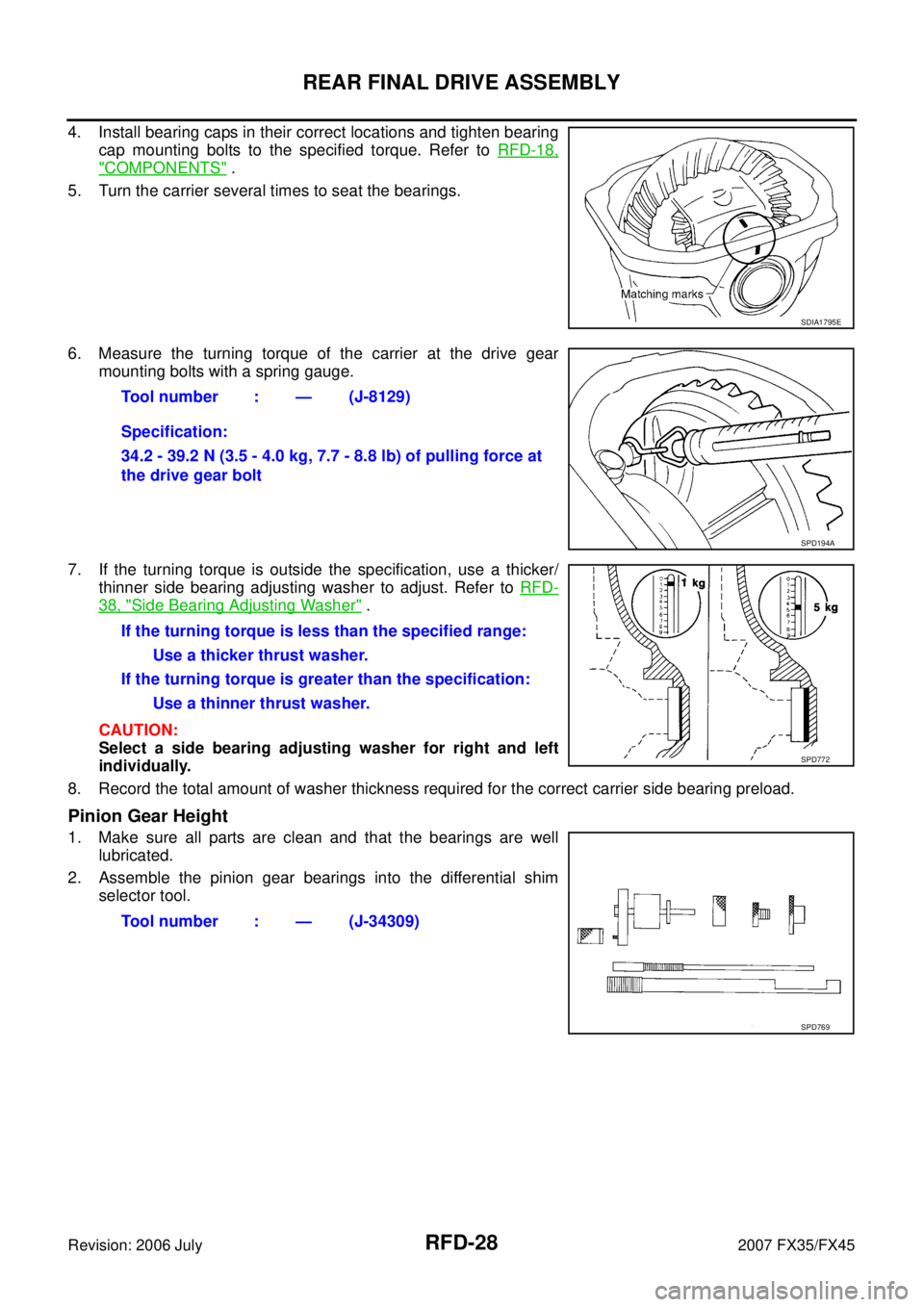

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-29 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 Pinion front bearing; make sure the J-34309-3 pinion front bearing seat is secured tightly

Page 3960 of 4366

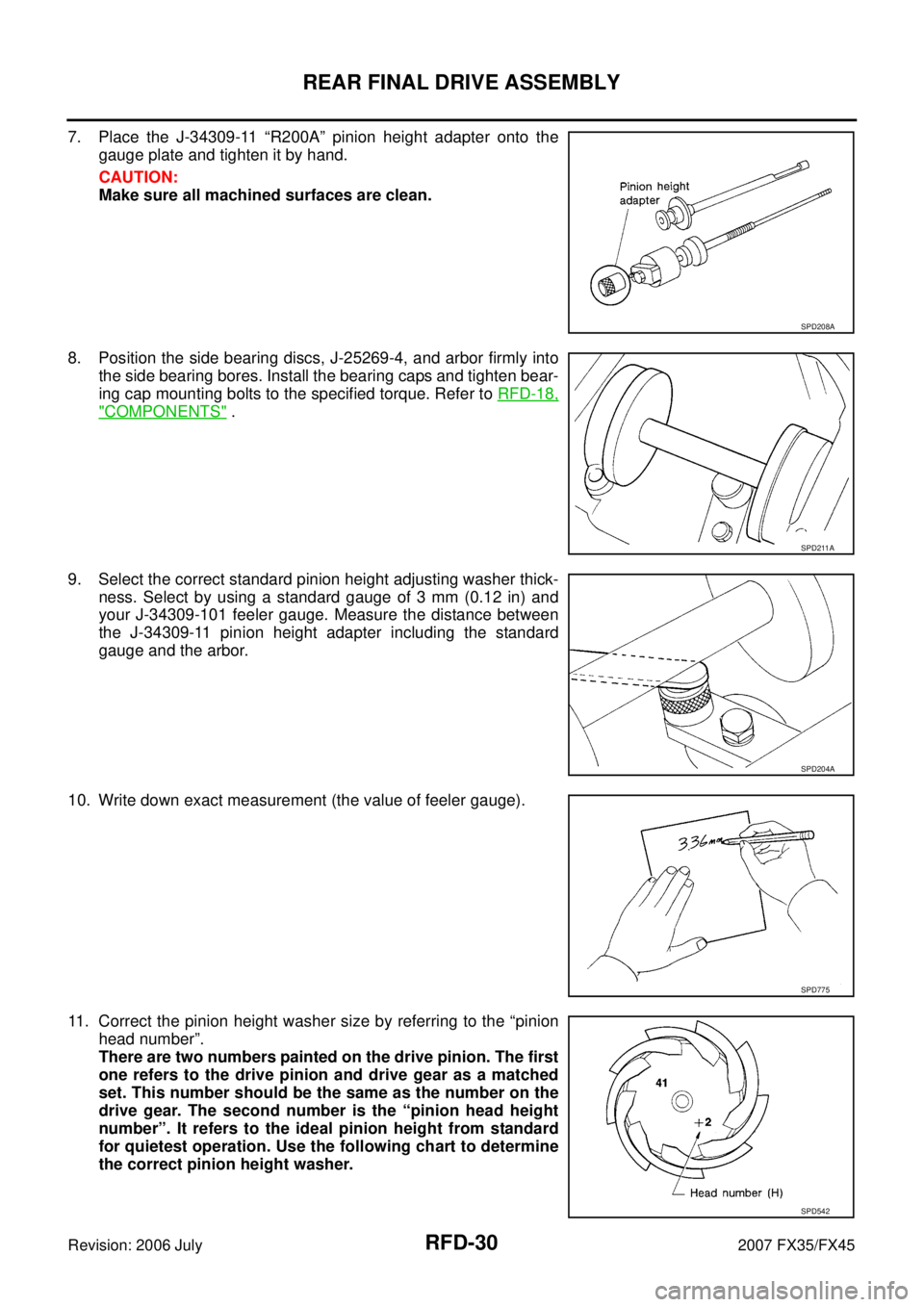

INFINITI FX35 2007 Service Manual RFD-30 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 7. Place the J-34309-11 “R200A” pinion height adapter onto the gauge plate and tighten it by hand. CAUTION: Make sure all mac
