NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH

Page 3170 of 4366

INFINITI FX35 2007 Service Manual FSU-6
FRONT SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
FRONT SUSPENSION ASSEMBLYPFP:54010
On-Vehicle Inspection and ServiceNES000I3
Make sure the mounting conditions (looseness, back lash)

FSU-6
FRONT SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
FRONT SUSPENSION ASSEMBLYPFP:54010
On-Vehicle Inspection and ServiceNES000I3
Make sure the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.
INSPECTION LOWER BALL JOINT END PLAY
1. Set front wheels in a straight-ahead position. Do not depress brake pedal.
2. Place an iron bar or similar tool between transverse link and steering knuckle.
3. Measure axial end play by prying it up and down.
CAUTION:
Be careful not to damage ball joint boot.
STRUT INSPECTION
Check strut for oil leakage, damage and replace if there are. Refer to FSU-11, "COIL SPRING AND
STRUT" .
Wheel Alignment InspectionNES000I4
DESCRIPTION
Measure wheel alignment under unladen conditions.
NOTE:
Unladen conditions mean that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and
mats are designated positions.
PRELIMINARY CHECK
Check tires for improper air pressure and wear.
Check road wheels for runout.
Check wheel bearing axial end play.
Check ball joint axial end play of compression rod, upper link, and steering knuckle
Check shock absorber operation.
Check each mounting part of axle and suspension for looseness and deformation.
Check each link, rod and member for cracks, deformation and other damage.
Check vehicle posture.
GENERAL INFORMATION AND RECOMMENDATIONS
A four-wheel thrust alignment should be performed.
–This type of alignment is recommended for any NISSAN/INFINITI vehicle.
–The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is
centered.
–The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.
–The rack should be checked to ensure that it is level.
Make sure the machine is properly calibrated.
–Your alignment equipment should be regularly calibrated in order to give correct information.
–Check with the manufacturer of your specific equipment for their recommended Service/Calibration
Schedule. Axial end play : 0 mm (0 in)

Page 3171 of 4366

INFINITI FX35 2007 Service Manual FRONT SUSPENSION ASSEMBLY FSU-7
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45
THE ALIGNMENT PROCESS
IMPORTANT:
Use only the alignment specifications listed in this Servi

FRONT SUSPENSION ASSEMBLY FSU-7
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45
THE ALIGNMENT PROCESS
IMPORTANT:
Use only the alignment specifications listed in this Service Manual.
When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do NOT use these indicators.
–The alignment specifications programmed into your machine that operate these indicators may not be cor-
rect.
–This may result in an ERROR.
Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). DO NOT use this “Rolling Compensation”
method.
–Use the “Jacking Compensation Method”. After installing the alignment targets or head units, raise the
vehicle and rotate the wheels 1/2 turn both ways.
–See Instructions in the alignment machine you're using for more information on this.
INSPECTION OF CAMBER, CASTER AND KINGPIN INCLINATION ANGLES
Camber, caster, kingpin inclination angles cannot be adjusted.
Before inspection, mount front wheels onto turning radius gauge. Mount rear wheels onto a stand that has
same height so vehicle will remain horizontal.
Using a CCK Gauge
Install CCK gauge attachment [SST: KV991040S0 ( – )] as following procedure in wheel, then measure
wheel alignment.
1. Remove wheel nuts (3), and install a guide bolts to hub bolts.
2. Screw adapter into plate body until it contacts plate tightly.
3. Screw center plate into plate.
4. Insert plate on guide bolts. Put spring in, and then evenly screw both guide bolt nuts. When fastening guide nuts, do not com-
pletely compress springs.
5. Place the dent of alignment gauge onto the projection of center plate and tightly contact them to measure.
CAUTION:
If camber, caster, or kingpin inclination angle is outside
the standard, check front suspension parts for wear and
damage, and replace suspect parts if necessary.
King pin inclination angle is reference value, no inspection is required. (Due to the type of sus-
pension, the kingpin inclination angle cannot be measured correctly using a normal alignment
tester.)
SEIA0240E
Standard value
Camber, caster, kingpin inclination angles: Refer to FSU-18, "
SERVICE DATA AND SPECIFI-
CATIONS (SDS)" .
SEIA0241E

Page 3172 of 4366

INFINITI FX35 2007 Service Manual FSU-8
FRONT SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNES000FQ
COMPONENTS
PEIA0101E

Page 3173 of 4366

INFINITI FX35 2007 Service Manual FRONT SUSPENSION ASSEMBLY FSU-9
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Set an engine slinger to engine, then suspend engine.
2. Remove tire from vehicl

FRONT SUSPENSION ASSEMBLY FSU-9
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Set an engine slinger to engine, then suspend engine.
2. Remove tire from vehicle with power tool.
3. Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to BR-
19, "FRONT DISC BRAKE" .
4. Remove brake hose lock plate. Then remove brake hose from strut assembly.
5. Remove disc rotor.
6. Remove wheel sensor harness from strut assembly. CAUTION:
Do not pull on wheel sensor harness.
7. Remove undercover with power tool.
8. Remove front cross bar.
9. Remove steering hydraulic piping bracket from front suspension member. Refer to PS-41, "
HYDRAULIC LINE" .
10. Remove cotter pin at steering outer socket, then loosen mount- ing nut.
11. Use a ball joint remover (SST) to remove steering outer socket from steering knuckle. Be careful not to damage ball joint boot.
CAUTION:
Tighten temporarily mounting nut to prevent damage to
threads and to prevent ball joint remover (SST) from com-
ing off.
12. Remove mounting bolts of steering gear with power tool, then hang steering gear on vehicle. Refer to PS-18, "
POWER
STEERING GEAR AND LINKAGE" .
13. Remove front final drive side of drive shaft with power tool. (For AWD models) Refer to FAX-15, "
Removal and Installation (Left
Side)" , FA X - 1 6 , "Removal and Installation (Right Side)" .
14. Set jack under front suspension member.
15. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.

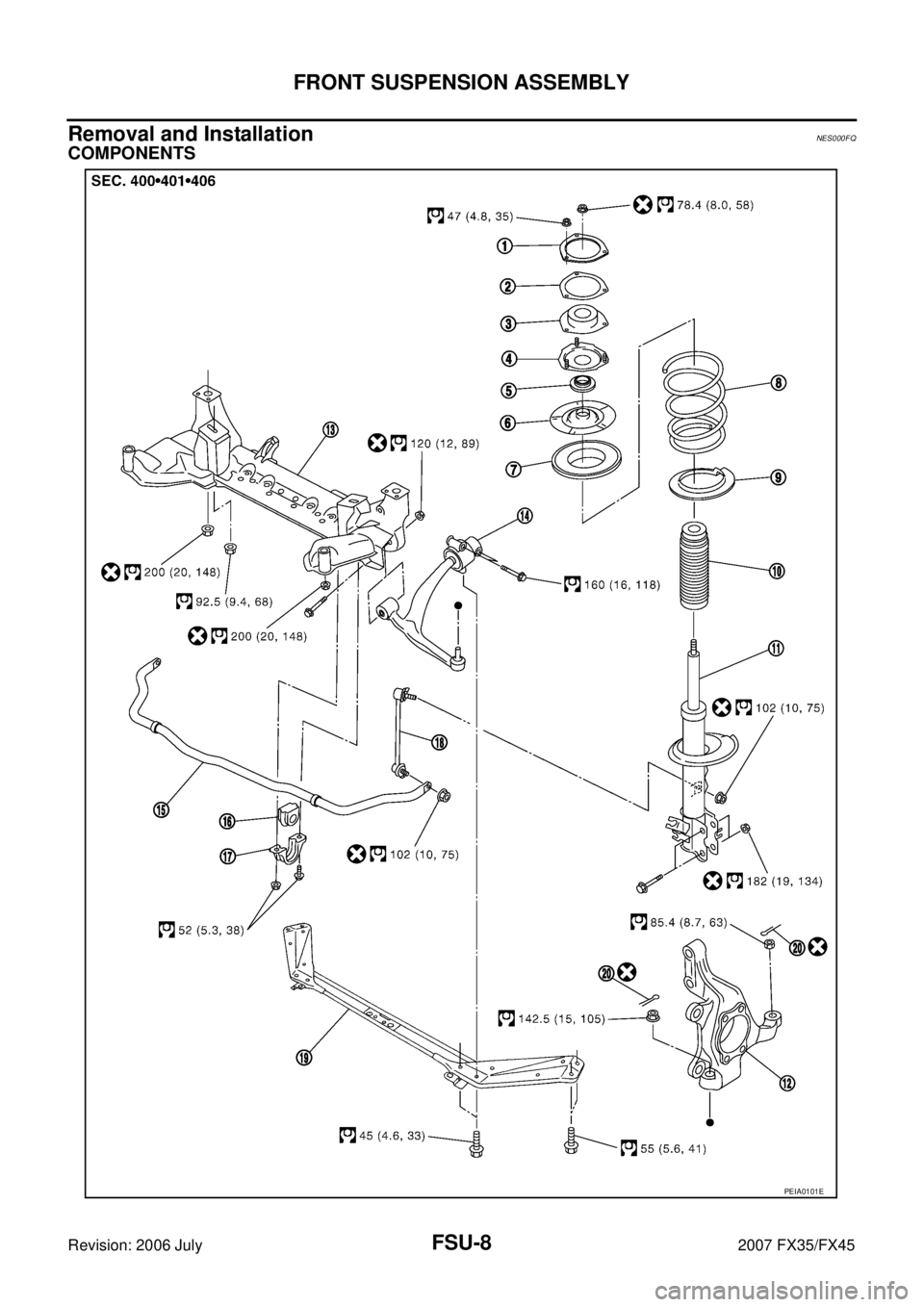

1. Strut upper plate 2. Strut spacer 3. Mounting insulator
4. Mounting insulator bracket 5. Mounting bearing 6. Spring upper seat
7. Spring upper rubber seat 8. Coil spring 9. Spring lower rubber seat
10. Bound bumper 11. Strut 12. Steering knuckle
13. Front suspension member 14. Transverse link 15. Stabilizer bar
16. Stabilizer bushing 17. Stabilizer clamp 18. Stabilizer connecting rod
19. Front cross bar 20. Cotter pin
Refer to GI-11, "
Components" , for the symbols in the figure.
SEIA0328E
SEIA0329E
PEIA0109E

Page 3174 of 4366

INFINITI FX35 2007 Service Manual FSU-10
FRONT SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
16. Remove stabilizer connecting rod upper nut with power tool,
separate stabilizer connecting rod and strut assembly.
17. Remove

Page 3175 of 4366

INFINITI FX35 2007 Service Manual COIL SPRING AND STRUT FSU-11
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45
COIL SPRING AND STRUTPFP:55302
Removal and InstallationNES000FS
REMOVAL
1. Remove tires from ve

Page 3176 of 4366

INFINITI FX35 2007 Service Manual FSU-12
COIL SPRING AND STRUT
Revision: 2006 July 2007 FX35/FX45
Attach strut upper plate as shown in the figure.
Disassembly and AssemblyNES000FT
DISASSEMBLY
NOTE:
Make sure piston rod on strut is n
