AIR CLEANER AND AIR DUCT EM-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
AIR CLEANER AND AIR DUCTPFP:16500
ComponentsNBS003G2
Removal and InstallationNBS003G3
REMOVAL
1. Remove engine cover with power tool. Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .
This work is unnecessary when parts located forward of mass air flow sensor are removed/installed.
2. Remove air duct (inlet) and power duct.
3. Disconnect mass air flow sensor harness connector.
4. Disconnect PCV hose.
5. Remove air cleaner case/mass air flow sensor and air duct disconnecting their joints.
Add marks as necessary for easier installation.
6. Remove mass air flow sensor from air cleaner case. CAUTION:
Handle mass air flow sensor with the following cares.
Do not shock it.
Do not disassemble it.
Do not touch its sensor.
7. Remove resonator in fender, lifting left fender protector.
INSPECTION AFTER REMOVAL
Inspect air hoses for cracks or tear.

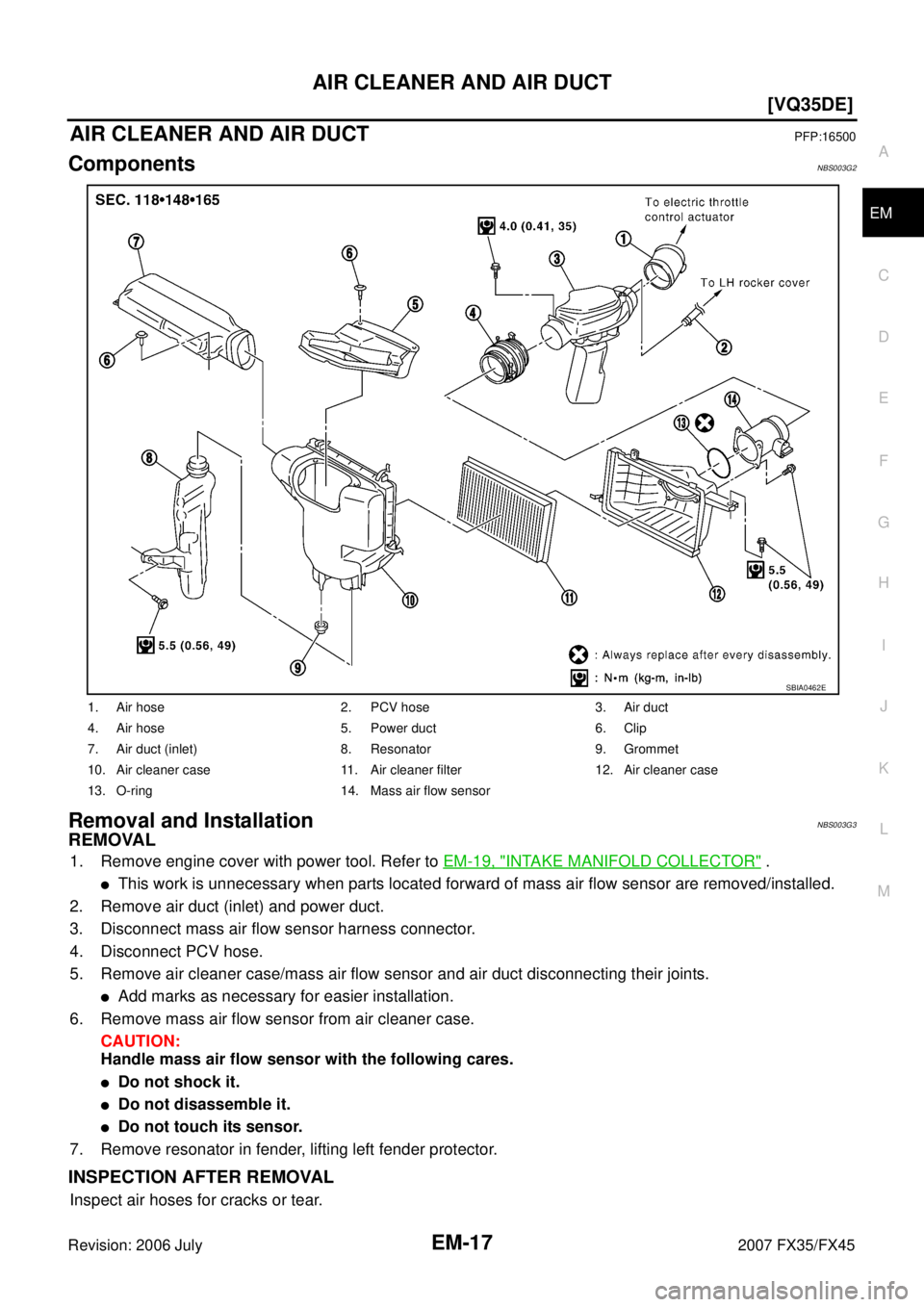

1. Air hose 2. PCV hose 3. Air duct
4. Air hose 5. Power duct 6. Clip
7. Air duct (inlet) 8. Resonator 9. Grommet
10. Air cleaner case 11. Air cleaner filter 12. Air cleaner case
13. O-ring 14. Mass air flow sensor
SBIA0462E
Page 2810 of 4366
![INFINITI FX35 2007 Service Manual EM-18
[VQ35DE]
AIR CLEANER AND AIR DUCT
Revision: 2006 July 2007 FX35/FX45
If anything found replace air hose.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align mar INFINITI FX35 2007 Service Manual EM-18
[VQ35DE]
AIR CLEANER AND AIR DUCT
Revision: 2006 July 2007 FX35/FX45
If anything found replace air hose.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align mar](/manual-img/42/57018/w960_57018-2809.png)
EM-18
[VQ35DE]
AIR CLEANER AND AIR DUCT
Revision: 2006 July 2007 FX35/FX45
If anything found replace air hose.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align marks. Attach each joint. Screw clamps firmly.
To position air cleaner case, refer to EM-18, "Changing Air Cleaner Filter" .
Changing Air Cleaner FilterNBS003G4
INSPECTION
Check status (fouling, damage, etc.) of air cleaner filter at power duct
hole.
REMOVAL
Removal in the order below.
1. Remove air duct (inlet) from air cleaner case.
2. Disconnect harness connector from mass air flow sensor.
3. Loosen clamp bolts of air hose.
4. Remove mounting bolts for air cleaner case. Remove air cleaner case/mass air flow sensor/air hose assembly.
5. Unhook clips and open air cleaner case, and remove air cleaner filter.
INSTALLATION
Note the following, and install in the reverse order of removal.
If grommet at bottom of air cleaner case comes off together with
air cleaner case, fix it to vehicle before installation.
Look at internal bottom face through power duct hole, and posi-
tion air cleaner case with resonator upper end circle and air
cleaner case round hole aligned. Then push air cleaner case
straight down.
At this time, check by hand if protrusion at bottom of air cleaner
case has been inserted into grommet on vehicle side.
Clip power duct with bulge on reverse side of lower end
engaged with air cleaner case.
SBIA0463E
SBIA0464E
KBIA0954E
Page 2811 of 4366
INTAKE MANIFOLD COLLECTOR EM-19
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
INTAKE MANIFOLD COLLECTORPFP:14003
ComponentsNBS003G5
Removal and InstallationNBS003G6
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain engine coolant when the engine is hot.
Gasket for intake manifold collector (upper) is secured together with mounting bolt for intake man-
ifold collector (lower). Thus, even when only gasket for upper side is replaced, gasket for lower
side must be also replaced.

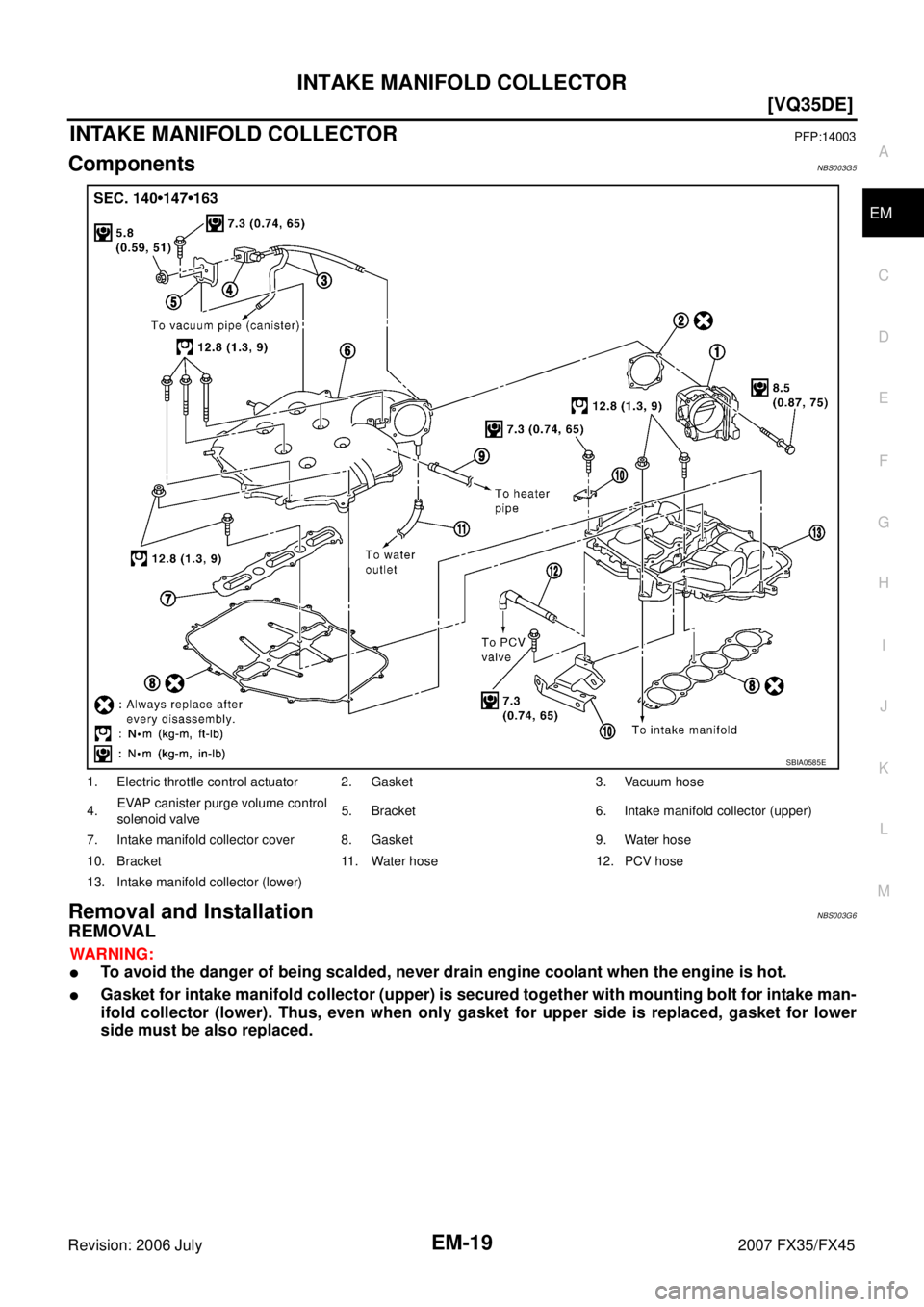

1. Electric throttle control actuator 2. Gasket 3. Vacuum hose
4. EVAP canister purge volume control
solenoid valve 5. Bracket 6. Intake manifold collector (upper)
7. Intake manifold collector cover 8. Gasket 9. Water hose
10. Bracket 11. Water hose 12. PCV hose
13. Intake manifold collector (lower)
SBIA0585E
Page 2812 of 4366
![INFINITI FX35 2007 Service Manual EM-20
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
1. Remove engine cover with power tool.
2. Disconnect water hoses from intake manifold collector (upper), attach blind plug INFINITI FX35 2007 Service Manual EM-20
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
1. Remove engine cover with power tool.
2. Disconnect water hoses from intake manifold collector (upper), attach blind plug](/manual-img/42/57018/w960_57018-2811.png)
EM-20
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
1. Remove engine cover with power tool.
2. Disconnect water hoses from intake manifold collector (upper), attach blind plug to prevent engine coolant leakage.
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
3. Remove air cleaner case and air duct. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Remove electric throttle control actuator as the following:
a. Disconnect harness connector.
b. Loosen mounting bolts in reverse order as shown in the figure. CAUTION:
Handle carefully to avoid any shock to electric throttle
control actuator.
Do not disassemble.
5. Remove fuel sub-tube mounting bolt to disconnect from rear of intake manifold collector (lower). Refer to EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
6. Disconnect vacuum hose and water hose from intake manifold collector (upper).
7. Remove EVAP canister purge volume control solenoid valve bracket mounting bolt from intake manifold collector (upper).
SBIA0486E
KBIA0957E
Page 2813 of 4366
INTAKE MANIFOLD COLLECTOR EM-21
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
8. Loosen mounting bolts in reverse order of illustration to remove
intake manifold collector (upper) with power tool.
9. Remove PCV hose [between intake manifold collector (lower) and rocker cover (right bank)].
10. Loosen mounting bolts in reverse order as shown in the figure, and remove intake manifold collector cover, gasket, intake man-
ifold collector (lower) and gasket with power tool.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of both the intake manifold collector
(upper and lower) mating surfaces with a straightedge and a
feeler gauge.
If it exceeds the limit, replace intake manifold collector (upper
and/or lower).
PBIC0773E
PBIC0774E
Limit : 0.1 mm (0.004 in)
PBIC0775E
Page 2814 of 4366
![INFINITI FX35 2007 Service Manual EM-22
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
Part Installation Direction
Referring to front INFINITI FX35 2007 Service Manual EM-22
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
Part Installation Direction
Referring to front](/manual-img/42/57018/w960_57018-2813.png)
EM-22
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
Part Installation Direction

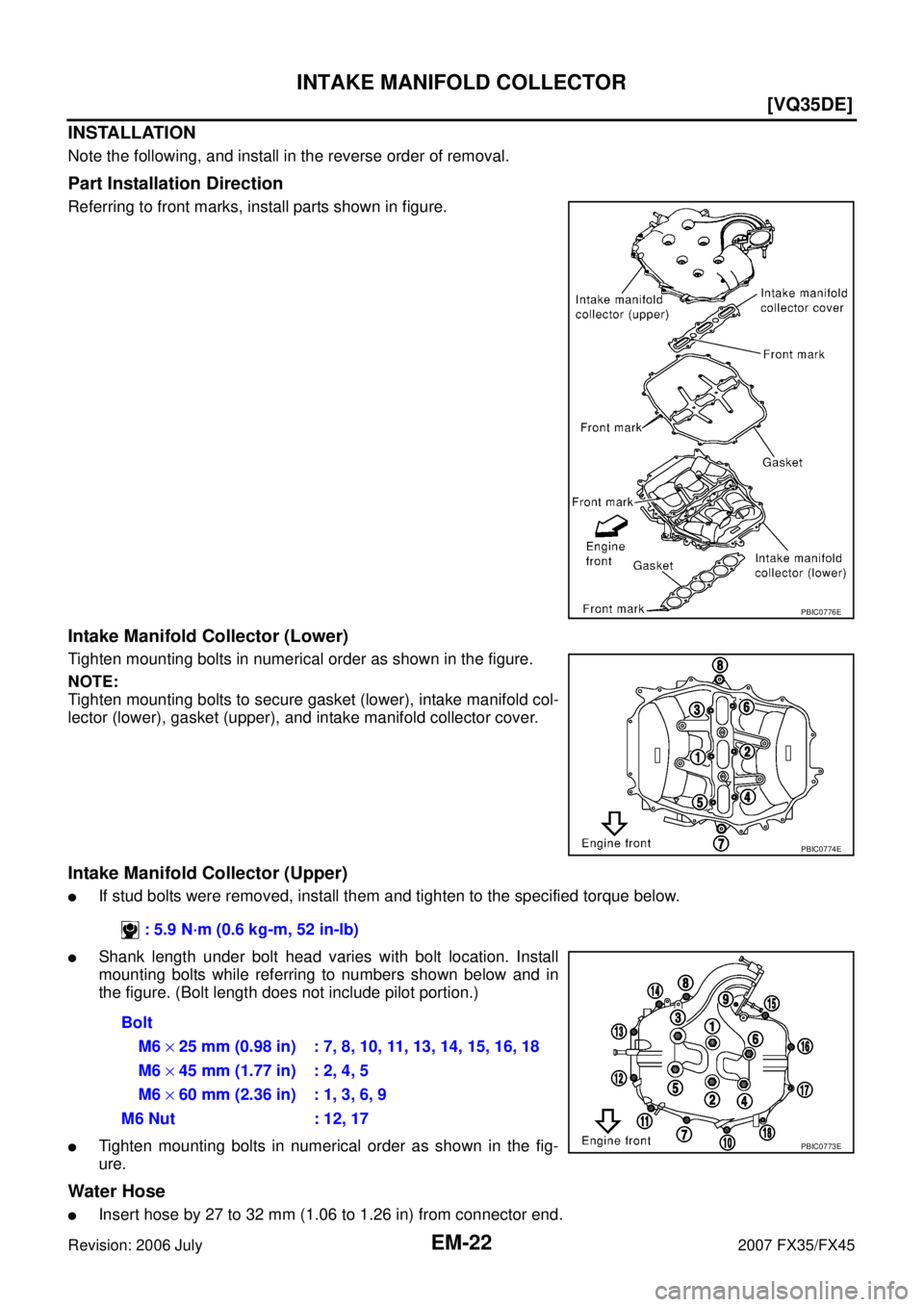

Referring to front marks, install parts shown in figure.
Intake Manifold Collector (Lower)
Tighten mounting bolts in numerical order as shown in the figure.
NOTE:
Tighten mounting bolts to secure gasket (lower), intake manifold col-
lector (lower), gasket (upper), and intake manifold collector cover.
Intake Manifold Collector (Upper)
If stud bolts were removed, install them and tighten to the specified torque below.
Shank length under bolt head varies with bolt location. Install
mounting bolts while referring to numbers shown below and in
the figure. (Bolt length does not include pilot portion.)
Tighten mounting bolts in numerical order as shown in the fig-
ure.
Water Hose
Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
PBIC0776E
PBIC0774E
: 5.9 N·m (0.6 kg-m, 52 in-lb)
Bolt M6 × 25 mm (0.98 in) : 7, 8, 10, 11, 13, 14, 15, 16, 18
M6 × 45 mm (1.77 in) : 2, 4, 5
M6 × 60 mm (2.36 in) : 1, 3, 6, 9
M6 Nut : 12, 17
PBIC0773E
Page 2815 of 4366
INTAKE MANIFOLD COLLECTOR EM-23
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Clamp hose at location of 3 to 7 mm (0.12 to 0.28 in) from hose end.
Electric Throttle Control Actuator

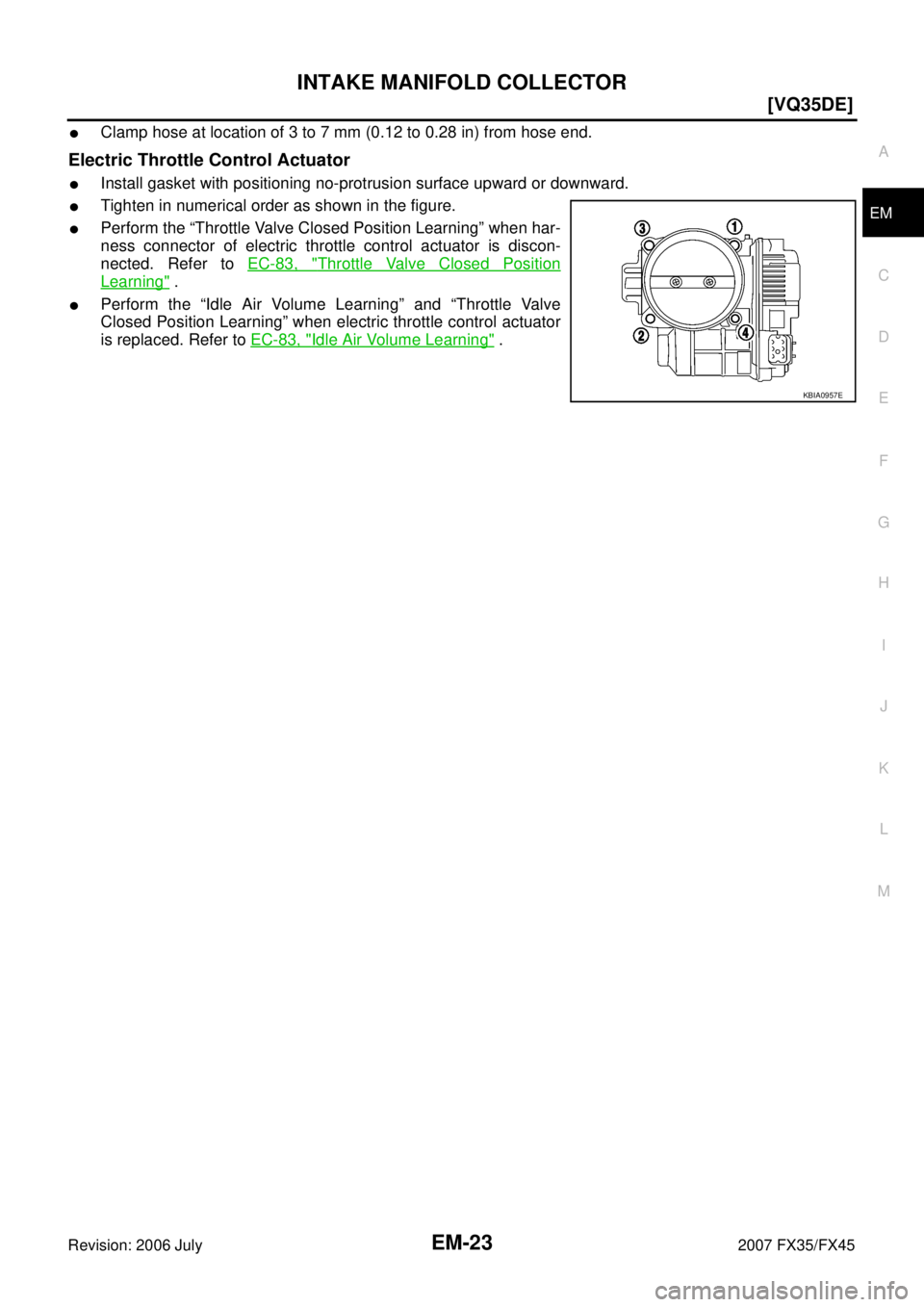

Install gasket with positioning no-protrusion surface upward or downward.
Tighten in numerical order as shown in the figure.
Perform the “Throttle Valve Closed Position Learning” when har-
ness connector of electric throttle control actuator is discon-
nected. Refer to EC-83, "
Throttle Valve Closed Position
Learning" .
Perform the “Idle Air Volume Learning” and “Throttle Valve
Closed Position Learning” when electric throttle control actuator
is replaced. Refer to EC-83, "
Idle Air Volume Learning" .
KBIA0957E
Page 2816 of 4366
EM-24
[VQ35DE]
INTAKE MANIFOLD
Revision: 2006 July 2007 FX35/FX45
INTAKE MANIFOLDPFP:14003
ComponentsNBS003G7
Removal and InstallationNBS003G8
REMOVAL
1. Release fuel pressure. Refer to EC-85, "FUEL PRESSURE RELEASE" .
2. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
3. Remove fuel tube and fuel injector assembly. Refer to EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
4. Loosen mounting bolts and nuts in reverse order as shown in the figure to remove intake manifold with power tool.
5. Remove gaskets. CAUTION:
Cover engine openings to avoid entry of foreign materials.

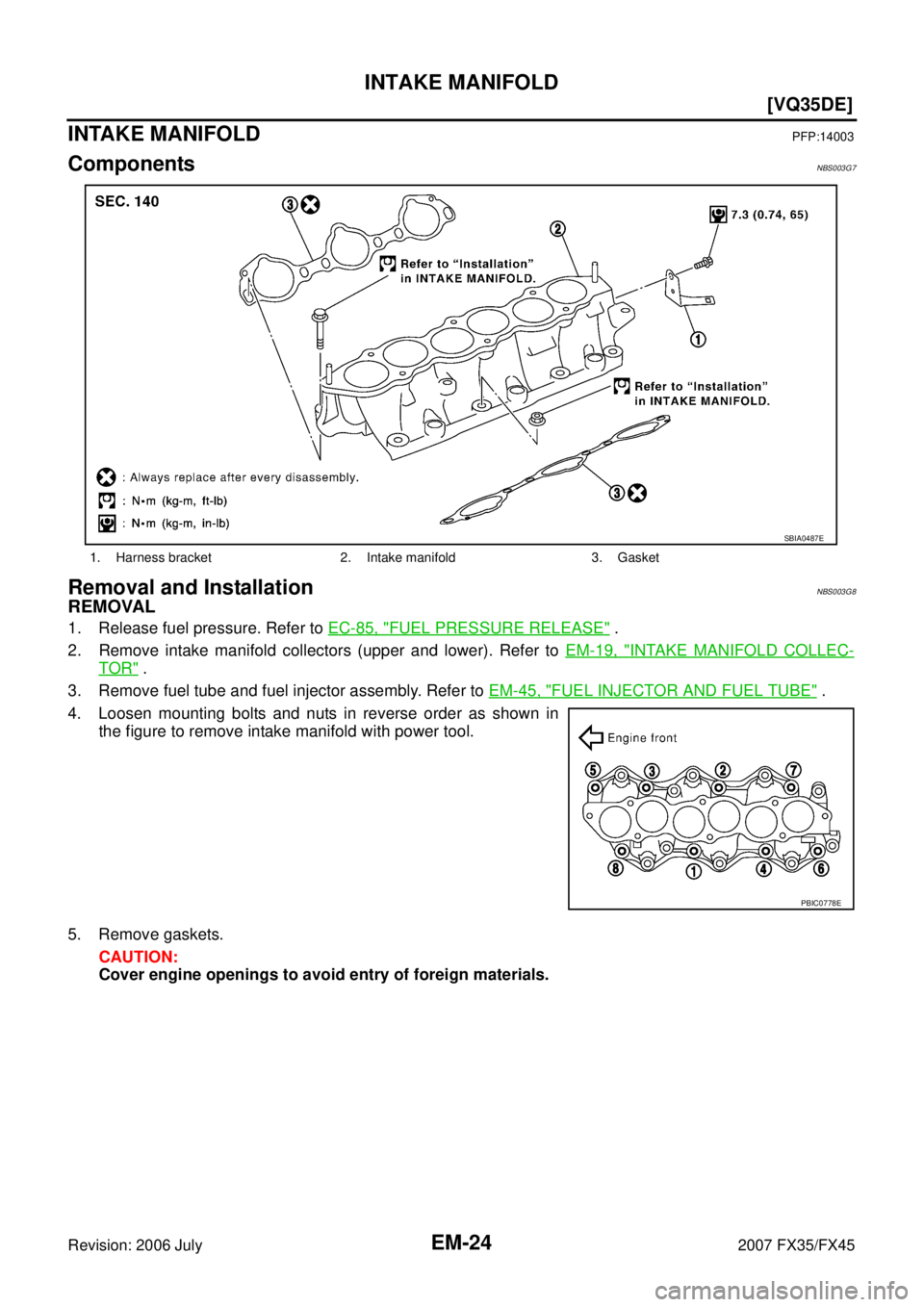

1. Harness bracket 2. Intake manifold 3. Gasket
