Page 977 of 4366
BACK DOOR AUTO CLOSURE SYSTEM BL-165
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
OPEN OPERATION
When passenger side door unlock and back door shuts, back door opener switch is pushed.
Back door closure control unit receives the signal, closure motor is operated in an open direction, and
back door opens.
Closure motor is operated in the close direction and stops at a neutral position when the following condi-
tions detected after turning on open switch.
–When back door is in half-open state, and
–5 seconds past without opening back door.
PIIA6187E
Page 978 of 4366
BL-166
BACK DOOR AUTO CLOSURE SYSTEM
Revision: 2006 July 2007 FX35/FX45

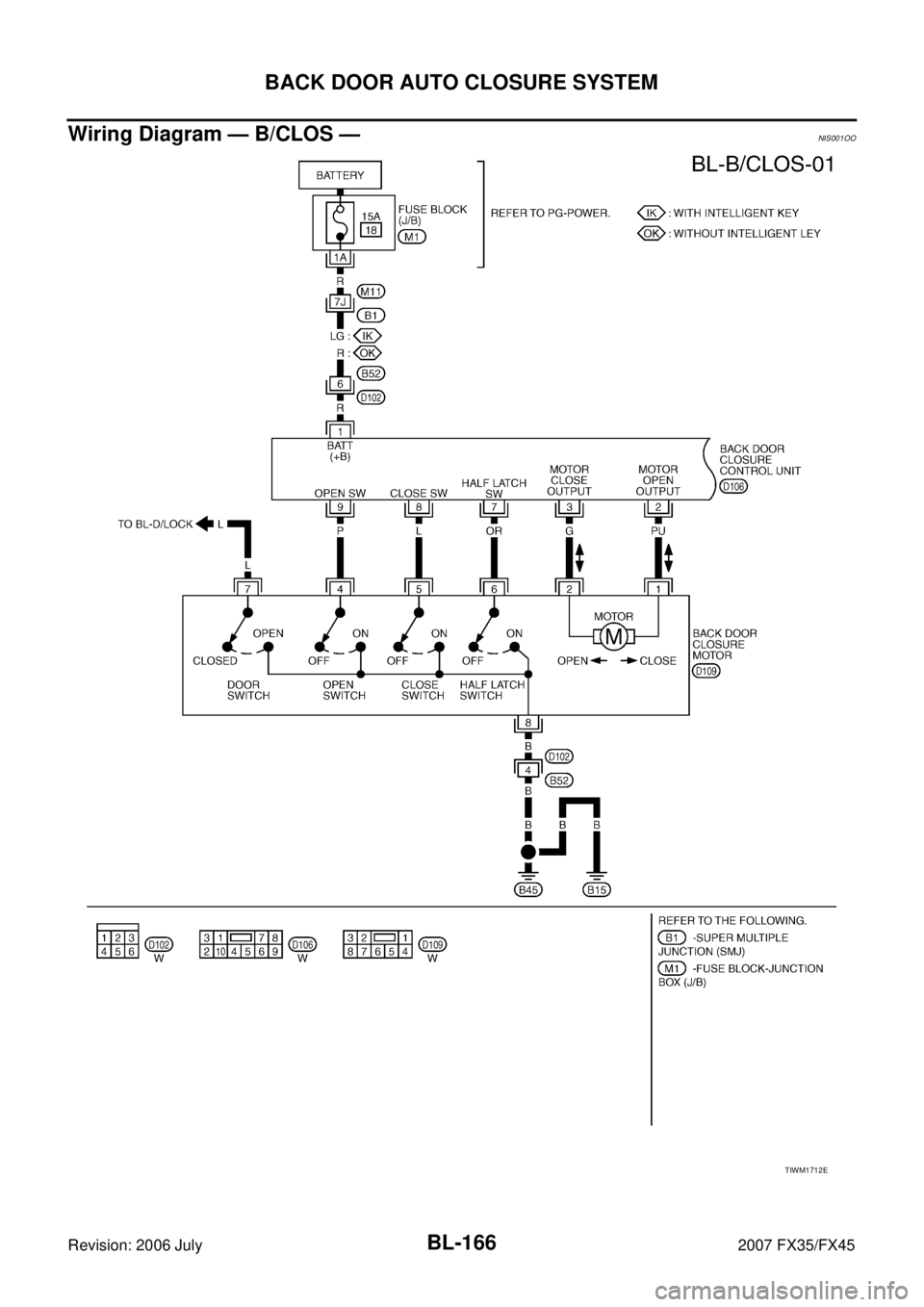

Wiring Diagram — B/CLOS —NIS001OO
TIWM1712E
Page 979 of 4366
BACK DOOR AUTO CLOSURE SYSTEM BL-167
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
TIWM1672E
Page 980 of 4366
BL-168
BACK DOOR AUTO CLOSURE SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Back Door Closure Control UnitNIS001OP
*, (): Models with Intelligent Key Termi-
nal Wire
color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
1 R Power source (Fuse) Input — Battery voltage
2 PU Closure motor (open) signal Output Fully close → fully open
3 G Closure motor (close) signal Output Fully open → fully close
4 B Ground — — 0
5 W
(B) Ground* — — 0*
Unlock sensor signal
(passenger side) Input Passenger side door lock is
locked 5
Passenger side door lock is
unlocked 0
6 Y
(LG) Back door opener switch
signal Input Back door opener switch is ON 0
Other than above 5
7 OR Half-latch switch signal Input Fully open → fully close
8 L Close switch signal Input Fully open → fully close
9 P Open switch signal Input Fully open → fully close
SIIA1480J
SIIA1480J
SIIA1479J
SIIA1478J
SIIA1481J
Page 981 of 4366

BACK DOOR AUTO CLOSURE SYSTEM BL-169
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Work FlowNIS001OQ
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-164, "
System Description" .
3. Perform the preliminary check, Refer to BL-169, "
Preliminary Check"
4. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to BL-169,
"Trouble Diagnosis Chart by Symptom" .
5. Does back door auto closure system operate normally? If Yes, GO TO 6, If No, GO TO 4.
6. INSPECTION END
Preliminary CheckNIS001OR
Remove the fuse No.18 for the back door closure with the back door closure inactive.
Check that the back door can be open / close normally.
CAUTION:
It is judged it is abnormal, discontinues closure operation, and drive lever returns to a neutral position
if not becoming full-latch within about three seconds after half-latch.
When this operation is done continuously three times, both back door closure and back door opener
switch are not operated because the function of back door closure is stopped.
Thing to reset power supply by pulling out and opening fuse in that case.
Trouble Diagnosis Chart by SymptomNIS001OS
Symptom Diagnostic procedure and repair order Refer to page
Back door closure does not operate. 1. Check back door closure motor power supply and
ground circuit BL-170
2. Check half-latch switch
BL-170
3. Check close switchBL-172
4. Check open switchBL-173
5. Check closure motorBL-179
6. Replace back door closure control unit.BL-179
Back door does not open (with Intelligent Key system). 1. Check Intelligent Key system
BL-1152. Check back door opener switchBL-174
Back door does not open 1. Check back door opener switch
BL-1762. Check unlock sensorBL-178
3. Replace back door closure control unit.BL-179
Back door does not enter fully closed states through
back door closure operates. 1. Back door fitting adjustment.
BL-158
2. Replace back door lock assembly.BL-162
Page 982 of 4366

BL-170
BACK DOOR AUTO CLOSURE SYSTEM
Revision: 2006 July 2007 FX35/FX45
Check Back Door Closure Control Unit Power Supply and Ground CircuitNIS001OT
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between back door closure control unit connector D106 terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following.
15A fuse [No.18, located in fuse block (J/B)]
Harness for open or short between back door closure
control unit and fuse.
2. CHECK GROUND CIRCUIT
1. Disconnect back door closure control unit connector.
2. Check continuity between back door closure control unit con- nector D106 terminal 4 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace harness.
Check Half-Latch SwitchNIS001OU
1. CHECK HALF-LATCH SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Check the signal between back door closure control unit connector and ground with oscilloscope.
OK or NG
OK >> Half-latch switch is OK.
NG >> GO TO 2. 1 (R) – Ground : Battery voltage
PIIA6166E
4 (B) – Ground : Continuity should exist.
PIIA6167E
Con-
nector Terminals (Wire color)
Back door
condition Signal
(Reference value)
(+) (-)
D106 7 (OR) Ground Fully open
→
fully closed
PIIA6168E
SIIA1479J
Page 983 of 4366

BACK DOOR AUTO CLOSURE SYSTEM BL-171
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
2. CHECK HARNESS CONTINUITY
1. Disconnect back door closure control unit and back door closure motor connector.
2. Check continuity between back door closure control unit con- nector D106 terminal 7 and back door closure motor connector
D109 terminal 6.
3. Check continuity between back door closure control unit con- nector D106 terminal 7 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
Check continuity between back door closure motor connector D109
terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BACK DOOR CLOSURE CONTROL UNIT OUTPUT SIGNAL
1. Connect back door closure control unit connector.
2. Check voltage between back door closure control unit connector D106 terminal 7 and ground.
OK or NG
OK >> Replace back door lock assembly.
NG >> Replace back door closure control unit. 7 (OR) – 6 (OR) : Continuity should exist.
7 (OR) – Ground : Continuity should not exist.
PIIA6169E
8 (B) – Ground : Continuity should exist.
PIIA6170E
Back door is closed
7 (OR) – Ground : Battery voltage
PIIA6172E
Page 984 of 4366

BL-172
BACK DOOR AUTO CLOSURE SYSTEM
Revision: 2006 July 2007 FX35/FX45
Check Close SwitchNIS001OV
1. CHECK CLOSE SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Check the signal between back door closure control unit connector and ground with oscilloscope.
OK or NG
OK >> Close switch is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect back door closure control unit and back door closure motor connector.
2. Check continuity between back door closure control unit con- nector D106 terminal 8 and back door closure motor connector
D109 terminal 5.
3. Check continuity between back door closure control unit con- nector D106 terminal 8 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
Check continuity between back door closure motor connector D109
terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Con-
nector Terminals (Wire color)
Back door
condition Signal
(Reference value)
(+) (-)
D106 8 (L) Ground Fully open
→
fully closed
PIIA6171E
SIIA1478J
8 (L) – 5 (L) : Continuity should exist.
8 (L) – Ground : Continuity should not exist.
PIIA6174E
8 (B) – Ground : Continuity should exist.
PIIA6170E
