Page 1129 of 4366
![INFINITI FX35 2007 Service Manual PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR INFINITI FX35 2007 Service Manual PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR](/manual-img/42/57018/w960_57018-1128.png)
PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemNFS000MX
Recommended fluid is brake fluid “DOT 3”. Refer to MA-12, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.
Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.
Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.
Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.
Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.
When installing brake piping, be sure to check torque.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlNFS000MY
During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.
Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
noise may be heard from engine room. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.
If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
SBR686C
Page 1130 of 4366
![INFINITI FX35 2007 Service Manual BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfu INFINITI FX35 2007 Service Manual BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfu](/manual-img/42/57018/w960_57018-1129.png)
BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfunction or error.
If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.
If the following components are replaced with non-genuine components or converted, VDC OFF indicator
lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (shock absorber, strut, spring, bushing, etc.), Tires, wheels (exclude specified size),
components related to brake (pad, rotor, caliper, etc.), components related to engine (muffler, ECM, etc.),
components related to body reinforcement (roll bar, tower bar, etc.).
Driving in the condition of breakage or excessive wear of suspension, tires or components related to the
brakes may cause VDC OFF indicator lamp and SLIP indicator lamp turn on, and the VDC system may
not operate properly.
When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur. The
noise is a result of the normal operation of the TCS and VDC.
When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or VDC OFF indicator lamp and SLIP
indicator lamp may turn on. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.
Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC OFF
SW ON) may cause the G sensor system indicate a malfunction. However, this is not a malfunction, if nor-
mal operation can be resumed after restarting engine.
Change 4 tires at a time. Be sure to use specified-size tires that have the same brand name and pattern.
Wheel sensor errors can be detected be self-diagnosis when tires have wide abrasion variations or the
size is different from the genuine tires.
Page 1131 of 4366
PREPARATION BRC-5
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002

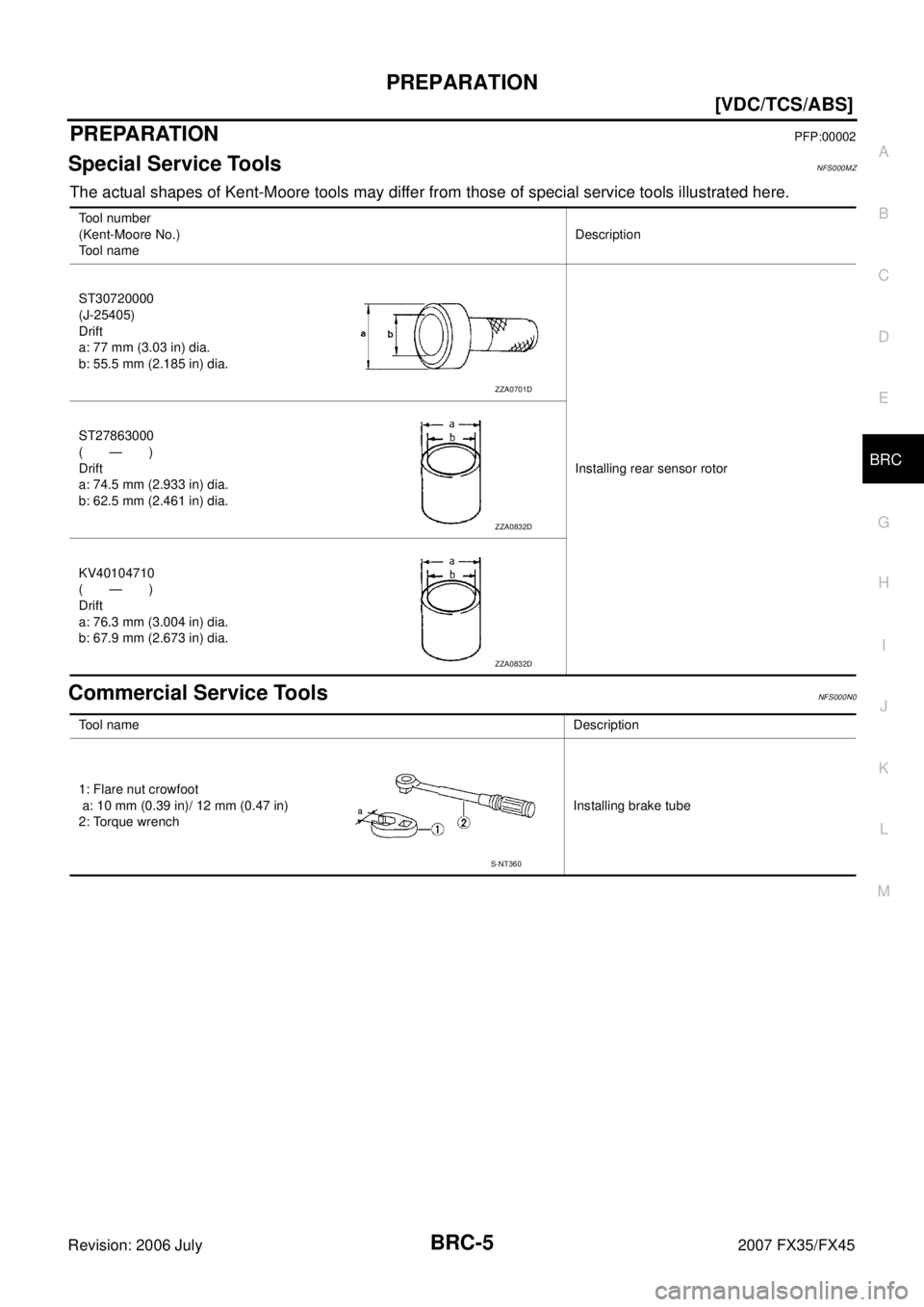

Special Service ToolsNFS000MZ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNFS000N0
Tool number
(Kent-Moore No.)
Tool name Description
ST30720000
(J-25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.
Installing rear sensor rotor
ST27863000
(—)
Drift
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.
KV40104710
(—)
Drift
a: 76.3 mm (3.004 in) dia.
b: 67.9 mm (2.673 in) dia.
ZZA0701D
ZZA0832D
ZZA0832D
Tool name Description
1: Flare nut crowfoot
a: 10 mm (0.39 in)/ 12 mm (0.47 in)
2: Torque wrench Installing brake tube
S-NT360
Page 1132 of 4366
![INFINITI FX35 2007 Service Manual BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionNFS000N1
In case of doing work that applies to INFINITI FX35 2007 Service Manual BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionNFS000N1
In case of doing work that applies to](/manual-img/42/57018/w960_57018-1131.png)
BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionNFS000N1
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II.
(Adjustment can not be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Touch “ABS”, “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-II screen in this order.
4. Touch “START”. CAUTION:
Do not touch steering wheel while adjusting steering angle
sensor.
5. After approximately 10 seconds, touch “END”. (After approxi- mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
7. Run vehicle with front wheels in straight-ahead position, then stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen. Then make sure “STR ANGLE SIG” is within 0 ± 3.5 deg. If value is more than specification, repeat steps
3 to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering angle sensor ×
Removing/Installing steering components ×
Removing/Installing suspension components ×
Change 4 tires to new ones —
Tire rotation —
Adjusting wheel alignment ×
SFIA0371E
Page 1133 of 4366
![INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE BRC-7
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Calibration of Decel G Sensor (AWD Models)NFS000N2
NOTE:
After removing/installing o INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE BRC-7
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Calibration of Decel G Sensor (AWD Models)NFS000N2
NOTE:
After removing/installing o](/manual-img/42/57018/w960_57018-1132.png)
ON-VEHICLE SERVICE BRC-7
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Calibration of Decel G Sensor (AWD Models)NFS000N2
NOTE:
After removing/installing or replacing yaw rate/side/decel G sensor, ABS actuator and electric unit (control
unit), suspension components, or after adjusting wheel alignment, make sure to calibration of decel G sensor
before running vehicle.
CAUTION:
To calibrate decel G sensor, make sure to use CONSULT-II. (Adjustment can not be done without CON-
SULT-II.)
1. Stop vehicle with front wheels in straight-ahead position. CAUTION:
The work should be done at a horizontal place when vehicle is in the unloaded vehicle condi-
tion.
Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure
value.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Touch “ABS”, “WORK SUPPORT” and “DECEL G-SEN CALIBRATION” on CONSULT-II screen in this order.
4. Touch “START”. CAUTION:
Set vehicle as shown in the display.
5. After approximately 10 seconds, touch “END”. (After approxi- mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to perform above operation.
7. Run vehicle with front wheels in straight-ahead position, then stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “DECEL G-SEN” on CONSULT-II screen. Then make sure “DECEL G-SEN” is within 0 ± 0.08 G. If value is
more than specification, repeat steps 3 to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
SFIA1162E
Page 1134 of 4366
![INFINITI FX35 2007 Service Manual BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000

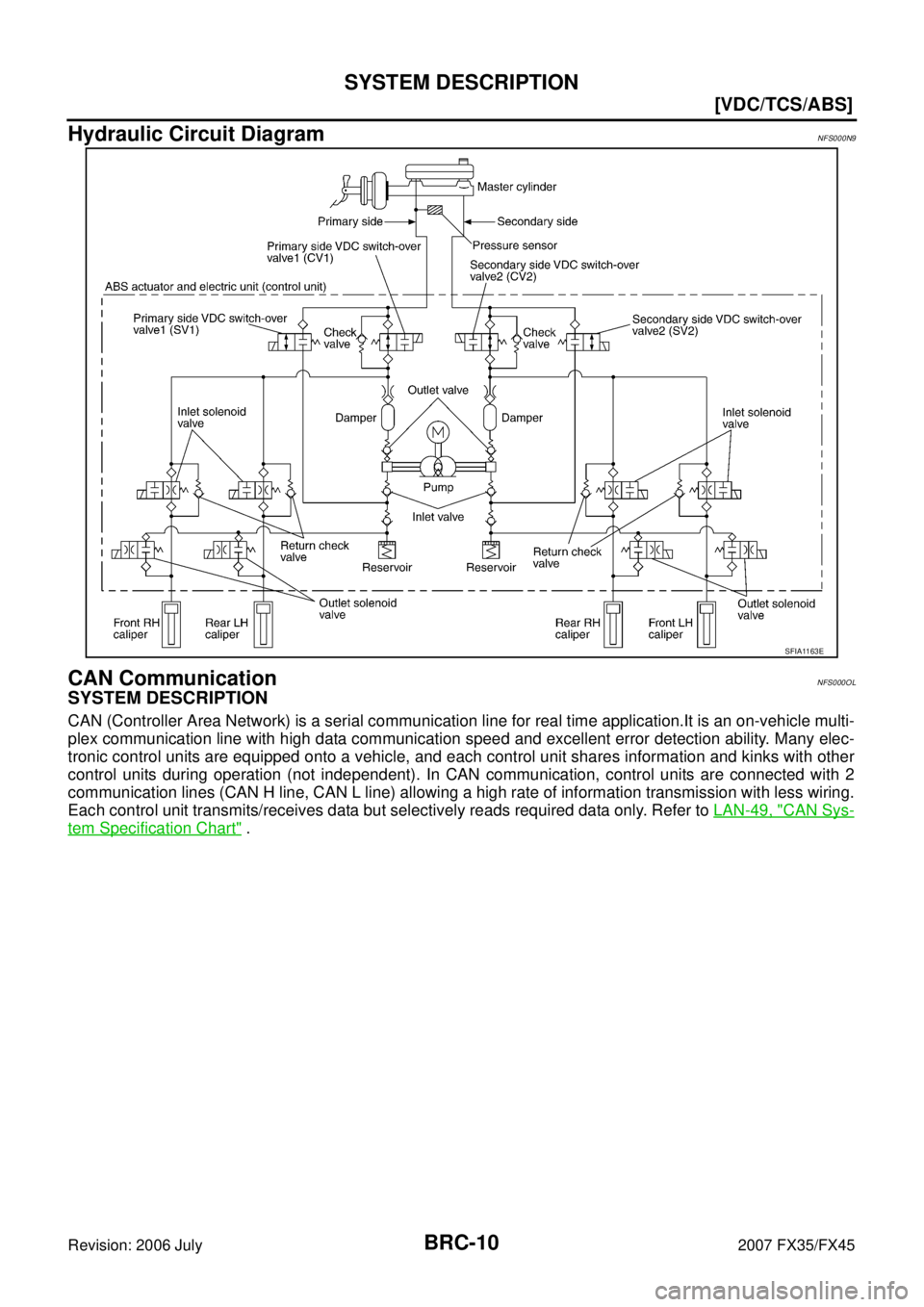

System DiagramNFS000N3
FunctionsNFS000N4
VDC
In addition to the TCS/ABS function, the driver stee INFINITI FX35 2007 Service Manual BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000
System DiagramNFS000N3
FunctionsNFS000N4
VDC
In addition to the TCS/ABS function, the driver stee](/manual-img/42/57018/w960_57018-1133.png)
BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000
System DiagramNFS000N3
FunctionsNFS000N4
VDC
In addition to the TCS/ABS function, the driver steering amount and brake operation amount are detected
from steering angle sensor and pressure sensor, and the vehicle's driving status (amount of under steer-
ing / over steering) is determined from information from G sensor, wheel sensor, etc., and this information
is used to improve vehicle stability by controlling the braking and engine power to all four wheels.
SLIP indicator lamp flashes to inform the driver of VDC operation.
During VDC operation, body and brake pedal lightly vibrate and mechanical noises may be heard. This is
normal.
ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp might turn on when vehicle is sub-
ject to strong shaking or large vibration, such as when vehicle is on a turn table, a ship or a steep slope
such as bank while engine is running. In this case, restart engine on a normal road, and if ABS warning
lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off, there is no malfunction.
TCS
The wheel spin of the drive wheels is detected by ABS actuator and electric unit (control unit) from the
wheel speed signals from four wheels, so if wheel spin occurs, drive wheel right and left brake fluid pres-
sure control and engine fuel cut are performed while throttle value is restricted to reduce the engine
torque and decrease the amount of wheel spin. In addition, the degree throttle is opened is controlled to
achieve the optimum engine torque.
Depending on road circumstances, the driver may have a sluggish feel. This is normal, because the opti-
mum traction has the highest priority under TCS operation.
TCS may be activated any time vehicle suddenly accelerates, suddenly down/upshifts, or is driven on a
road with a varying surface friction coefficient.
During TCS operation, it informs a driver of system operation by flashing SLIP indicator lamp.
SFIA1160E
Page 1135 of 4366
![INFINITI FX35 2007 Service Manual SYSTEM DESCRIPTION BRC-9
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ABS
The Anti-Lock Braking System is a function that detects wheel revolution while b INFINITI FX35 2007 Service Manual SYSTEM DESCRIPTION BRC-9
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ABS
The Anti-Lock Braking System is a function that detects wheel revolution while b](/manual-img/42/57018/w960_57018-1134.png)
SYSTEM DESCRIPTION BRC-9
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ABS
The Anti-Lock Braking System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.
If the electrical system malfunctions, then the fail-safe function starts, the ABS becomes inoperative, and
ABS warning lamp turns on.
Electrical system diagnosis by CONSULT-II is available.
During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.
When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD
The Electronic Brake Distribution is a function that detects subtle slippages between front and rear wheels
during braking, and it improves handling stability by electronically controlling the brake fluid pressure
which results in reduced rear wheel slippage.
In case of electrical system malfunction, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.
Electrical system diagnosis by CONSULT-II is available.
During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.
When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionNFS000N8
VDC / TCS SYSTEM
In case of malfunction in the VDC/TCS system, VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without VDC/TCS system. In case of
malfunction in the VDC/TCS system, the ABS control continues to operate normally without VDC/TCS control.
CAUTION:
If the fail-safe function is activated, then perform the self-diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of electrical malfunctions with the ABS, ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one
of the following conditions of the fail-safe function.
For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of
vehicles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.
For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as
the condition of vehicles without TCS/ABS, EBD system.
Page 1136 of 4366
BRC-10
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
Hydraulic Circuit DiagramNFS000N9
CAN CommunicationNFS000OL
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application.It is an on-vehicle multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and kinks with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. Refer to LAN-49, "
CAN Sys-
tem Specification Chart" .
SFIA1163E
