INFINITI FX35 2007 Service Manual OVERHAUL AT-293 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 VK45DE models for AWD SCIA7223E

Page 378 of 4366

INFINITI FX35 2007 Service Manual AT-294 DISASSEMBLY Revision: 2006 July 2007 FX35/FX45 DISASSEMBLYPFP:31020 DisassemblyNCS001IP CAUTION: Do not disassemble parts behind drum support. Refer to AT- 1 8 , " Cross-sectional View (2WD

Page 379 of 4366

INFINITI FX35 2007 Service Manual DISASSEMBLY AT-295 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 6. Remove O-ring from input clutch assembly. 7. Remove tightening bolts for oil pump assembly and transmis

Page 380 of 4366

INFINITI FX35 2007 Service Manual AT-296 DISASSEMBLY Revision: 2006 July 2007 FX35/FX45 10. Remove bearing race from oil pump assembly. 11. Remove needle bearing from front sun gear. 12. Remove front sun gear assembly from front carr

Page 381 of 4366

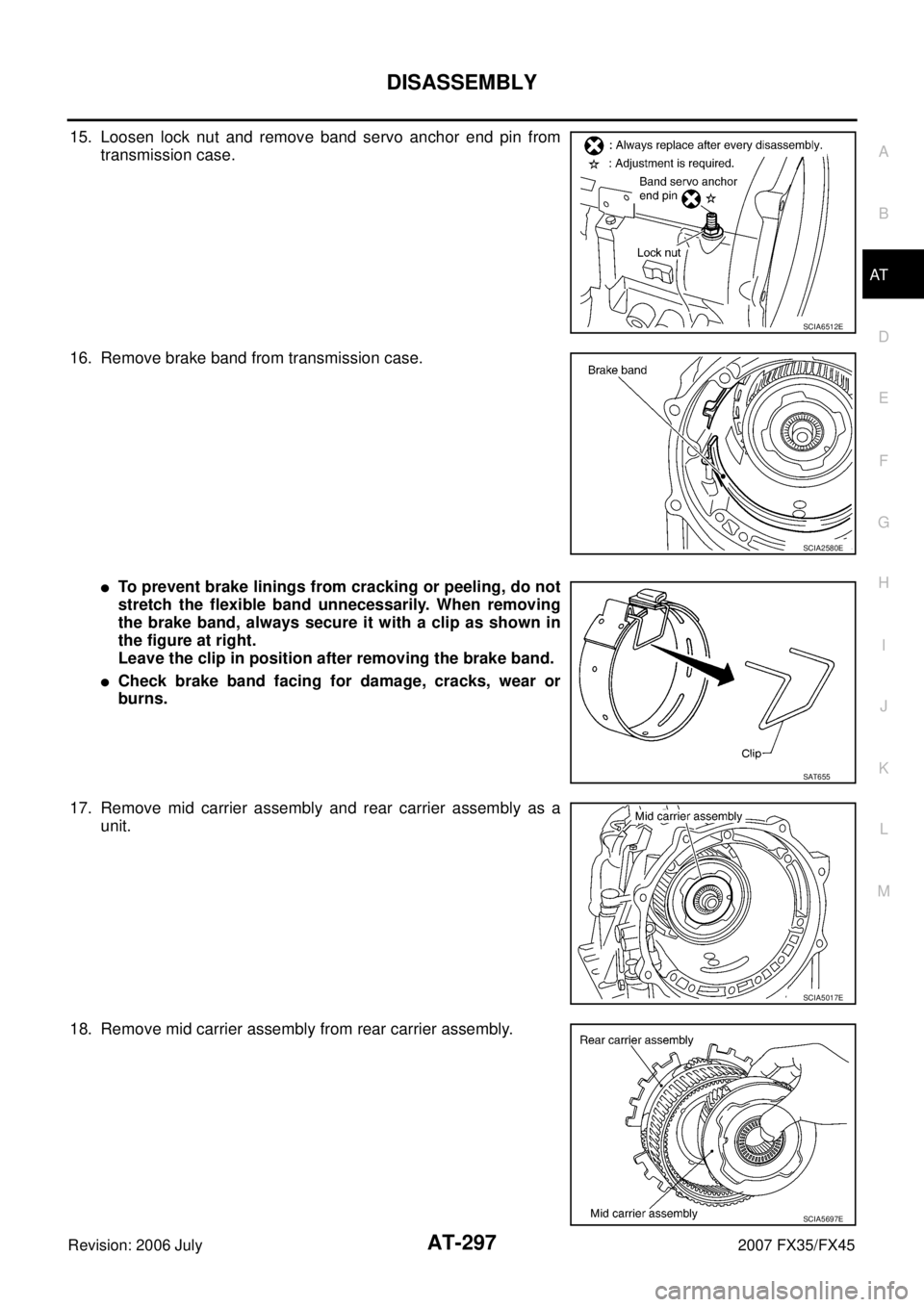

INFINITI FX35 2007 Service Manual DISASSEMBLY AT-297 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 15. Loosen lock nut and remove band servo anchor end pin from transmission case. 16. Remove brake band fr

Page 382 of 4366

INFINITI FX35 2007 Service Manual AT-298 DISASSEMBLY Revision: 2006 July 2007 FX35/FX45 19. Remove needle bearing (front side) from mid carrier assembly. 20. Remove needle bearing (rear side) from mid carrier assembly. 21. Remove bea

Page 383 of 4366

INFINITI FX35 2007 Service Manual DISASSEMBLY AT-299 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 24. Remove high and low reverse clutch assembly from direct clutch assembly. CAUTION: Make sure that nee

Page 384 of 4366

INFINITI FX35 2007 Service Manual AT-300 DISASSEMBLY Revision: 2006 July 2007 FX35/FX45 29. Remove bracket (1) (VK45DE), clips (2), oil pan (3) and oil pan gasket. : Vehicle front : Bolt (22) Drain plug (4) 30. Check foreign mate
