Page 433 of 4366

INFINITI FX35 2007 Service Manual ASSEMBLY AT-349 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 51. Install needle bearing to front sun gear. CAUTION: Take care with the direction of needle bearing. Refer

Page 434 of 4366

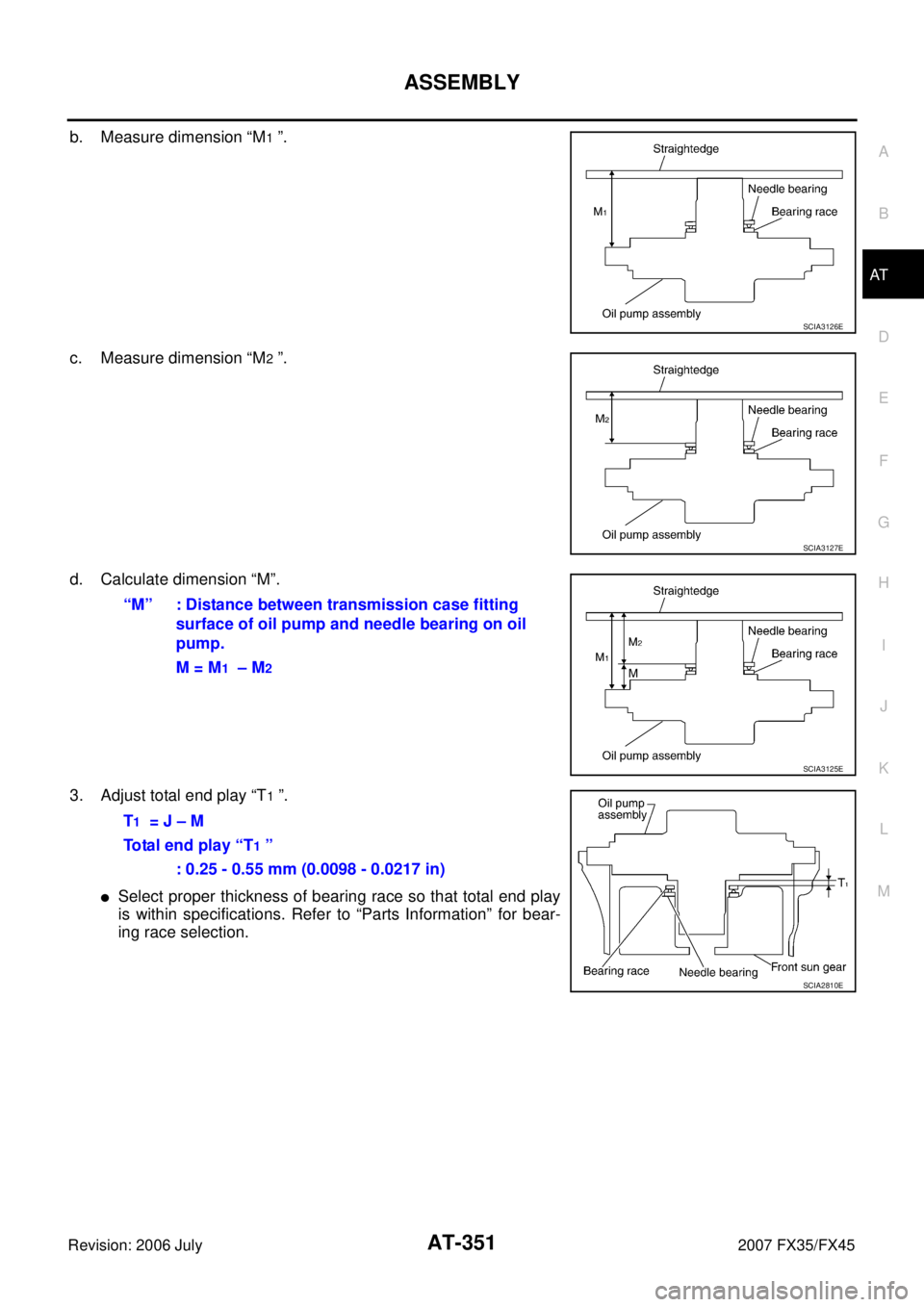

INFINITI FX35 2007 Service Manual AT-350 ASSEMBLY Revision: 2006 July 2007 FX35/FX45 1. Measure dimensions “K” and “L” and then calculate dimension “J”. a. Measure dimension “K”. b. Measure dimension “L”. c. Ca

Page 435 of 4366

INFINITI FX35 2007 Service Manual ASSEMBLY AT-351 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 b. Measure dimension “M1 ”. c. Measure dimension “M 2 ”. d. Calculate dimension “M”. 3. Adjust t

Page 436 of 4366

INFINITI FX35 2007 Service Manual AT-352 ASSEMBLY Revision: 2006 July 2007 FX35/FX45 Assembly (2)NCS001IY 1. Install O-ring to oil pump assembly. CAUTION: Do not reuse O-ring. Apply ATF to O-ring. 2. Install bearing race to oil pu

Page 437 of 4366

INFINITI FX35 2007 Service Manual ASSEMBLY AT-353 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 5. Tighten oil pump mounting bolts to specified torque. Refer to AT- 274, "Components" . CAUTION: Apply ATF

Page 438 of 4366

INFINITI FX35 2007 Service Manual AT-354 ASSEMBLY Revision: 2006 July 2007 FX35/FX45 b. Install A/T assembly harness connector from control valve with TCM. c. Connect TCM connectors. d. Install O-ring to A/T assembly harness connec

Page 439 of 4366

INFINITI FX35 2007 Service Manual ASSEMBLY AT-355 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 g. Install control valve with TCM in transmission case. CAUTION: Make sure that turbine revolution sensor se

Page 440 of 4366

INFINITI FX35 2007 Service Manual AT-356 ASSEMBLY Revision: 2006 July 2007 FX35/FX45 10. Connect A/T fluid temperature sensor 2 connector (1). 11. Securely fasten terminal cord assembly and A/T fluid tempera- ture sensor 2 harness w
