Page 345 of 4366

INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE AT-261
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
13. Remove rear extension assembly from transmission case. (With
needle bearing.)
14. Disconnect r

Page 346 of 4366

INFINITI FX35 2007 Service Manual AT-262
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
CAUTION:
After completing installation, check A/T position, A/T fluid leakage and A/F fluid level. Refer to AT- 2 3 1 ,
"Ch

Page 347 of 4366

INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE AT-263
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
5. Install rear extension assembly to transmission case. (With nee-
dle bearing.)
CAUTION:
Insert

ON-VEHICLE SERVICE AT-263
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
5. Install rear extension assembly to transmission case. (With nee-
dle bearing.)
CAUTION:
Insert the tip of parking rod between the parking pole and
the parking actuator support when assembling the rear
extension assembly.
6. Tighten rear extension assembly mounting bolts to specified torque. Refer to AT- 2 5 9 , "
COMPONENTS" .
CAUTION:
Do not reuse self-sealing bolts.
7. Install rear engine mounting member. Refer to AT- 2 6 6 ,
"Removal and Installation (2WD Models)" .
8. Install oil pan to transmission case.
a. Install oil pan gasket to oil pan. CAUTION:
Do not reuse oil pan gasket.
Install it in the direction to align hole positions.
Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
b. Install oil pan (2) (with oil pan gasket) and clips (1) to transmis- sion case.
: Vehicle front
: Bolt (22)
CAUTION:
Install it so that drain plug (3) comes to the position as
shown in the figure.
Be careful not to pinch harnesses.
Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.
c. Tighten oil pan mounting bolts to the specified torque in numeri- cal order shown in the figure after temporarily tightening them.
Refer to AT- 2 5 9 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
9. Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to AT- 2 5 9 , "
COMPONENTS" .
CAUTION:
Do not reuse drain plug gasket.
10. Install control rod. Refer to AT- 2 3 0 , "
Control Rod Removal and
Installation" .
11. Install rear propeller shaft. Refer to PR-9, "
Removal and Installation" .
12. Install exhaust front tube and center muffler. Refer to EX-3, "
Components" .
13. Install front cross bar. Refer to FSU-8, "
Removal and Installation" .
14. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T Fluid" .
15. Connect the battery cable to the negative terminal.
SCIA3431E
SCIA6941E
SCIA8117E
SCIA4113E

Page 348 of 4366

INFINITI FX35 2007 Service Manual AT-264
AIR BREATHER HOSE
Revision: 2006 July 2007 FX35/FX45
AIR BREATHER HOSEPFP:31098
Removal and InstallationNCS001IJ
VQ35DE ENGINE MODEL

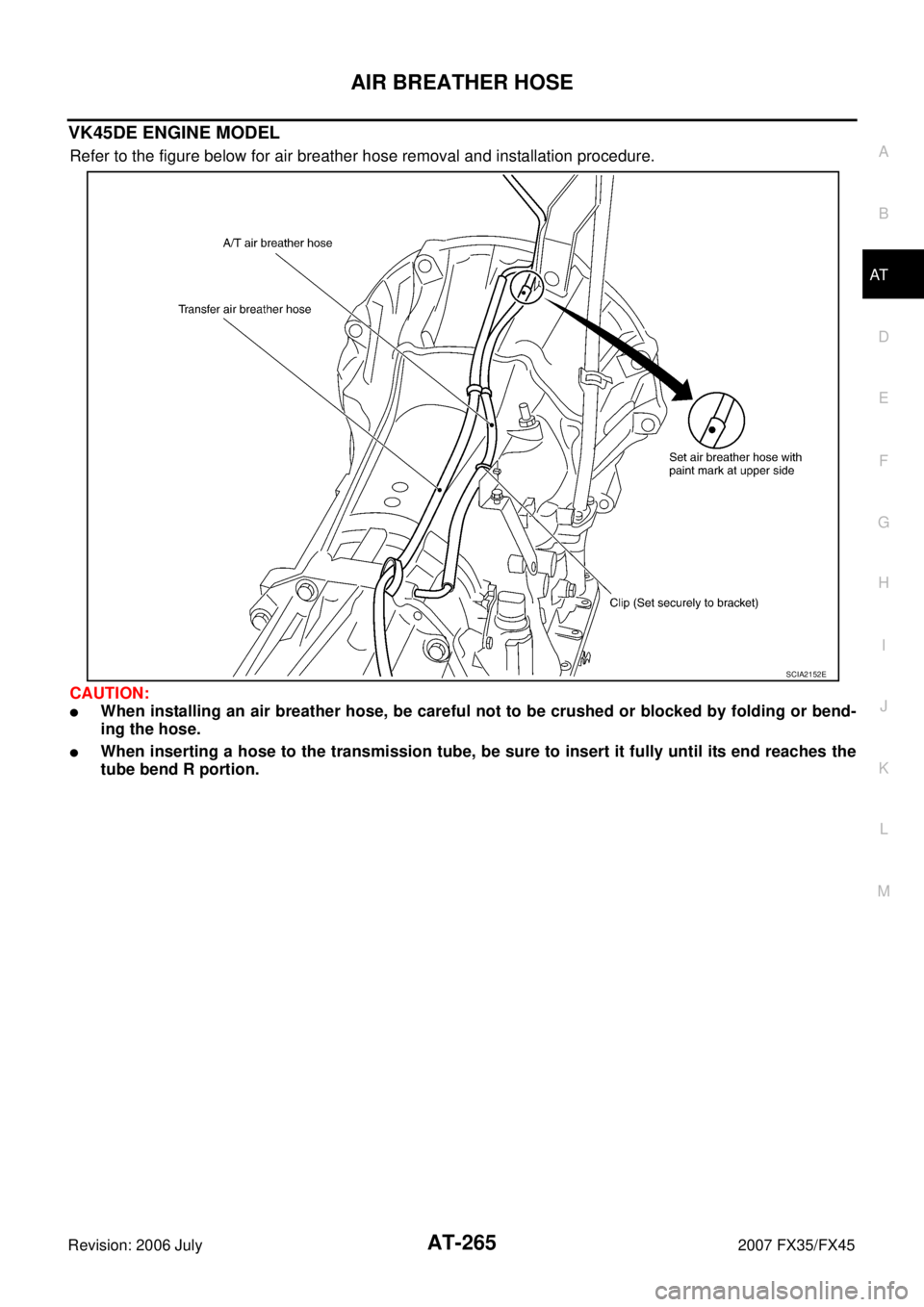

Refer to the figure below for air breather hose removal and

Page 349 of 4366

INFINITI FX35 2007 Service Manual AIR BREATHER HOSE AT-265
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
VK45DE ENGINE MODEL

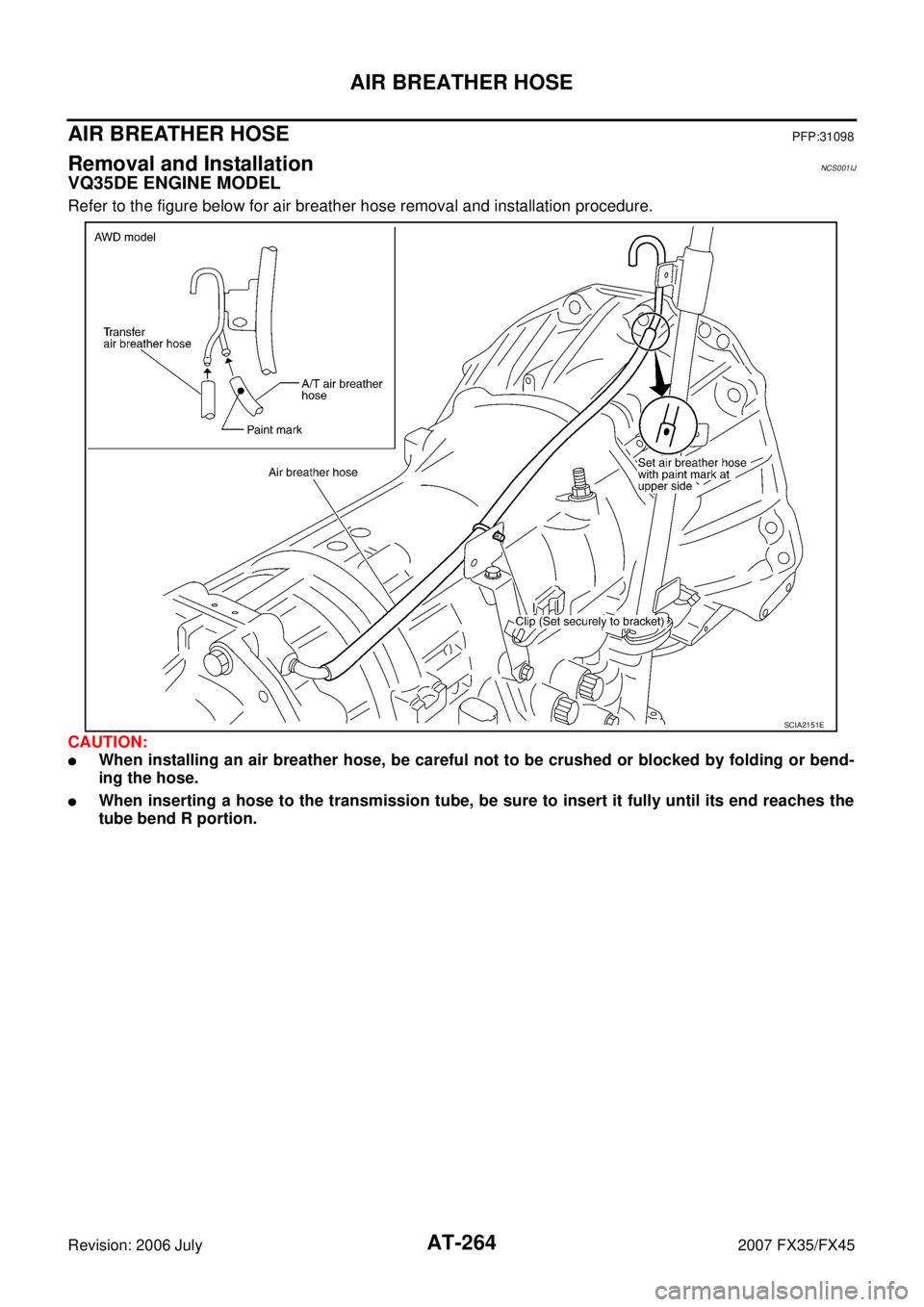

Refer to the figure below for air breather hose removal and installation procedur

Page 350 of 4366

INFINITI FX35 2007 Service Manual AT-266
TRANSMISSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
TRANSMISSION ASSEMBLYPFP:31020
Removal and Installation (2WD Models)NCS001IK
COMPONENTS
REMOVAL
CAUTION:
When removing the A/T assembl

Page 351 of 4366

INFINITI FX35 2007 Service Manual TRANSMISSION ASSEMBLY AT-267
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
10. Remove crankshaft position sensor (POS) from A/T assembly.
CAUTION:
Do not subject it to im

Page 352 of 4366

INFINITI FX35 2007 Service Manual AT-268
TRANSMISSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Install the removed parts in the reverse order of the removal, while paying attention to the following work.
When installi
