PREPARATION EM-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45KV10115600
(J-38958)
Valve oil seal drift Installing valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421)
c: 10.3 (0.406) dia. f: 5 (0.20)
Unit: mm (in)
EM03470000
(J8037)

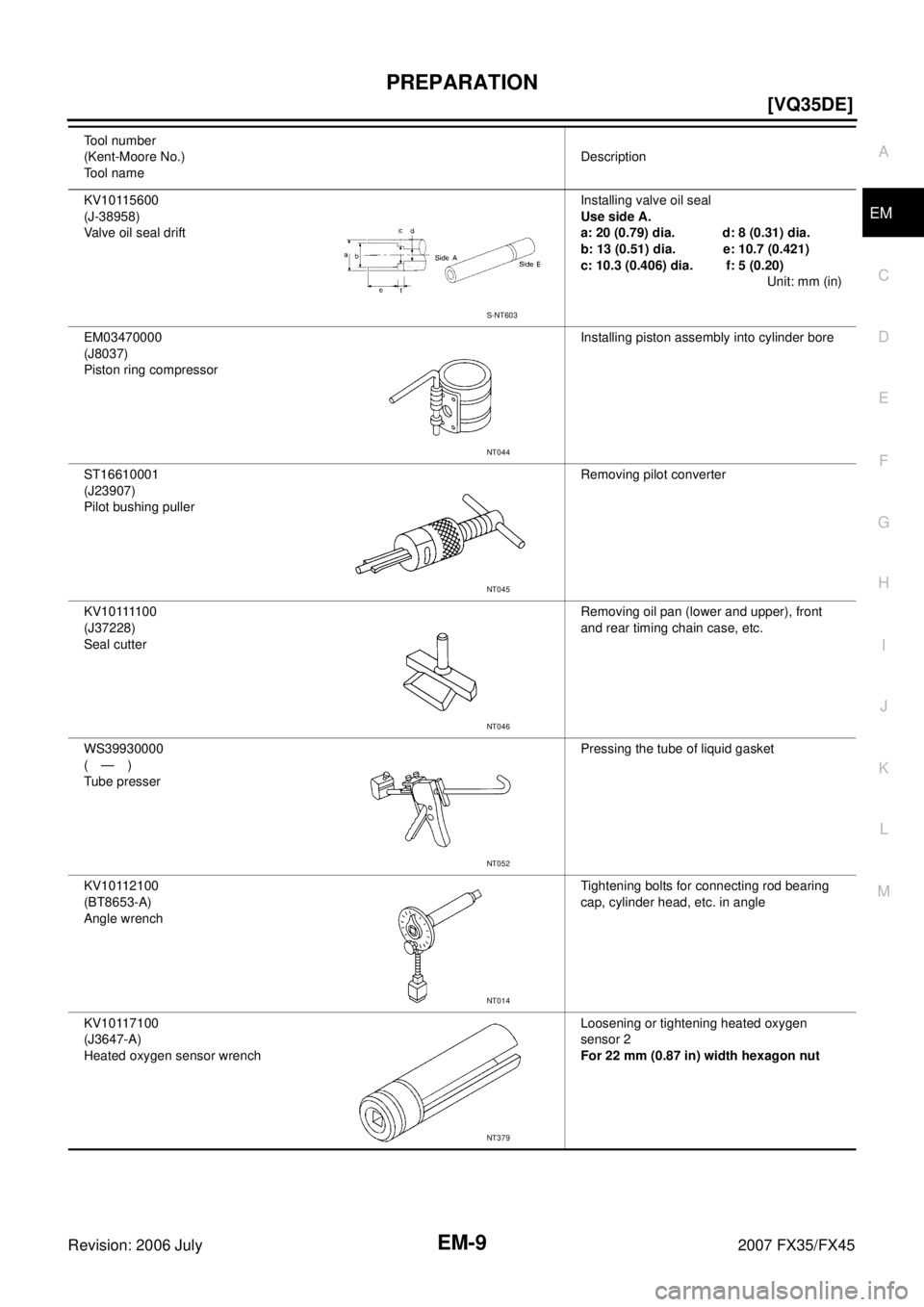

Piston ring compressor Installing piston assembly into cylinder bore
ST16610001
(J23907)
Pilot bushing puller Removing pilot converter
KV10111100
(J37228)
Seal cutter Removing oil pan (lower and upper), front
and rear timing chain case, etc.
WS39930000
(—)
Tube presser Pressing the tube of liquid gasket
KV10112100
(BT8653-A)
Angle wrench Tightening bolts for connecting rod bearing
cap, cylinder head, etc. in angle
KV10117100
(J3647-A)
Heated oxygen sensor wrench Loosening or tightening heated oxygen
sensor 2
For 22 mm (0.87 in) width hexagon nut
Tool number
(Kent-Moore No.)
Tool name Description
S-NT603
NT044
NT045
NT046
NT052
NT014
NT379
Page 2802 of 4366
EM-10
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
Commercial Service ToolsNBS003FW
KV10114400
(J38365)
Heated oxygen sensor wrench Loosening or tightening air fuel ratio sensor 1
a: 22 mm (0.87 in)
KV10117700
(J44716)
Ring gear stopper Removing and installing crankshaft pulley
10006 31U00
(—)
Engine rear slinger Removing and installing oil pan (upper) for on
vehicle service
—
(J-45488)
Quick connector release Removing fuel tube quick connectors in
engine room
Tool number
(Kent-Moore No.)
Tool name Description
NT636
NT822
SBIA0530E
PBIC0198E
(Kent-Moore No.)
Tool name Description
(—)
Power tool Loosening nuts and bolts
(BT3373-F)
Belt tension gauge Checking drive belt tension
PBIC0190E
AMA126
Page 2803 of 4366
PREPARATION EM-11
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
(—)
TORX socket Removing and installing flywheel
Size: T55
(—)
Manual lift table caddy Removing and installing engine
(J24239-01)
Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
(—)
1.Compression tester
2.Adapter Checking compression pressure
(—)
Spark plug wrench Removing and installing spark plug
(—)
Valve seat cutter set Finishing valve seat dimensions
(—)
Piston ring expander Removing and installing piston ring
(Kent-Moore No.)
Tool name Description
PBIC1113E
ZZA1210D
NT583
ZZA0008D
NT047
NT048
NT030
Page 2804 of 4366
![INFINITI FX35 2007 Service Manual EM-12
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
(—)

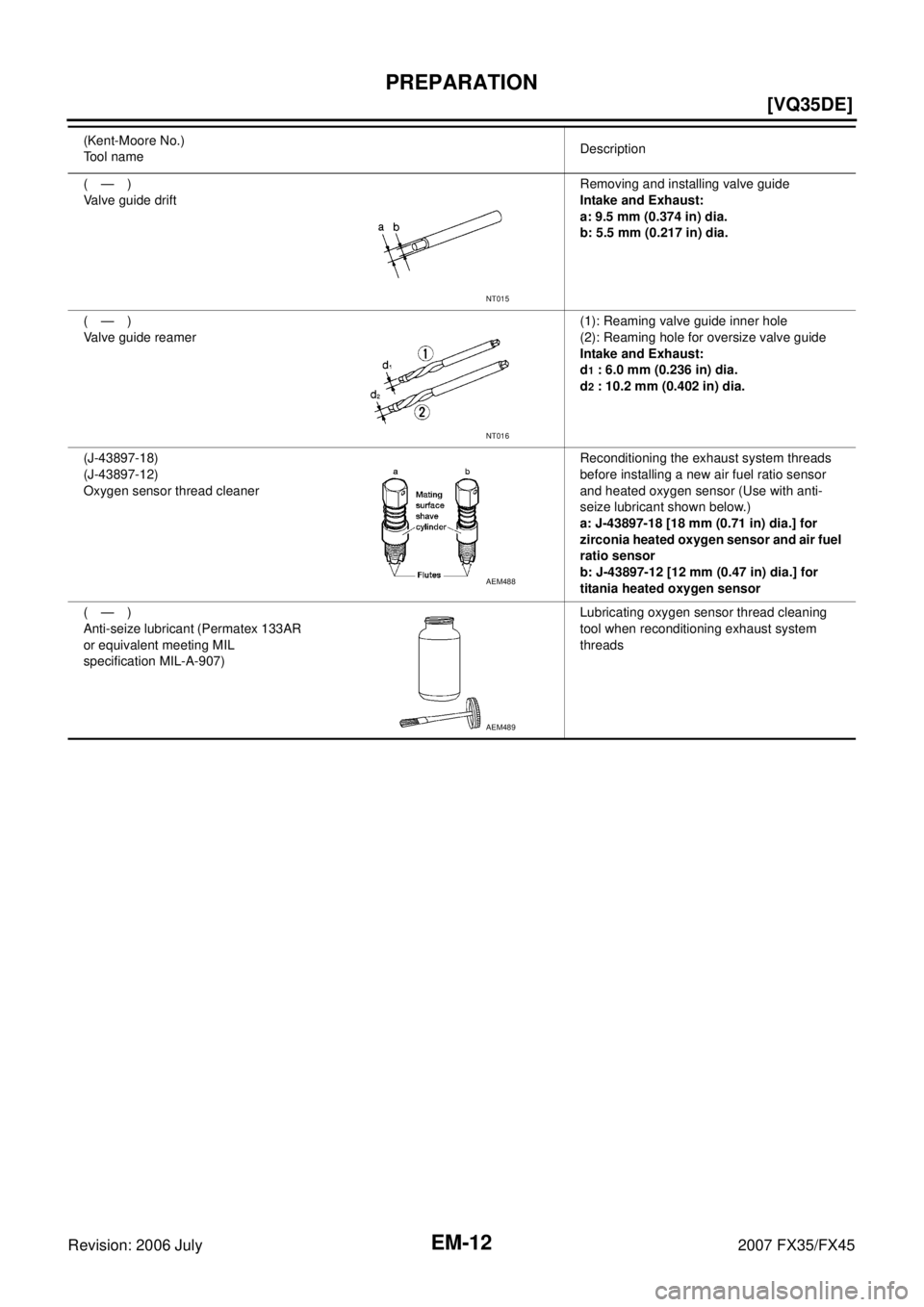

Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
INFINITI FX35 2007 Service Manual EM-12
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
(—)
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.](/manual-img/42/57018/w960_57018-2803.png)
EM-12
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
(—)
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide reamer (1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.2 mm (0.402 in) dia.
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor
and heated oxygen sensor (Use with anti-
seize lubricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for
zirconia heated oxygen sensor and air fuel
ratio sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for
titania heated oxygen sensor
(—)
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL
specification MIL-A-907) Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
(Kent-Moore No.)
Tool name Description
NT015
NT016
AEM488
AEM489
Page 2805 of 4366
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING EM-13
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting — Engine NoiseNBS003FX

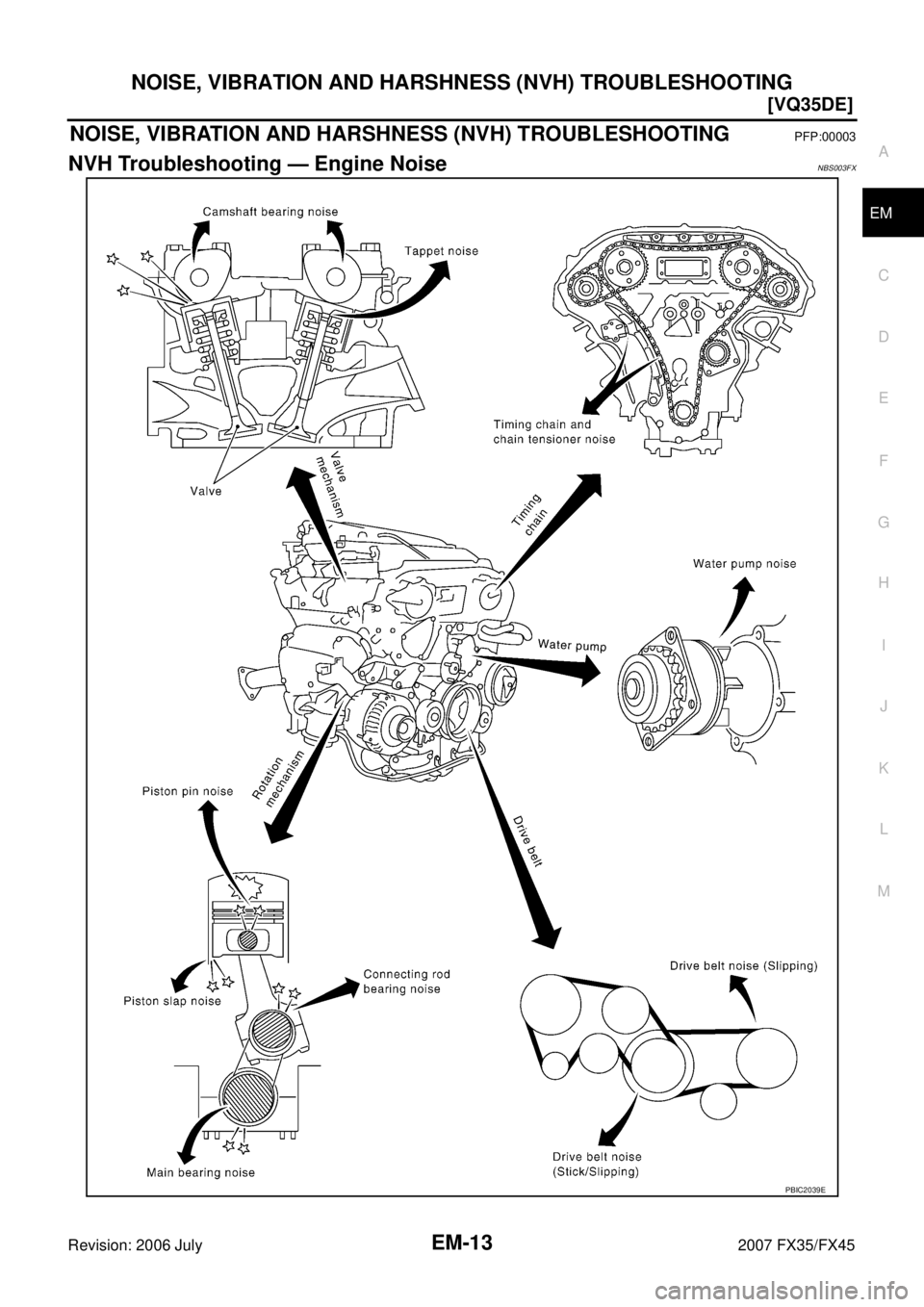

PBIC2039E
