PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NCS001AN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for On Board Diagnostic (OBD) System of A/T and EngineNCS001AO
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:

Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative termi-
nal before any repair or inspection work. The open/short circuit of related switches, sensors, sole-
noid valves, etc. Will cause the MIL to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. May cause the MIL to light up due to a short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EVAP system or fuel injection system,
etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.

PRECAUTIONS AT-9
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Service Notice or PrecautionsNCS001AQ
ATF COOLER SERVICE
If ATF contains frictional material (clutches, bands, etc.), or if an A/T is repaired, overhauled, or replaced,
inspect and clean the A/T fluid cooler mounted in the radiator or replace the radiator. Flush cooler lines using
cleaning solvent and compressed air after repair. For A/T fluid cooler cleaning procedure, refer to AT- 1 5 , "
A/T
Fluid Cooler Cleaning" . For radiator replacement, refer to CO-14, "RADIATOR" (for VQ35DE), CO-41, "RADI-
AT O R" (for VK45DE).
OBD-II SELF-DIAGNOSIS

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the A/T CHECK indicator or the malfunction indicator lamp (MIL). Refer to the table
on AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" for the indicator used to display each self-diagnostic
result.

The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure on AT- 4 1 , "
HOW TO ERASE DTC" to complete the repair and avoid
unnecessary blinking of the MIL.
For details of OBD-II, refer to EC-53, "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" (for VQ35DE) or EC-715,
"ON BOARD DIAGNOSTIC (OBD) SYSTEM" (for VK45DE).

Certain systems and components, especially those related to OBD, may use the new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-71, "
HAR-
NESS CONNECTOR" .

AT-48
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model and Year VIN
Trans. Model Engine Mileage
Malfunction Date Manuf. Date In Service Date
Frequency ❏ Continuous ❏ Intermittent ( times a day)
Symptoms ❏ Vehicle does not move. ( ❏ Any position ❏ Particular position)
❏ No up-shift ( ❏ 1st → 2nd ❏ 2nd → 3rd ❏ 3rd → 4th ❏ 4th → 5th)
❏ No down-shift ( ❏ 5th → 4th ❏ 4th → 3rd ❏ 3rd → 2nd ❏ 2nd → 1st)
❏ Lock-up malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip ( ❏ N → D ❏ Lock-up ❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
A/T CHECK indicator lamp ❏ Continuously lit ❏ Not lit
Malfunction indicator lamp (MIL) ❏ Continuously lit ❏ Not lit
1 ❏ Read the item on cautions concerning fail-safe and understand the customer's complaint. AT- 4 4
2 ❏
A/T fluid inspection AT- 5 3❏ Leak (Repair leak location.)
❏ State
❏ Amount
3 ❏
Stall test and line pressure test AT- 5 3
, AT-
54❏ Stall test
❏ Torque converter one-way clutch
❏ Front brake
❏ High and low reverse clutch
❏ Low coast brake
❏ Forward brake
❏ Reverse brake
❏ Forward one-way clutch ❏
1st one-way clutch
❏ 3rd one-way clutch
❏ Engine
❏ Line pressure low
❏ Except for input clutch and direct
clutch, clutches and brakes OK
❏ Line pressure inspection - Suspected part:

INTELLIGENT KEY SYSTEM BL-121
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
ENGINE START FUNCTION MALFUNCTION
Intelligent Key Operation Inspection
Mechanical Key Operation Inspection
WARNING CHIME FUNCTION MALFUNCTION
Before conducting the diagnosis in the following table, check “key reminder function” with power door lock sys-
tem.
Symptom Diagnoses service procedure Refer to page
Ignition knob can not turn
KEY warning lamp on combination meter
lights up in red when ignition knob is
pressed. (door lock functions normal) 1. Intelligent Key battery inspection
BL-147
2. Check inside key antennaBL-138
3. Replace Intelligent Key unitBL-146
KEY warning lamp on combination meter
lights up in green when ignition knob is
pressed. 1. Check ignition knob switch
BL-1272. Check steering lock unitBL-139
3. Check Intelligent Key unit power supply and ground circuitBL-124
4. Replace Intelligent Key unitBL-146
Ignition knob turns even without both Intelli-
gent Key and mechanical key. Replace steering lock unit —
Security indicator will still flash when igni-
tion knob is pressed. 1. Check key switch (Intelligent Key unit input)
BL-125
2. Replace Intelligent Key unitBL-146
Security indicator does not flash with igni-
tion knob released at LOCK position. (push
switch OFF) 1. CAN communication system
BL-124
2. Ignition knob switch systemBL-127
3. Intelligent Key unit power supply and ground circuitBL-124
Starter motor does not cranking.
(Ignition knob can turn) 1. Check detention switch
BL-1422. Check stop lamp switchBL-141
3. Replace Intelligent Key unitBL-146
Symptom Diagnoses service procedure Refer to page
Ignition knob can not turn
Security indicator remains flashing with
mechanical key inserted. 1. Check key switch (BCM input)
BL-126
2. Replace Intelligent Key unitBL-146
KEY indicator and security indicator does
not flashing with mechanical key inserted. 1. Check stop lamp switch
BL-141
2. Replace Intelligent Key unitBL-146
Starter motor does not cranking.
(Ignition knob can turn) 1. Check detention switch
BL-1422. Check stop lamp switchBL-141
3. Replace Intelligent Key unitBL-146
Symptom Diagnoses service procedure Refer to page
Ignition key warning chime is inoperative.
(When mechanical key used) 1. Check CAN communication
BL-124
2. Check key switch (Intelligent Key unit input)BL-125
3. Check door switchBL-129
4. Inspect combination meter (warning) DI-5
5. Replace Intelligent Key unitBL-146
Ignition knob OFF position warning
chime (for inside vehicle) does not
sound.
(Ignition key warning chime operates) 1. Check CAN communication
BL-1242. Check ignition knob switchBL-127
3. Check key switch (Intelligent Key unit input)BL-125
4. Replace Intelligent Key unitBL-146

BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION
A
B
BRC
Revision: 2006 July 2007 FX35/FX45
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Brake System ............................. ..... 3
Precautions for Brake Control ............................. ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 5
ON-VEHICLE SERVICE ........................................ ..... 6
Adjustment of Steering Angle Sensor Neutral Posi-
tion ...................................................................... ..... 6
Calibration of Decel G Sensor (AWD Models) .... ..... 7
SYSTEM DESCRIPTION ....................................... ..... 8
System Diagram .................................................. ..... 8
Functions ............................................................. ..... 8
VDC .................................................................. ..... 8
TCS .................................................................. ..... 8
ABS .................................................................. ..... 9
EBD .................................................................. ..... 9
Fail-Safe Function ............................................... ..... 9
VDC / TCS SYSTEM ........................................ ..... 9
ABS, EBD SYSTEM ......................................... ..... 9
Hydraulic Circuit Diagram ................................... ... 10
CAN Communication ........................................... ... 10
SYSTEM DESCRIPTION ................................. ... 10
TROUBLE DIAGNOSIS ......................................... ....11
Fail-Safe Function ............................................... .... 11
VDC/TCS SYSTEM .......................................... .... 11
ABS, EBD SYSTEM ......................................... .... 11
How to Proceed with Diagnosis .......................... .... 11
BASIC CONCEPT ............................................ .... 11
DIAGNOSIS FLOWCHART ............................. ... 12
ASKING COMPLAINTS ................................... ... 13
EXAMPLE OF DIAGNOSIS SHEET ................ ... 13
Component Installation Location ......................... ... 14
Schematic ........................................................... ... 15
Wiring Diagram — VDC — .................................. ... 16
Control Unit Input/Output Signal Standard .......... ... 22 REFERENCE VALUE FROM CONSULT-II ......
... 22
CONSULT-II Functions (ABS) ............................. ... 24
CONSULT-II MAIN FUNCTION ........................ ... 24
CONSULT-II SETTING PROCEDURE ............. ... 24
Self-Diagnosis ..................................................... ... 25
DESCRIPTION ................................................. ... 25
OPERATION PROCEDURE ............................. ... 25
ERASE MEMORY ............................................ ... 25
DISPLAY ITEM LIST ........................................ ... 26
Data Monitor ........................................................ ... 29
OPERATION PROCEDURE ............................. ... 29
DISPLAY ITEM LIST ........................................ ... 29
Active Test ........................................................... ... 31
OPERATION PROCEDURE ............................. ... 31
TEST ITEM ....................................................... ... 32
For Fast and Accurate Diagnosis ........................ ... 33
PRECAUTIONS FOR DIAGNOSIS .................. ... 33
Basic Inspection .................................................. ... 34
BRAKE FLUID AMOUNT, LEAKS, AND BRAKE
PADS INSPECTION ......................................... ... 34
POWER SYSTEM TERMINAL LOOSENESS
AND BATTERY INSPECTION .......................... ... 34
ABS WARNING LAMP, VDC OFF INDICATOR
LAMP, SLIP INDICATOR LAMP AND BRAKE
WARNING LAMP INSPECTION ...................... ... 34
TROUBLE DIAGNOSIS FOR SYSTEM ................. ... 36
Wheel Sensor Circuit ........................................... ... 36
INSPECTION PROCEDURE ........................... ... 36
Engine System .................................................... ... 38
INSPECTION PROCEDURE ........................... ... 38
VDC/TCS/ABS Control Unit Circuit ..................... ... 38
INSPECTION PROCEDURE ........................... ... 38
Pressure Sensor Circuit ....................................... ... 39
INSPECTION PROCEDURE ........................... ... 39
Steering Angle Sensor Circuit .............................. ... 41
INSPECTION PROCEDURE ........................... ... 41
Yaw Rate/Side G Sensor (2WD Models), Yaw Rate/
Side/Decel G Sensor (AWD Models) Circuit ........ ... 42
INSPECTION PROCEDURE ........................... ... 42
Solenoid and VDC Change-Over Valve Circuit ... ... 44

BRC-60
[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: 2006 July 2007 FX35/FX45
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationNFS000O6

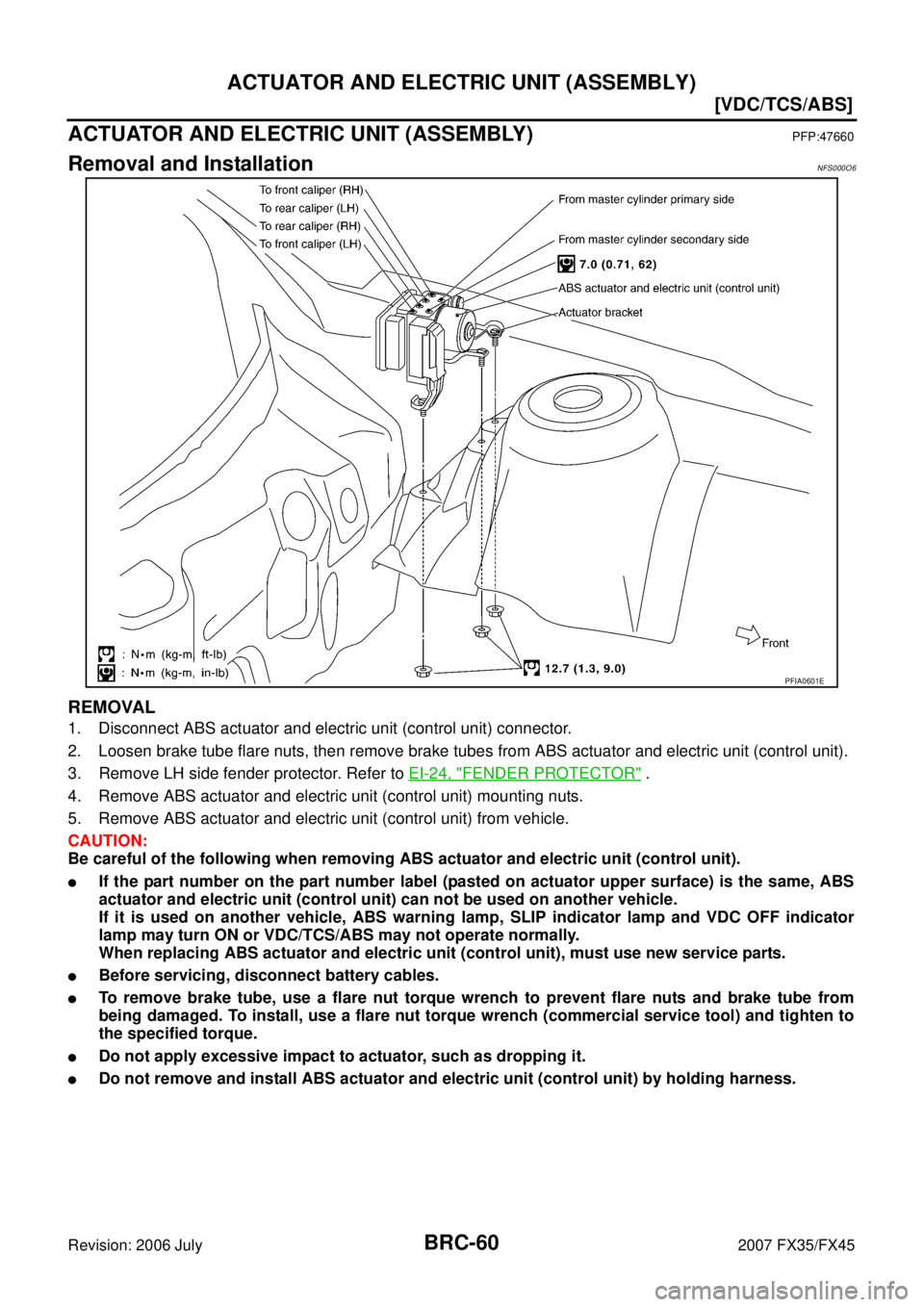

REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).
3. Remove LH side fender protector. Refer to EI-24, "
FENDER PROTECTOR" .
4. Remove ABS actuator and electric unit (control unit) mounting nuts.
5. Remove ABS actuator and electric unit (control unit) from vehicle.
CAUTION:
Be careful of the following when removing ABS actuator and electric unit (control unit).

If the part number on the part number label (pasted on actuator upper surface) is the same, ABS
actuator and electric unit (control unit) can not be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, SLIP indicator lamp and VDC OFF indicator
lamp may turn ON or VDC/TCS/ABS may not operate normally.
When replacing ABS actuator and electric unit (control unit), must use new service parts.

Before servicing, disconnect battery cables.

To remove brake tube, use a flare nut torque wrench to prevent flare nuts and brake tube from
being damaged. To install, use a flare nut torque wrench (commercial service tool) and tighten to
the specified torque.

Do not apply excessive impact to actuator, such as dropping it.

Do not remove and install ABS actuator and electric unit (control unit) by holding harness.
PFIA0601E

LANE DEPARTURE WARNING SYSTEM DI-95
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45

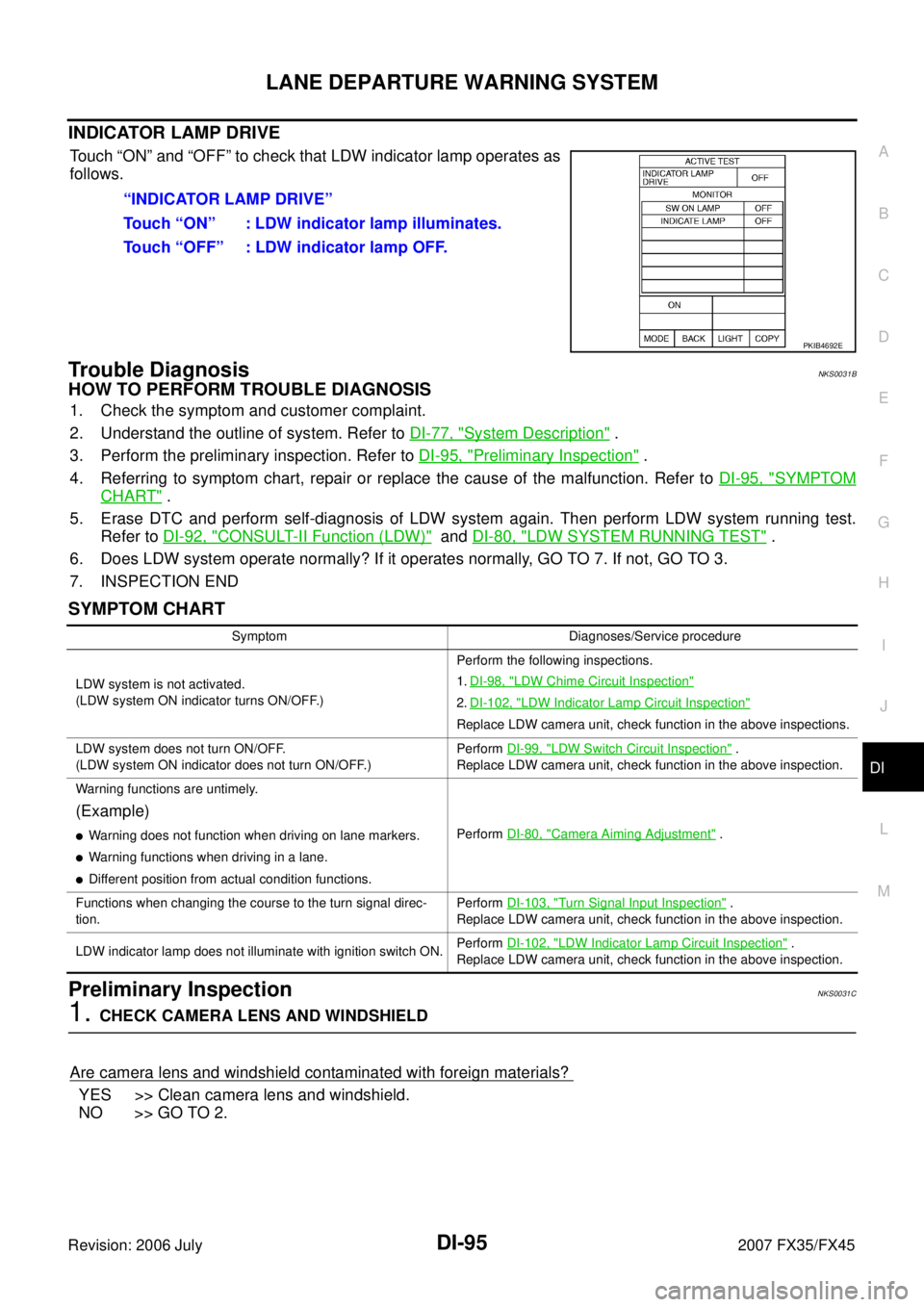

INDICATOR LAMP DRIVE
Touch “ON” and “OFF” to check that LDW indicator lamp operates as
follows.
Trouble DiagnosisNKS0031B
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Check the symptom and customer complaint.
2. Understand the outline of system. Refer to DI-77, "
System Description" .
3. Perform the preliminary inspection. Refer to DI-95, "
Preliminary Inspection" .
4. Referring to symptom chart, repair or replace the cause of the malfunction. Refer to DI-95, "
SYMPTOM
CHART" .
5. Erase DTC and perform self-diagnosis of LDW system again. Then perform LDW system running test. Refer to DI-92, "
CONSULT-II Function (LDW)" and DI-80, "LDW SYSTEM RUNNING TEST" .
6. Does LDW system operate normally? If it operates normally, GO TO 7. If not, GO TO 3.
7. INSPECTION END
SYMPTOM CHART
Preliminary InspectionNKS0031C
1. CHECK CAMERA LENS AND WINDSHIELD
Are camera lens and windshield contaminated with foreign materials?
YES >> Clean camera lens and windshield.
NO >> GO TO 2. “INDICATOR LAMP DRIVE”
Touch “ON” : LDW indicator lamp illuminates.
Touch “OFF” : LDW indicator lamp OFF.
PKIB4692E
Symptom Diagnoses/Service procedure
LDW system is not activated.
(LDW system ON indicator turns ON/OFF.) Perform the following inspections.
1. DI-98, "
LDW Chime Circuit Inspection"
2.DI-102, "LDW Indicator Lamp Circuit Inspection"
Replace LDW camera unit, check function in the above inspections.
LDW system does not turn ON/OFF.
(LDW system ON indicator does not turn ON/OFF.) Perform
DI-99, "
LDW Switch Circuit Inspection" .
Replace LDW camera unit, check function in the above inspection.
Warning functions are untimely.
(Example)

Warning does not function when driving on lane markers.

Warning functions when driving in a lane.

Different position from actual condition functions. Perform
DI-80, "
Camera Aiming Adjustment" .
Functions when changing the course to the turn signal direc-
tion. Perform
DI-103, "
Turn Signal Input Inspection" .
Replace LDW camera unit, check function in the above inspection.
LDW indicator lamp does not illuminate with ignition switch ON. Perform
DI-102, "
LDW Indicator Lamp Circuit Inspection" .
Replace LDW camera unit, check function in the above inspection.
