2007 INFINITI FX35 rear view monitor

DI-3
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — CLOCK — .............................
. . 111
Removal and Installation of Clock ....................... .. 112
REMOVAL ........................................................ .. 112
INSTALLATION ................................................ .. 112
REAR VIEW MONITOR ......................................... ..113
System Description ............................................. .. 113
POWER SUPPLY AND GROUND ................... .. 113
AV COMMUNICATION LINE ............................ .. 113
REAR VIEW CAMERA OPERATION ............... .. 113
Component Parts and Harness Connector Location .. 114
Schematic ........................................................... .. 115
Wiring Diagram — R/VIEW — ............................ .. 116
Terminals and Reference Value for Rear View Cam-
era Control Unit ................................................... .. 119
CONSULT-II Function (REARVIEW CAMERA) ... . 120
CONSULT-II BASIC OPERATION .................... . 120 WORK SUPPORT ............................................
.120
DATA MONITOR .............................................. .120
Side Distance Guideline Correction ..................... .121
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE .................................................. .121
Power Supply and Ground Circuit Inspection ...... .123
Rear View Is Not Displayed With The A/T Selector
Lever In R-Position .............................................. .124
The Rear View Image Is Distorted ....................... .128
Removal and Installation of Rear View Camera Con-
trol Unit ................................................................ .129
REMOVAL ........................................................ .129
INSTALLATION ................................................ .129
Removal and Installation of Rear View Camera .. .130
REMOVAL ........................................................ .130
INSTALLATION ................................................ .130

REAR VIEW MONITOR DI-113
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
REAR VIEW MONITORPFP:28260
System DescriptionNKS0031T

The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.

The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.
POWER SUPPLY AND GROUND
Power is supplied at all time

through 10A fuse [No. 19, located in fuse block (J/B)]

to rear view camera control unit terminal 1.
When ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to rear view camera control unit terminal 2.
When ignition switch is in ON or START position, power is supplied

through 10A fuse (No. 83, located in IPDM E/R)

to back-up lamp relay terminals 1 and 3.
Ground is supplied

to rear view camera control unit terminal 3

through grounds M35, M45 and M85.
AV COMMUNICATION LINE
Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.

NAVI control unit

Display

Display control unit

A/C and AV switch
REAR VIEW CAMERA OPERATION
When A/T selector lever is reverse position, power is supplied

through back-up lamp relay terminal 2

to TCM terminal 7.
Then back-up lamp relay is energized,

from back-up lamp relay terminal 5

to rear view camera control unit terminal 4.
Then, rear view camera control unit is sent camera ON signal

through rear view camera control unit terminal 8

to rear view camera terminal 1.
An image taken by rear view camera is sent

through rear view camera terminals 3 and 4

to rear view camera control unit terminals 10 and 9.
Then an image is sent

through rear view camera control unit terminals 12 and 14

to the display terminals 15 and 16.
An image of rear view will be projected on the display.

DI-114
REAR VIEW MONITOR
Revision: 2006 July 2007 FX35/FX45
Side Distance Guideline
When A/T selector lever is in reverse position, rear view camera control unit is sent rear view camera guideline

through rear view camera control unit terminals 12 and 14

to the display terminals 15 and 16.
Rear view camera guideline will be projected on the display.
Display shows image from rear view camera image and rear view camera guideline.

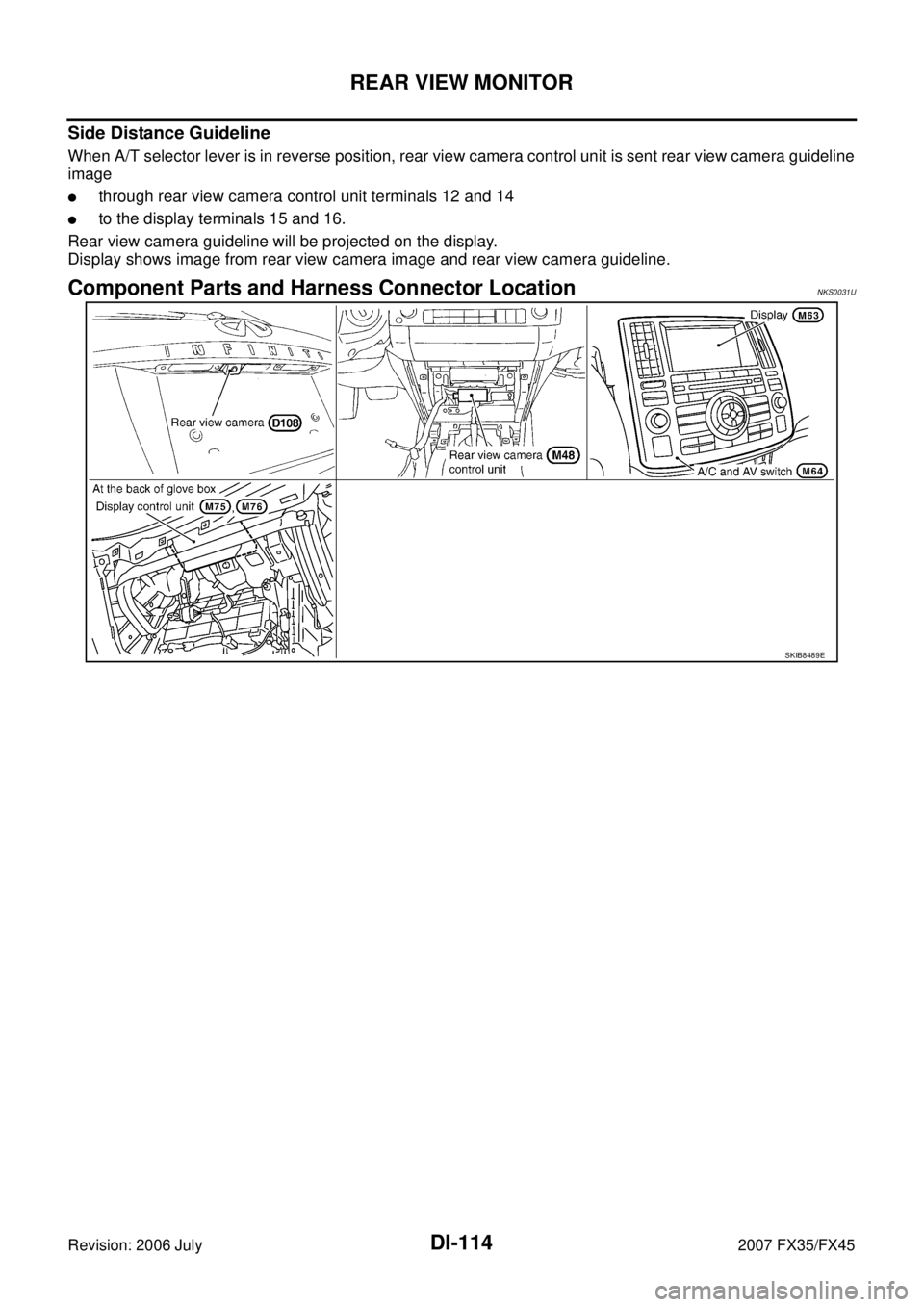

Component Parts and Harness Connector LocationNKS0031U
SKIB8489E

REAR VIEW MONITOR DI-115
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45

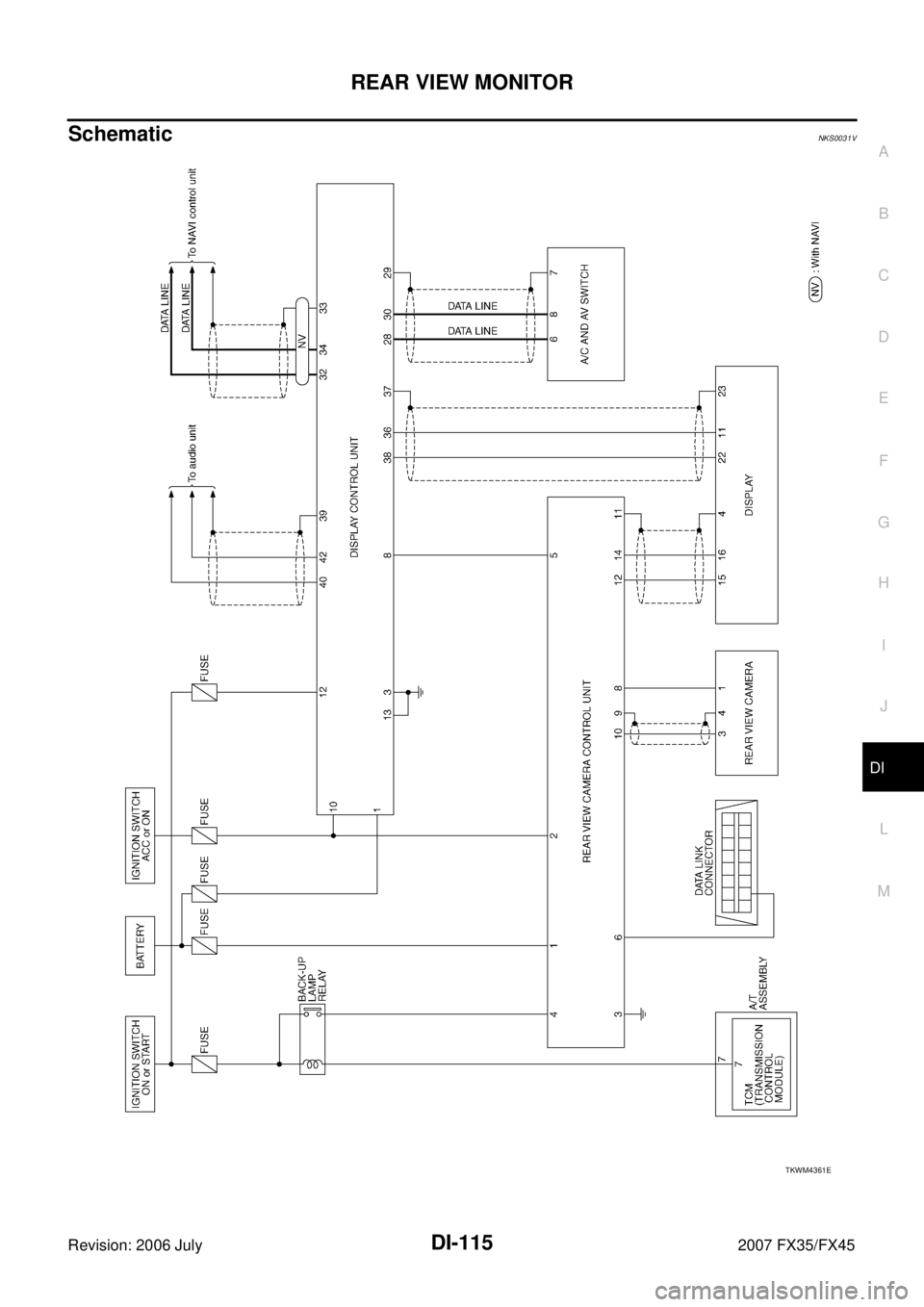

SchematicNKS0031V
TKWM4361E

DI-116
REAR VIEW MONITOR
Revision: 2006 July 2007 FX35/FX45

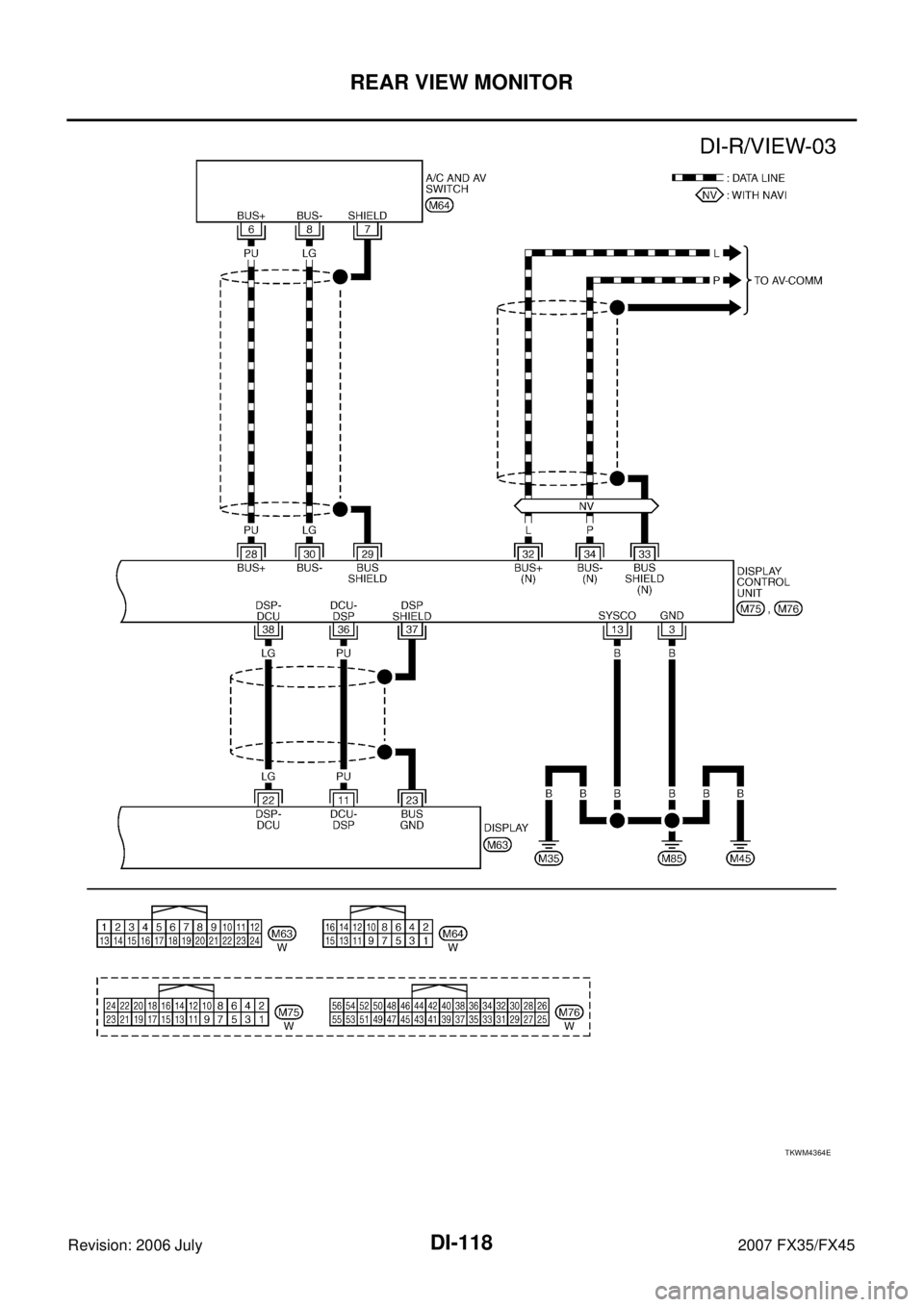

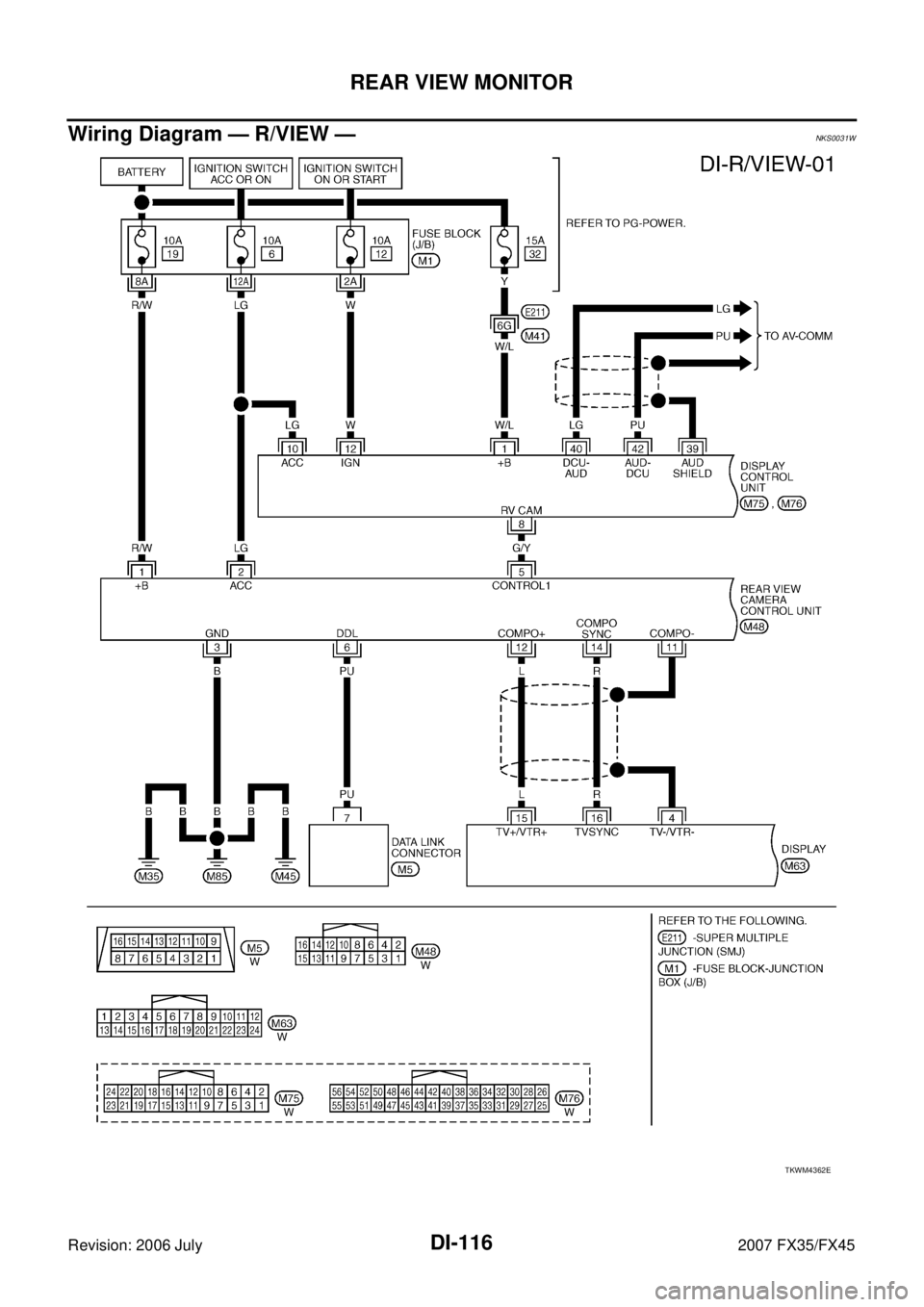

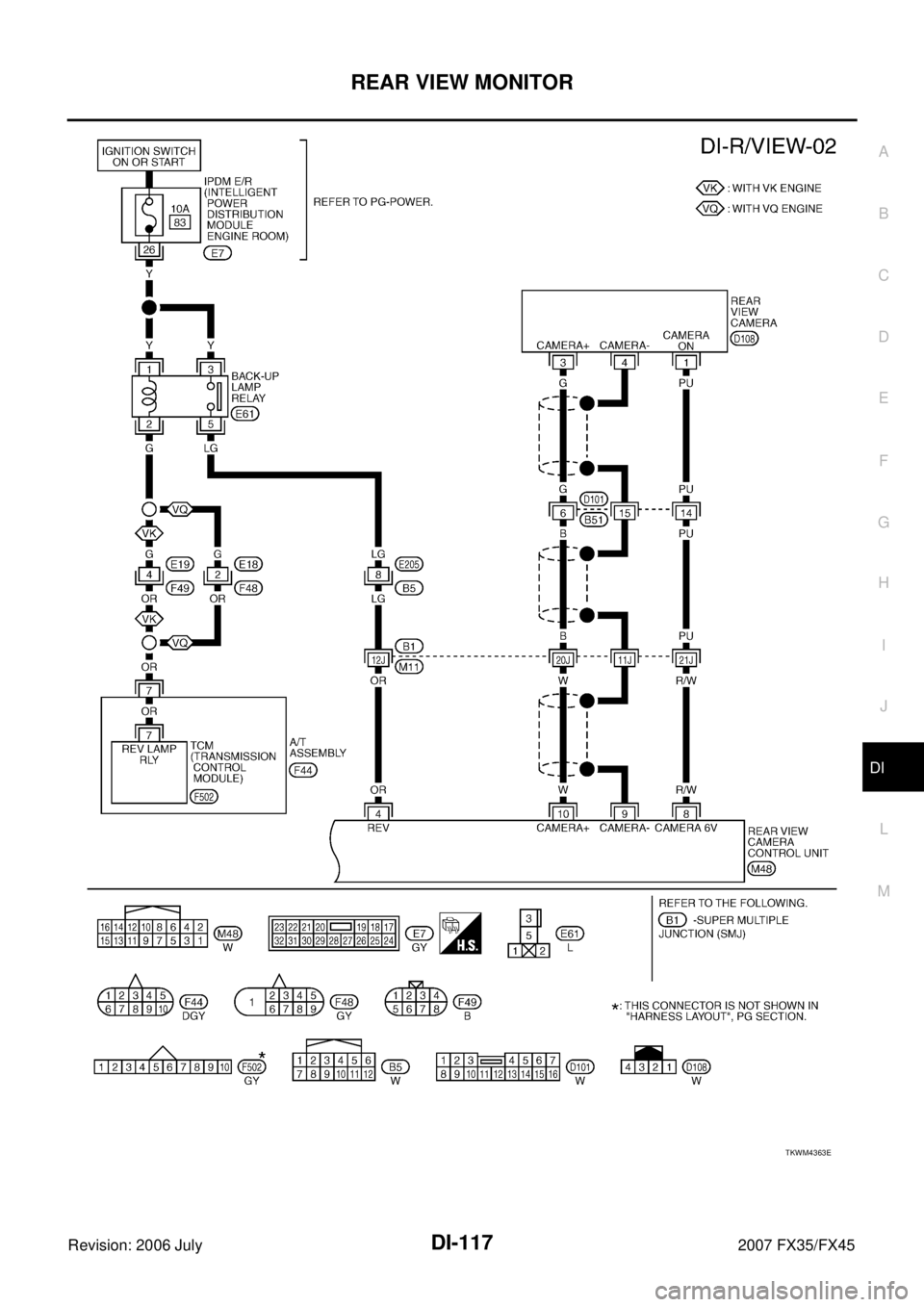

Wiring Diagram — R/VIEW —NKS0031W
TKWM4362E

REAR VIEW MONITOR DI-117
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
TKWM4363E

DI-118
REAR VIEW MONITOR
Revision: 2006 July 2007 FX35/FX45
TKWM4364E

REAR VIEW MONITOR DI-119
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Rear View Camera Control UnitNKS0031X
Te r m i n a l s
Item Condition
Reference value
Terminal
No. Wire
color Ignition
switch Operation
1 R/W Battery power supply OFF — Battery voltage
2 LG Ignition power supply ACC — Battery voltage
3 B Ground ON — Approx. 0 V
4 OR Reverse signal input ON A/T selector lever R range
position Battery voltage
A/T selector lever in other than
R range position Approx. 0 V
5 G/Y CONTROL 1 ON — Approx. 0 V
6 PU DDL — — —
8 R/W Camera power output ON A/T selector lever R range
position Approx. 6 V
9 — Camera image input (–) ON — Approx. 0 V
10 W Camera image input (+) ON A/T selector lever R range
position
11 — Shield ground — — —
12 L Composite image output ON A/T selector lever R range
position
14 R Composite image synchroni-
zation signal output ON A/T selector lever R range
position
