Page 4065 of 4366

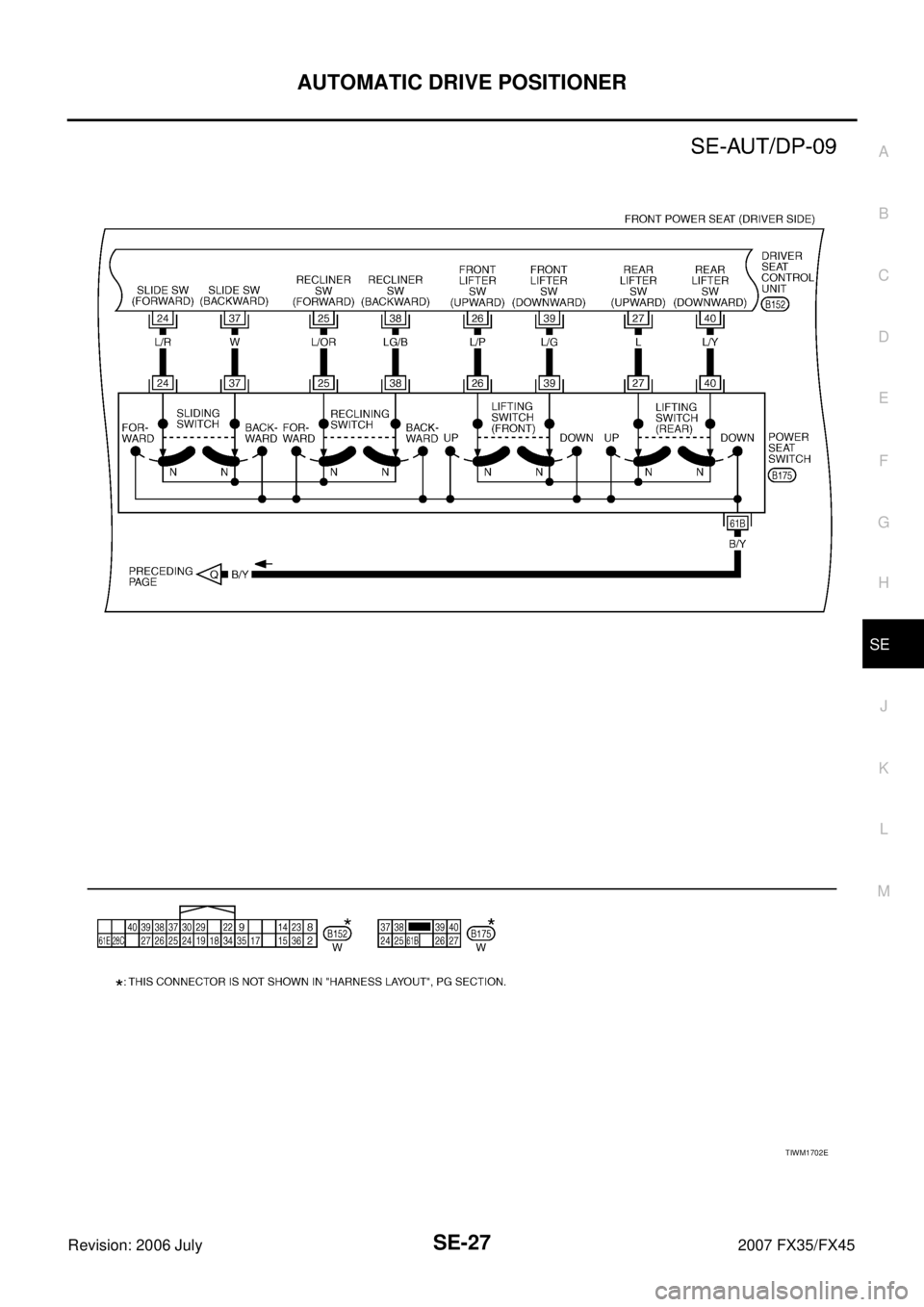

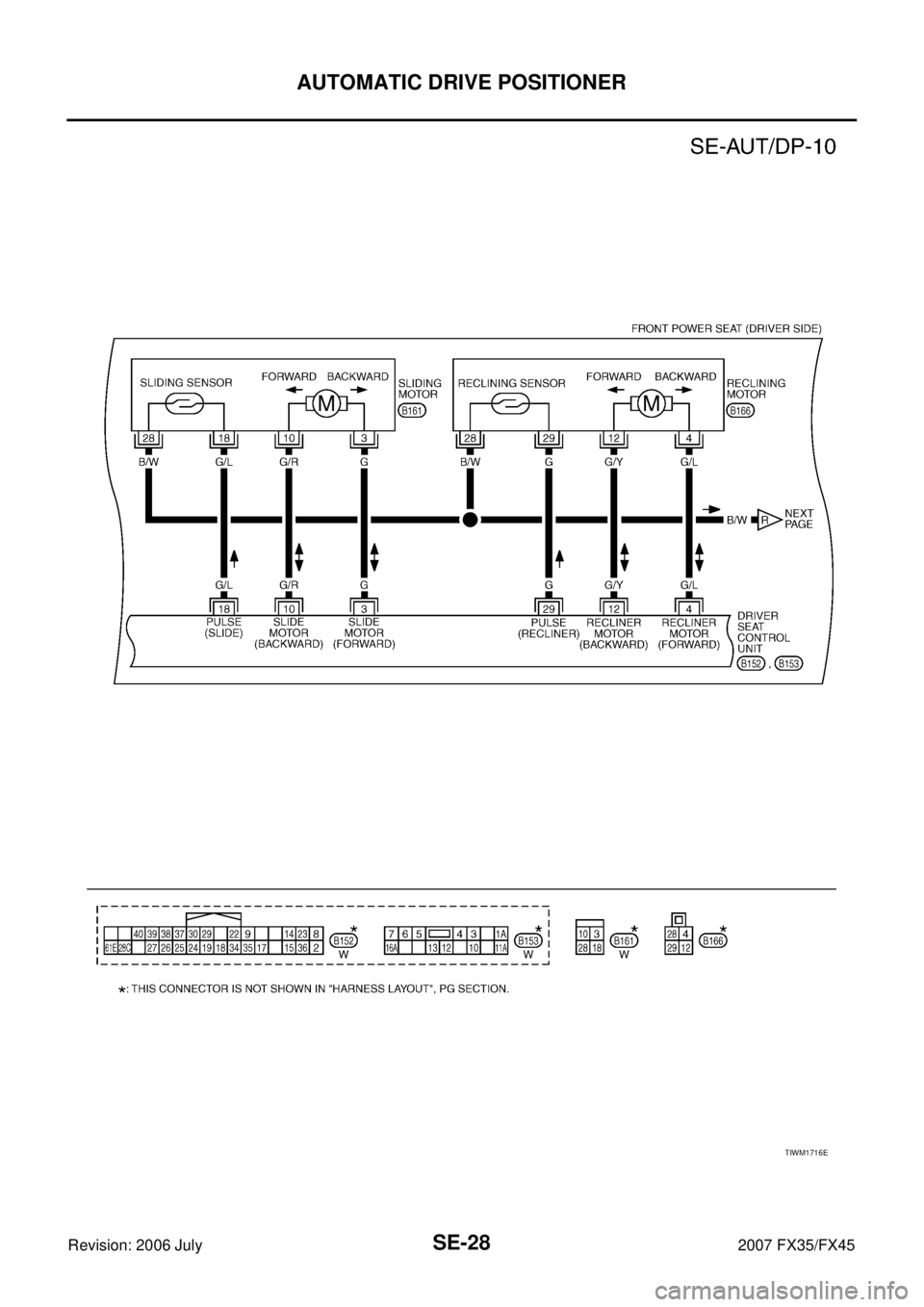

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-27
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
TIWM1702E

Page 4066 of 4366

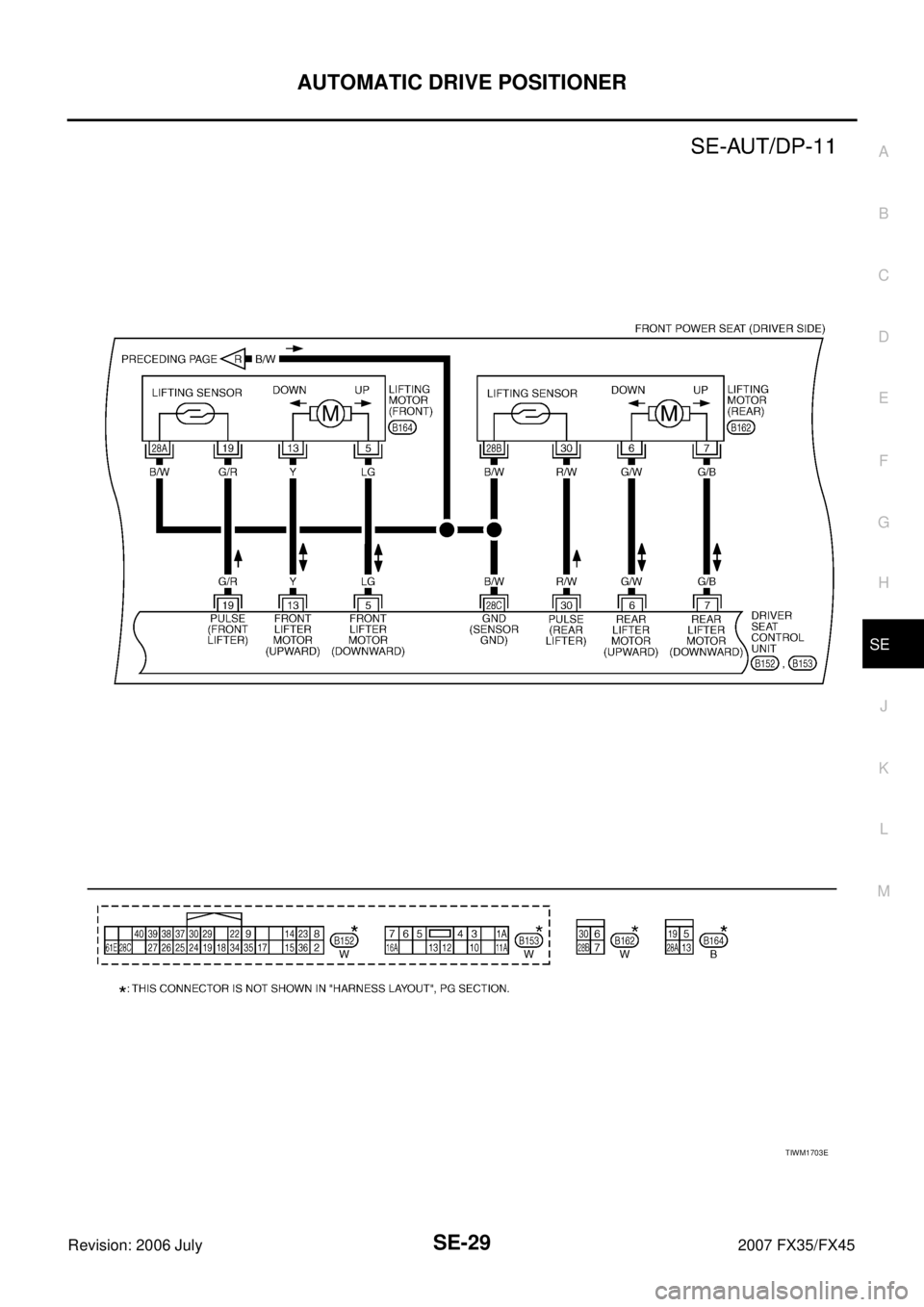

INFINITI FX35 2007 Service Manual SE-28
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
TIWM1716E

Page 4067 of 4366

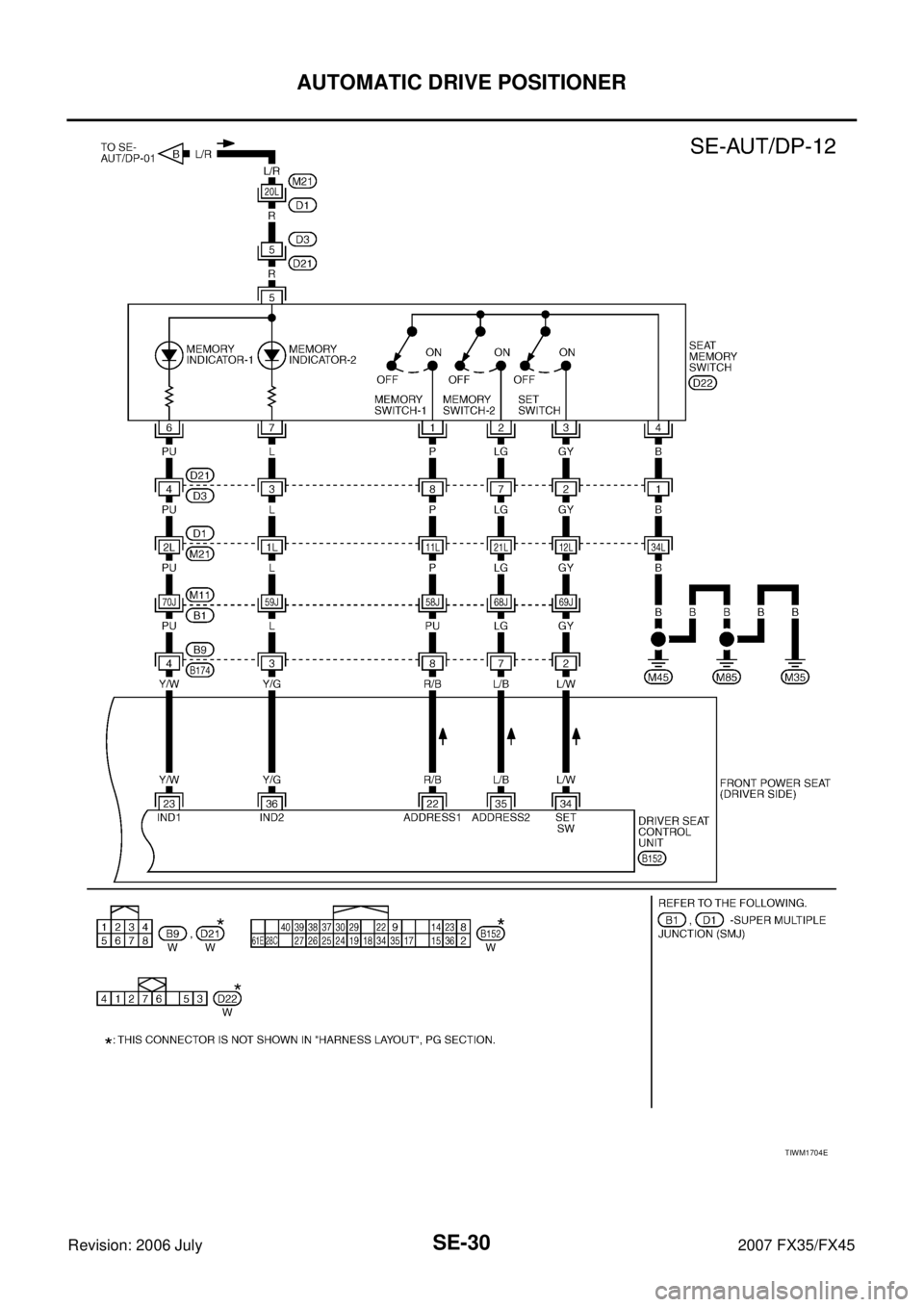

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-29
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
TIWM1703E

Page 4068 of 4366

INFINITI FX35 2007 Service Manual SE-30
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
TIWM1704E

Page 4069 of 4366

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-31
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for BCMNIS001UU
Terminals and Reference Values for Automatic

AUTOMATIC DRIVE POSITIONER SE-31
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for BCMNIS001UU
Terminals and Reference Values for Automatic Drive Positioner Control UnitNIS001UV
Te r -
minal Wire
Color Item
Signal
Input/Output Condition
Voltage (V)
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch
(ACC or ON position) Battery voltage
37 B/W Key switch signal Input Key switch ON (key is inserted in
ignition key cylinder) Battery voltage
Key switch OFF (key is removed
from ignition key cylinder) 0
38 W/L Ignition switch (ON) Input Ignition switch
(ON or START position) Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 L/R Power source (Fuse) Input — Battery voltage
49 B Ground (signal) — — 0
52 B Ground (power) — — 0
55 G Power supply (Fusible link) Input — Battery voltage
62 W Front door switch
(driver side) Output ON (Open)
→ OFF (Closed) 0 → Battery voltage
Te r -
minal Wire
Color Item
Signal
Input/Output Condition
Voltage (V)
(Approx.)
1 R Tilt switch UP signal Input Tilt switch turned to upward 0
Other than above 5
2 G/W Changeover switch RH signal Input When changeover switch in RH
position 0
Other than above 5
3 GY Mirror switch UP signal Input When mirror switch in turned to
upward position 0
Other than above 5
4 Y Mirror switch LEFT signal Input When mirror switch in turned to
leftward position 0
Other than above 5
5OR Passenger side mirror sen-
sor (vertical) signal Input When passenger side mirror
motor is UP or DOWN operation Changes between 3 (close to
perk) - 1 (close to valley)
6P/L Driver side mirror sensor
(vertical) signal InputWhen driver side mirror motor is
UP or DOWN operation Changes between 3 (close to
perk) - 1 (close to valley)
7 Y/R Tilt sensor signal Input Tilt position, top 2
Tilt position, bottom 4
10 B UART LINE (TX) Output Memory switch 1 or 2 operated
11 B R Telescopic switch
FORWARD signal Input Telescopic switch turned to for-
ward 0
Other than above 5
PIIA4813E

Page 4070 of 4366

INFINITI FX35 2007 Service Manual SE-32
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
14 L/W Passenger side mirror motor
UP signal Output When passenger side mirror
motor UP operation 1.5 - Battery voltage
Other

SE-32
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
14 L/W Passenger side mirror motor
UP signal Output When passenger side mirror
motor UP operation 1.5 - Battery voltage
Other than above 0
15 L/B Passenger side mirror motor
LEFT signal Output When passenger side mirror
motor LEFT operation 1.5 - Battery voltage
Other than above 0
16 P Driver side mirror motor
DOWN signal
Output When driver side mirror motor
DOWN operation 1.5 - Battery voltage
Other than above 0
Driver side mirror motor
RIGTH signal When driver side mirror motor
RIGHT operation 1.5 - Battery voltage
Other than above 0
17 R/B Tilt switch DOWN signal Input Tilt switch turned to downward 0
Other than above 5
18 L/OR Changeover switch LH signal Input When changeover switch in LH
position 0
Other than above 5
19 GY/L Mirror switch DOWN signal Input When mirror switch in turned to
downward position 0
Other than above 5
20 PU Mirror switch RIGHT signal Input When mirror switch in turned to
rightward position 0
Other than above 5
21 G/Y Passenger side mirror sen-
sor (horizontal) signal Input When passenger side mirror
motor is LEFT or RIGHT operation Changes between 1 (close to left
edge) - 3 (close to right edge)
22 L/Y Driver side mirror sensor
(horizontal) signal InputWhen driver side mirror motor is
LEFT or RIGHT operation Changes between 1 (close to
right edge) - 3 (close to left edge)
23 Y/B Telescopic sensor signal Input Telescopic position, top 1
Telescopic position, bottom 4
26 W UART LINE (RX) Input Memory switch 1 or 2 operated
27 LG Telescopic switch
BACKWARD signal Input Telescopic switch turned to back-
ward 0
Other than above 5
28 SB Ignition switch (START) Input Ignition switch
(START position) Battery voltage
30 W/R Passenger side mirror motor
DOWN signal
Output When passenger side mirror
motor downward 1.5 - Battery voltage
Other than above 0
Passenger side mirror motor
RIGTH signal When passenger side mirror
motor RIGHT operation 1.5 - Battery voltage
Other than above 0
Te r -
minal Wire
Color Item Signal
Input/Output Condition Voltage (V)
(Approx.)
PIIA4814E

Page 4071 of 4366

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-33
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for Driver Seat Control UnitNIS001UW
31 R/W Driver side mirro

Page 4072 of 4366

INFINITI FX35 2007 Service Manual SE-34
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
7G/B Rear lifting motor
DOWN signal Output When rear lifting motor
DOWN operation Battery voltage
Other than above 0
8 G/Y U
