6. While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the front door finisher. Refer to EI-36, "DOOR FINISHER" .
2. Remove speaker unit. Refer to AV- 4 4 , "
Removal and Installation for Front Door Speaker" .

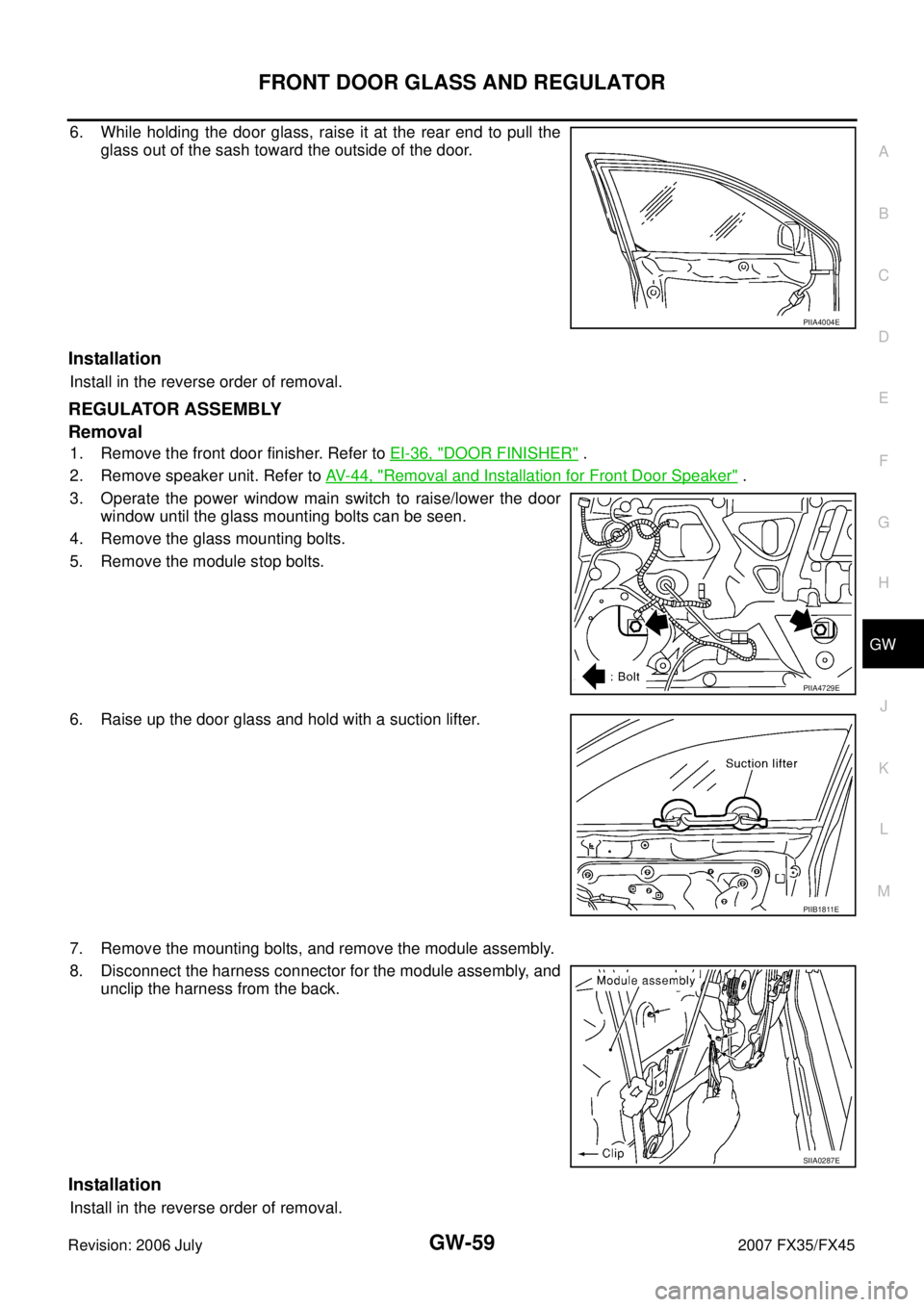

3. Operate the power window main switch to raise/lower the door window until the glass mounting bolts can be seen.
4. Remove the glass mounting bolts.
5. Remove the module stop bolts.
6. Raise up the door glass and hold with a suction lifter.
7. Remove the mounting bolts, and remove the module assembly.
8. Disconnect the harness connector for the module assembly, and unclip the harness from the back.
Installation
Install in the reverse order of removal.
PIIA4004E
PIIA4729E
PIIB1811E
SIIA0287E
Page 3298 of 4366

GW-60
FRONT DOOR GLASS AND REGULATOR
Revision: 2006 July 2007 FX35/FX45
Inspection after Removal
Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.
Wire wear
Regulator deformation
Grease condition for each sliding part
The arrows in the figure show the application points of the body
grease.
Disassembly and assemblyNIS001RT
REGULATOR ASSEMBLY
Disassembly
Remove the power window motor and guide rail from the module
assembly.
Assembly
Assemble in the reverse order of disassembly.
Inspection after InstallationNIS001RU
SETTING OF LIMIT SWITCH
Setting of Limit Switch
If any of the following work has been done, set the limit switch (integrated in the motor).
Removal and installation of the motor from the regulator.
Operate the regulators as a unit.
Installation of the new glass.
Installation of the new glass run.
Resetting
After installing each component to the vehicle, follow the steps below.
1. Raise the glass to the top position.
2. While pressing and holding the reset switch, lower the glass to the bottom position.
3. Release the reset switch, and check the reset switch returns to the original position, and then raise the glass to the top position.
CAUTION:
Do not operate the glass automatically to raise the glass to
the top position.
FITTING INSPECTION
Make sure the glass is securely fit into the glass run groove.
PIIA4730E
PIIA4731E
PIIA4732E
Page 3299 of 4366
FRONT DOOR GLASS AND REGULATOR GW-61
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is
parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.
Page 3300 of 4366
GW-62
REAR DOOR GLASS AND REGULATOR
Revision: 2006 July 2007 FX35/FX45
REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationNIS001RV
DOOR GLASS
Removal
1. Remove the rear door finisher. Refer to EI-36, "DOOR FINISHER" .
2. Remove the rear door outside molding. Refer to EI-25, "
DOOR OUTSIDE MOLDING" .
3. Remove the sealing screen.
4. Lower the door glass.
5. Remove the corner piece screws and bolt.
6. Remove the corner piece assembly.

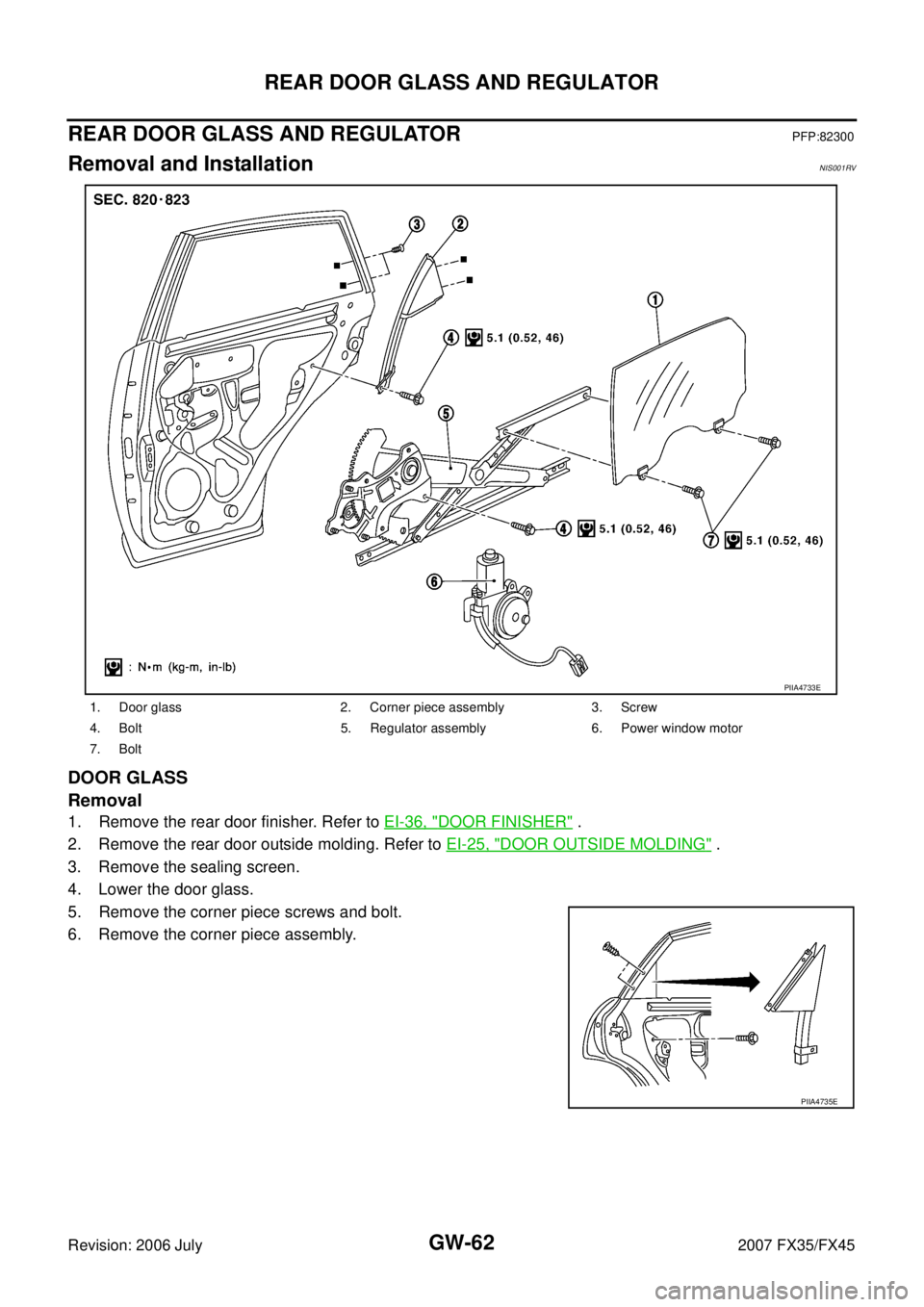

1. Door glass 2. Corner piece assembly 3. Screw
4. Bolt 5. Regulator assembly 6. Power window motor
7. Bolt
PIIA4733E
PIIA4735E
Page 3301 of 4366
REAR DOOR GLASS AND REGULATOR GW-63
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45
7. Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.
8. Remove the glass mounting bolts, and remove the glass from the inside of the panel.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the rear door finisher. Refer to EI-36, "DOOR FINISHER" .
2. Remove the rear door outside molding. Refer to EI-25, "
DOOR OUTSIDE MOLDING" .
3. Remove the sealing screen.
4. Lower the door glass.
5. Remove the corner piece screws and bolt.
6. Remove the corner piece assembly.

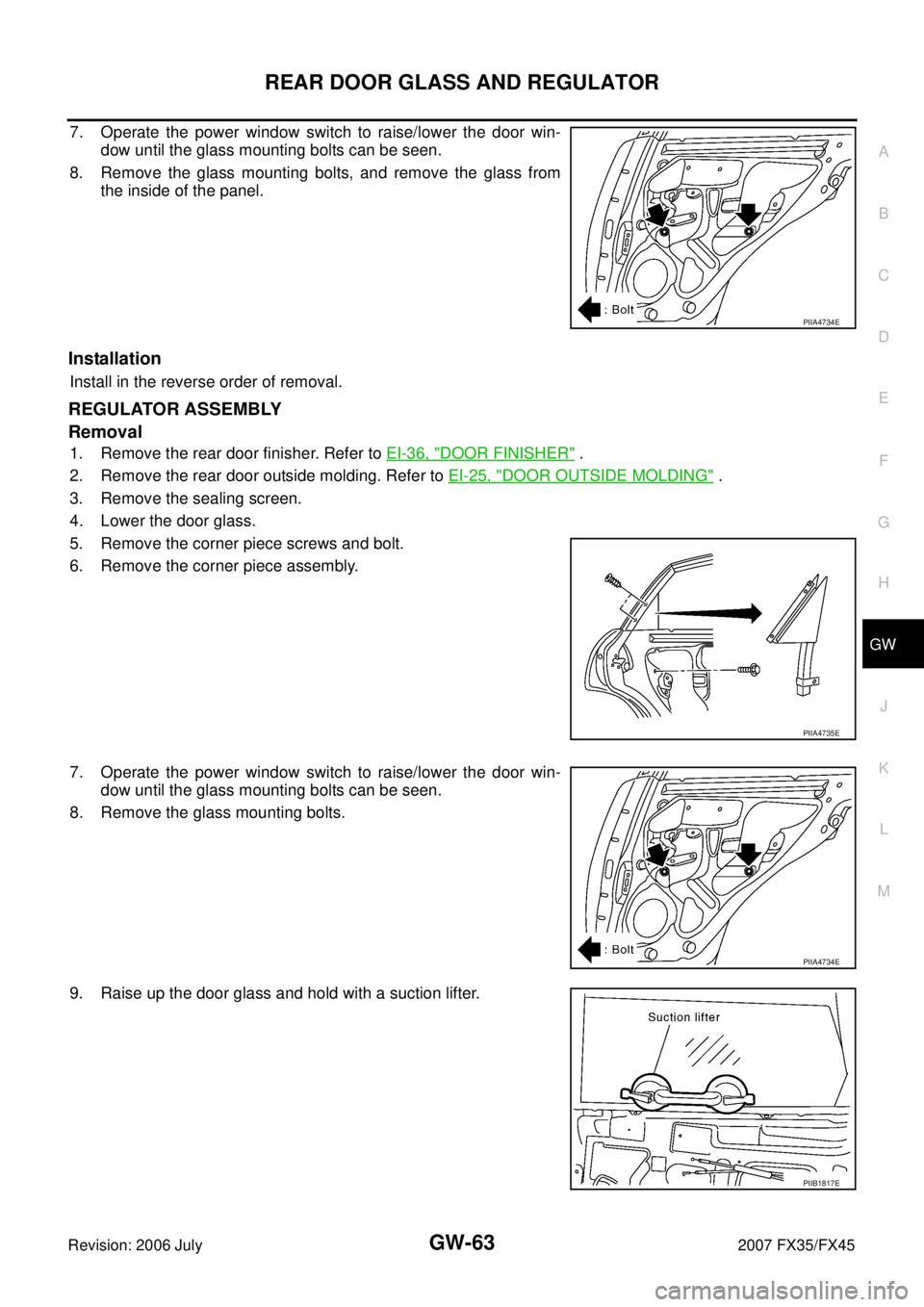

7. Operate the power window switch to raise/lower the door win- dow until the glass mounting bolts can be seen.
8. Remove the glass mounting bolts.
9. Raise up the door glass and hold with a suction lifter.
PIIA4734E
PIIA4735E
PIIA4734E
PIIB1817E
Page 3302 of 4366

GW-64
REAR DOOR GLASS AND REGULATOR
Revision: 2006 July 2007 FX35/FX45
10. Remove the power window motor mounting bolts and nuts, and
remove the regulator from the panel.
11. Disconnect the connector for the regulator assembly.
Installation
Install in the reverse order of removal.
Inspection after Removal
Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.
Gear wear
Regulator deformation
Spring damage
Grease condition for each sliding part
The arrows in the figure show the application points of the body
grease.
Disassembly and assemblyNIS001RW
REGULATOR ASSEMBLY
Disassembly
Remove the power window motor from the regulator assembly.
Assembly
Assemble in the reverse order of disassembly.
Fitting InspectionNIS001RX
Make sure the glass is securely fit into the glass run groove.
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and carrier plate mounting bolts to correct the glass position.
PIIA4736E
PIIA4935E
Page 3303 of 4366
INSIDE MIRROR GW-65
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45
INSIDE MIRRORPFP:96321

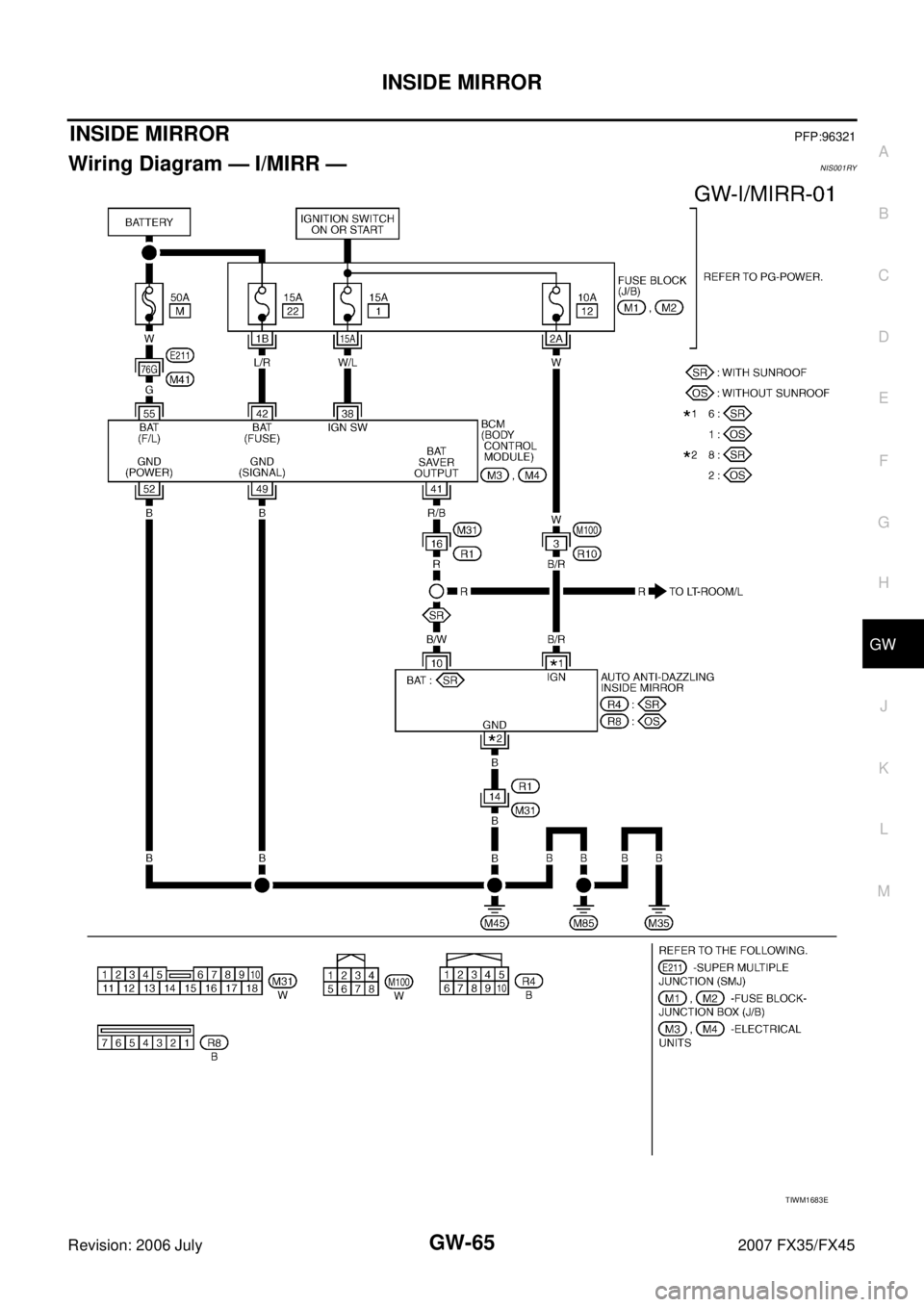

Wiring Diagram — I/MIRR —NIS001RY
TIWM1683E
Page 3304 of 4366
GW-66
INSIDE MIRROR
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNIS001RZ
REMOVAL
1. Remove inside mirror cover.
2. Remove inside mirror finisher.
3. Remove TORX bolt (T20) of the mirror base.
4. Slide the mirror base upward to remove.
5. Disconnect the connector.
INSTALLATION
Install in the reverse order of removal.
COMPASS
For reset of compass, refer to DI-106, "System Description" .
CAUTION:
Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to GI-48,
"RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS" .

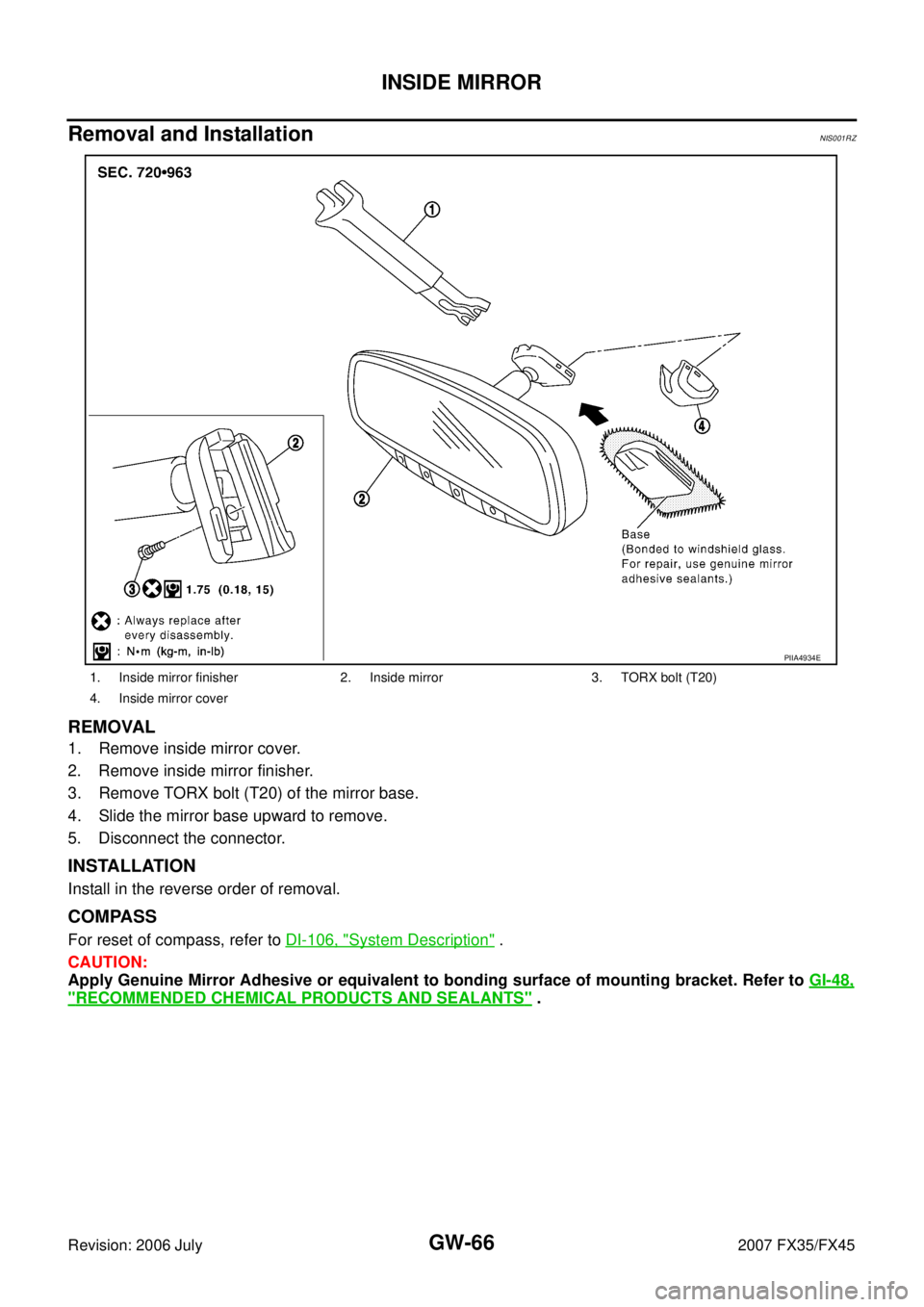

1. Inside mirror finisher 2. Inside mirror 3. TORX bolt (T20)
4. Inside mirror cover
PIIA4934E
