AUTOMATIC DRIVE POSITIONER SE-67
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Check Sliding Switch CircuitNIS001VK
1. CHECK FUNCTION
With CONSULT-II

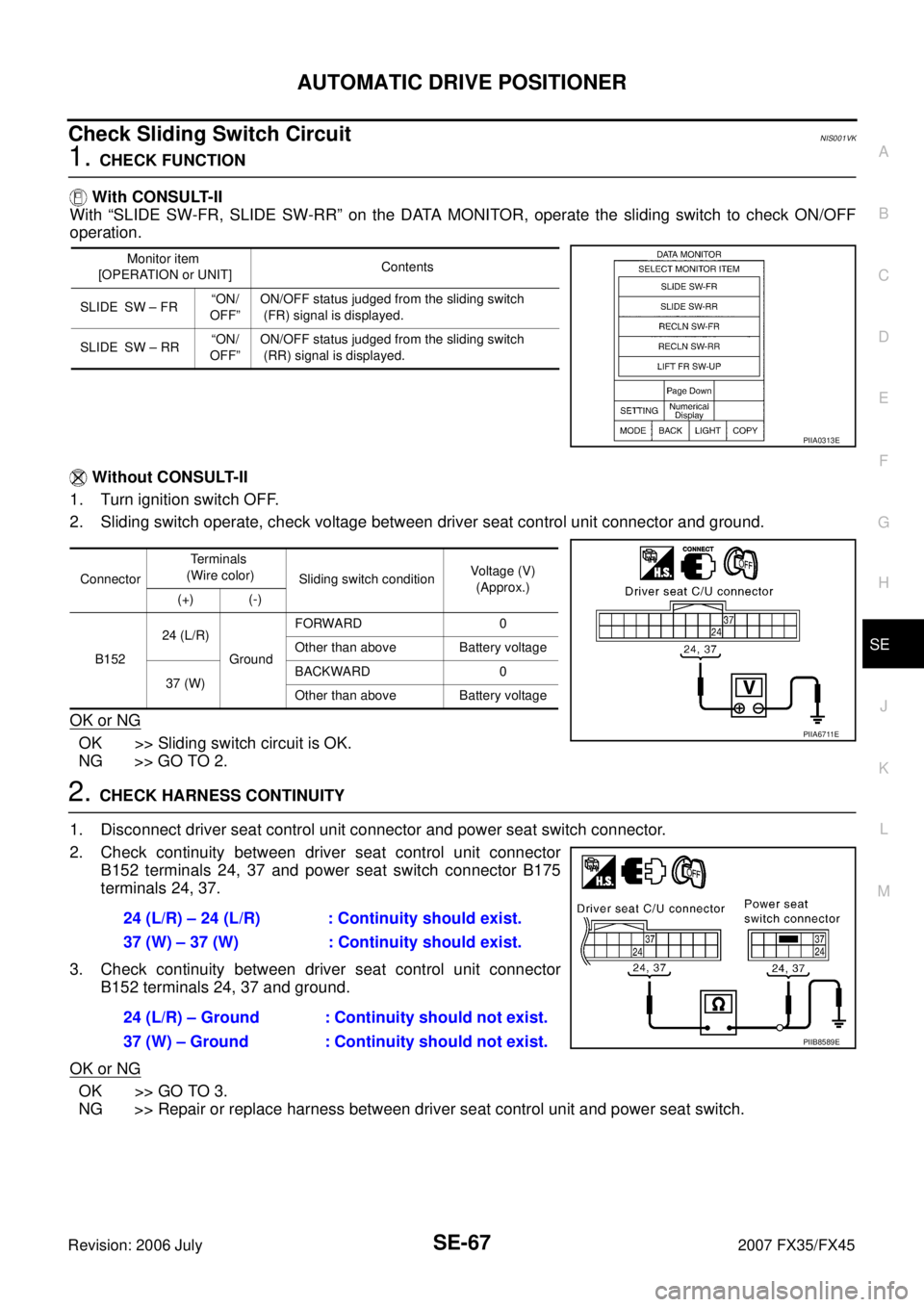

With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, operate the sliding switch to check ON/OFF
operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Sliding switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 24, 37 and power seat switch connector B175
terminals 24, 37.
3. Check continuity between driver seat control unit connector B152 terminals 24, 37 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
Monitor item
[OPERATION or UNIT] Contents
SLIDE SW – FR “ON/
OFF” ON/OFF status judged from the sliding switch
(FR) signal is displayed.
SLIDE SW – RR “ON/
OFF” ON/OFF status judged from the sliding switch
(RR) signal is displayed.
PIIA0313E
Connector Te r m i n a l s
(Wire color) Sliding switch condition Voltage (V)
(Approx.)
(+) (-)
B152 24 (L/R)
Ground FORWARD 0
Other than above Battery voltage
37 (W) BACKWARD 0
Other than above Battery voltage
PIIA6711E
24 (L/R) – 24 (L/R) : Continuity should exist.
37 (W) – 37 (W) : Continuity should exist.
24 (L/R) – Ground : Continuity should not exist.
37 (W) – Ground : Continuity should not exist.
PIIB8589E
Page 4106 of 4366

SE-68
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
3. CHECK SLIDING SWITCH
Sliding switch operate, check continuity between power seat switch connector B175 terminal 24, 27 and 61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch.
Check Reclining Switch CircuitNIS001VL
1. CHECK FUNCTION
With CONSULT-II
With “RECLINING SW-FR, RECLINING SW-RR” on the DATA MONITOR, operate the reclining switch to
check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reclining switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Reclining switch circuit is OK.
NG >> GO TO 2.
Connector Terminal Sliding switch condition Continuity
B175 24
61B FORWARD Yes
Other than above No
37 BACKWARD Yes
Other than above No
PIIB8590E
Monitor item
[OPERATION or UNIT] Contents
RECLN SW – FR “ON/
OFF” ON/OFF status judged from the reclining switch
(FR) signal is displayed.
RECLN SW – RR “ON/
OFF” ON/OFF status judged from the reclining switch
(RR) signal is displayed.
PIIA0313E
Connector Te r m i n a l s
(Wire color) Reclining switch
condition Voltage (V)
(Approx.)
(+) (–)
B152 25 (L/OR)
Ground FORWARD 0
Other than above Battery voltage
38 (LG/B) BACKWARD 0
Other than above Battery voltage
PIIA6095E
Page 4107 of 4366

AUTOMATIC DRIVE POSITIONER SE-69
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 25, 38 and power seat switch connector B175
terminals 25, 38.
3. Check continuity between driver seat control unit connector B152 terminals 25, 38 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
3. CHECK RECLINING SWITCH

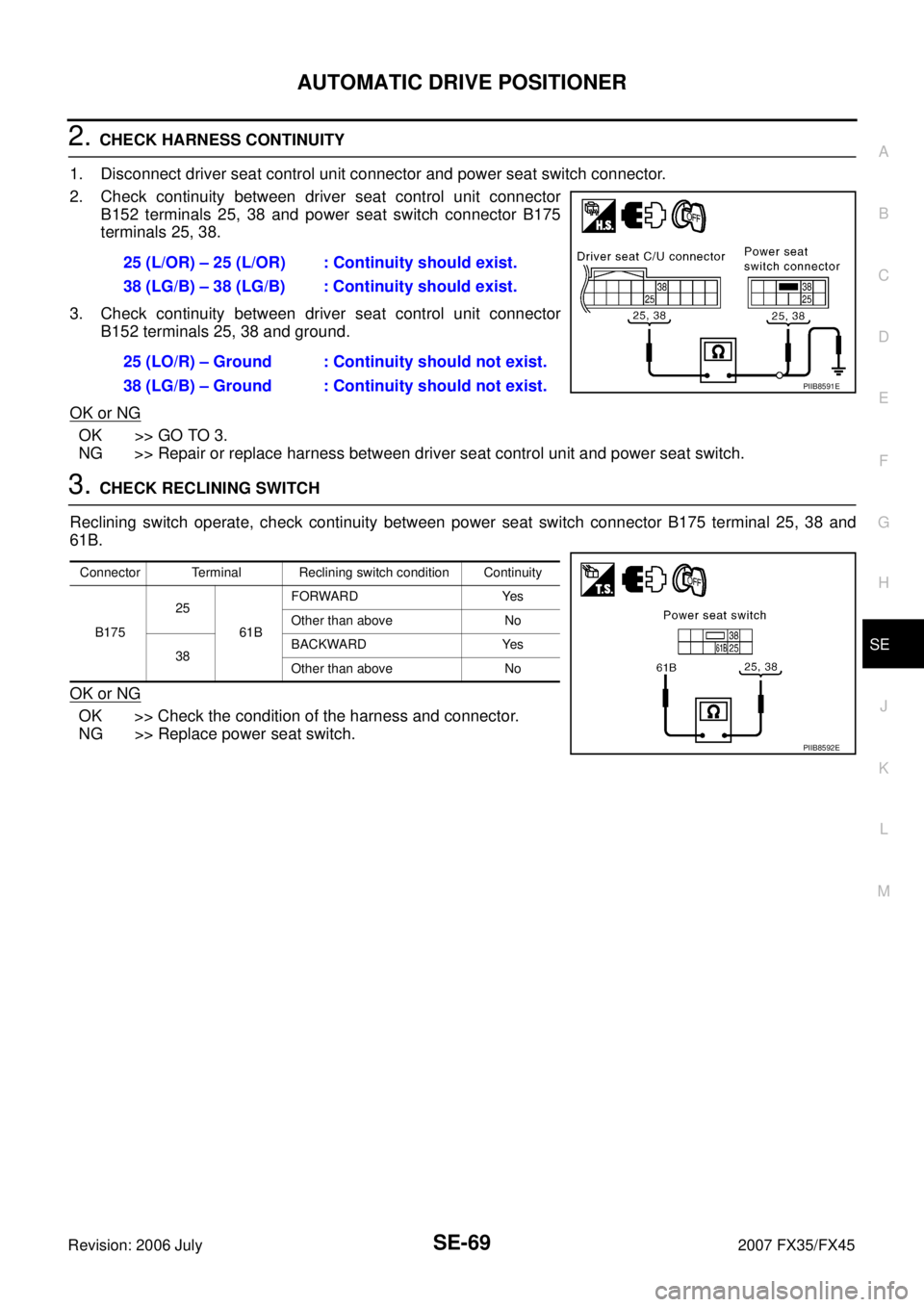

Reclining switch operate, check continuity between power seat switch connector B175 terminal 25, 38 and
61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch. 25 (L/OR) – 25 (L/OR) : Continuity should exist.
38 (LG/B) – 38 (LG/B) : Continuity should exist.
25 (LO/R) – Ground : Continuity should not exist.
38 (LG/B) – Ground : Continuity should not exist.
PIIB8591E
Connector Terminal Reclining switch condition Continuity
B175 25
61B FORWARD Yes
Other than above No
38 BACKWARD Yes
Other than above No
PIIB8592E
Page 4108 of 4366

SE-70
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
Check Front Lifting Switch CircuitNIS001VM
1. CHECK FUNCTION
With CONSULT-II

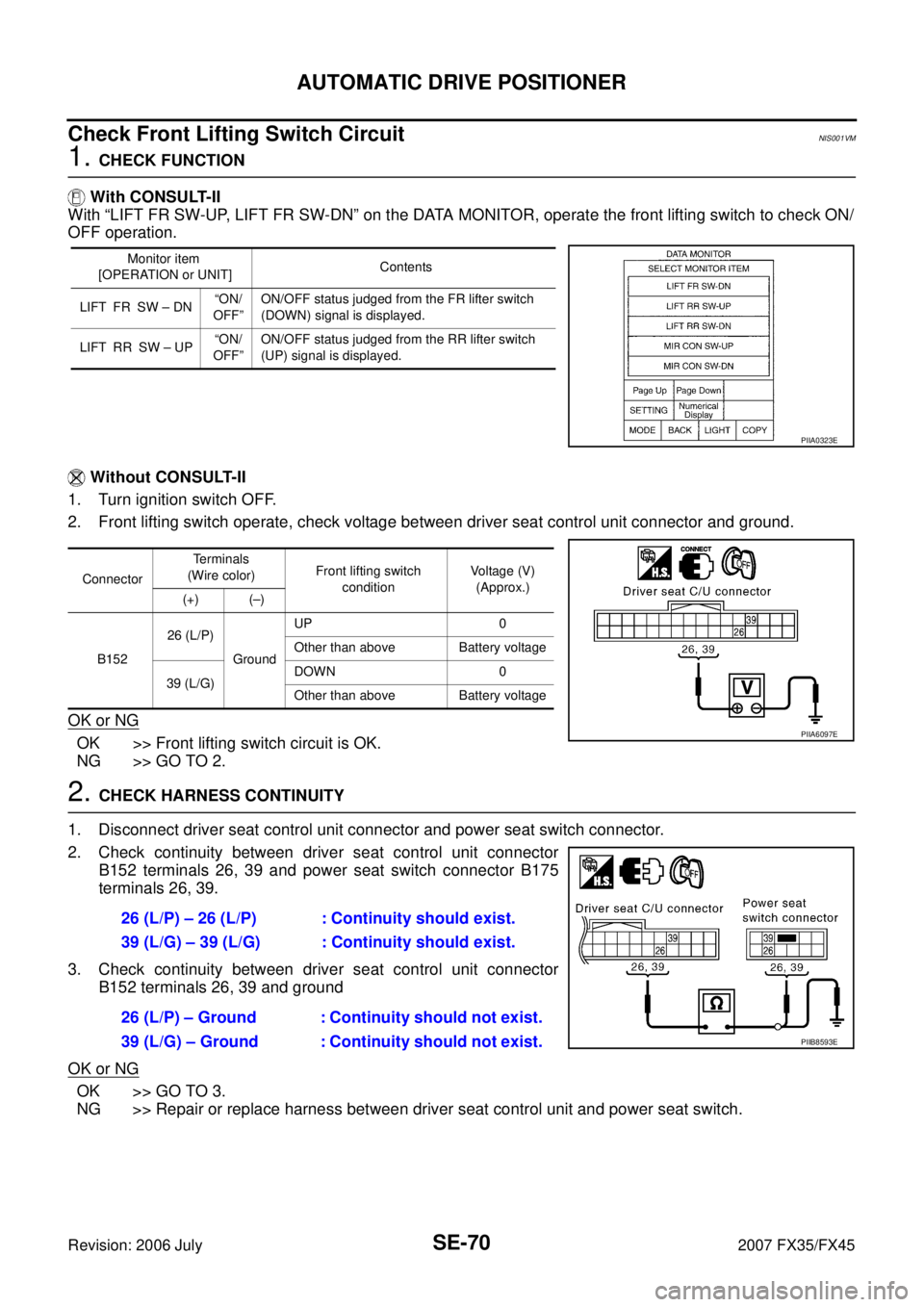

With “LIFT FR SW-UP, LIFT FR SW-DN” on the DATA MONITOR, operate the front lifting switch to check ON/
OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Front lifting switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Front lifting switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 26, 39 and power seat switch connector B175
terminals 26, 39.
3. Check continuity between driver seat control unit connector B152 terminals 26, 39 and ground
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
Monitor item
[OPERATION or UNIT] Contents
LIFT FR SW – DN “ON/
OFF” ON/OFF status judged from the FR lifter switch
(DOWN) signal is displayed.
LIFT RR SW – UP “ON/
OFF” ON/OFF status judged from the RR lifter switch
(UP) signal is displayed.
PIIA0323E
Connector Terminals
(Wire color) Front lifting switch
condition Voltage (V)
(Approx.)
(+) (–)
B152 26 (L/P)
Ground UP 0
Other than above Battery voltage
39 (L/G) DOWN 0
Other than above Battery voltage
PIIA6097E
26 (L/P) – 26 (L/P) : Continuity should exist.
39 (L/G) – 39 (L/G) : Continuity should exist.
26 (L/P) – Ground : Continuity should not exist.
39 (L/G) – Ground : Continuity should not exist.
PIIB8593E
Page 4109 of 4366

AUTOMATIC DRIVE POSITIONER SE-71
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
3. CHECK FRONT LIFTING SWITCH
Front lifting switch operate, check continuity between power seat switch connector B175 terminal 26, 39 and
61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch.
Check Rear Lifting Switch CircuitNIS001VN
1. CHECK FUNCTION
With CONSULT-II
With “LIFT RR SW-UP, LIFT RR SW-DN” on the DATA MONITOR, operate the rear lifting switch to check ON/
OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Rear lifting switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Rear seat lifting switch circuit is OK.
NG >> GO TO 2.
Connector Terminals Front lifting switch condition Continuity
B175 26
61B UP Yes
Other than above No
39 DOWN Yes
Other than above No
PIIB8594E
Monitor item
[OPERATION or UNIT] Contents
LIFT RR SW–UP “ON/OFF” (ON/OFF) status judged from the RR lifter switch
(UP) signal is displayed.
LIFT RR SW–DN “ON/OFF” (ON/OFF) status judged from the RR lifter switch
(DOWN) signal is displayed.
PIIA0323E
Connector Terminals
(Wire color) Rear lifting switch
condition Voltage (V)
(Approx.)
(+) (–)
B152 27 (L)
Ground UP 0
Other than above Battery voltage
40 (L/Y) DOWN 0
Other than above Battery voltage
PIIA6099E
Page 4110 of 4366

SE-72
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
2. CHECK REAR LIFTING SWITCH HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 27, 40 and power seat switch connector B175
terminals 27, 40.
3. Check continuity between driver seat control unit connector B152 terminals 27, 40 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
3. CHECK REAR LIFTING SWITCH

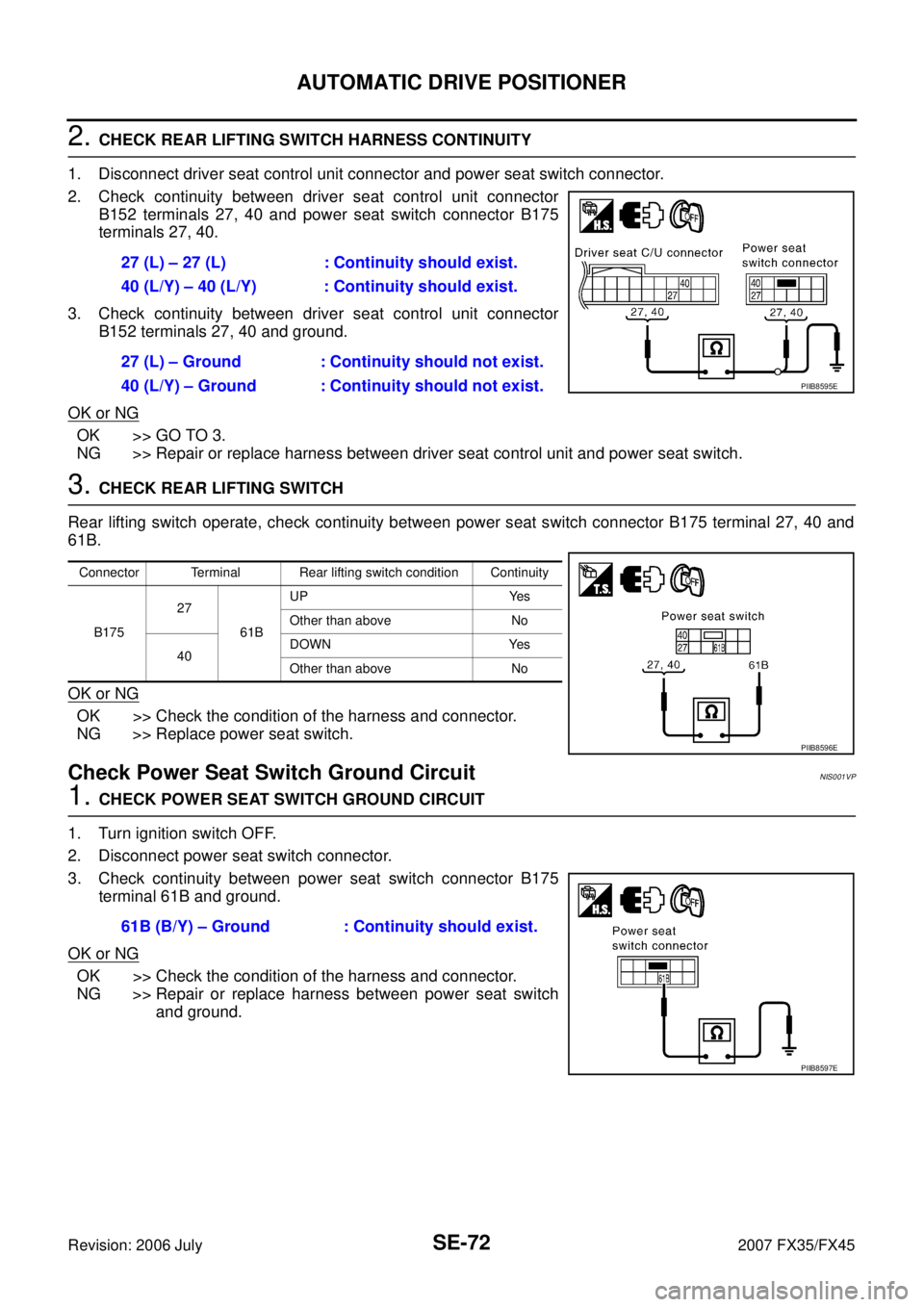

Rear lifting switch operate, check continuity between power seat switch connector B175 terminal 27, 40 and
61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch.
Check Power Seat Switch Ground CircuitNIS001VP
1. CHECK POWER SEAT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.
3. Check continuity between power seat switch connector B175 terminal 61B and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between power seat switch and ground.
27 (L) – 27 (L) : Continuity should exist.
40 (L/Y) – 40 (L/Y) : Continuity should exist.
27 (L) – Ground : Continuity should not exist.
40 (L/Y) – Ground : Continuity should not exist.
PIIB8595E
Connector Terminal Rear lifting switch condition Continuity
B175 27
61B UP Yes
Other than above No
40 DOWN Yes
Other than above No
PIIB8596E
61B (B/Y) – Ground : Continuity should exist.
PIIB8597E
Page 4111 of 4366

AUTOMATIC DRIVE POSITIONER SE-73
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Check Telescopic Switch CircuitNIS001VQ
1. CHECK FUNCTION
With CONSULT-II

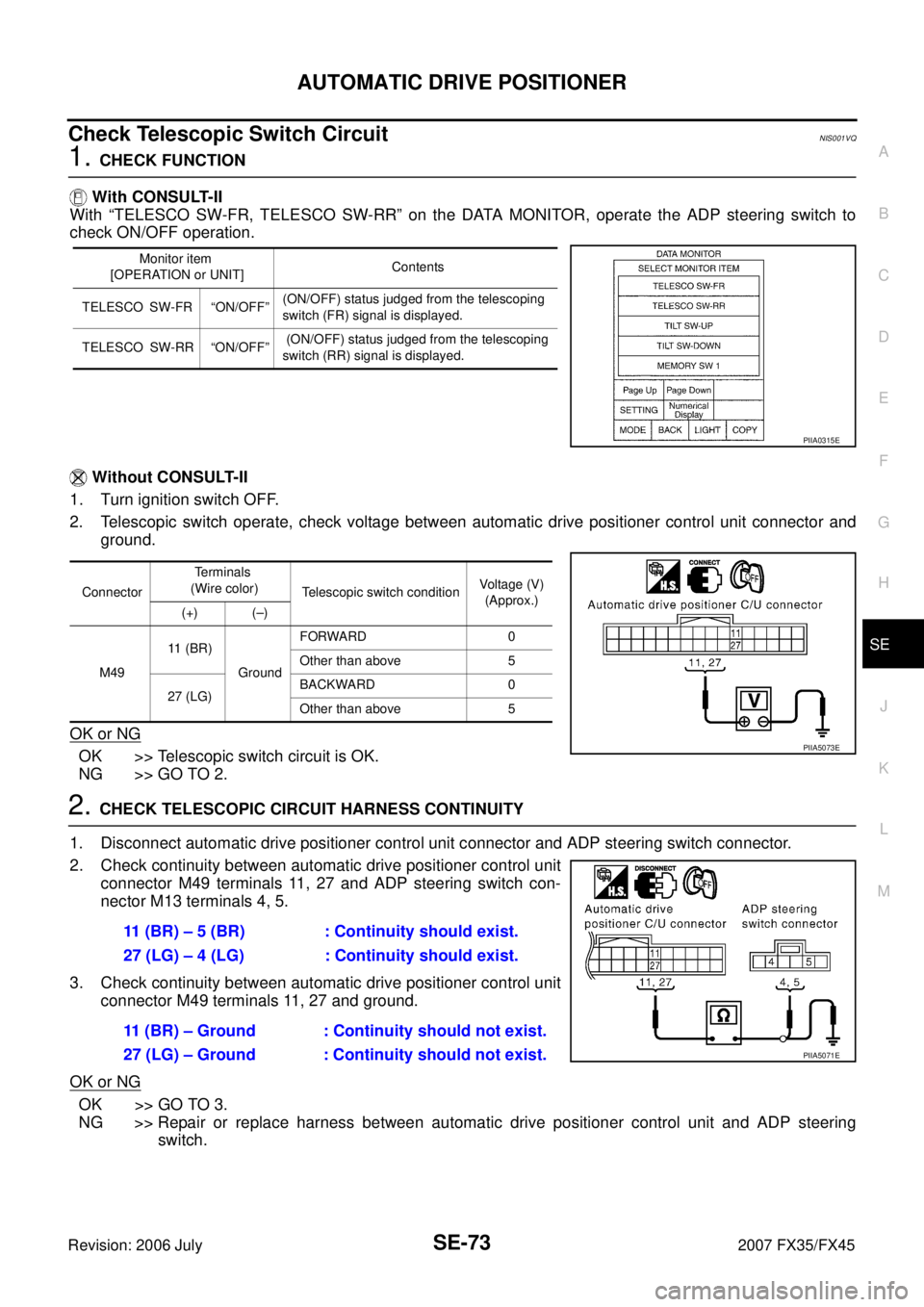

With “TELESCO SW-FR, TELESCO SW-RR” on the DATA MONITOR, operate the ADP steering switch to
check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Telescopic switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Telescopic switch circuit is OK.
NG >> GO TO 2.
2. CHECK TELESCOPIC CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and ADP steering switch connector.
2. Check continuity between automatic drive positioner control unit connector M49 terminals 11, 27 and ADP steering switch con-
nector M13 terminals 4, 5.
3. Check continuity between automatic drive positioner control unit connector M49 terminals 11, 27 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between automatic drive positioner control unit and ADP steering switch.
Monitor item
[OPERATION or UNIT] Contents
TELESCO SW-FR “ON/OFF” (ON/OFF) status judged from the telescoping
switch (FR) signal is displayed.
TELESCO SW-RR “ON/OFF” (ON/OFF) status judged from the telescoping
switch (RR) signal is displayed.
PIIA0315E
Connector Terminals
(Wire color) Telescopic switch condition Voltage (V)
(Approx.)
(+) (–)
M49 11 ( B R )
Ground FORWARD 0
Other than above 5
27 (LG) BACKWARD 0
Other than above 5
PIIA5073E
11 (BR) – 5 (BR) : Continuity should exist.
27 (LG) – 4 (LG) : Continuity should exist.
11 (BR) – Ground : Continuity should not exist.
27 (LG) – Ground : Continuity should not exist.
PIIA5071E
Page 4112 of 4366
SE-74
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
3. CHECK TELESCOPIC SWITCH

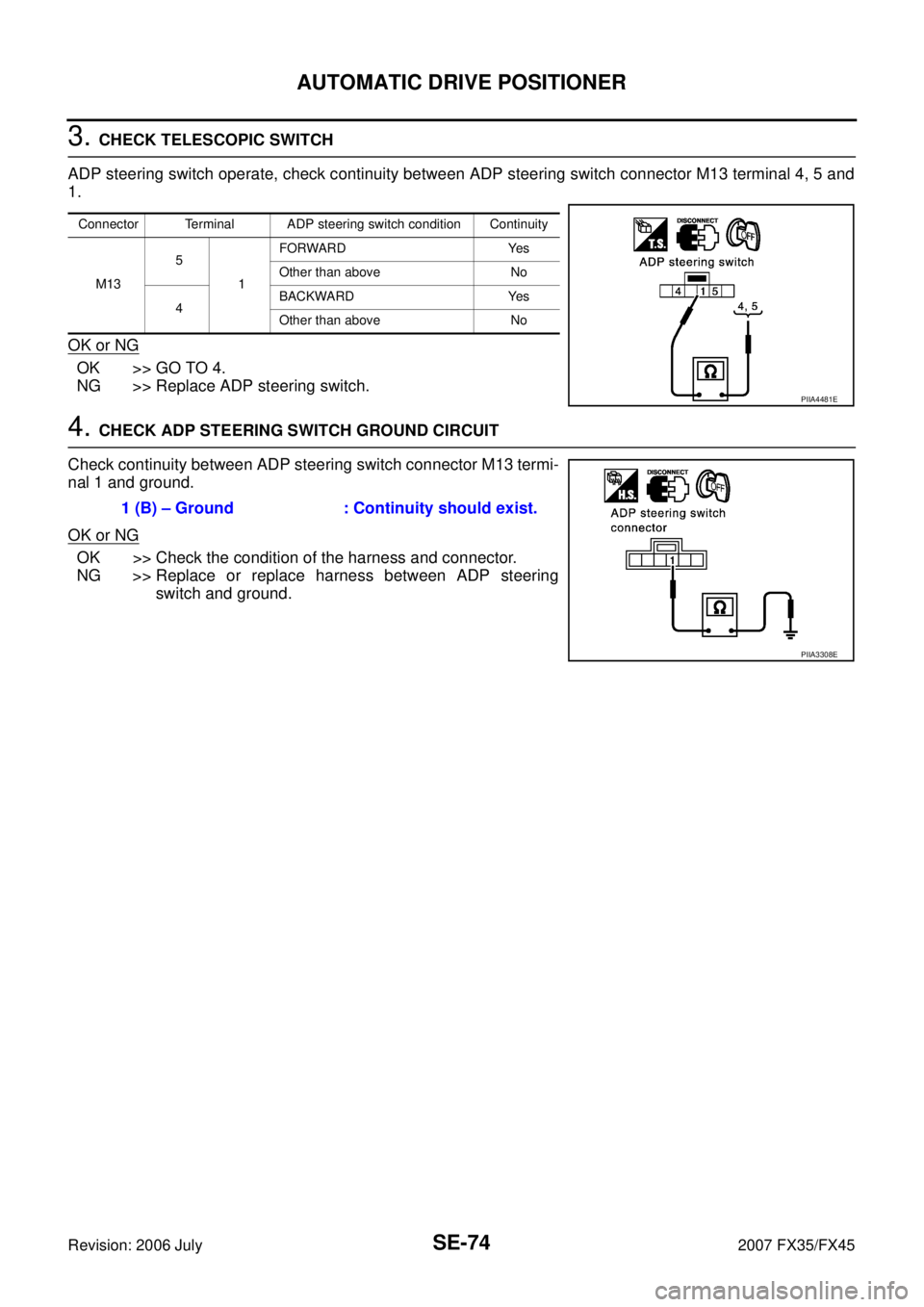

ADP steering switch operate, check continuity between ADP steering switch connector M13 terminal 4, 5 and
1.
OK or NG
OK >> GO TO 4.
NG >> Replace ADP steering switch.
4. CHECK ADP STEERING SWITCH GROUND CIRCUIT
Check continuity between ADP steering switch connector M13 termi-
nal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness between ADP steering
switch and ground.
Connector Terminal ADP steering switch condition Continuity
M13 5
1 FORWARD Yes
Other than above No
4 BACKWARD Yes
Other than above No
PIIA4481E
1 (B) – Ground : Continuity should exist.
