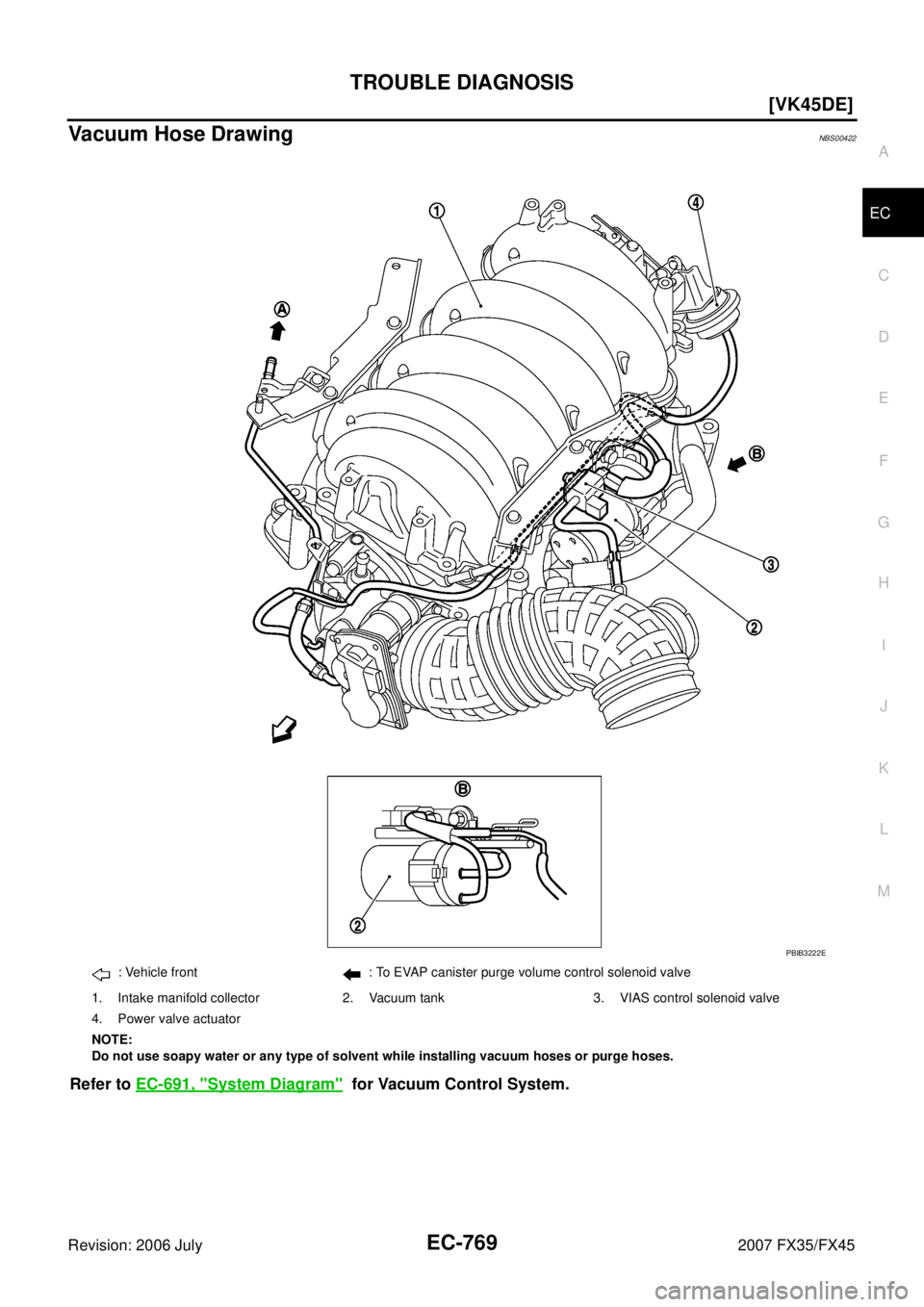

Vacuum Hose DrawingNBS00422
Refer to EC-691, "System Diagram" for Vacuum Control System.
: Vehicle front : To EVAP canister purge volume control solenoid valve
1. Intake manifold collector 2. Vacuum tank 3. VIAS control solenoid valve
4. Power valve actuator
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
PBIB3222E
Page 2146 of 4366
EC-770
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

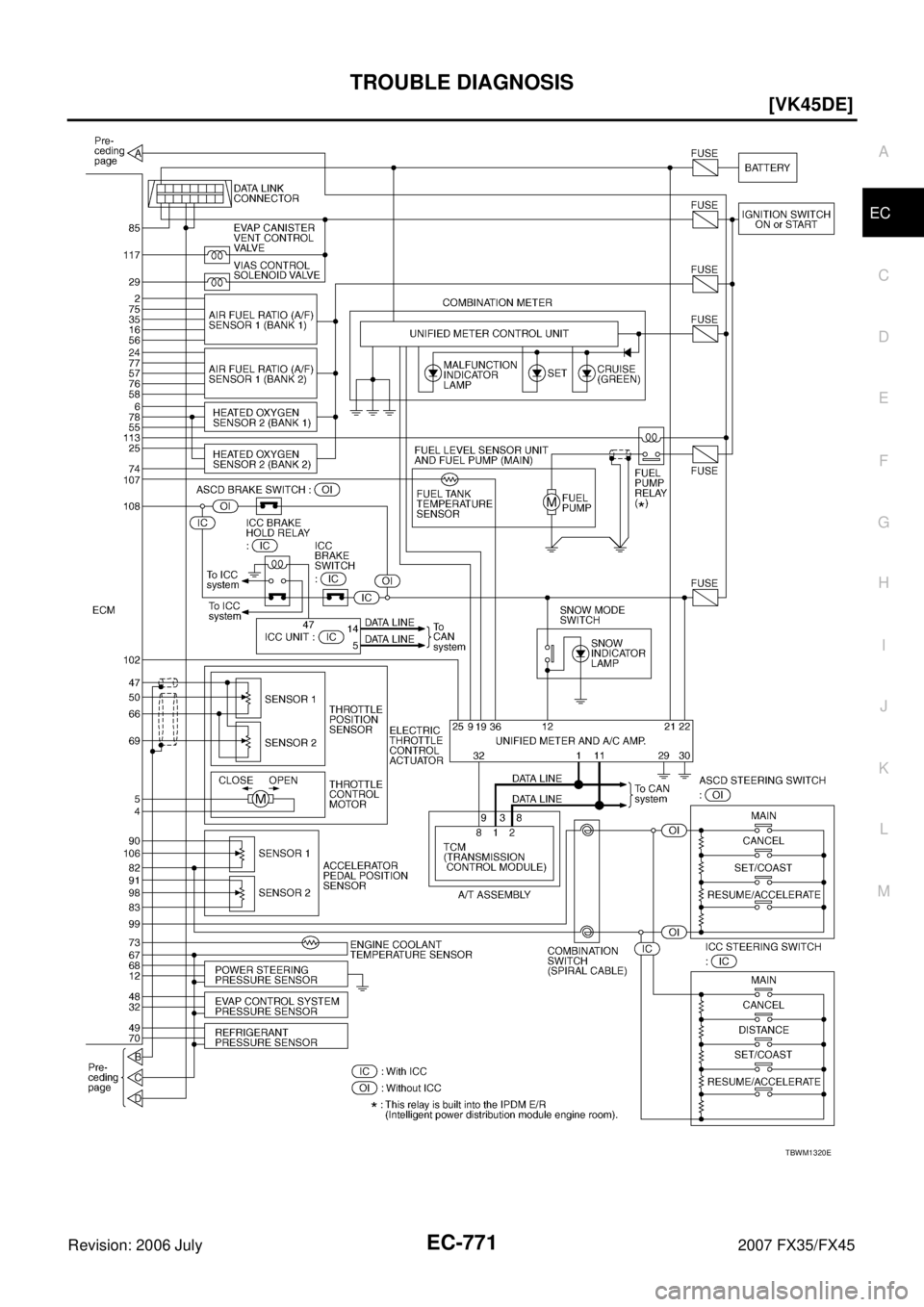

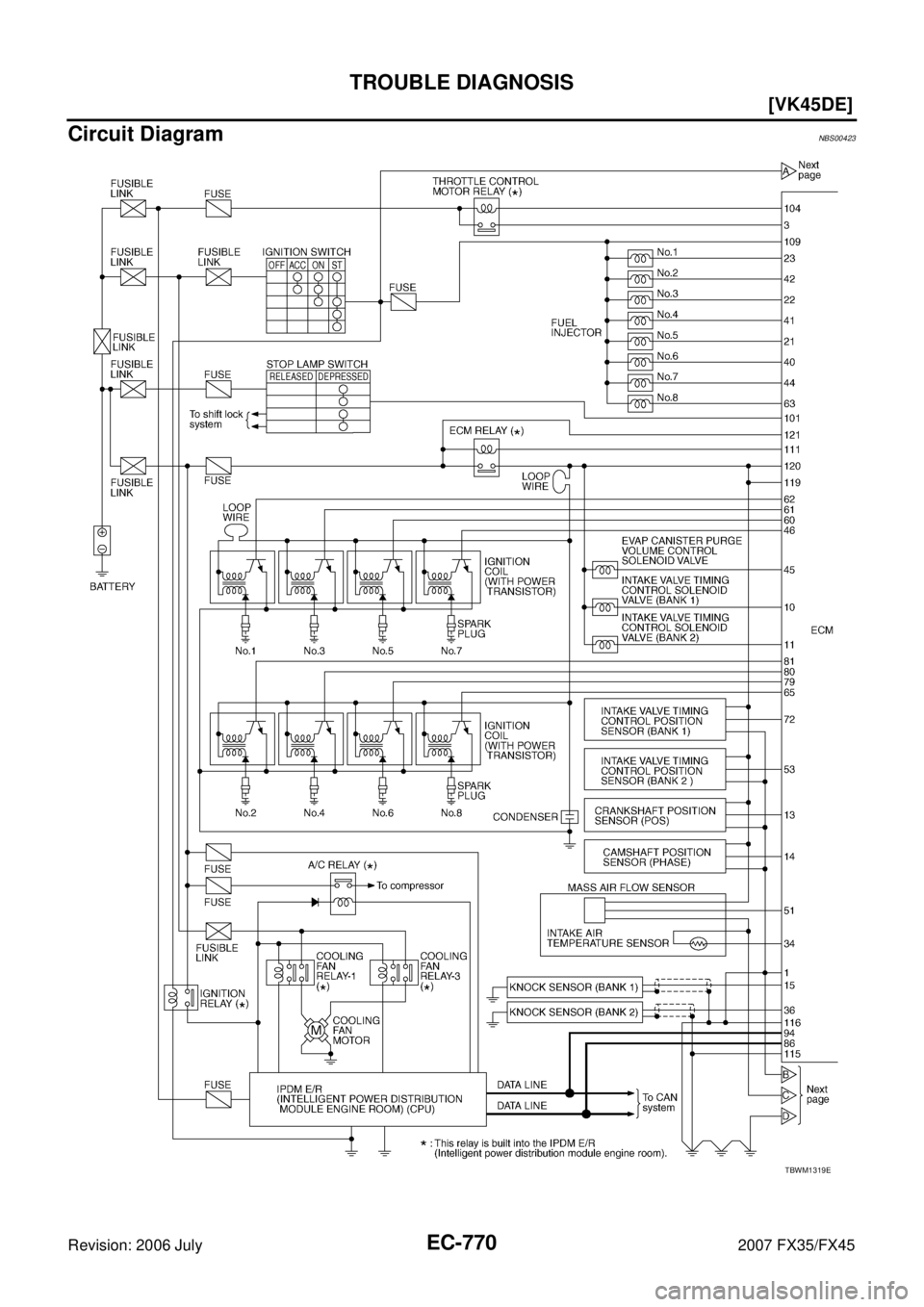

Circuit DiagramNBS00423
