Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS003JN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketNBS003JO
REMOVAL OF LIQUID GASKET SEALING
After removing mounting nuts and bolts, separate the mating
surface using the seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
Tap the seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.
In areas where seal cutter is difficult to use, use a plastic ham-
mer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as a screwdriver
is used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove old liquid gasket adhering to the liquid
gasket application surface and the mating surface.
Remove liquid gasket completely from the groove of the liquid
gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur- face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
PBIC0002E
PBIC0003E

Page 1194 of 4366

INFINITI FX35 2007 Service Manual CO-4
[VQ35DE]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
3. Attach liquid gasket tube to the tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48,

Page 1195 of 4366

INFINITI FX35 2007 Service Manual PREPARATION CO-5
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003JP
The actual shapes of Kent-Moore tools may differ

Page 1196 of 4366

INFINITI FX35 2007 Service Manual CO-6
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
Commercial Service ToolsNBS003JQ
Tool nameDescription
Power tool Loosening nuts and bolts
Radiator cap tester Checking radiator and radi

Page 1197 of 4366

INFINITI FX35 2007 Service Manual OVERHEATING CAUSE ANALYSIS CO-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS003JR
Symptom Check item

Page 1198 of 4366

INFINITI FX35 2007 Service Manual CO-8
[VQ35DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 July 2007 FX35/FX45
Except cool-
ing system
parts mal-
function — Overload on engine
Abusive driving
High engine rpm under no
load
Dr

Page 1199 of 4366

INFINITI FX35 2007 Service Manual COOLING SYSTEM CO-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
COOLING SYSTEMPFP:21020
Cooling CircuitNBS003JS

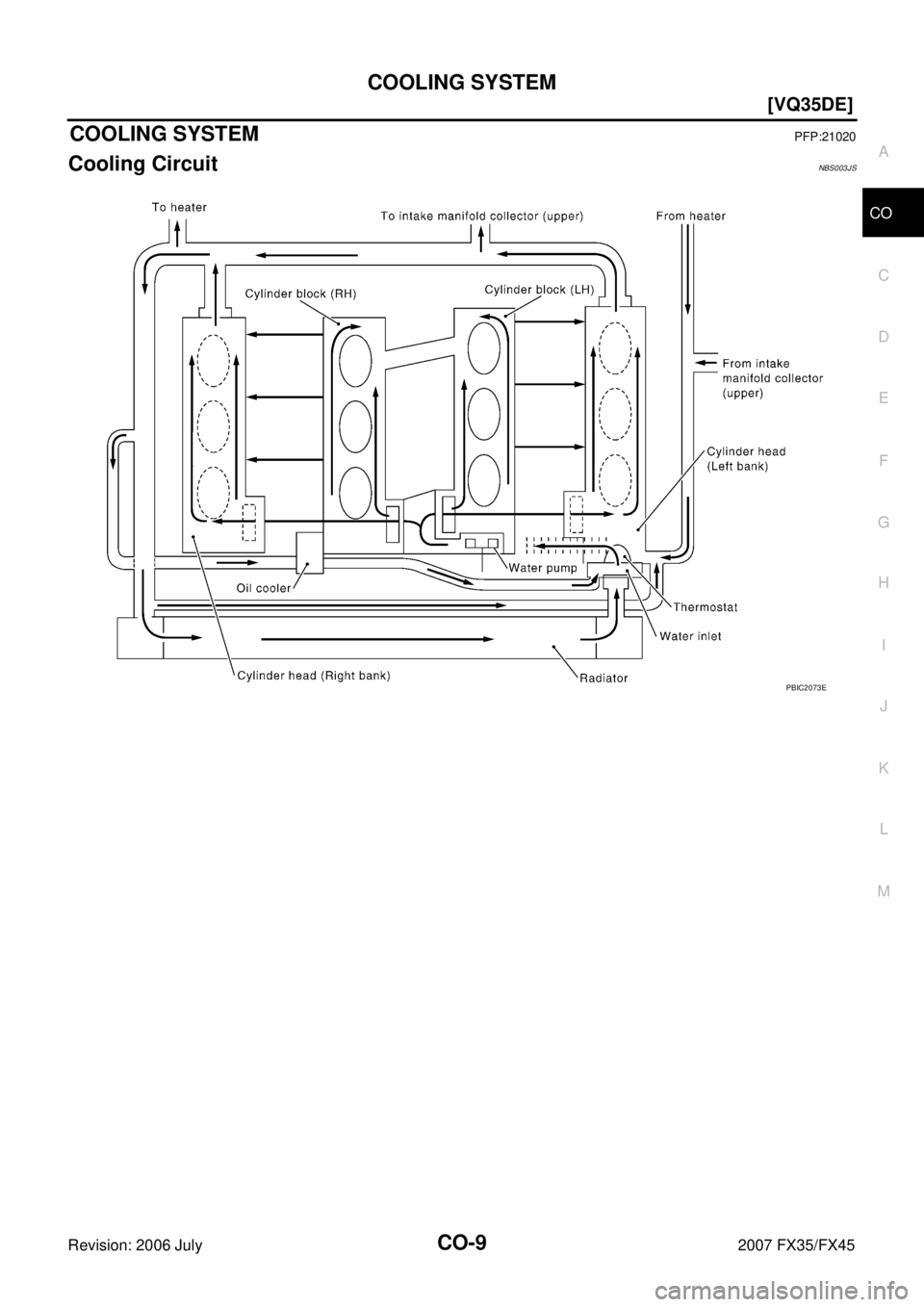

PBIC2073E

Page 1200 of 4366

INFINITI FX35 2007 Service Manual CO-10
[VQ35DE]
COOLING SYSTEM
Revision: 2006 July 2007 FX35/FX45
System ChartNBS003JT

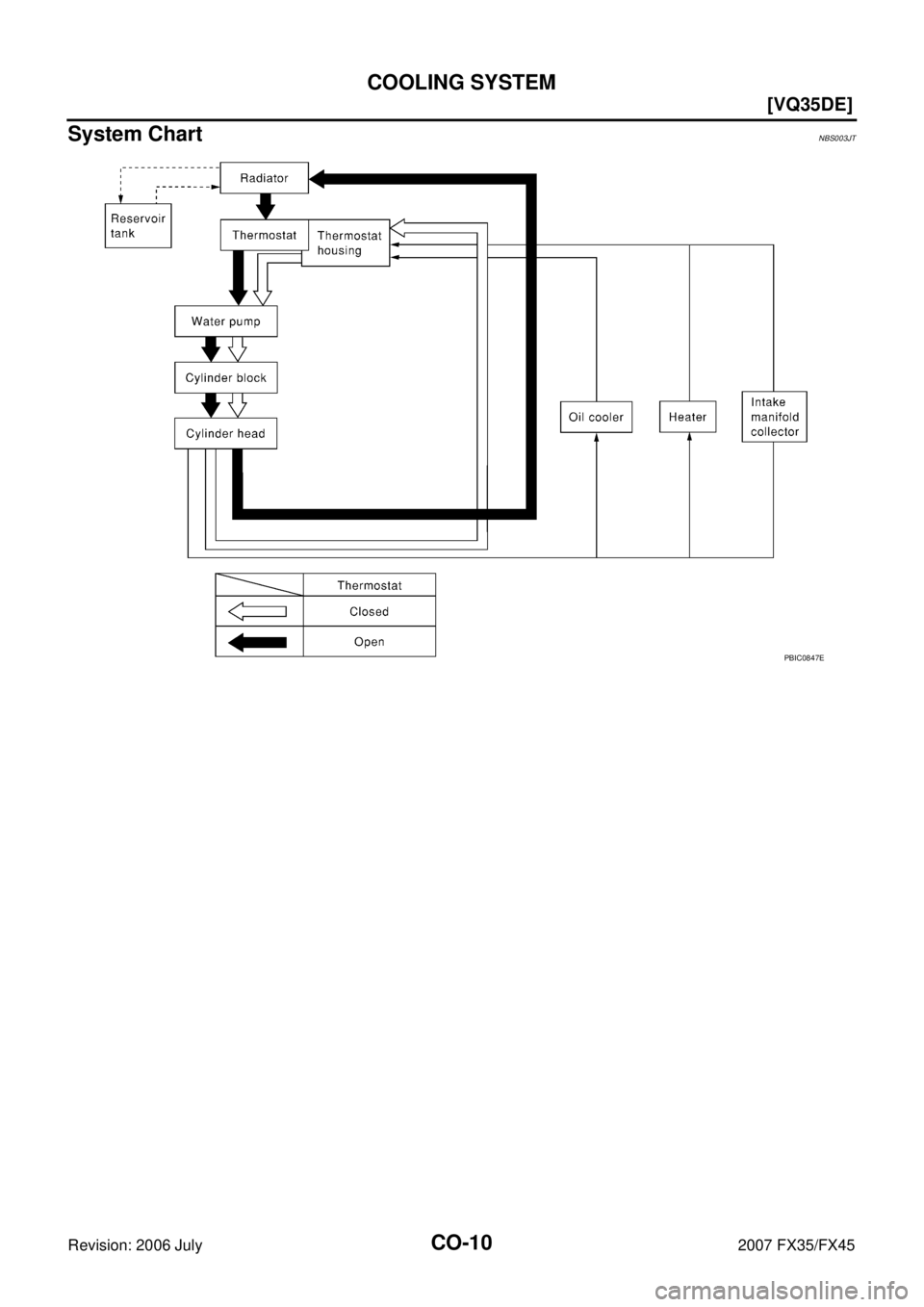

PBIC0847E
