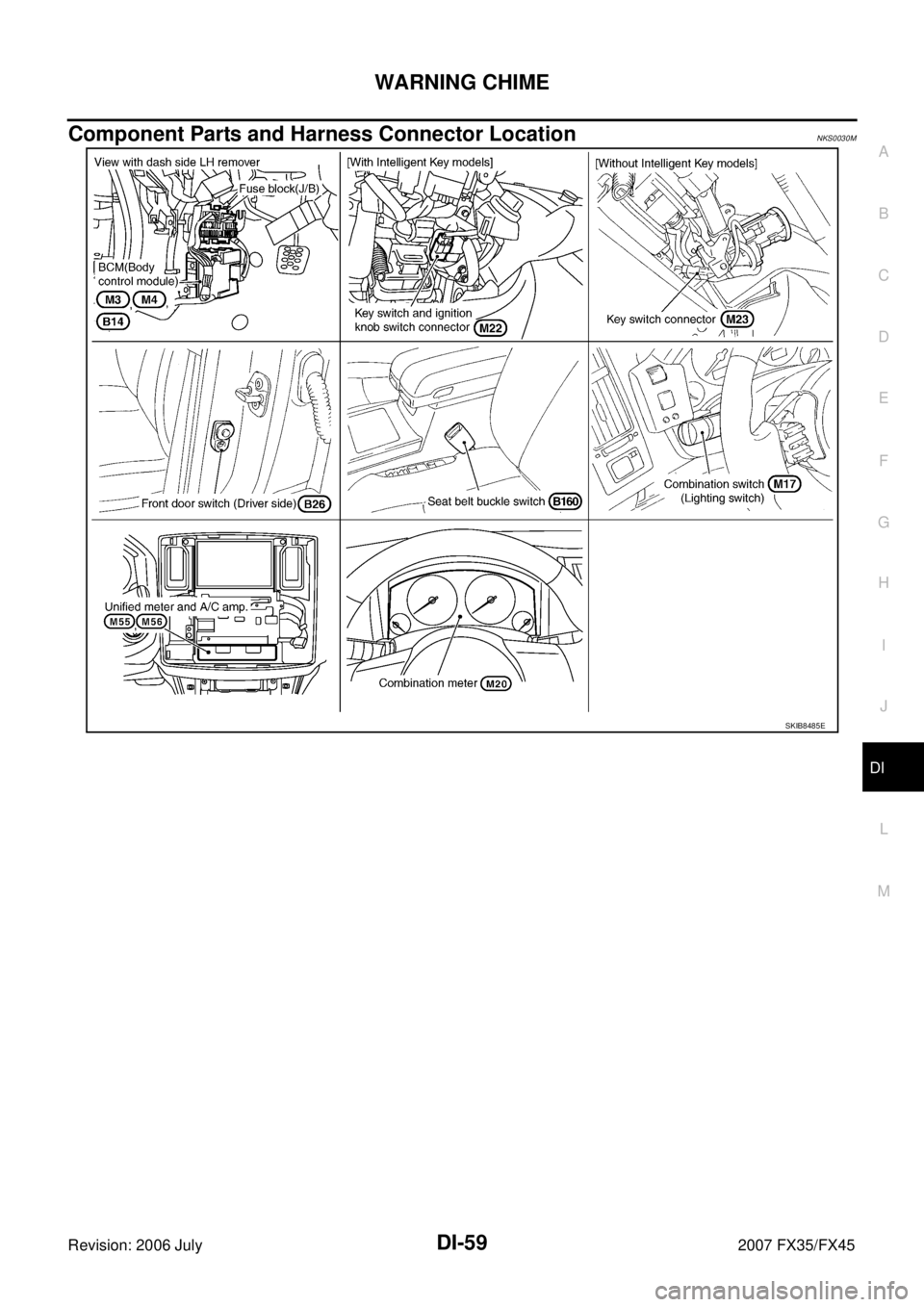

Component Parts and Harness Connector LocationNKS0030M
SKIB8485E
Page 1306 of 4366
DI-60
WARNING CHIME
Revision: 2006 July 2007 FX35/FX45

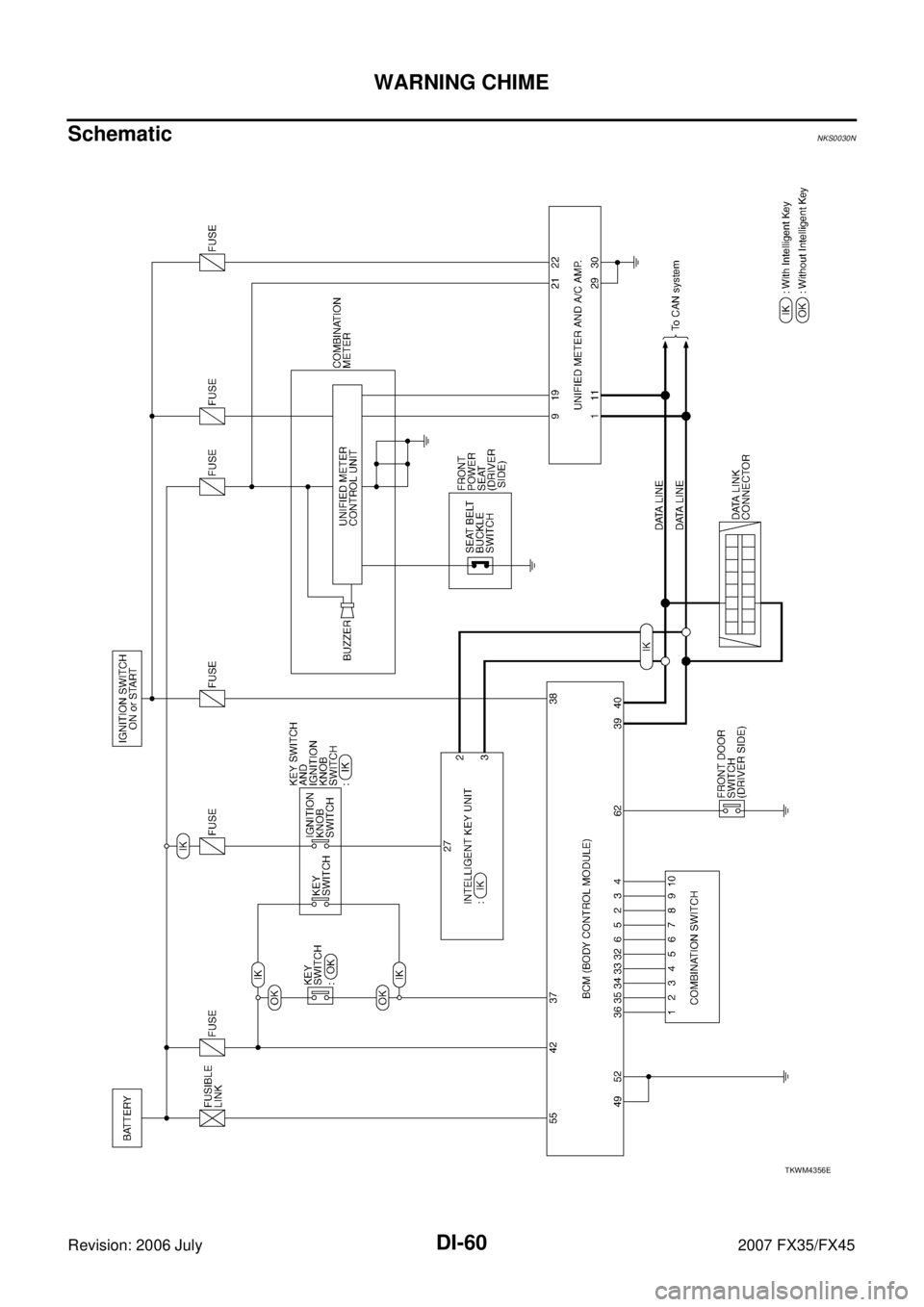

SchematicNKS0030N
TKWM4356E
Page 1307 of 4366
WARNING CHIME DI-61
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45

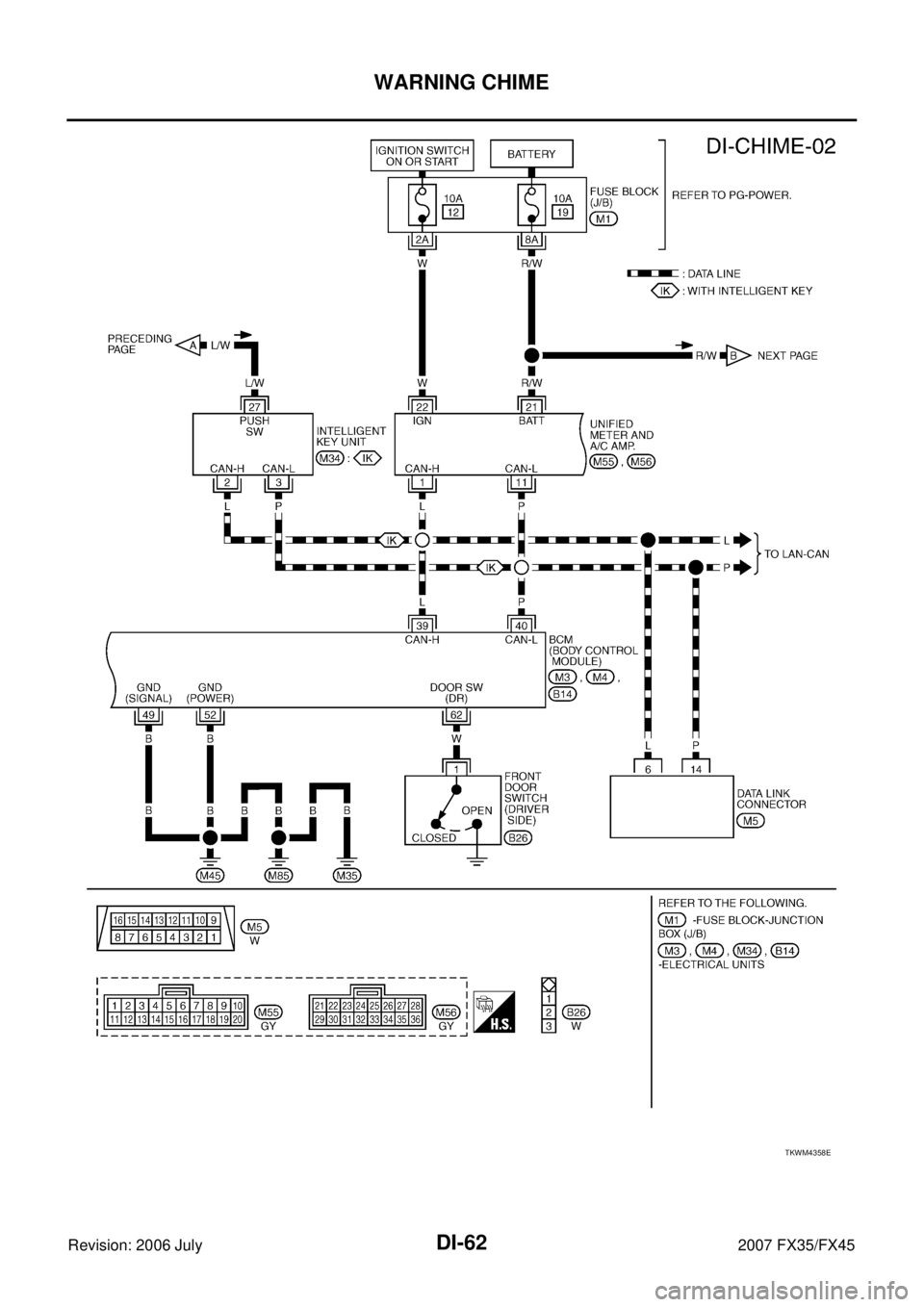

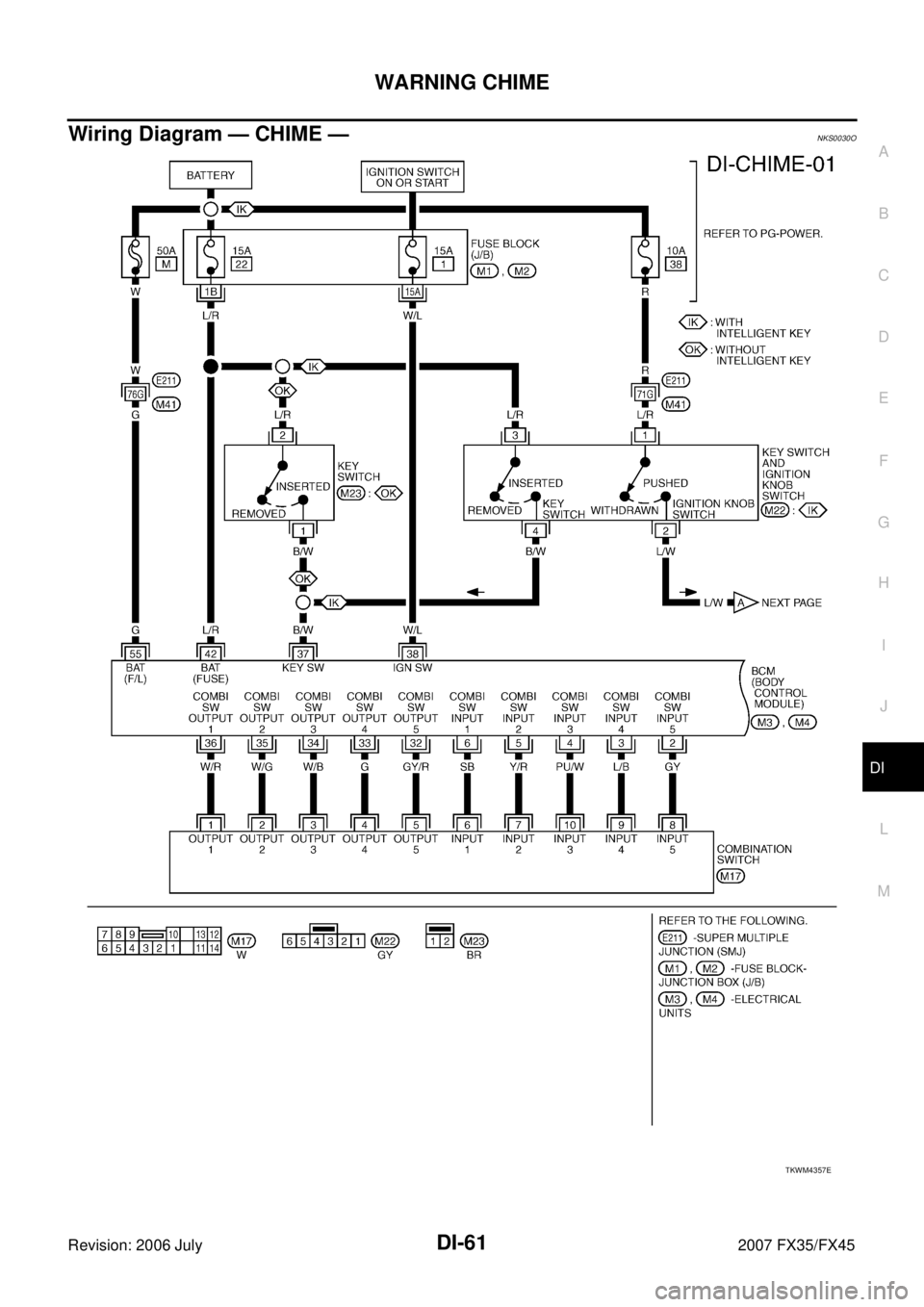

Wiring Diagram — CHIME —NKS0030O
TKWM4357E

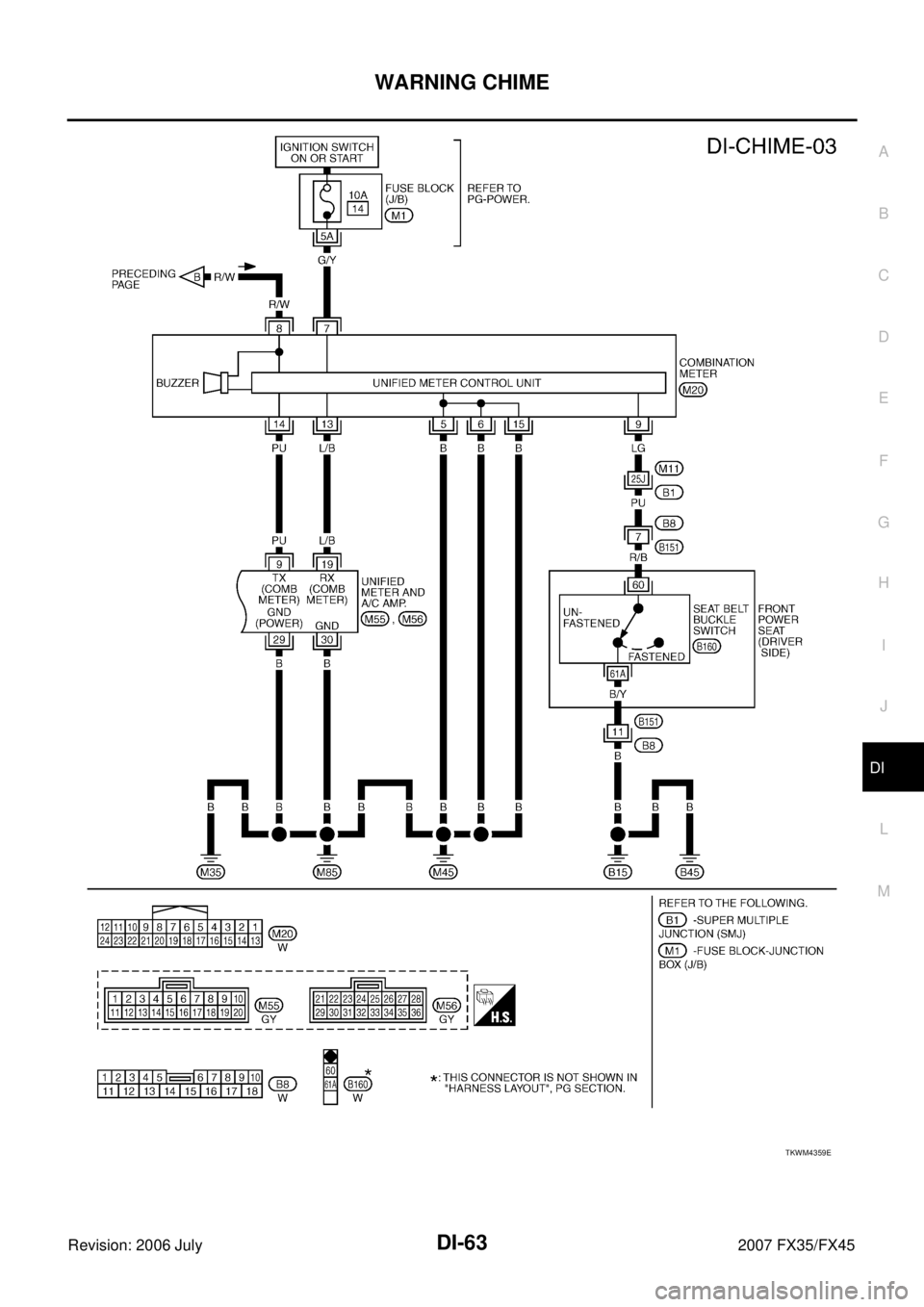

Page 1308 of 4366
DI-62
WARNING CHIME
Revision: 2006 July 2007 FX35/FX45
TKWM4358E
Page 1309 of 4366
WARNING CHIME DI-63
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
TKWM4359E
Page 1310 of 4366

DI-64
WARNING CHIME
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNKS0030P
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to LT- 11 7 , "
DATA MONITOR" .
Te r -
mina l No. Wire
color Item Measuring condition
Reference value
Igni-
tion
switc h Operation or condition
2 G/Y Combination switch
input 5 ON Lighting, turn, wiper switch
(Wiper intermittent dial posi-
tion 4) OFF Approx. 0 V
Lighting switch
1ST
Approx. 1.0 V
33 G Combination switch
output 4 ON Lighting, turn, wiper switch
(Wiper intermittent dial posi-
tion 4) OFF
Approx. 7.2 V
Lighting switch
1ST (The same
result with light-
ing switch 2ND)
Approx. 1.2 V
37 B/W Key switch signal OFF Key is removed Approx. 0 V
Key is inserted Battery voltage
38 W/L Ignition power supply ON — Battery voltage
39 L CAN-H OFF — —
40 P CAN-L OFF — —
42 L/R Battery power supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52
55 G Battery power supply OFF — Battery voltage
PKIB4959J
PKIB4960J
PKIB4958J
Page 1311 of 4366
WARNING CHIME DI-65
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Unified Meter and A/C Amp. NKS0030Q
62 W Front door switch DR
signal OFF Front door switch DR ON (open) Approx. 0 V
OFF (closed) Approx. 7.0 - 7.5 V
Te r -
mina l No. Wire
color Item Measuring condition
Reference value
Igni-
tion
switc h Operation or condition
PKIB4960J
Terminal
No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
1 L CAN-H OFF — —
9PU TX communication line (To
combination meter) ON —
11 P C A N - L O F F — —
19 L/B RX communication line
(From combination meter) ON —
21 R/W Battery power supply OFF — Battery voltage
22 W Ignition power supply ON — Battery voltage
29 B Ground (Power)
ON — Approx. 0 V
30 Ground
SKIA3362E
SKIA3361E
Page 1312 of 4366

DI-66
WARNING CHIME
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Combination MeterNKS0030R
CONSULT-II Function (METER A/C AMP)NKS003HZ
Refer to DI-31, "CONSULT-II Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
CONSULT-II Function (BCM)NKS003I0
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
DIAGNOSIS ITEMS DESCRIPTION
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. If “SELECTION FROM MENU” is selected, touch the desired monitor item. If “ALL SIGNALS” is selected, all items required to control are monitored.
Terminal
No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
5 B Ground ON — Approx. 0 V
6
7 G/Y Ignition power supply ON — Battery voltage
8 R/W Battery power supply OFF — Battery voltage
9LG Seat belt buckle switch
(Driver side) ON Unfastened (ON) Approx. 0 V
Fastened (OFF) Approx. 12 V
13 L/B TX communication line (To
unified meter and A/C amp.) ON —
14 PU RX communication line
(From unified meter and A/C
amp.) ON —
15 B Ground ON — Approx. 0 V
SKIA3361E
SKIA3362E
System Test item Diagnosis mode Description Reference
page
BCM BUZZER DATA MONITOR Displays BCM input data in real time.
DI-66
ACTIVE TEST Operation of electrical loads can be checked by sending driving
signal to them. DI-67
BCM SELF-DIAG RESULTS BCM checks the conditions and displays memorized error.
DI-67
ALL SIGNALS Monitors all items.
SELECTION FROM MENU Selects and monitors items.
