Page 3881 of 4366
HYDRAULIC LINE PS-41
C
D E
F
H I
J
K L
M A
B
PS
Revision: 2006 July 2007 FX35/FX45

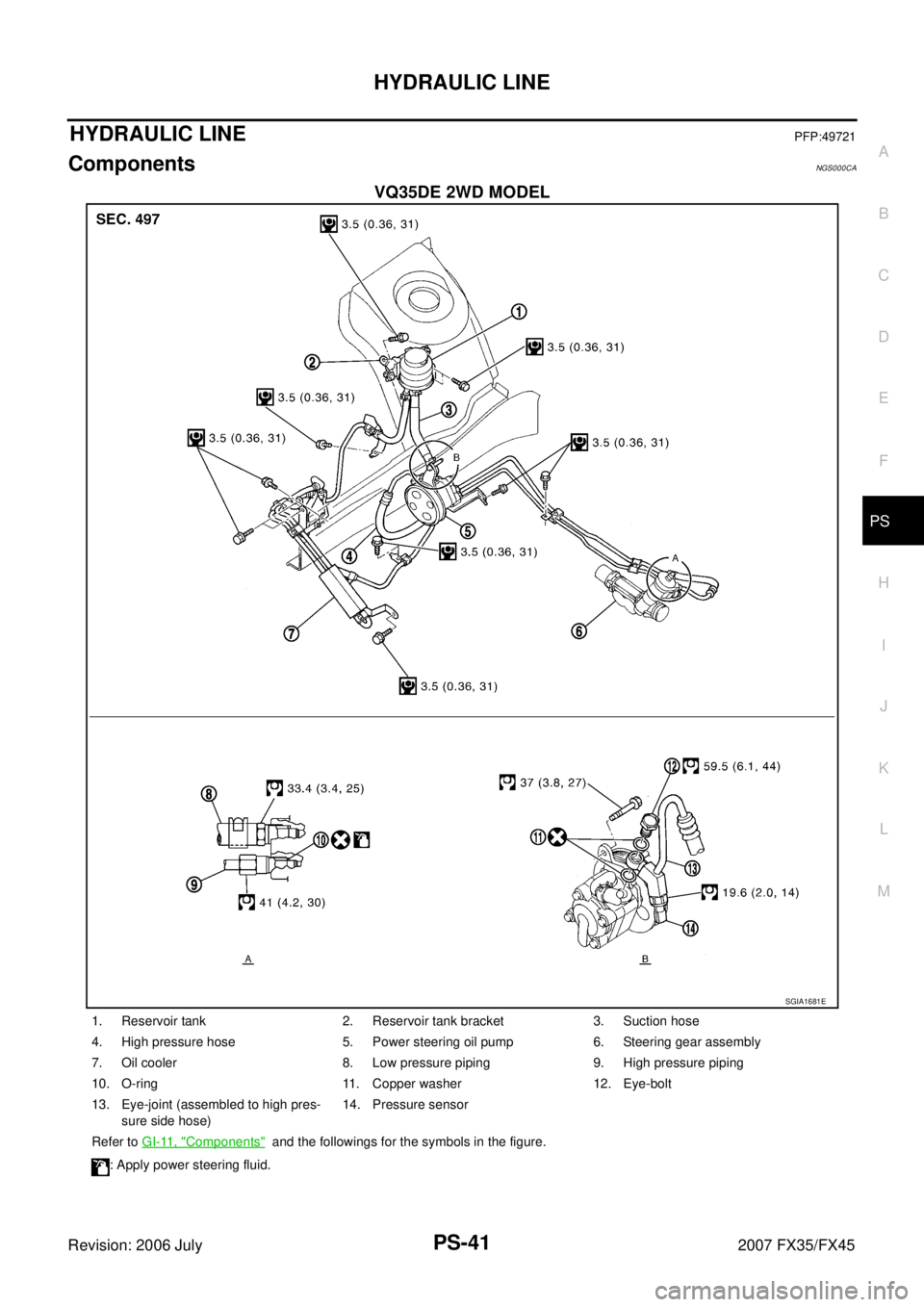

HYDRAULIC LINEPFP:49721
ComponentsNGS000CA
VQ35DE 2WD MODEL
SGIA1681E
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. High pressure hose 5. Power steering oil pump 6. Steering gear assembly
7. Oil cooler 8. Low pressure piping 9. High pressure piping
10. O-ring 11. Copper washer 12. Eye-bolt
13. Eye-joint (assembled to high pres- sure side hose) 14. Pressure sensor
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
: Apply power steering fluid.
Page 3882 of 4366
PS-42
HYDRAULIC LINE
Revision: 2006 July 2007 FX35/FX45

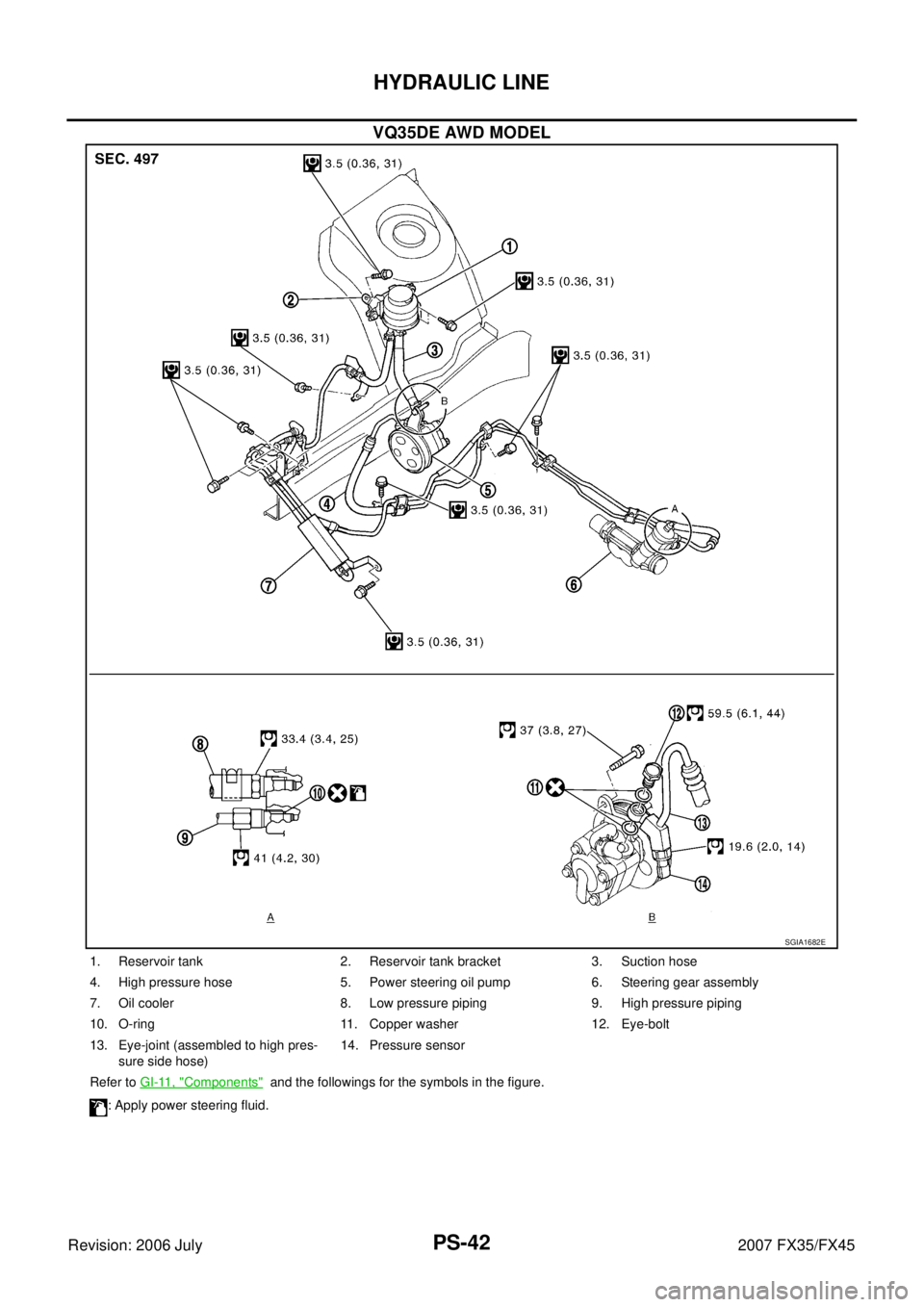

VQ35DE AWD MODEL
SGIA1682E
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. High pressure hose 5. Power steering oil pump 6. Steering gear assembly
7. Oil cooler 8. Low pressure piping 9. High pressure piping
10. O-ring 11. Copper washer 12. Eye-bolt
13. Eye-joint (assembled to high pres- sure side hose) 14. Pressure sensor
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
: Apply power steering fluid.
Page 3883 of 4366
HYDRAULIC LINE PS-43
C
D E
F
H I
J
K L
M A
B
PS
Revision: 2006 July 2007 FX35/FX45

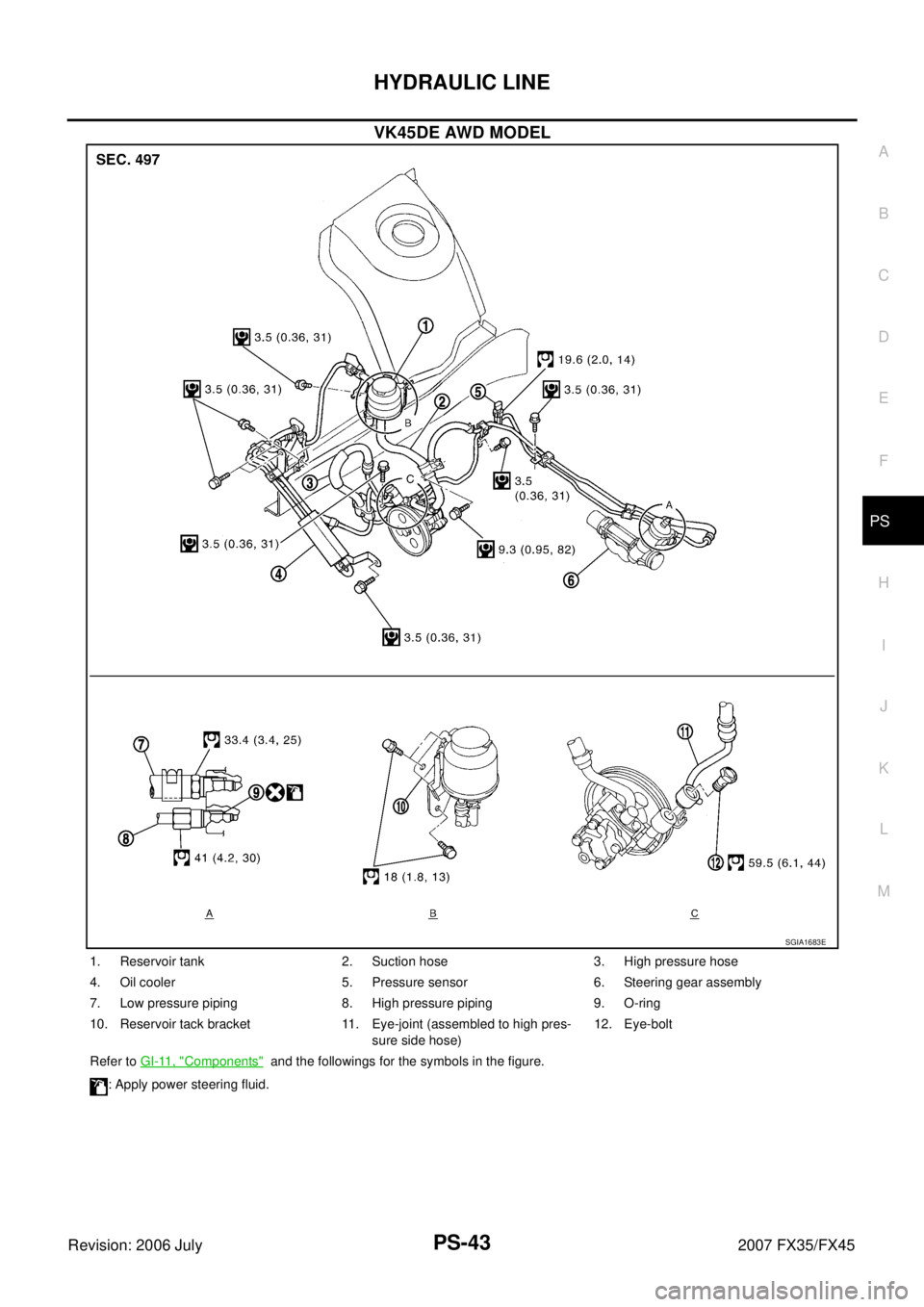

VK45DE AWD MODEL
SGIA1683E
1. Reservoir tank 2. Suction hose 3. High pressure hose
4. Oil cooler 5. Pressure sensor 6. Steering gear assembly
7. Low pressure piping 8. High pressure piping 9. O-ring
10. Reservoir tack bracket 11. Eye-joint (assembled to high pres- sure side hose) 12. Eye-bolt
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
: Apply power steering fluid.
Page 3884 of 4366

PS-44
HYDRAULIC LINE
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNGS000CB
VQ35DE MODELS
Refer to PS-41, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
Confirm with mating marking that if it is in phase with hose and
clamp, then correct if needs.
To install eye joint, join projection of eye joint into notch of power
steering pump, and attach eye joint to power steering pump
properly. Then, tighten eye bolt by hands fully, and tighten it with
a specified torque.
Connect harness connector into pressure sensor securely.
VK45DE MODELS
Refer to PS-41, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
Confirm with mating marking that if it is in phase with hose and
clamp, then correct if needs.
To install eye joint, join projection of eye joint into notch of power
steering pump, and attach eye joint to power steering pump
properly. Then, tighten eye bolt by hands fully, and tighten it with
a specified torque.
SGIA0563E
SGIA0533E
SGIA0563E
SGIA0537E
Page 3885 of 4366

SERVICE DATA AND SPECIFICATIONS (SDS) PS-45
C
D E
F
H I
J
K L
M A
B
PS
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Steering WheelNGS000CE
Steering AngleNGS000CF
Steering ColumnNGS000CG
Steering Outer Socket and Inner SocketNGS000CH
End play of the axle direction for steering wheel 0 mm (0 in)
Steering wheel play on the outer circumference 0 − 35 mm (0 − 1.38 in)
Inner wheel
Degree minute (Decimal degree) Minimum 32
°00 ′ (32.0 °)
Nominal 35 °00 ′ (35.0 °)
Maximum 36 °00 ′ (36.0 °)
Outer wheel
Degree minute (Decimal degree) Nominal 30
°00 ′ (30.0 °)
Steering column length “ L1 ” 572 mm (22.52 in)
SGIA0556E
Steering gear type PR26AM
Tie-rod ball joint outer socket Swinging torque 0.3
− 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Measurement on spring balance
Measuring point: cotter pin hole of stud 4.84
− 46.7 N (0.5 − 4.8 kg, 1.0 − 10 lb)
Rotating torque 0.3 − 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Axial end play 0.5 mm (0.02 in) or less
Tie-rod ball joint inner socket Swinging torque 1.0
− 7.8 N·m (0.11 − 0.79 kg-m, 9 − 69 in-lb)
Measurement on spring balance
Measuring point: L mark see below,
L=83.2 mm (3.28 in). 12.1
− 93.7 N (1.2 − 9.6 kg, 3.0 − 21 lb)
Axial end play 0.2 mm (0.01 in) or less
SGIA0358E
Page 3886 of 4366
PS-46
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
Steering GearNGS000CI
Oil PumpNGS000CJ
Steering FluidNGS000CK
Tie-rod length “L” 135.2 mm (5.32 in)
SGIA0167E
Steering gear model PR26AM
Rack neutral position, dimension “L” (rack stroke) 67.0 mm (2.64 in)
Rack sliding force At the neutral point:
Range within ± 11.5 mm
( ± 0.453 in) from the neutral
position
(in power ON) Area average value 147
− 211 N (15 − 21.5 kg, 33 − 47 lb)
Allowable variation 98 N (10 kg, 22 lb) or less
Whole area (in power OFF) Peak value 294 N (30 kg, 66 lb) or less
Allowable variation 147 N (15 kg, 33 lb) or less
SGIA0629J
Oil pump relief hydraulic pressure 9,900 − 10,700 kPa (101 − 109.1 kg/cm2 , 1436 − 1552 psi)
Fluid capacity
Approx. 1.0 (1-1/8 US qt, 7/8 Imp qt)
Page 3887 of 4366

RAX-1
REAR AXLE
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION
A
B
RAX
Revision: 2006 July 2007 FX35/FX45
REAR AXLE
PRECAUTIONS .......................................................... 2
Caution ................................................................ ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools (SST) ................................ ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
REAR WHEEL HUB AND KNUCKLE ................... ..... 5
On-Vehicle Inspection ......................................... ..... 5
WHEEL BEARING INSPECTION .................... ..... 5
Removal and Installation ..................................... ..... 5
COMPONENTS ............................................... ..... 5
REMOVAL ........................................................ ..... 5
INSPECTION AFTER REMOVAL .................... ..... 6 INSTALLATION ................................................
..... 6
Disassembly and Assembly ................................. ..... 7
DISASSEMBLY ................................................ ..... 7
INSPECTION AFTER DISASSEMBLY ............. ..... 7
ASSEMBLY ...................................................... ..... 8
INSPECTION AFTER ASSEMBLY ................... ..... 8
REAR DRIVE SHAFT ............................................ ..... 9
Removal and Installation ..................................... ..... 9
COMPONENTS ................................................ ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION AFTER REMOVAL .................... ..... 9
INSTALLATION ................................................ ..... 9
Disassembly and Assembly ................................. ... 10
COMPONENTS ................................................ ... 10
DISASSEMBLY ................................................ ... 10
INSPECTION AFTER DISASSEMBLY ............. ... 11
ASSEMBLY ...................................................... ... 12
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 15
Wheel Bearing ..................................................... ... 15
Drive Shaft ........................................................... ... 15
Page 3888 of 4366
RAX-2
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
CautionNDS000CD
Observe the following precautions when disassembling and servicing drive shaft.
Perform work in a location which is as dust-free as possible.
Before disassembling and servicing, clean the outside of parts.
Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.
Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.
Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
