Page 3817 of 4366

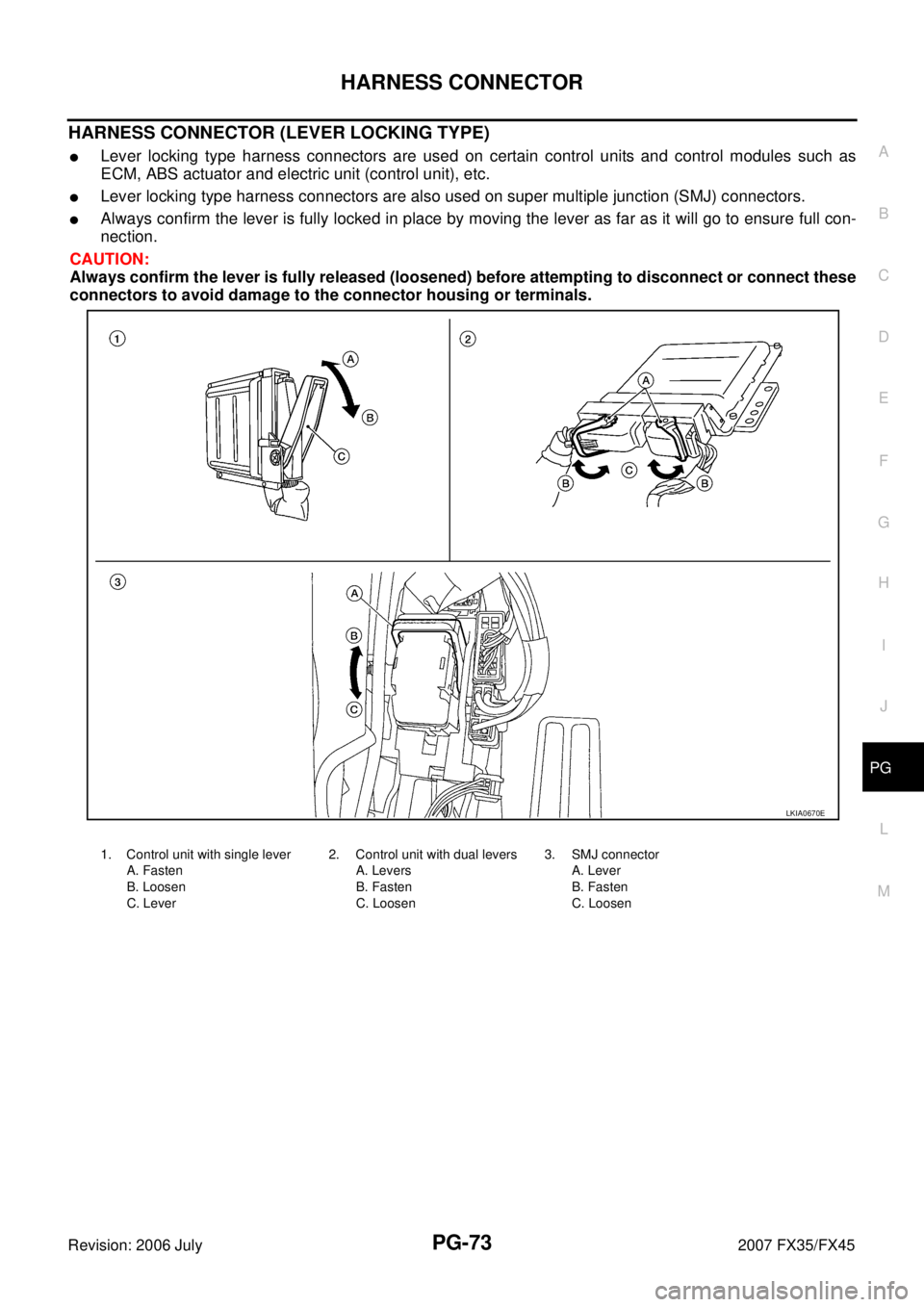

INFINITI FX35 2007 Service Manual HARNESS CONNECTOR PG-73 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 HARNESS CONNECTOR (LEVER LOCKING TYPE) Lever locking type harness connectors are used on certain con

Page 3818 of 4366

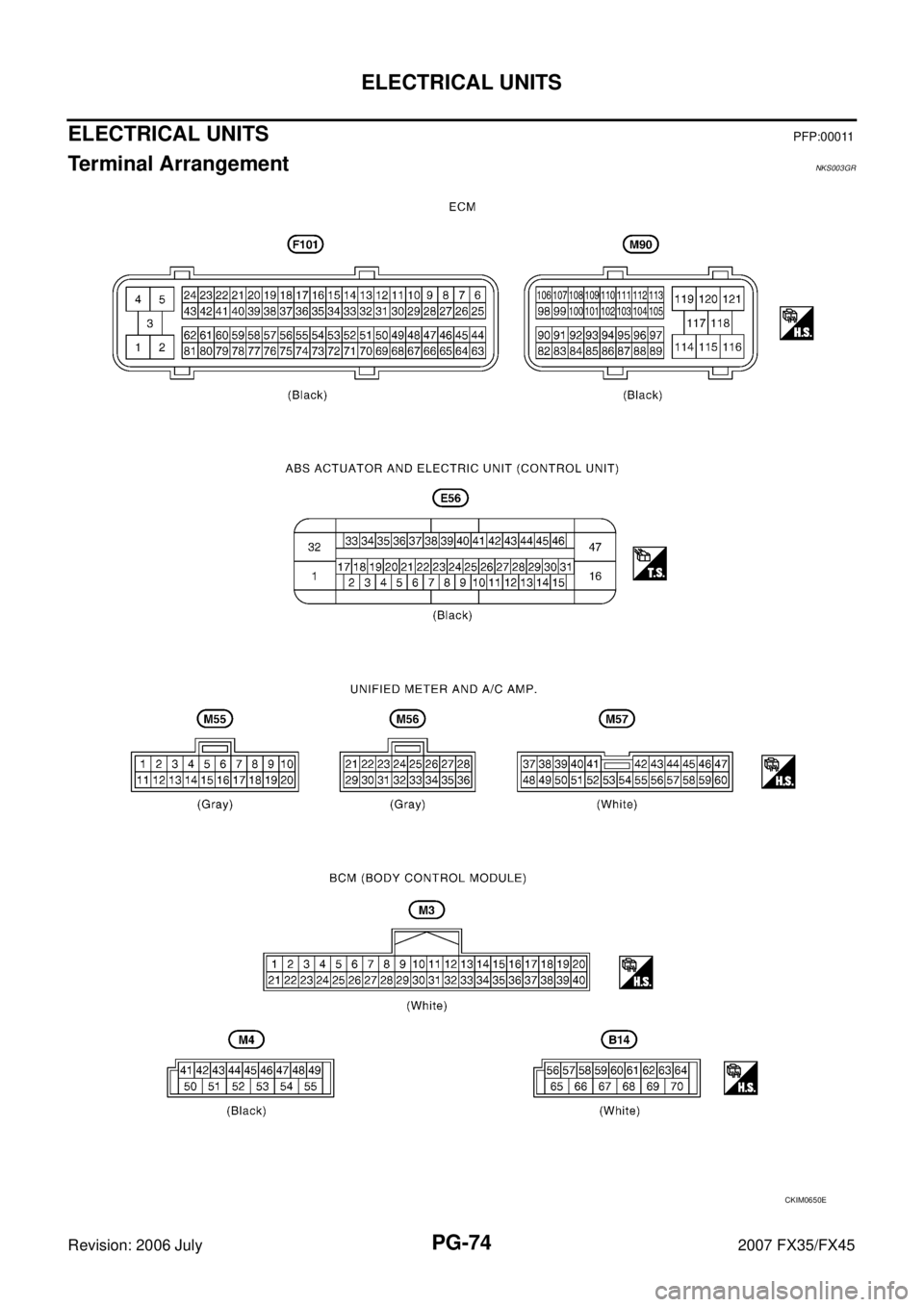

INFINITI FX35 2007 Service Manual PG-74 ELECTRICAL UNITS Revision: 2006 July 2007 FX35/FX45 ELECTRICAL UNITS PFP:00011 Terminal Arrangement NKS003GR CKIM0650E

Page 3819 of 4366

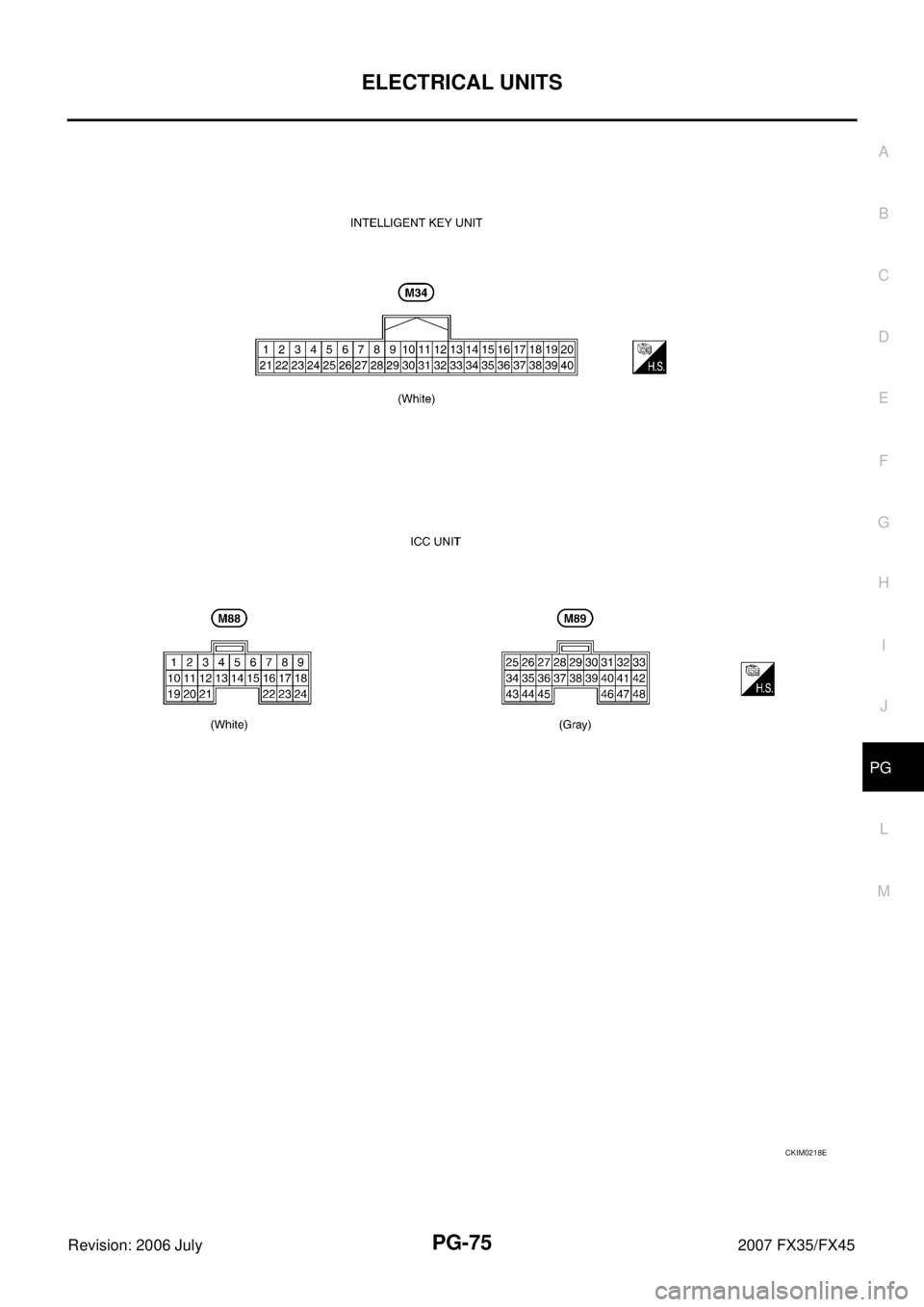

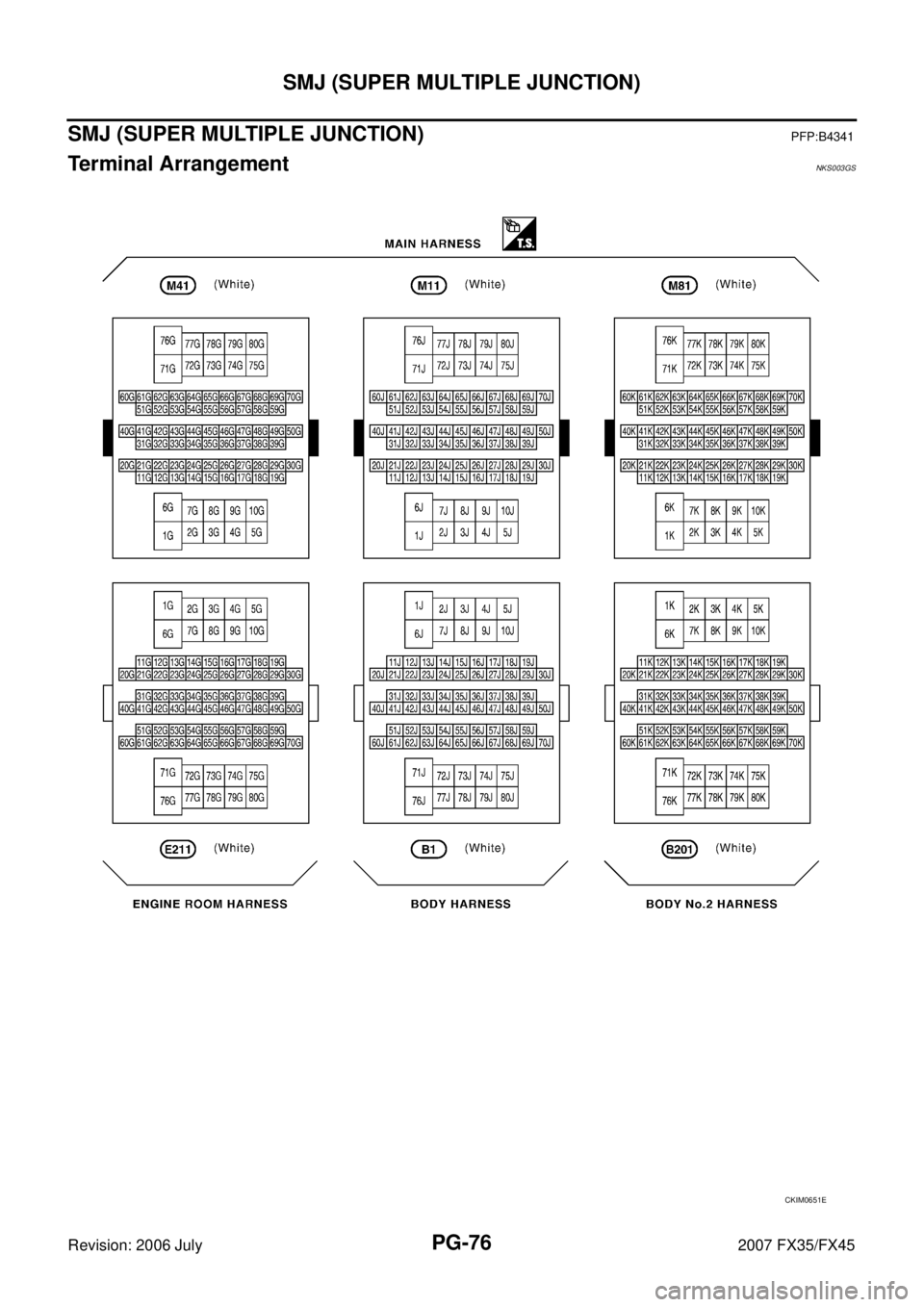

INFINITI FX35 2007 Service Manual ELECTRICAL UNITS PG-75 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 CKIM0218E

Page 3820 of 4366

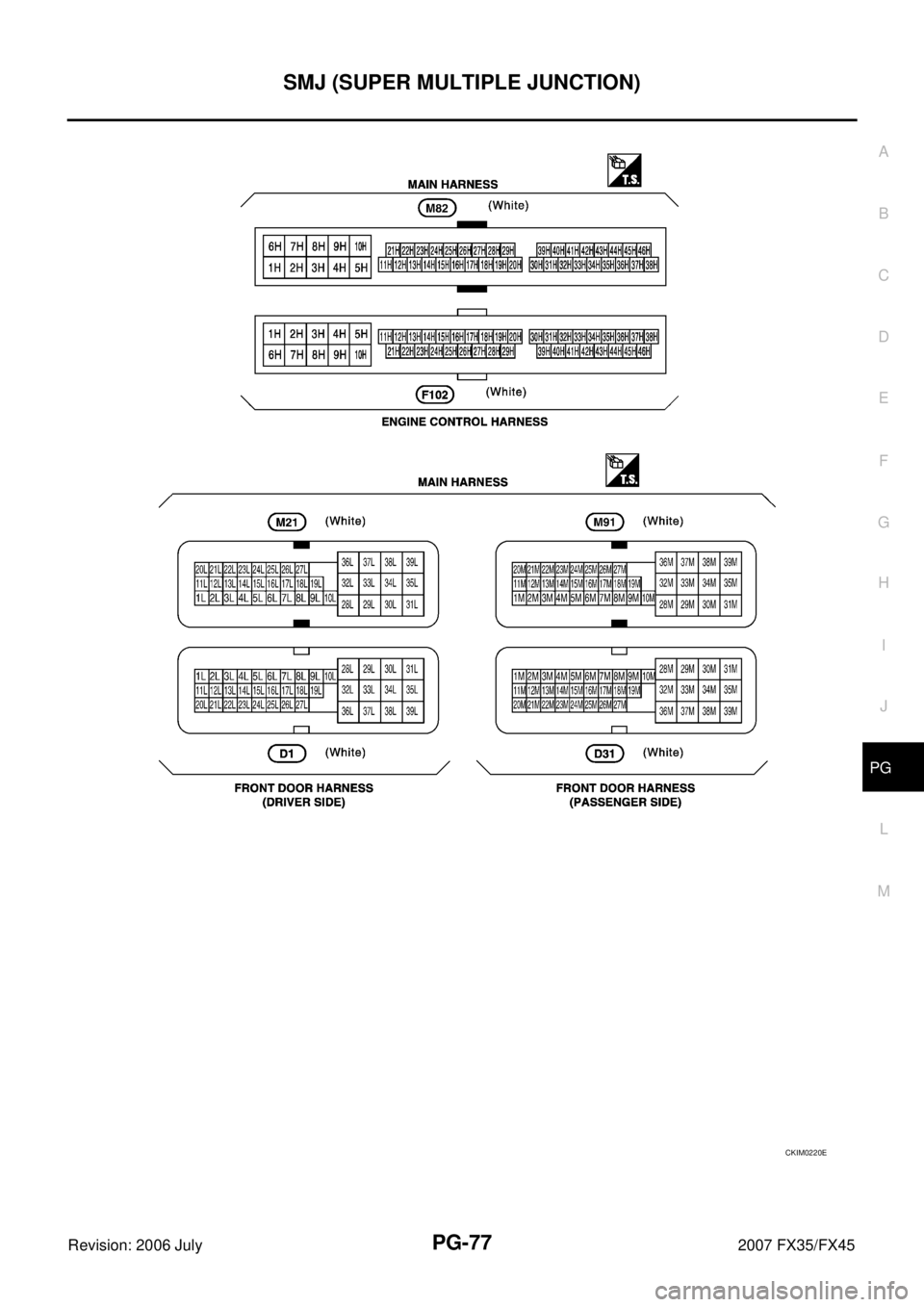

INFINITI FX35 2007 Service Manual PG-76 SMJ (SUPER MULTIPLE JUNCTION) Revision: 2006 July 2007 FX35/FX45 SMJ (SUPER MULTIPLE JUNCTION)PFP:B4341 Terminal ArrangementNKS003GS CKIM0651E

Page 3821 of 4366

INFINITI FX35 2007 Service Manual SMJ (SUPER MULTIPLE JUNCTION) PG-77 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 CKIM0220E

Page 3822 of 4366

INFINITI FX35 2007 Service Manual PG-78 STANDARDIZED RELAY Revision: 2006 July 2007 FX35/FX45 STANDARDIZED RELAY PFP:00011 Description NKS003GT NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainly be divided into three t

Page 3823 of 4366

INFINITI FX35 2007 Service Manual STANDARDIZED RELAY PG-79 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 CKIM0221E

Page 3824 of 4366

INFINITI FX35 2007 Service Manual PG-80 FUSE BLOCK - JUNCTION BOX (J/B) Revision: 2006 July 2007 FX35/FX45 FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350 Terminal ArrangementNKS003GU CKIM0652E
Load next 8 pages
