INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-139 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 ComponentsNJS000F1 Refer to AT C - 8 , "Precautions for Refrigerant Connection" . VQ35DE SJIA173

Page 586 of 4366

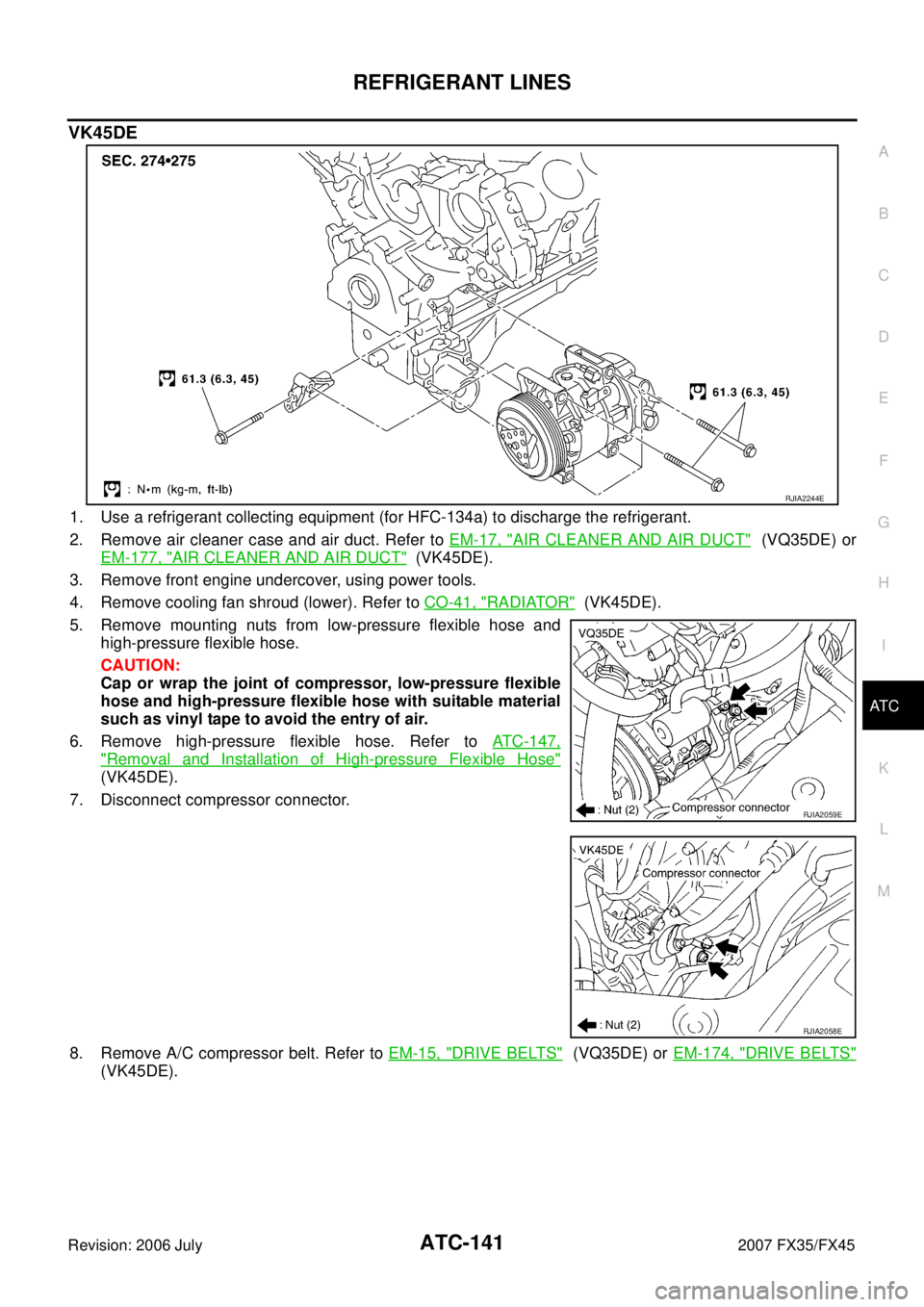

INFINITI FX35 2007 Service Manual ATC-140 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 VK45DE Removal and Installation of CompressorNJS000F2 REMOVAL VQ35DE SJIA1735E SJIA1643E

Page 587 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-141 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 VK45DE 1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. 2.

Page 588 of 4366

INFINITI FX35 2007 Service Manual ATC-142 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 9. Disconnect compressor (ECV) connector. 10. Remove mounting bolts from compressor, using power tools. 11. Remove compressor downward of

Page 589 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-143 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 3. Remove snap ring using external snap ring pliers. 4. Position center pulley puller on the end

Page 590 of 4366

INFINITI FX35 2007 Service Manual ATC-144 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 Inspection Clutch disc If the contact surface shows signs of damage due to excessive heat, replace clutch disc and pulley. Pulley Check

Page 591 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-145 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 5. Using holder to prevent clutch disc rotation. After tightening bolt, make sure pulley rotates

Page 592 of 4366

INFINITI FX35 2007 Service Manual ATC-146 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 Removal and Installation of Low-pressure Flexible HoseNJS000F4 REMOVAL 1. Use a refrigerant collecting equipment (for HFC-134a) to discharg
