Page 2993 of 4366

INFINITI FX35 2007 Service Manual ROCKER COVER EM-201
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

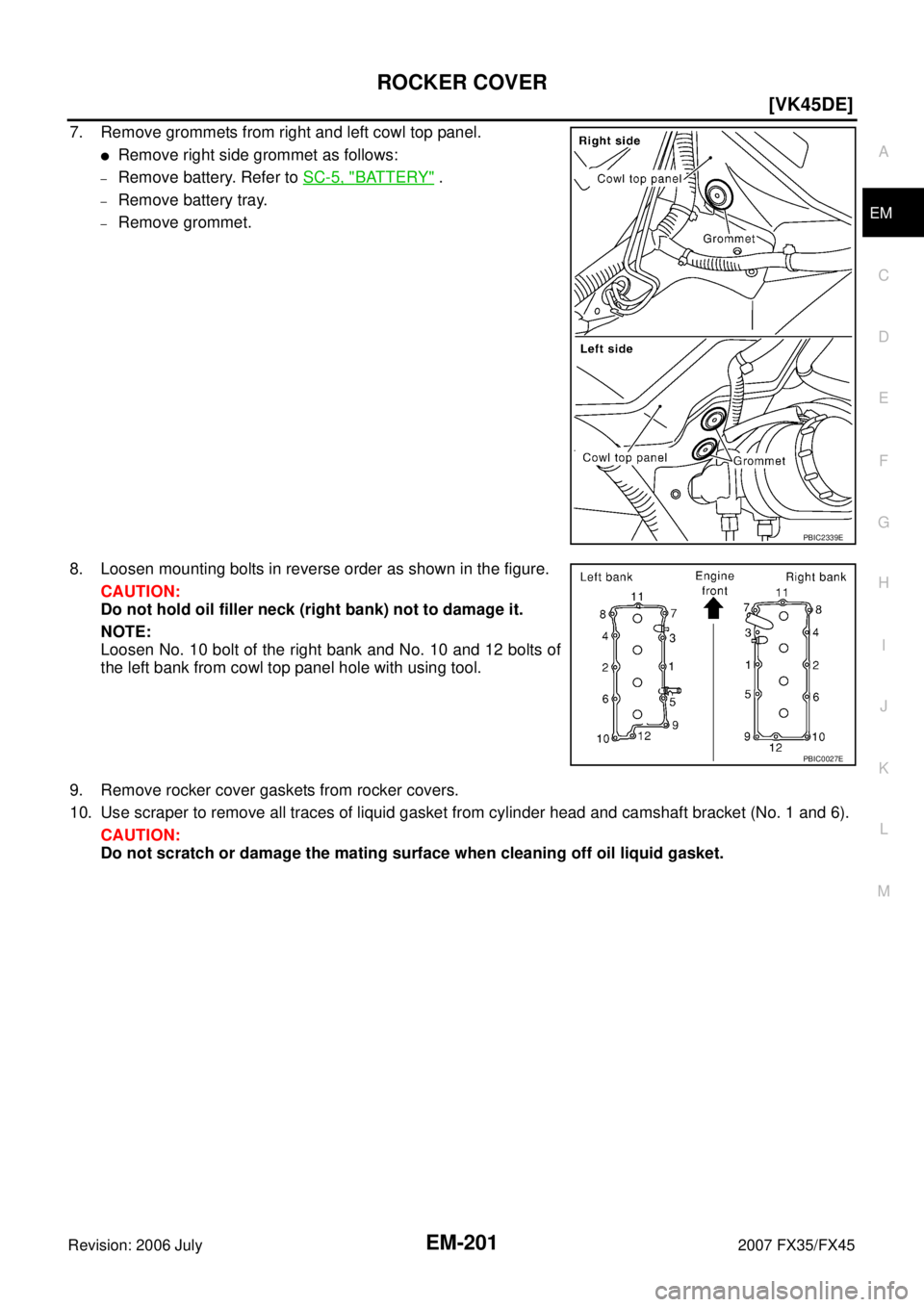

7. Remove grommets from right and left cowl top panel.
Remove right side grommet as follows:
�

Page 2994 of 4366

INFINITI FX35 2007 Service Manual EM-202
[VK45DE]
ROCKER COVER
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
1. Apply liquid gasket with tube presser [SST: WS39930000 ( —
)] to joint among rocker cover, cylinder head and camshaft

Page 2995 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-203
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

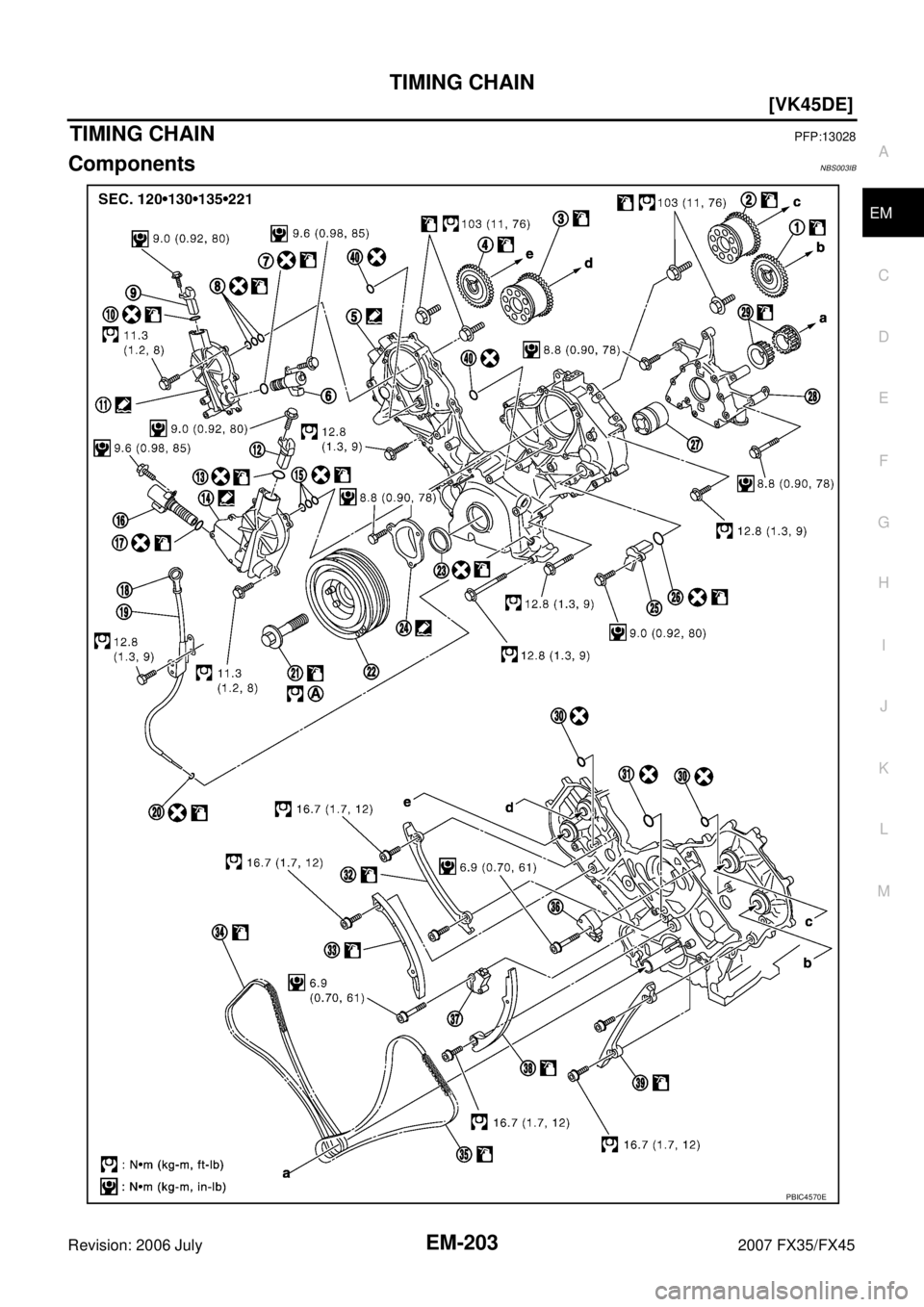

TIMING CHAINPFP:13028
ComponentsNBS003IB
PBIC4570E

Page 2996 of 4366

INFINITI FX35 2007 Service Manual EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003IC
REMOVAL
1. Remove engine assembly from v

EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003IC
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-243, "ENGINE ASSEMBLY" .
2. Remove the following components and related parts:
Drive belt auto tensioner and idler pulley; Refer to EM-176, "Drive Belt Auto Tensioner and Idler Pulley"
.
Thermostat housing and hoses; Refer to CO-53, "THERMOSTAT AND WATER CONTROL VALVE" .
Ignition coil; Refer to EM-191, "IGNITION COIL" .
Rocker cover; Refer to EM-200, "ROCKER COVER" .
3. If necessary, remove intake valve timing control position sensor (right and left bank) and camshaft position sensor (PHASE) from
intake valve timing control cover and front cover.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
4. If necessary, remove intake valve timing control solenoid valve from intake valve timing control cover. CAUTION:
Handle components and parts carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
1. Camshaft sprocket (EXH) 2. Camshaft sprocket (INT) 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Front cover 6. Intake valve timing control solenoid
valve (right bank)
7. O-ring 8. Seal ring 9. Intake valve timing control position
sensor (right bank)
10. O-ring 11. Intake valve timing control cover
(right bank) 12.Intake valve timing control position
sensor (left bank)
13. O-ring 14. Intake valve timing control cover (left
bank) 15. Seal ring
16. Intake valve timing control solenoid
valve (left bank) 17. O-ring 18. Oil level gauge
19. Oil level gauge guide 20. O-ring 21. Crankshaft pulley bolt
22. Crankshaft pulley 23. Front oil seal 24. Chain tensioner cover
25. Camshaft position sensor (PHASE) 26. O-ring 27. Oil pump drive spacer
28. Oil pump assembly 29. Crankshaft sprocket 30. O-ring
31. O-ring 32. Timing chain tension guide
(right bank) 33.
Timing chain slack guide
(right bank)
34. Timing chain (right bank) 35. Timing chain (left bank) 36. Chain tensioner (left bank)
37. Chain tensioner (right bank) 38. Timing chain slack guide
(left bank) 39.
Timing chain tension guide
(left bank)
40. O-ring
A. Refer to EM-208
.
PBIC0050E

Page 2997 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

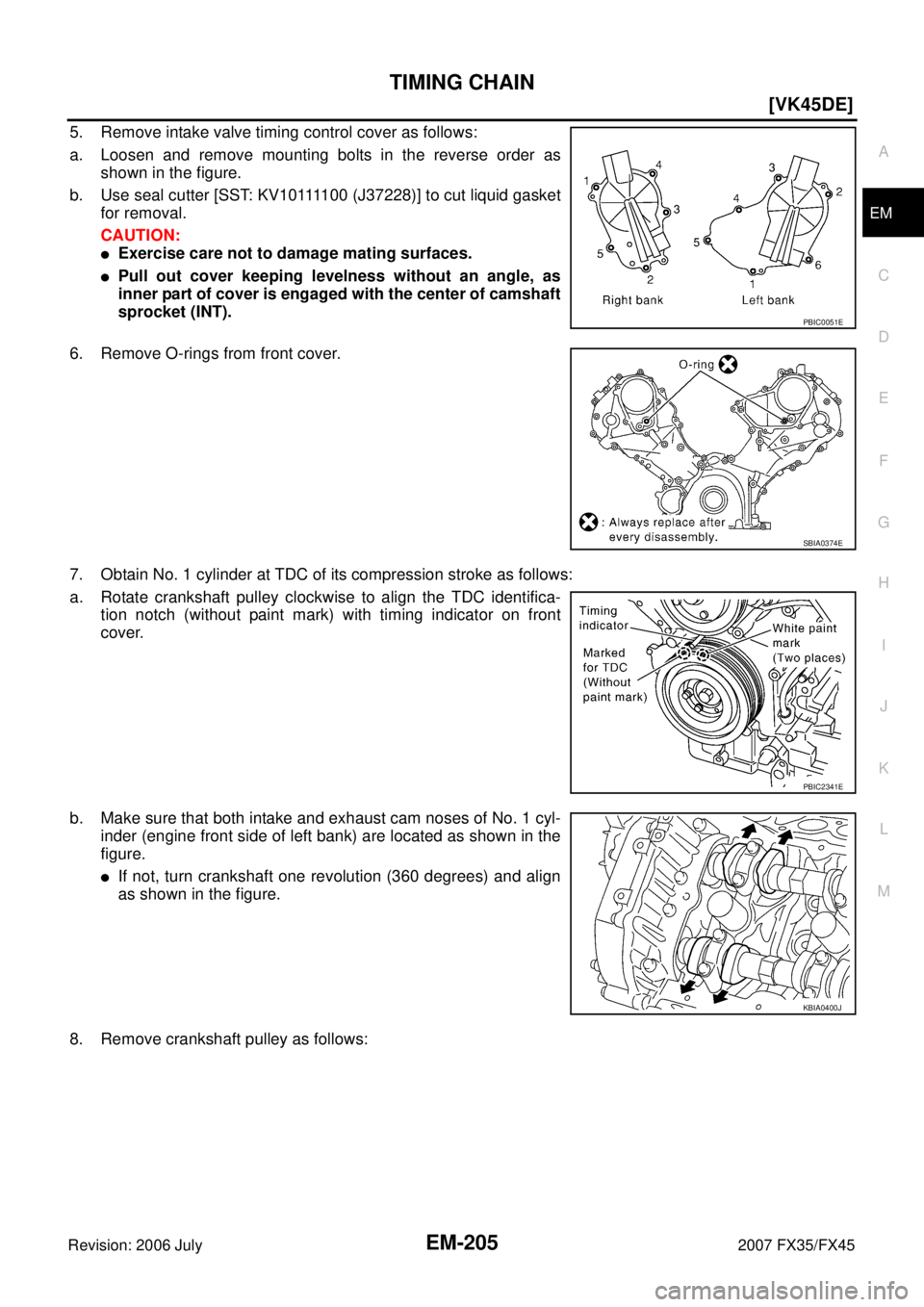

5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in

Page 2998 of 4366

INFINITI FX35 2007 Service Manual EM-206
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley with bo

Page 2999 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure fo

Page 3000 of 4366

INFINITI FX35 2007 Service Manual EM-208
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace
