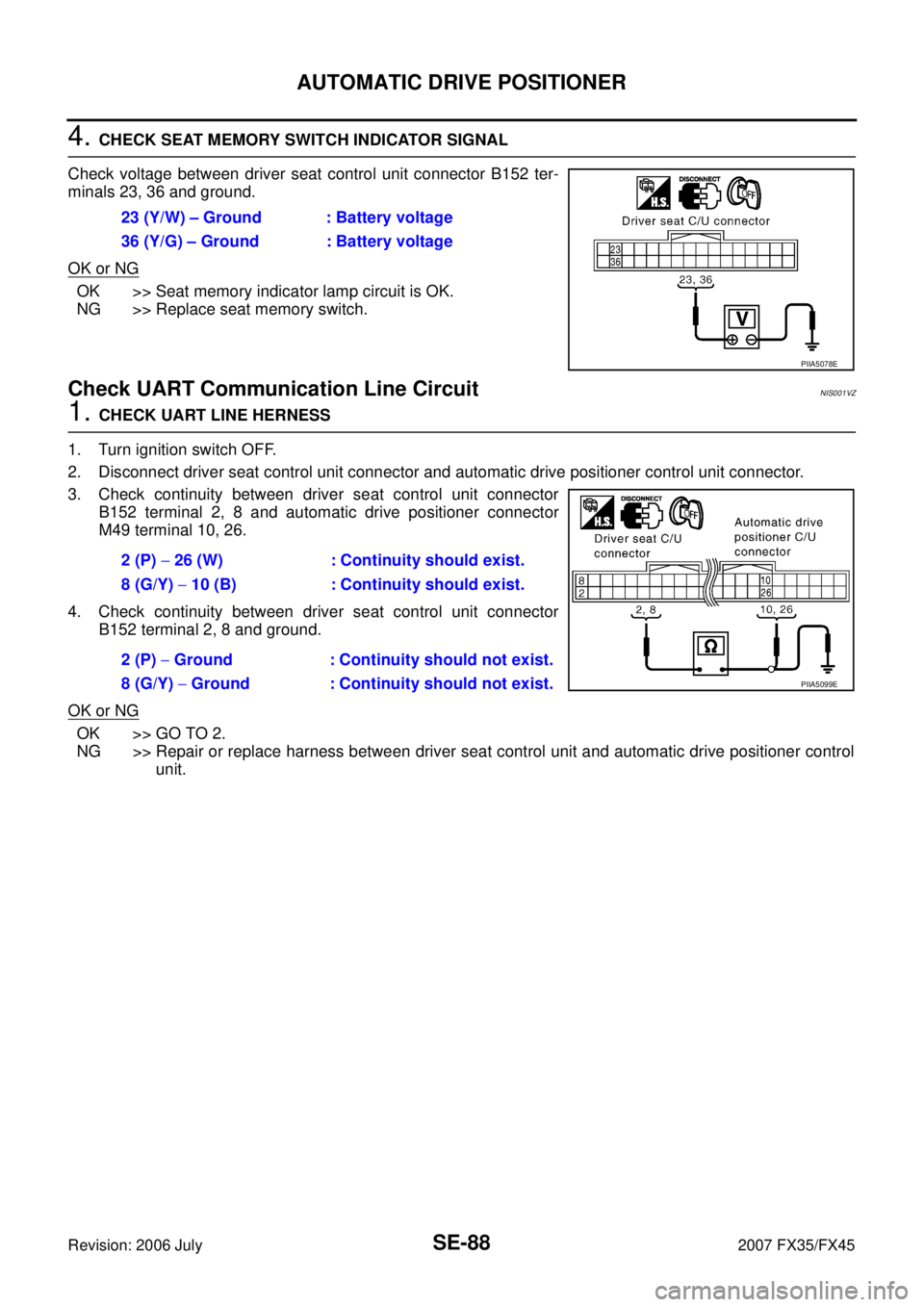

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-83 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 2. CHECK KEY SWITCH POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect key sw

Page 4122 of 4366

INFINITI FX35 2007 Service Manual SE-84 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 Check Key Switch Circuit (Without Intelligent Key)NIS001VW 1. CHECK KEY SWITCH (WITH CONSULT-II) With CONSULT-II Touch “BCM”.

Page 4123 of 4366

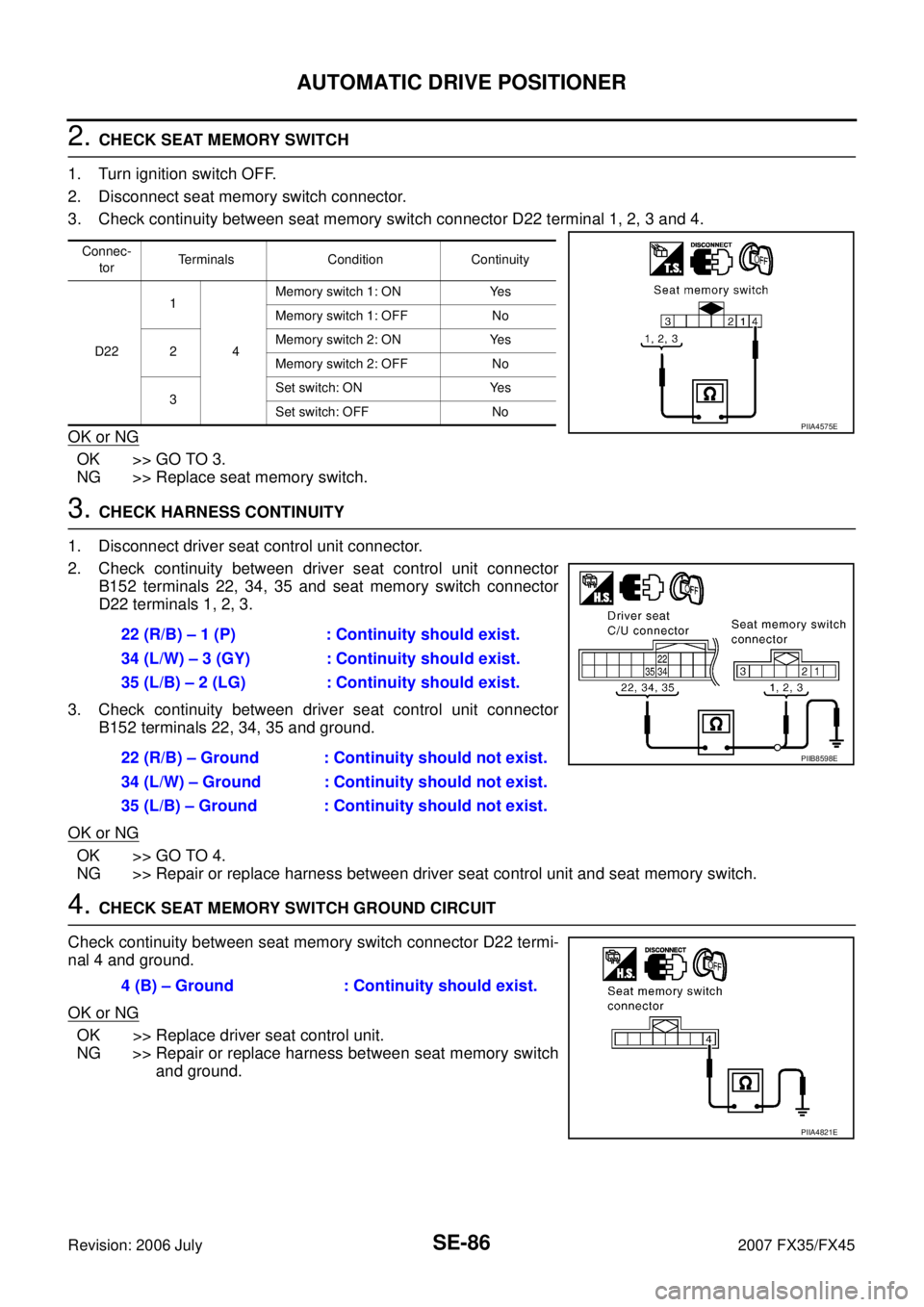

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-85 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 4. CHECK HARNESS CONTINUITY 1. Disconnect key switch connector and BCM connector. 2. Check

Page 4124 of 4366

INFINITI FX35 2007 Service Manual SE-86 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 2. CHECK SEAT MEMORY SWITCH 1. Turn ignition switch OFF. 2. Disconnect seat memory switch connector. 3. Check continuity between s

Page 4125 of 4366

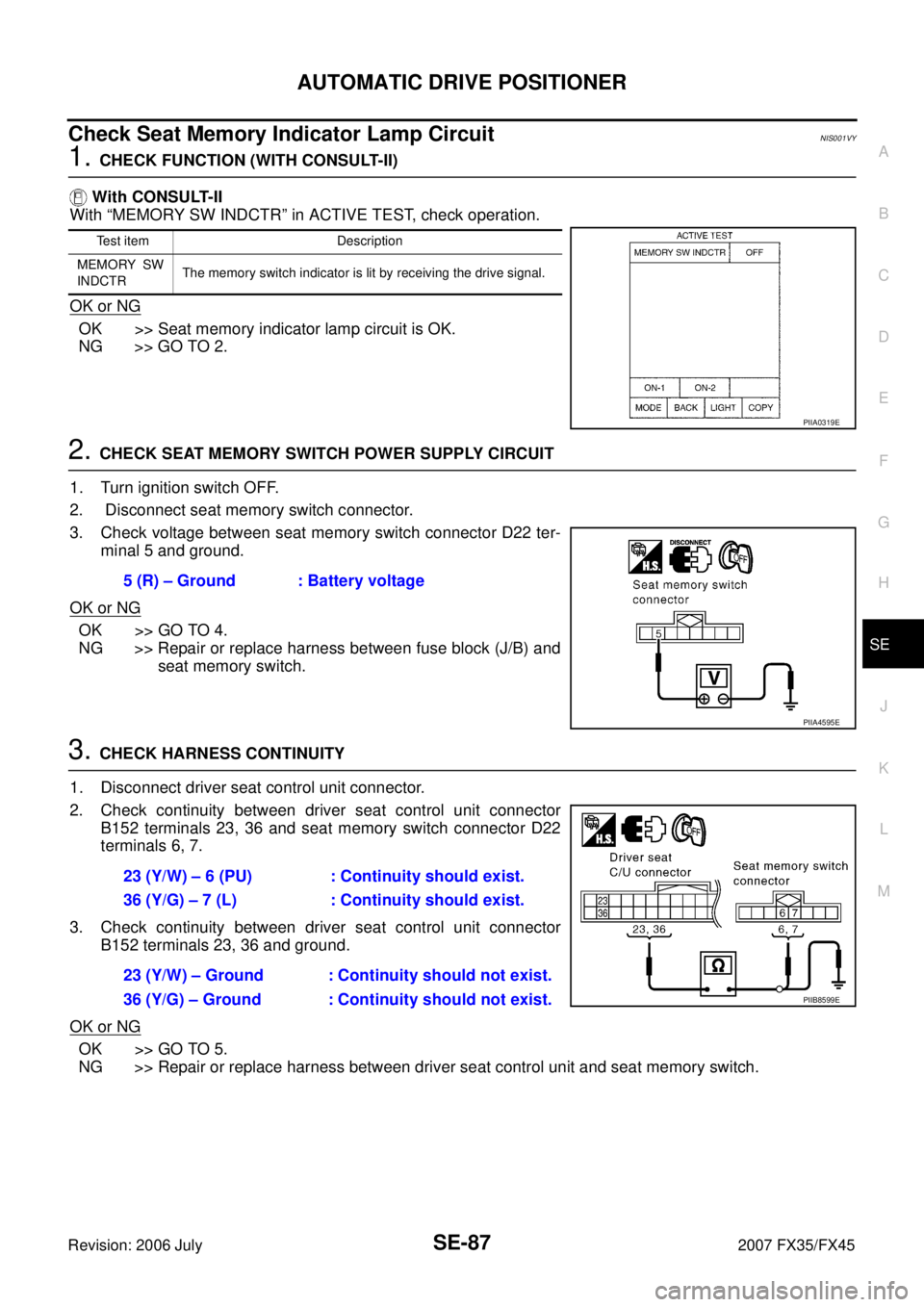

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-87 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 Check Seat Memory Indicator Lamp CircuitNIS001VY 1. CHECK FUNCTION (WITH CONSULT-II) With

Page 4126 of 4366

INFINITI FX35 2007 Service Manual SE-88 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL Check voltage between driver seat control unit connector B152 ter- minals 23, 36 and

Page 4127 of 4366

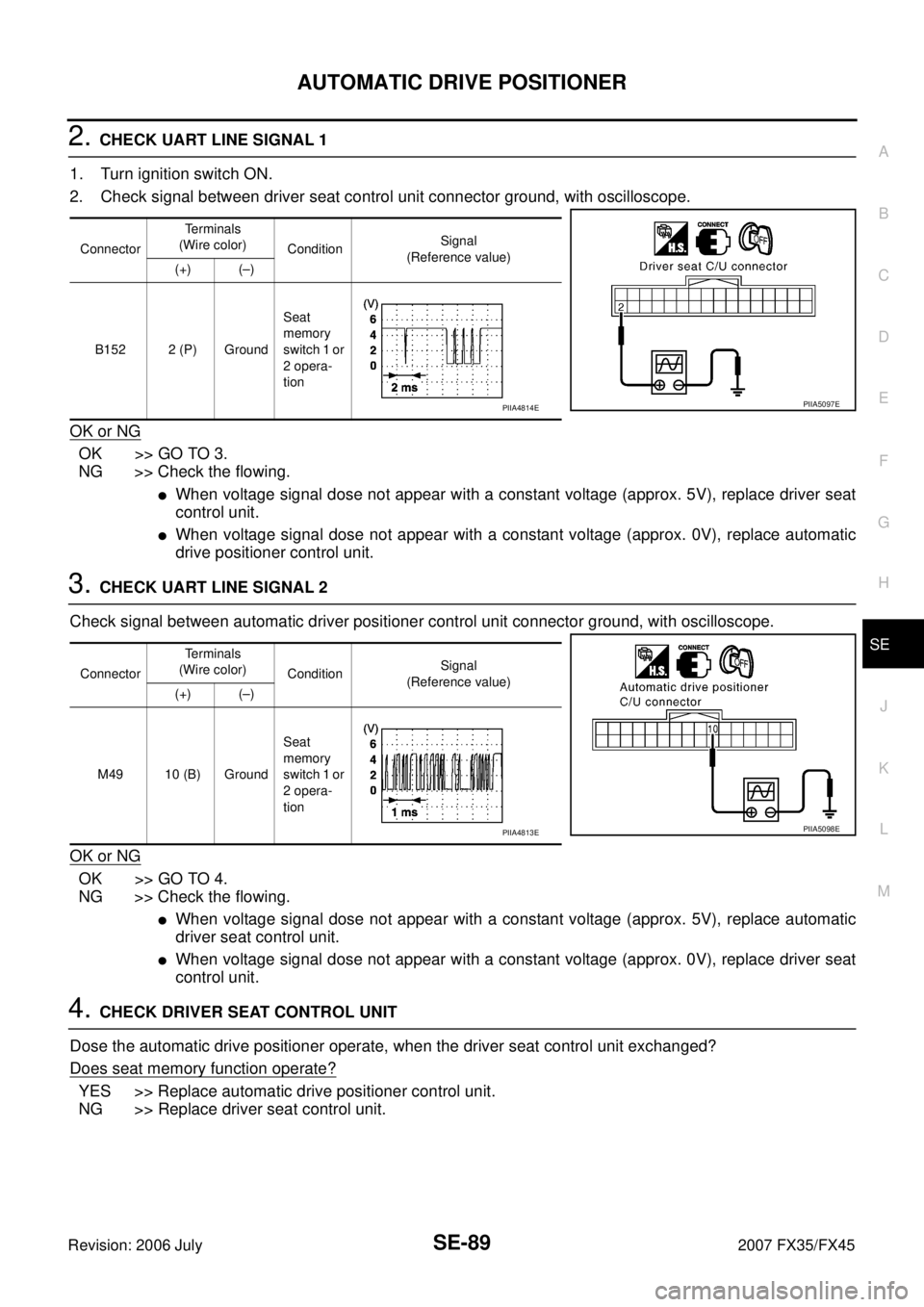

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-89 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 2. CHECK UART LINE SIGNAL 1 1. Turn ignition switch ON. 2. Check signal between driver sea

Page 4128 of 4366

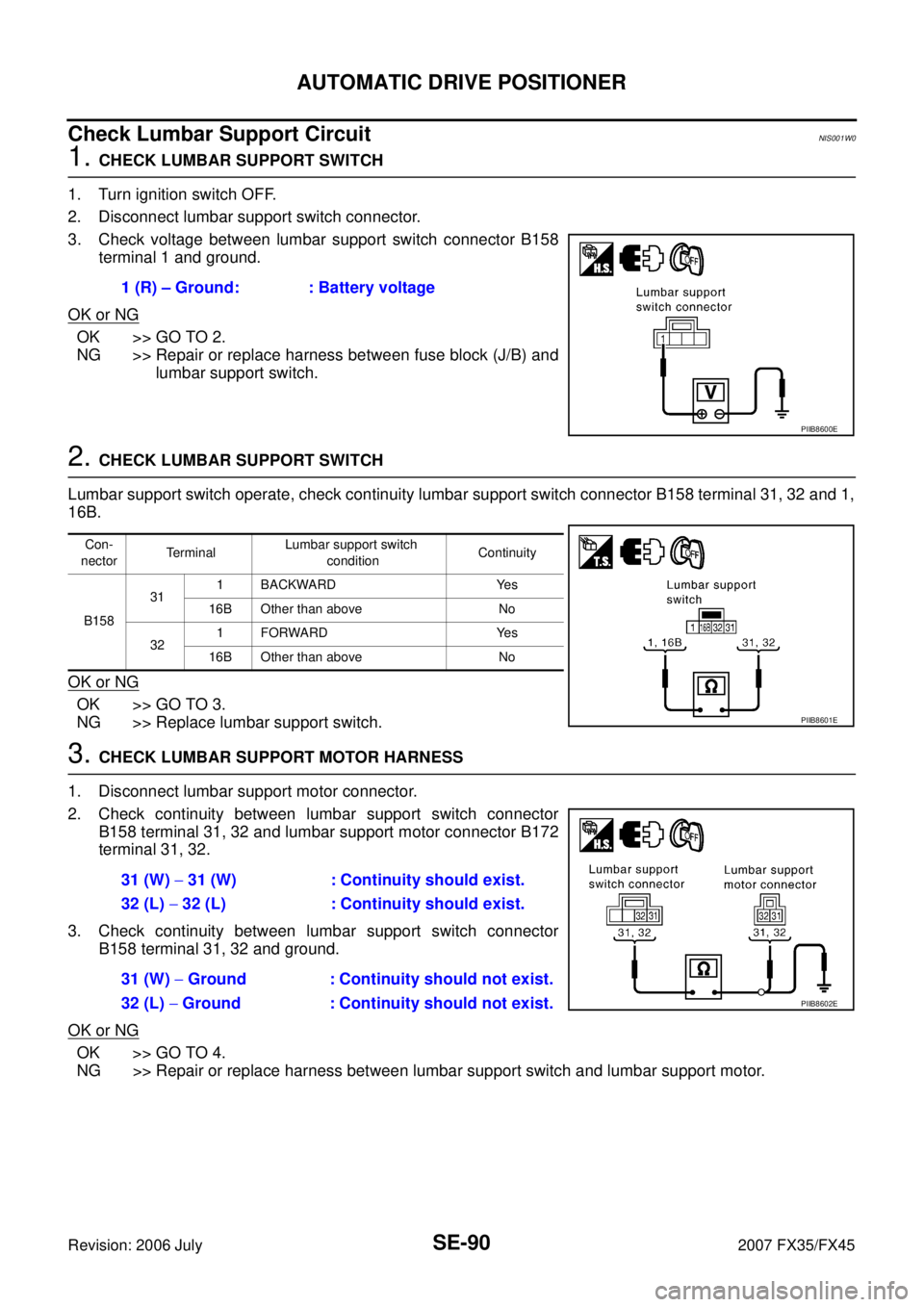

INFINITI FX35 2007 Service Manual SE-90 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 Check Lumbar Support CircuitNIS001W0 1. CHECK LUMBAR SUPPORT SWITCH 1. Turn ignition switch OFF. 2. Disconnect lumbar support swit
