Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000LN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Procedures without Cowl Top CoverNFS000LO
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions for Brake SystemNFS000TE
Clean dust on front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.
Recommended fluid is brake fluid “DOT 3”. MA-12, "Fluids and Lubricants" .
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas.
To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use new brake fluid.
Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.
Use a flare nut crowfoot and torque wrench when installing
brake tube.
When installing brake piping, be sure to check torque.
Before working, turn ignition switch OFF and disconnect con-
nectors for ABS actuator and electric unit (control unit) or battery
negative terminal.
Burnish the brake contact surfaces after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal
occurs at very low mileage.
Refer to BR-24, "
Brake Burnishing Procedure" (Front disc
brake), BR-30, "
Brake Burnishing Procedure" (Rear disc brake).
WARNING:
Clean brake pads and shoes with a waste cloth, then clean with a dust collector.
PIIB3706J
SBR686C
Page 1098 of 4366
BR-4
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Commercial Service ToolsNFS000LQ
Tool nameDescription
1.Flare nut crowfoot a: 10 mm (0.39 in) / 12 mm (0.47 in)
2.Torque wrench Installing each brake piping
Pin punch
Tip diameter: 4 mm (0.16 in) dia. Removing and installing reservoir tank
pin
Power tool Loosening bolts and nuts
S-NT360
ZZA0515D
PBIC0190E
Page 1099 of 4366
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING BR-5
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNFS000LR
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Reference page
BR-19
,
BR-25
BR-19
, BR-25
BR-19
, BR-25—
—
BR-24, BR-30—
—
—
BR-24, BR-30—
NVH in PR section
NVH in FFD and RFD section
NVH in FAX, RAX and FSU, RSU section
NVH in WT section
NVH in WT section
NVH in FAX and RAX section
NVH in PS section
Possible cause and
SUSPECTED PARTS
Pads - damaged
Pads - uneven wear
Shims damaged
Rotor imbalance
Rotor damage
Rotor runout
Rotor deformation
Rotor deflection
Rotor rust
Rotor thickness variation
Drum out of round
PROPELLER SHAFT
DIFFERENTIAL
AXLE AND SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
STEERING
Symptom BRAKE Noise
××× ×× ×××
××
Shake ×××××
××
Shimmy, Judder ××××××× ××× ×
Page 1100 of 4366

BR-6
BRAKE PEDAL
Revision: 2006 July 2007 FX35/FX45
BRAKE PEDALPFP:46501
Inspection and AdjustmentNFS000LS
Play and clearance between brake pedal and floor panel with pedal depressed
1. Check brake pedal height from dash lower panel.
2. Adjust height referring to the following specifications.
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake switch) by rotating it counterclockwise by 45 °.
2. Loosen lock nut (A) on input rod, then rotate input rod to set pedal to the specified height, and tighten lock nut (A). Refer to
BR-15, "
Components" .
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45 ° to secure.
CAUTION:
Make sure that the clearance “C” between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play. CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
H Brake pedal height (from dash
lower panel top surface) 161.5
− 171.5 mm (6.358 − 6.752 in)
D Depressed pedal height [under a
force of 490 N (50 kg, 110 lb) with
engine running] More than 95 mm (3.74 in)
C Clearance between stopper rubber
and the threaded end of stop lamp
switch and ASCD cancel switch (or
brake switch) 0.74
− 1.96 mm (0.0291 −0.0772 in)
A Pedal play 3 − 11 mm (0.12 − 0.43 in)
SFIA2380E
PFIA0819E
Page 1101 of 4366
BRAKE PEDAL BR-7
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
ComponentsNFS000OA
Removal and InstallationNFS000LT
REMOVAL
1. Remove front kicking plate (driver side). Refer to EI-40, "KICKING PLATE" .
2. Remove dash side finisher (driver side). Refer to EI-39, "
DASH SIDE FINISHER" .
3. Remove instrument lower panel (driver side). Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove steering column assembly. Refer to PS-13, "
Removal and Installation" .
5. Remove stop lamp switch and ASCD cancel switch (or brake switch) from pedal assembly.
6. Remove snap pin and clevis pin from brake booster clevis.
7. Remove mounting nuts and bolt from bracket, and remove brake pedal assembly from vehicle.

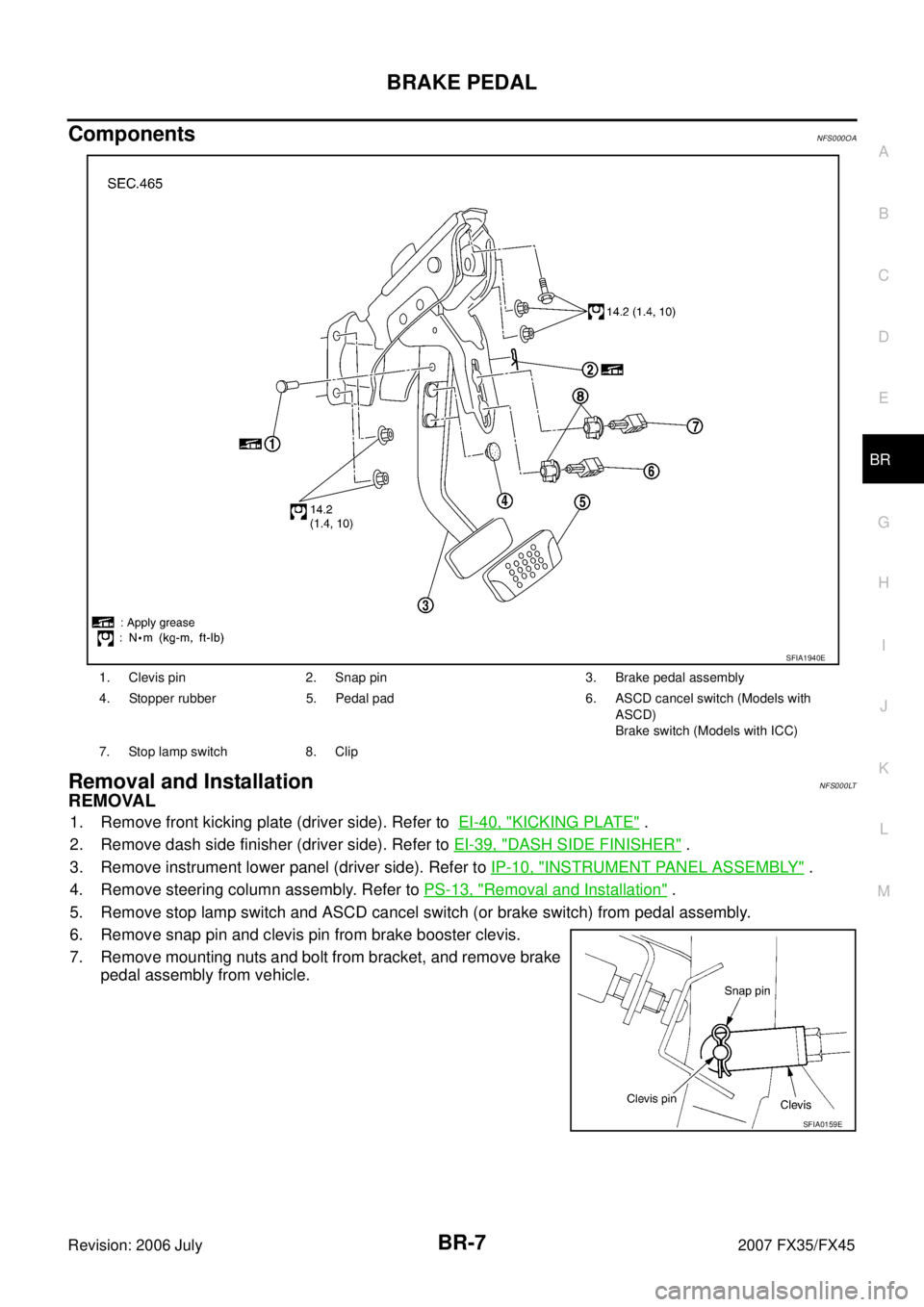

1. Clevis pin 2. Snap pin 3. Brake pedal assembly
4. Stopper rubber 5. Pedal pad 6. ASCD cancel switch (Models with ASCD)
Brake switch (Models with ICC)
7. Stop lamp switch 8. Clip
SFIA1940E
SFIA0159E
Page 1102 of 4366
BR-8
BRAKE PEDAL
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Make sure the rivets in the upper part of brake pedal are not
deformed.
Make sure that joint length “L” of sub-bracket and sliding plate is
5.5 mm (0.217 in) or more.
Replace brake pedal assembly if any non-standard condition is
detected.
Check clevis pin and plastic stopper for damage and deforma-
tion. Replace clevis pin if there are.
INSTALLATION
Installation in the reverse order of removal.
After installing brake pedal assembly to the vehicle, adjust brake pedal height. Refer to BR-6, "Inspection
and Adjustment" .
SFIA2487E
SBR997
Page 1103 of 4366

BRAKE FLUID BR-9
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
BRAKE FLUIDPFP:KN100
On-Board InspectionNFS000LU
LEVEL CHECK
Make sure the fluid level in reservoir tank is within the standard
(between MAX and MIN lines).
Visually check around reservoir tank for fluid leakage.
If fluid level is excessively low, check brake system for leakage.
Release parking brake pedal and see if brake warning lamp
goes off. If not, check brake system for fluid leakage.
Drain and RefillNFS000LV
CAUTION:
Refill with new brake fluid “DOT3”.
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is
splashed on painted surfaces of body, immediately wipe it off and them wash it away with water
immediately.
Before working, disconnect connectors of ABS actuator and electric unit (control unit) or battery
negative terminal.
1. Connect a vinyl tube to each bleed valve.
2. Depress brake pedal, loosen each bleed valve, and gradually remove brake fluid.
3. Make sure there is no foreign material in reservoir tank, and refill with new brake fluid.
4. Rest foot on brake pedal. Loosen bleed valve. Slowly depress pedal until it stops. Tighten bleed valve. Release brake pedal.
Repeat this process a few times, then pause to add new brake
fluid to master cylinder. Continue until new brake fluid flows out.
5. Bleed Air. Refer to BR-10, "
Bleeding Brake System" .
SFIA1032E
BRA0007D
SBR995
Page 1104 of 4366
BR-10
BRAKE FLUID
Revision: 2006 July 2007 FX35/FX45
Bleeding Brake SystemNFS000LW
CAUTION:
Carefully monitor brake fluid level in reservoir tank
during bleeding operation.
Refill with new brake fluid “DOT 3”. Make sure it is at least
half way at all times while bleeding air out of system.
Place a container under master cylinder not to spill brake
fluid.
Turn ignition switch OFF and disconnect ABS actuator and
electric unit (control unit) or battery negative terminal.
Bleed air in the following order. Right rear brake → Left
front brake → Left rear brake → Right front brake
1. Connect a transparent vinyl tube to bleed valve.
2. Fully depress brake pedal several times.
3. With brake pedal depressed, open bleed valve to release air.
4. Close bleed valve.
5. Release brake pedal slowly.
6. Repeat steps 2, through 5, until clear brake fluid comes out of bleed valve.
SBR995
SBR419C
