Page 321 of 4366

INFINITI FX35 2007 Service Manual KEY INTERLOCK CABLE AT-237 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 Removal and InstallationNCS001IE REMOVAL 1. Unlock slider by squeezing lock tabs on slider from adj

Page 322 of 4366

INFINITI FX35 2007 Service Manual AT-238 KEY INTERLOCK CABLE Revision: 2006 July 2007 FX35/FX45 INSTALLATION 1. Set key interlock cable (2) to key cylinder (1) and install holder (A). 2. Clamp key interlock cable (2) and fix to key

Page 323 of 4366

INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE AT-239 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 ON-VEHICLE SERVICEPFP:00000 Control Valve with TCM and A/T Fluid Temperature Sensor 2NCS001IF COMPON

Page 324 of 4366

INFINITI FX35 2007 Service Manual AT-240 ON-VEHICLE SERVICE Revision: 2006 July 2007 FX35/FX45 6. Remove snap ring from A/T assembly harness connector. 7. Push A/T assembly harness connector. CAUTION: Be careful not to damage conne

Page 325 of 4366

INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE AT-241 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 11. Disconnect A/T fluid temperature sensor 2 connector (1). CAUTION: Be careful not to damage con

Page 326 of 4366

INFINITI FX35 2007 Service Manual AT-242 ON-VEHICLE SERVICE Revision: 2006 July 2007 FX35/FX45 17. Remove A/T fluid temperature sensor 2 with bracket from con- trol valve with TCM. 18. Remove bracket from A/T fluid temperature senso

Page 327 of 4366

INFINITI FX35 2007 Service Manual ON-VEHICLE SERVICE AT-243 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 21. Remove A/T assembly harness connector from control valve with TCM using a flat-bladed screwdriv

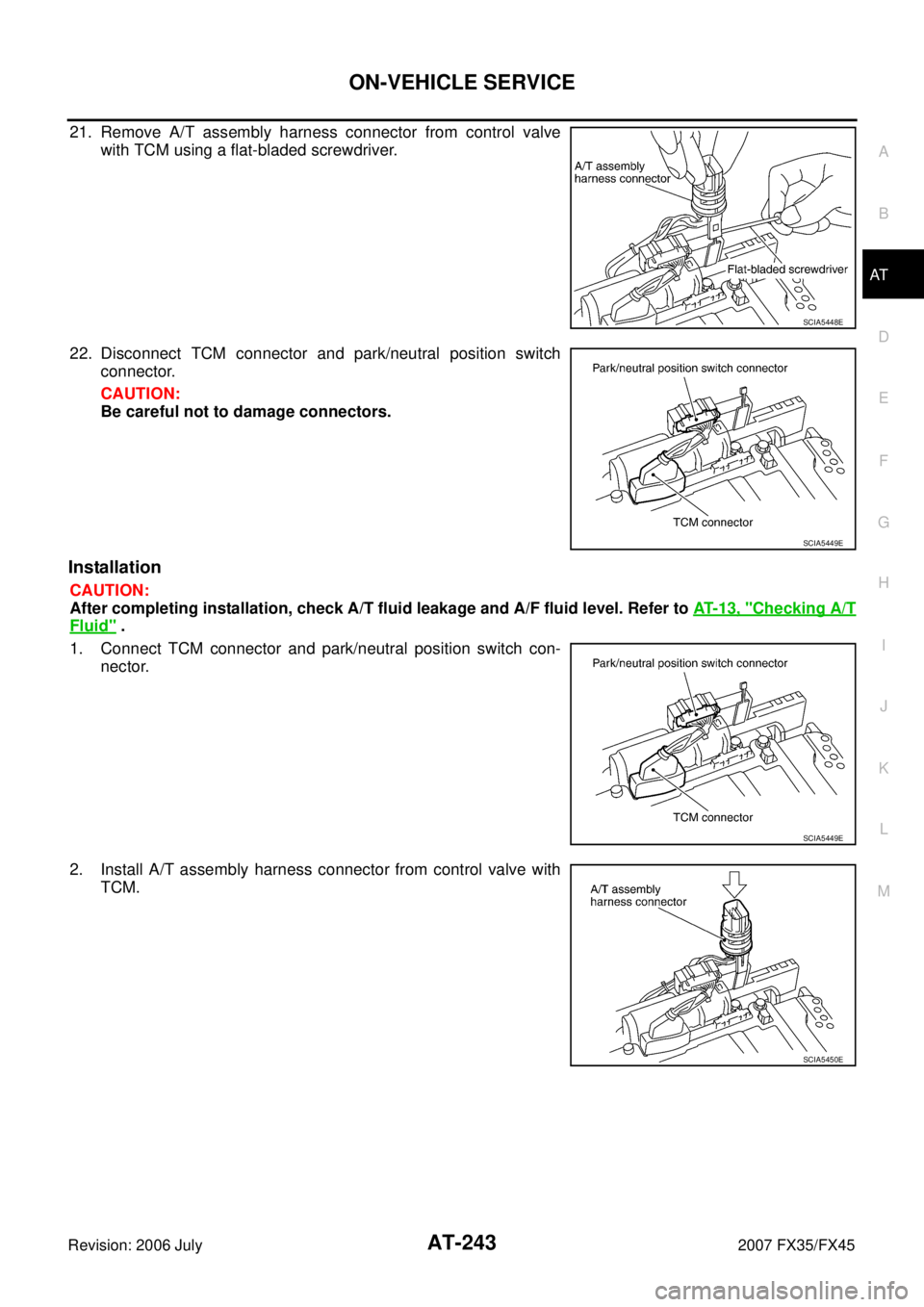

Page 328 of 4366

INFINITI FX35 2007 Service Manual AT-244 ON-VEHICLE SERVICE Revision: 2006 July 2007 FX35/FX45 3. Connect TCM connectors. 4. Install O-ring in A/T assembly harness connector. CAUTION: Do not reuse O-ring. Apply ATF to O-ring. 5.
