Page 401 of 4366

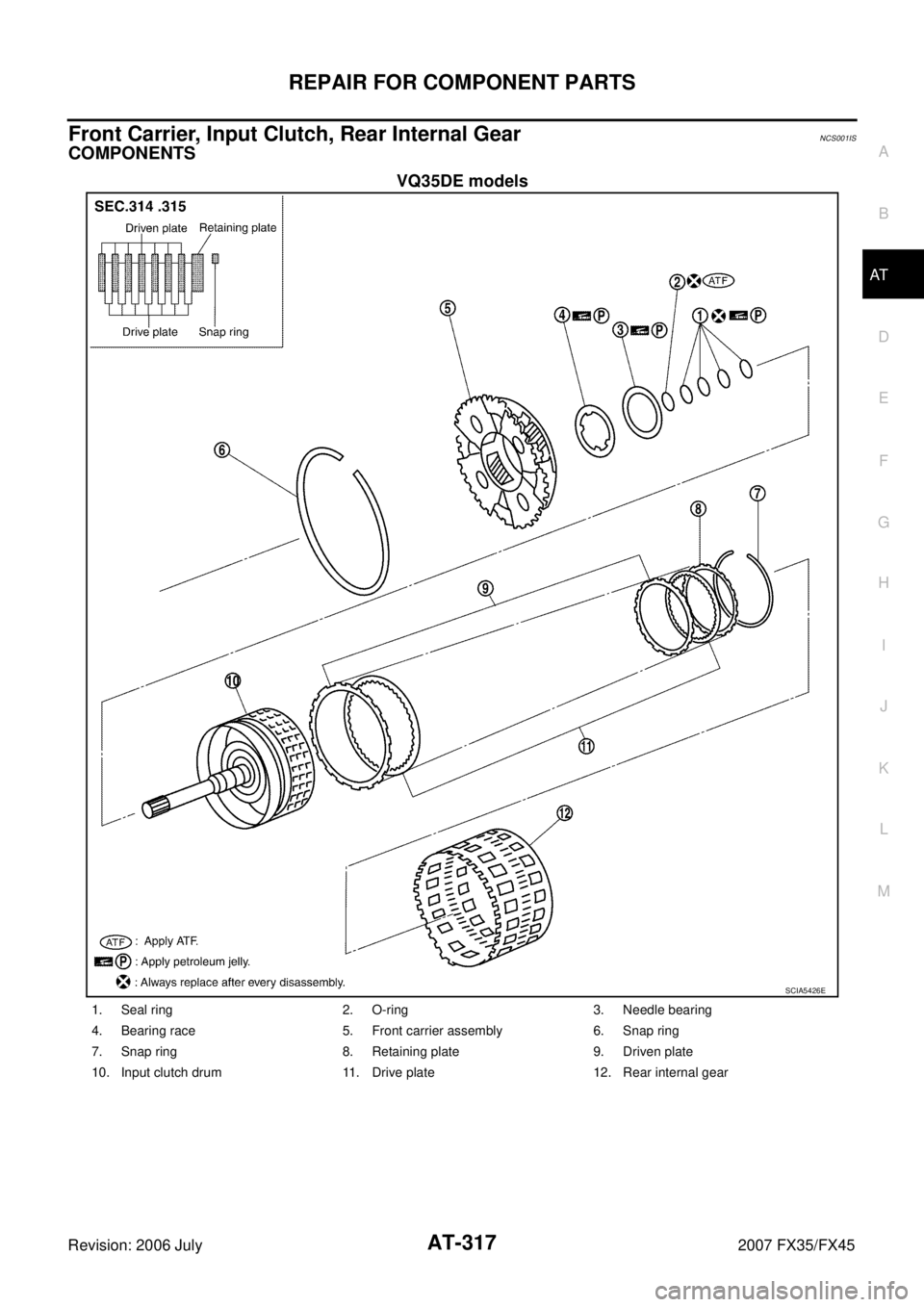

INFINITI FX35 2007 Service Manual REPAIR FOR COMPONENT PARTS AT-317 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 Front Carrier, Input Clutch, Rear Internal GearNCS001IS COMPONENTS VQ35DE models SCIA5426E 1

Page 402 of 4366

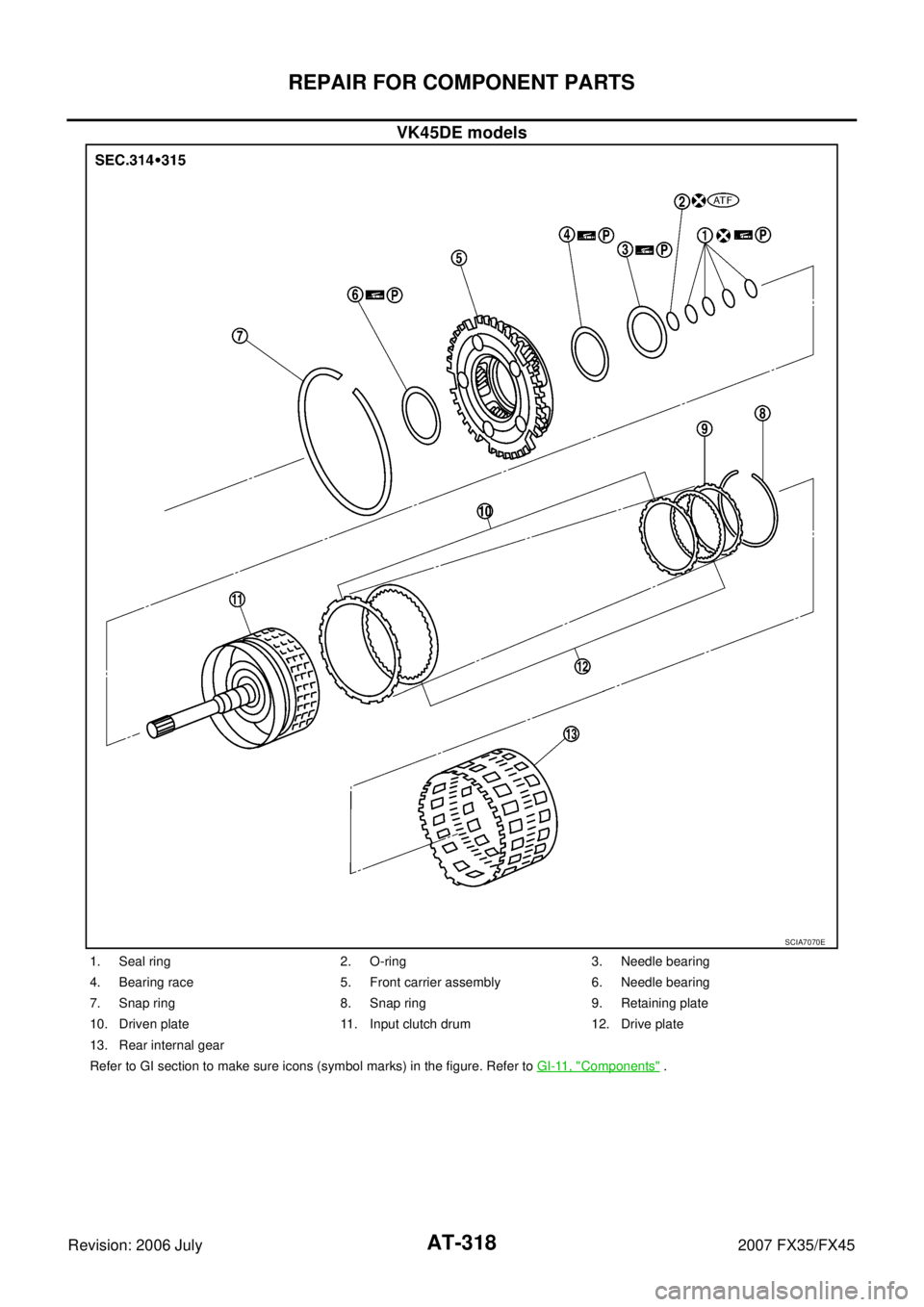

INFINITI FX35 2007 Service Manual AT-318 REPAIR FOR COMPONENT PARTS Revision: 2006 July 2007 FX35/FX45 VK45DE models SCIA7070E 1. Seal ring 2. O-ring 3. Needle bearing 4. Bearing race 5. Front carrier assembly 6. Needle bearing 7. S

Page 403 of 4366

INFINITI FX35 2007 Service Manual REPAIR FOR COMPONENT PARTS AT-319 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 DISASSEMBLY 1. Compress snap ring using 2 flat-bladed screwdrivers. 2. Remove front carrier

Page 404 of 4366

INFINITI FX35 2007 Service Manual AT-320 REPAIR FOR COMPONENT PARTS Revision: 2006 July 2007 FX35/FX45 4. Disassemble input clutch assembly. a. Remove O-ring and seal rings from input clutch assembly. b. Remove needle bearing from i

Page 405 of 4366

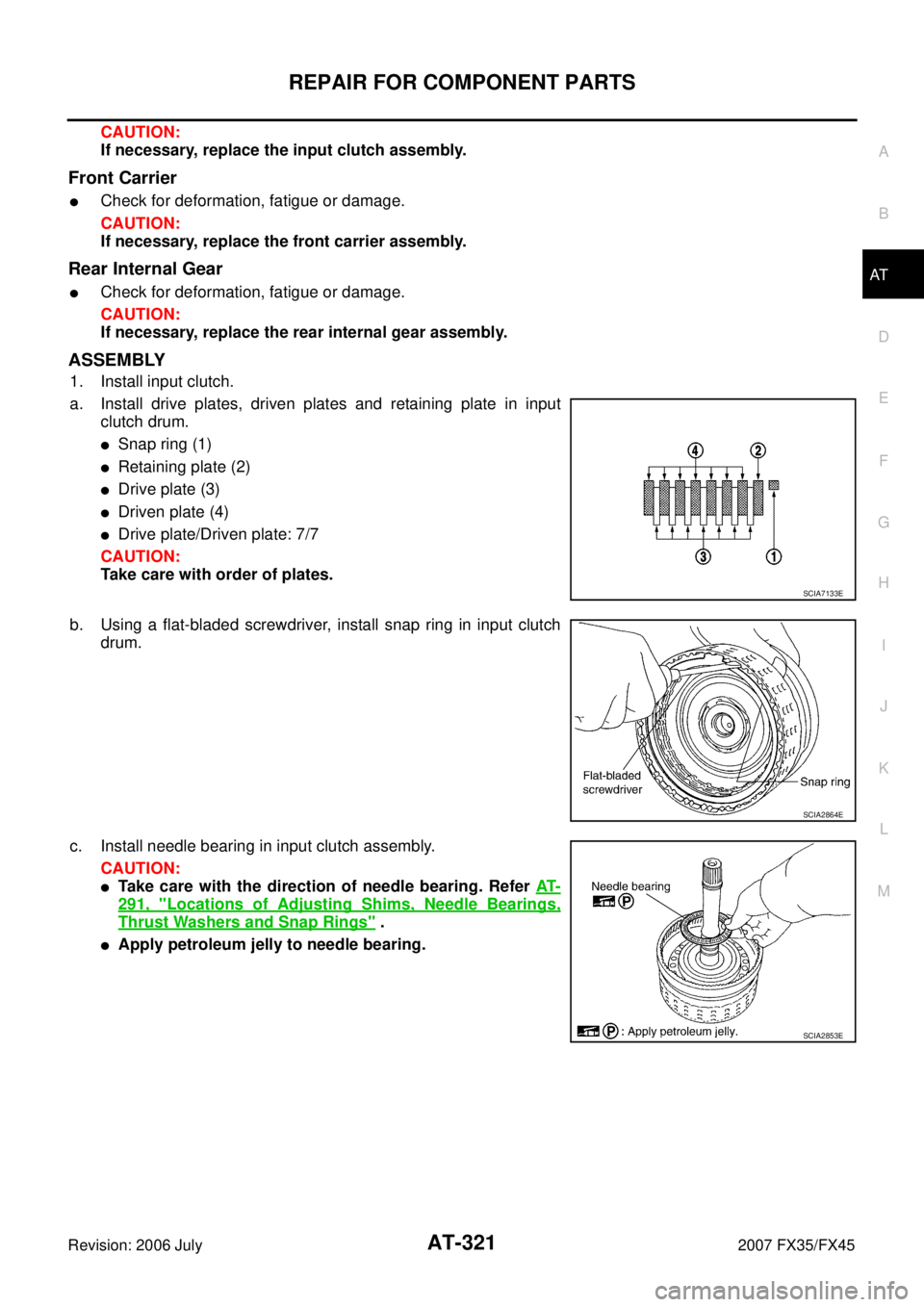

INFINITI FX35 2007 Service Manual REPAIR FOR COMPONENT PARTS AT-321 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 CAUTION: If necessary, replace the input clutch assembly. Front Carrier Check for deformat

Page 406 of 4366

INFINITI FX35 2007 Service Manual AT-322 REPAIR FOR COMPONENT PARTS Revision: 2006 July 2007 FX35/FX45 d. Install O-ring and seal rings in input clutch assembly. CAUTION: Do not reuse O-ring and seal rings. Apply ATF to O-ring. Ap

Page 407 of 4366

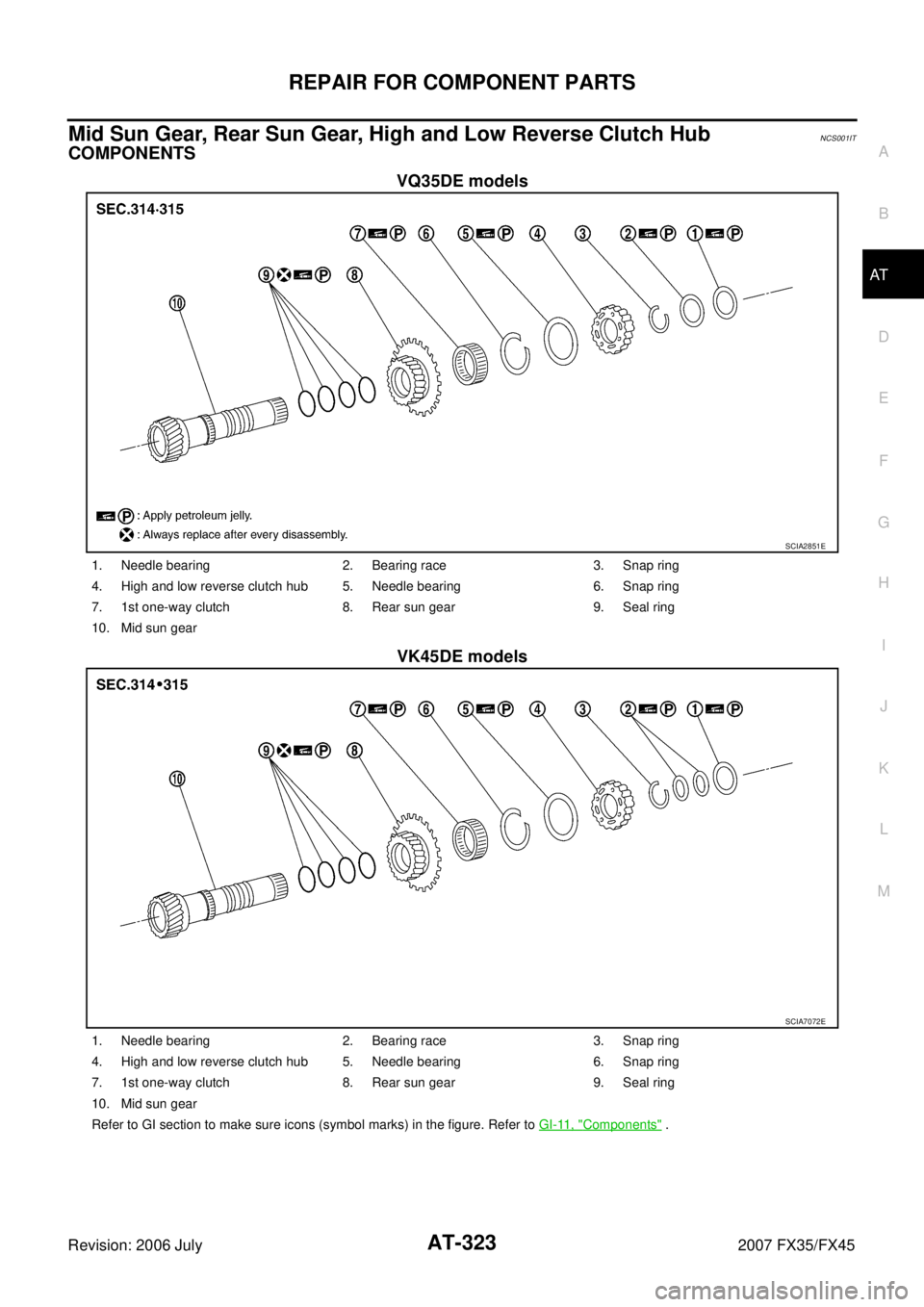

INFINITI FX35 2007 Service Manual REPAIR FOR COMPONENT PARTS AT-323 D E F G H I J K L M A B AT Revision: 2006 July 2007 FX35/FX45 Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch HubNCS001IT COMPONENTS VQ35DE model

Page 408 of 4366

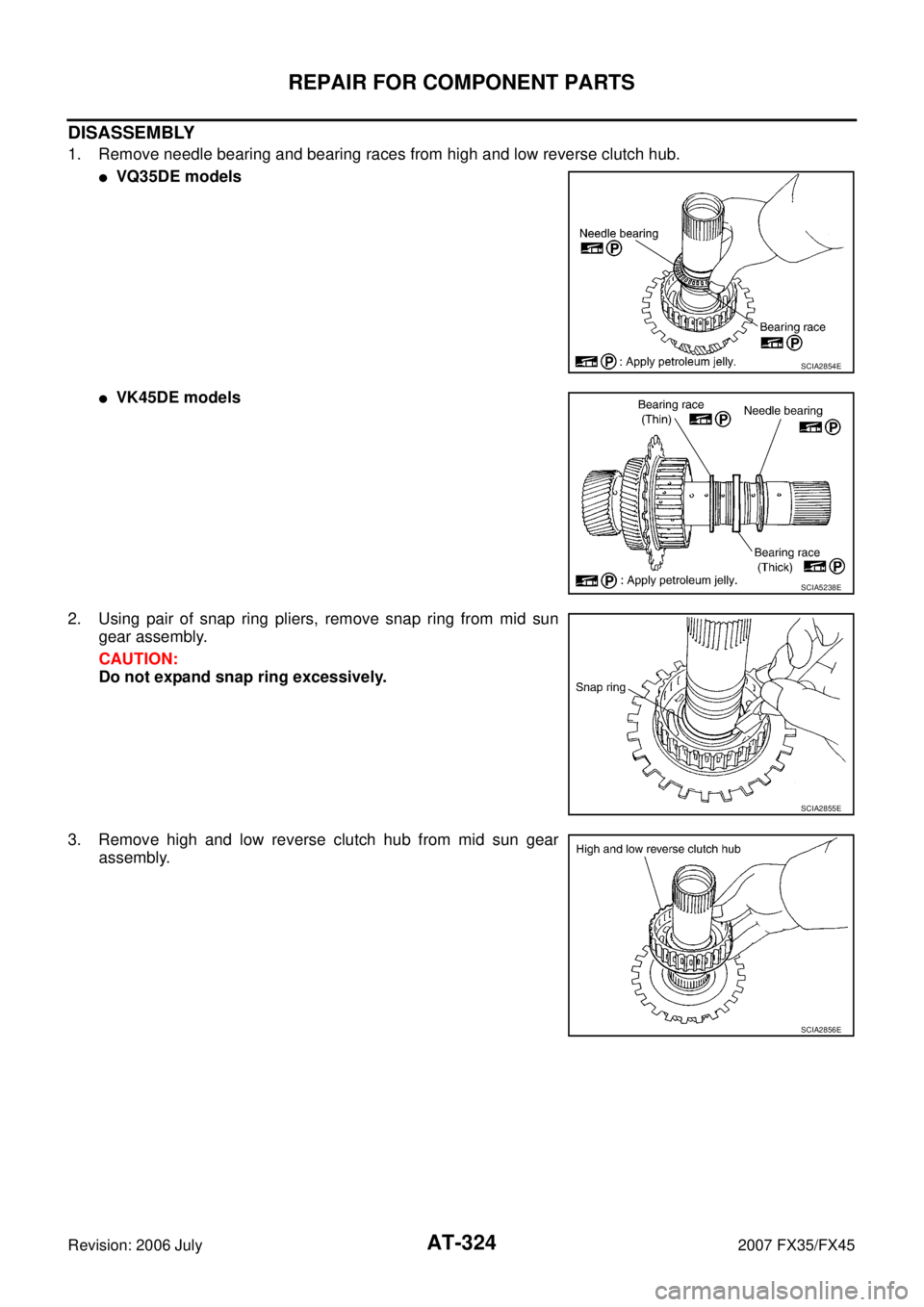

INFINITI FX35 2007 Service Manual AT-324 REPAIR FOR COMPONENT PARTS Revision: 2006 July 2007 FX35/FX45 DISASSEMBLY 1. Remove needle bearing and bearing races from high and low reverse clutch hub. VQ35DE models VK45DE models 2. Usin
