SENSOR ROTOR BRC-59
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
SENSOR ROTORPFP:47970
Removal and InstallationNFS000O5
REMOVAL
Front
Sensor rotor cannot be disassembled. To replace sensor rotor, replace wheel hub and bearing assembly.
Refer to FAX-4, "
Removal and Installation" (2WD models), FA X - 1 0 , "Removal and Installation" (AWD models).
Rear
Follow procedure below to remove rear sensor rotor.
–Remove side flange. Refer to RFD-14, "Removal and Installation" .
–Using a bearing replacer and puller, remove sensor rotor from side flange.
INSTALLATION
Front
Sensor rotor cannot be disassembled. To replace sensor rotor, replace wheel hub and bearing assembly.
Refer to FA X - 4 , "
Removal and Installation" (2WD models), FA X - 1 0 , "Removal and Installation" (AWD models).
Rear
Follow procedure below to install rear sensor rotor.
–Using a drifts, press rear sensor rotor onto side flange.
–Install side flange. Refer to RFD-14, "Removal and Installation" .

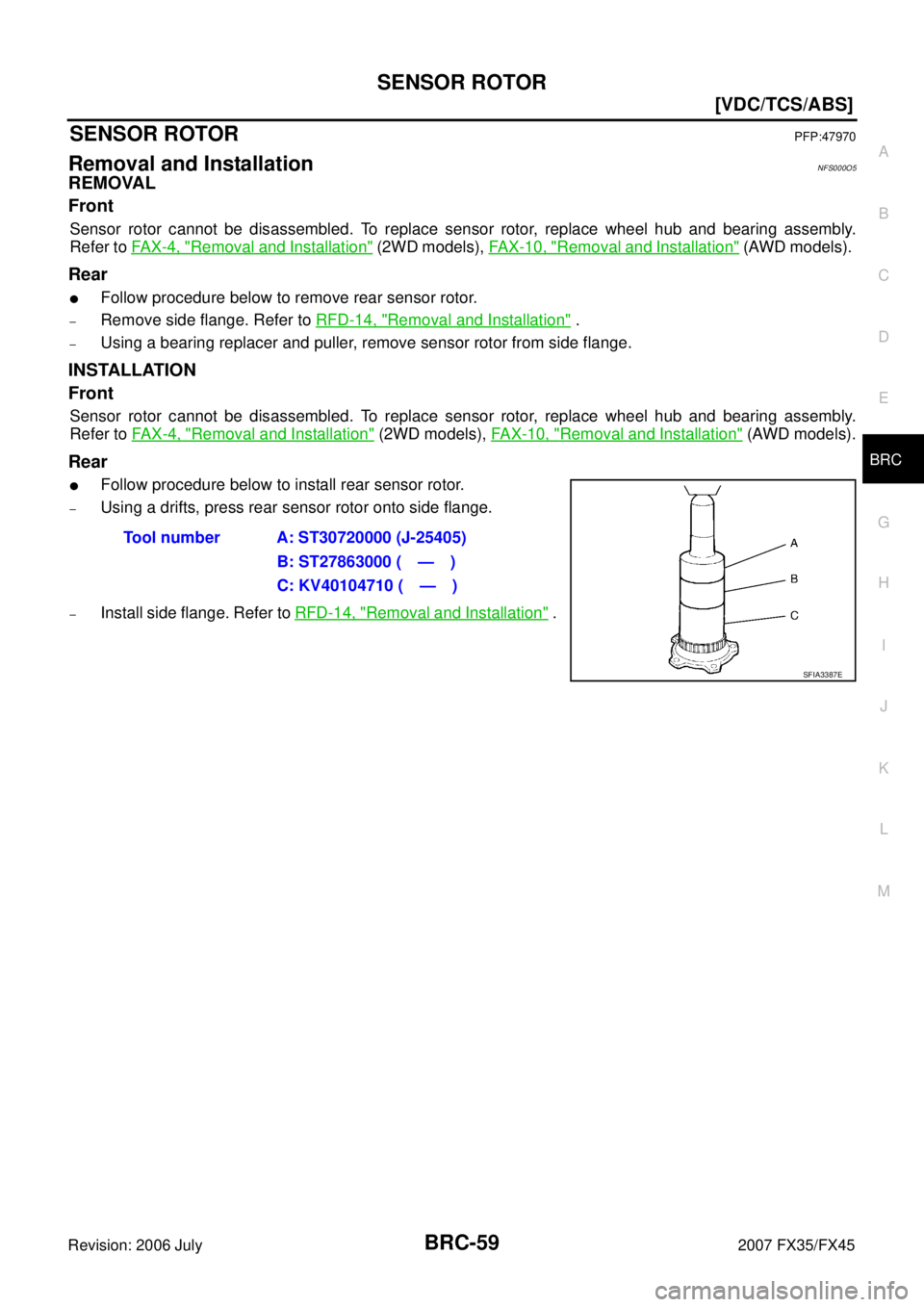

Tool number A: ST30720000 (J-25405)
B: ST27863000 ( — )
C: KV40104710 ( — )
SFIA3387E
Page 1186 of 4366
![INFINITI FX35 2007 Service Manual BRC-60
[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: 2006 July 2007 FX35/FX45
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationNFS000O6
REMOVAL
1. Disconnect ABS INFINITI FX35 2007 Service Manual BRC-60
[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: 2006 July 2007 FX35/FX45
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationNFS000O6
REMOVAL
1. Disconnect ABS](/manual-img/42/57018/w960_57018-1185.png)
BRC-60
[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: 2006 July 2007 FX35/FX45
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationNFS000O6
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).
3. Remove LH side fender protector. Refer to EI-24, "
FENDER PROTECTOR" .
4. Remove ABS actuator and electric unit (control unit) mounting nuts.
5. Remove ABS actuator and electric unit (control unit) from vehicle.
CAUTION:
Be careful of the following when removing ABS actuator and electric unit (control unit).
If the part number on the part number label (pasted on actuator upper surface) is the same, ABS
actuator and electric unit (control unit) can not be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, SLIP indicator lamp and VDC OFF indicator
lamp may turn ON or VDC/TCS/ABS may not operate normally.
When replacing ABS actuator and electric unit (control unit), must use new service parts.
Before servicing, disconnect battery cables.
To remove brake tube, use a flare nut torque wrench to prevent flare nuts and brake tube from
being damaged. To install, use a flare nut torque wrench (commercial service tool) and tighten to
the specified torque.
Do not apply excessive impact to actuator, such as dropping it.
Do not remove and install ABS actuator and electric unit (control unit) by holding harness.
PFIA0601E
Page 1187 of 4366
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) BRC-61
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Be careful of the following when installing ABS actuator and electric unit (control unit).
Tighten the mounting bolts and nuts to the specified torque.
After the work, bleed air from brake piping. Refer to BR-10, "Bleeding Brake System" .
After installing vehicle harness connector in the actuator, make sure connector is securely locked.
When replacing ABS actuator and electric unit (control unit), calibrate steering angle sensor neu-
tral position and decel G sensor. Refer to BRC-6, "
ON-VEHICLE SERVICE" .
Page 1188 of 4366
BRC-62
[VDC/TCS/ABS]
G SENSOR
Revision: 2006 July 2007 FX35/FX45
G SENSORPFP:47930
Removal and InstallationNFS000O7
REMOVAL
1. Remove center console. Refer to IP-12, "(H) Center Console" .
