Page 3825 of 4366
FUSE, FUSIBLE LINK AND RELAY BOX PG-81
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 July 2007 FX35/FX45
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementNKS003GV
CKIM0223E
Page 3826 of 4366
PG-82
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2006 July 2007 FX35/FX45
Page 3827 of 4366

PR-1
PROPELLER SHAFT
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION
A
B
PR
Revision: 2006 July 2007 FX35/FX45
PROPELLER SHAFT
PREPARATION ........................................................... 2
Special Service Tools .......................................... ..... 2
Commercial Service Tools ................................... ..... 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 3
NVH Troubleshooting Chart ................................ ..... 3
FRONT PROPELLER SHAFT ............................... ..... 4
On-Vehicle Inspection ......................................... ..... 4
APPEARANCE AND NOISE INSPECTION ..... ..... 4
PROPELLER SHAFT VIBRATION ................... ..... 4
Components ........................................................ ..... 4
Removal and Installation ..................................... ..... 5
REMOVAL ........................................................ ..... 5
INSPECTION ................................................... ..... 5
INSTALLATION ................................................ ..... 6
REAR PROPELLER SHAFT ................................. ..... 7
On-Vehicle Inspection ......................................... ..... 7 APPEARANCE AND NOISE INSPECTION .....
..... 7
PROPELLER SHAFT VIBRATION ................... ..... 7
Components ........................................................ ..... 8
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION ................................................... ... 10
INSTALLATION ................................................ ... 11
Disassembly and Assembly of Center Bearing ... ... 12
DISASSEMBLY ................................................ ... 12
ASSEMBLY ...................................................... ... 13
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 14
General Specifications ......................................... ... 14
2WD MODELS ................................................. ... 14
AWD MODELS ................................................. ... 14
Journal Axal Play ................................................. ... 14
Propeller Shaft Runout ........................................ ... 14
Page 3828 of 4366
PR-2
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNDS000AQ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNDS000AR
Tool number
(Kent-Moore No.)
Tool name Description
KV40104000
(—)
Flange wrench
a: 85 mm (3.35 in)
b: 65 mm (2.56 in) Removing and installing center flange lock nut
ST30031000
(J-22912-01)
Puller
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia. Removing rear propeller shaft center bearing
NT659
NT411
Tool name
Description
Power tool Loosening bolts and nuts
PBIC0190E
Page 3829 of 4366
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING PR-3
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 July 2007 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNDS000AS
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Reference page
Front
PR-4—
—
—
—
PR-4PR-5
NVH in FFD and RFD section
NVH in FAX, RAX, FSU, and RSU section
NVH in WT section
NVH in WT section
NVH in RAX section
NVH in BR section
NVH in PS section
RearPR-7PR-11—
PR-8—
PR-7PR-10
Possible cause and SUSPECTED PARTS
Uneven rotating torque
Center bearing improper installation
Excessive center bearing axial end play
Center bearing mounting (insulator) cracks, damage or deterioration
Excessive joint angle
Rotation imbalance
Excessive runout
DIFFERENTIAL
AXLE AND SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom Noise
××××××××××××××
Shake × × ××××××
Vibration ××××××× ×× × ×
Page 3830 of 4366

PR-4
FRONT PROPELLER SHAFT
Revision: 2006 July 2007 FX35/FX45
FRONT PROPELLER SHAFTPFP:37200

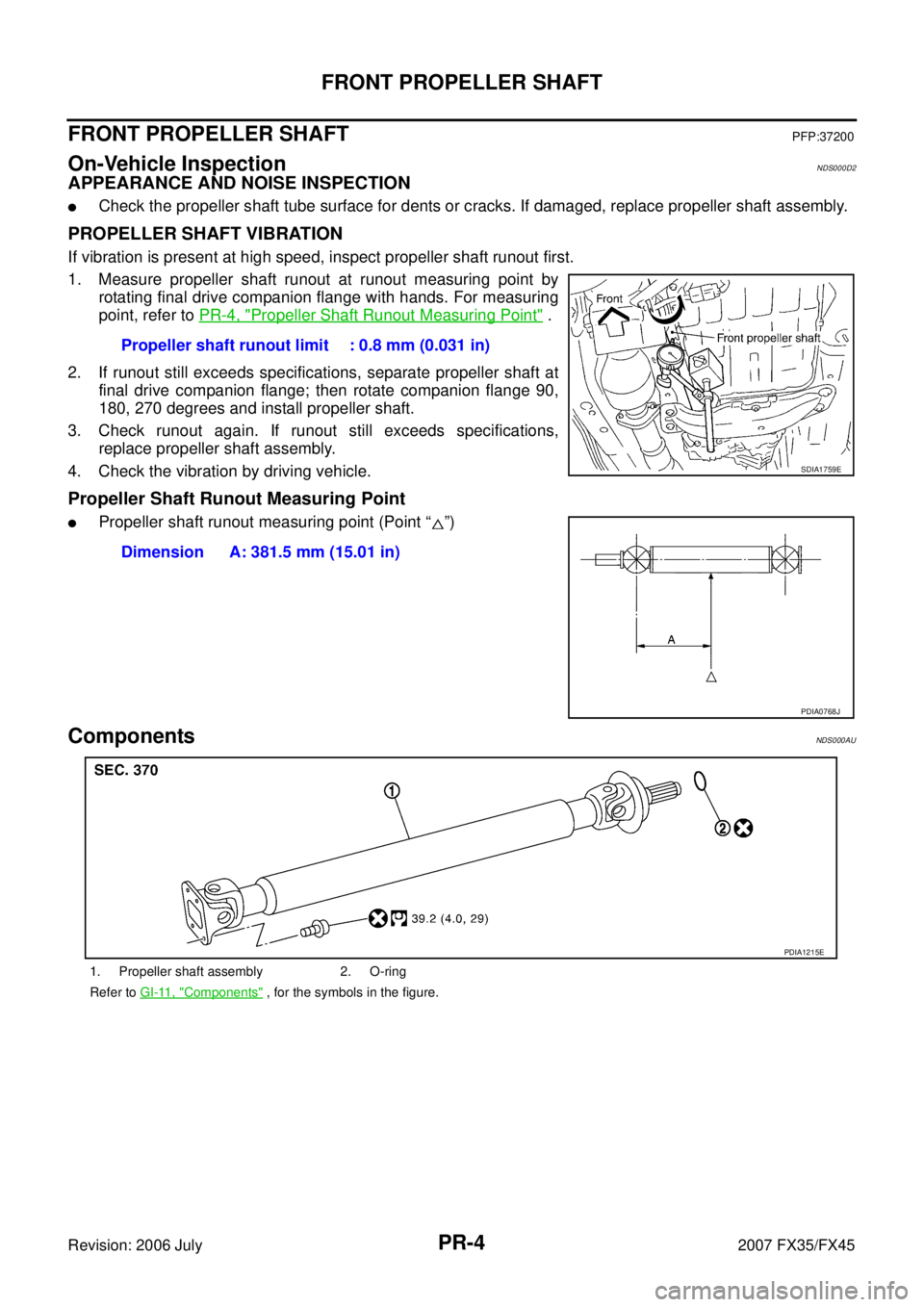

On-Vehicle InspectionNDS000D2
APPEARANCE AND NOISE INSPECTION
Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft runout first.
1. Measure propeller shaft runout at runout measuring point by rotating final drive companion flange with hands. For measuring
point, refer to PR-4, "
Propeller Shaft Runout Measuring Point" .
2. If runout still exceeds specifications, separate propeller shaft at final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.
3. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
4. Check the vibration by driving vehicle.
Propeller Shaft Runout Measuring Point
Propeller shaft runout measuring point (Point “ ”)
ComponentsNDS000AU
Propeller shaft runout limit : 0.8 mm (0.031 in)
SDIA1759E
Dimension A: 381.5 mm (15.01 in)
PDIA0768J
1. Propeller shaft assembly 2. O-ring
Refer to GI-11, "
Components" , for the symbols in the figure.
PDIA1215E
Page 3831 of 4366

FRONT PROPELLER SHAFT PR-5
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 July 2007 FX35/FX45

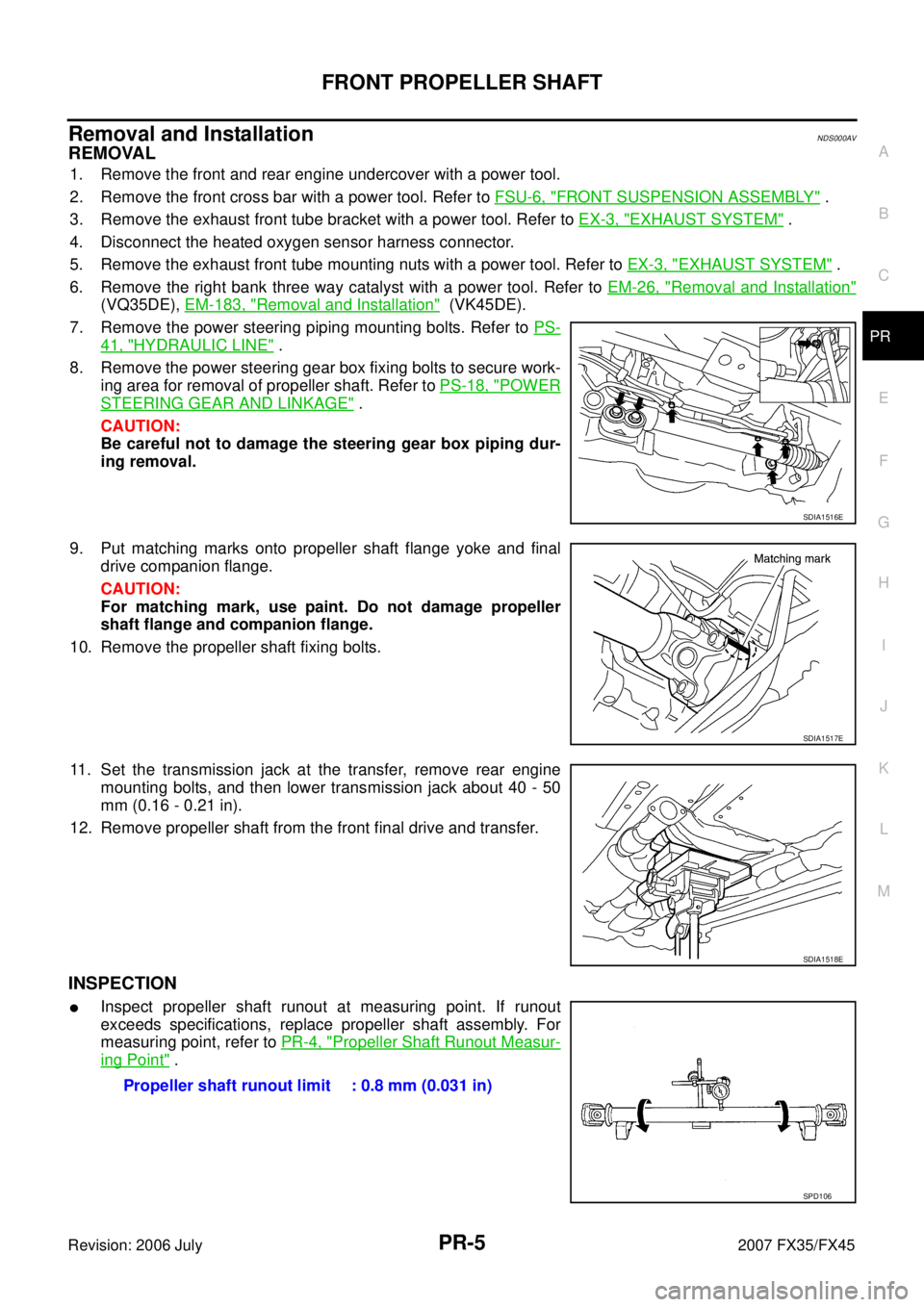

Removal and InstallationNDS000AV
REMOVAL
1. Remove the front and rear engine undercover with a power tool.
2. Remove the front cross bar with a power tool. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
3. Remove the exhaust front tube bracket with a power tool. Refer to EX-3, "
EXHAUST SYSTEM" .
4. Disconnect the heated oxygen sensor harness connector.
5. Remove the exhaust front tube mounting nuts with a power tool. Refer to EX-3, "
EXHAUST SYSTEM" .
6. Remove the right bank three way catalyst with a power tool. Refer to EM-26, "
Removal and Installation"
(VQ35DE), EM-183, "Removal and Installation" (VK45DE).
7. Remove the power steering piping mounting bolts. Refer to PS-
41, "HYDRAULIC LINE" .
8. Remove the power steering gear box fixing bolts to secure work- ing area for removal of propeller shaft. Refer to PS-18, "
POWER
STEERING GEAR AND LINKAGE" .
CAUTION:
Be careful not to damage the steering gear box piping dur-
ing removal.
9. Put matching marks onto propeller shaft flange yoke and final drive companion flange.
CAUTION:
For matching mark, use paint. Do not damage propeller
shaft flange and companion flange.
10. Remove the propeller shaft fixing bolts.
11. Set the transmission jack at the transfer, remove rear engine mounting bolts, and then lower transmission jack about 40 - 50
mm (0.16 - 0.21 in).
12. Remove propeller shaft from the front final drive and transfer.
INSPECTION
Inspect propeller shaft runout at measuring point. If runout
exceeds specifications, replace propeller shaft assembly. For
measuring point, refer to PR-4, "
Propeller Shaft Runout Measur-
ing Point" .
SDIA1516E
SDIA1517E
SDIA1518E
Propeller shaft runout limit : 0.8 mm (0.031 in)
SPD106
Page 3832 of 4366
PR-6
FRONT PROPELLER SHAFT
Revision: 2006 July 2007 FX35/FX45
As shown in the figure, while fixing yoke on one side, check axial
play of joint. If outside the standard, replace propeller shaft
assembly.
Check propeller shaft for bend and damage. If damage is
detected, replace propeller shaft assembly.
CAUTION:
Do not disassemble joints.
INSTALLATION
Note the following, install in the reverse order of removal.
Align matching marks to install propeller shaft to final drive com-
panion flange, and then tighten to specified torque. Refer to PR-
4, "Components" .
CAUTION:
Do not reuse the bolts.
After assembly, perform a driving test to check propeller shaft
vibration. If vibration occurred, separate propeller shaft from
final drive or transfer. Reinstall companion flange after rotating it
by 90, 180, 270 degrees. Then perform driving test and check
propeller shaft vibration again at each point. Journal axial play : 0 mm (0 in)
PDA0005D
SDIA1517E
