Page 1049 of 4366

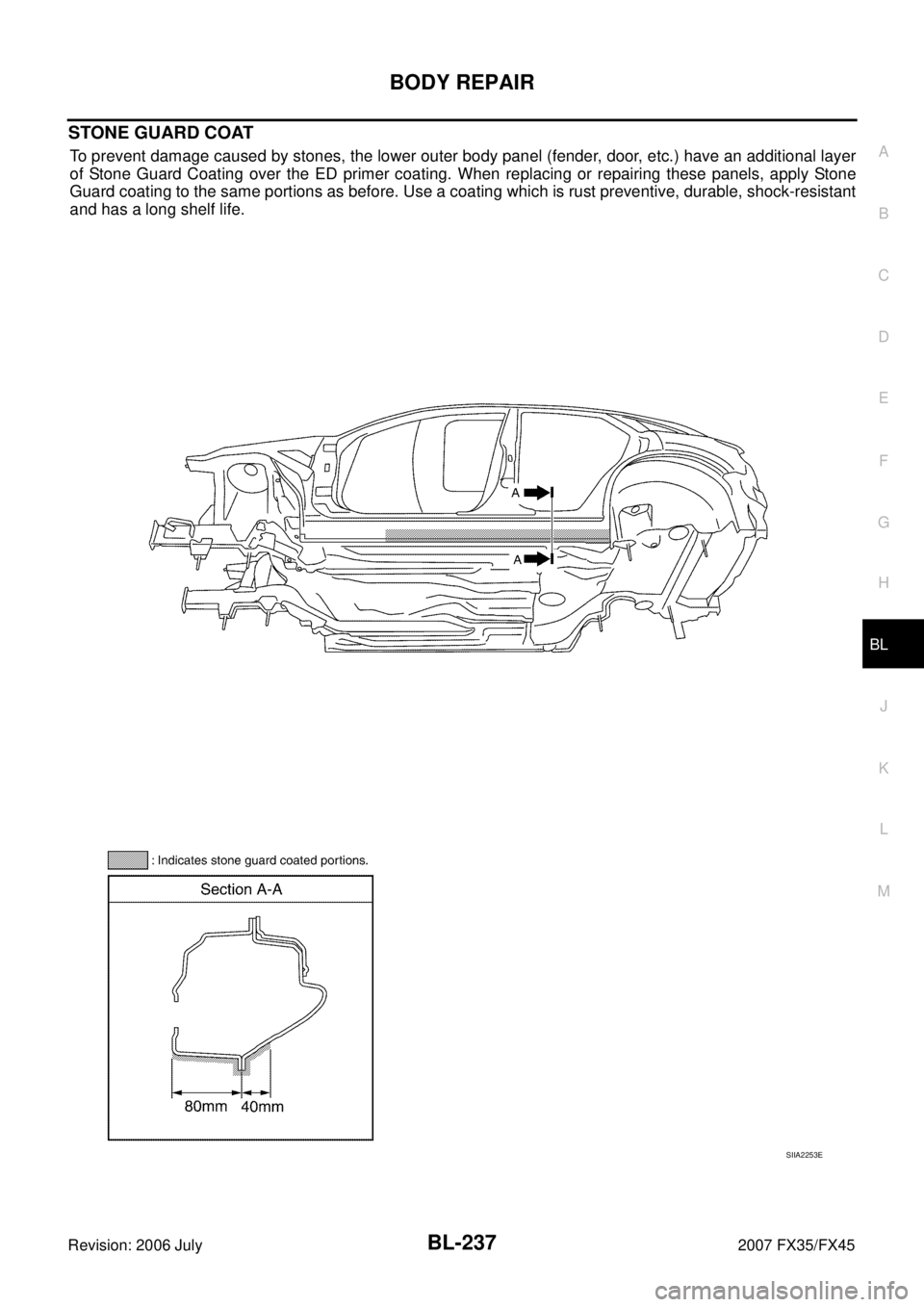

INFINITI FX35 2007 Service Manual BODY REPAIR BL-237 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 STONE GUARD COAT To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have

Page 1050 of 4366

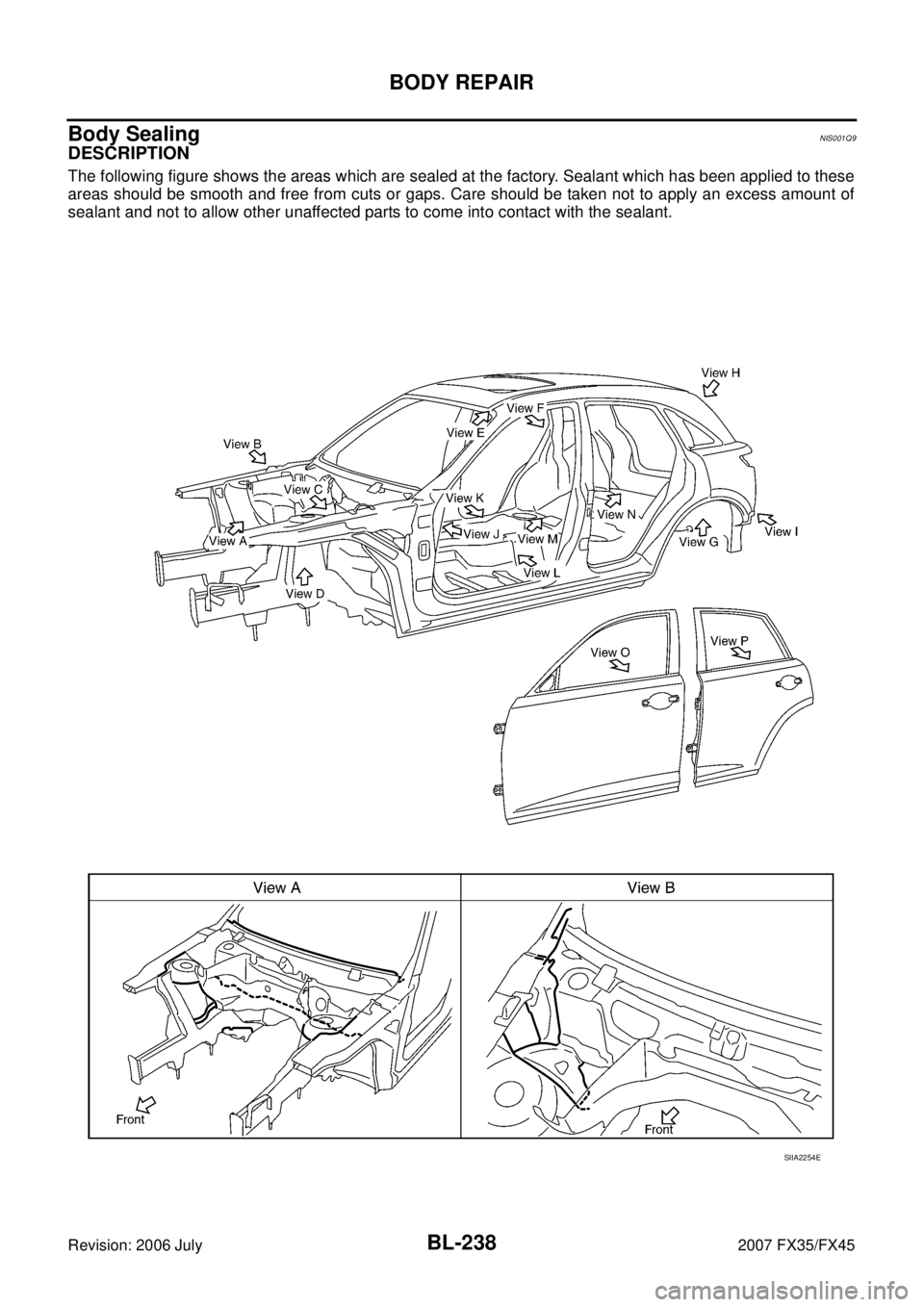

INFINITI FX35 2007 Service Manual BL-238 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 Body SealingNIS001Q9 DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these ar

Page 1051 of 4366

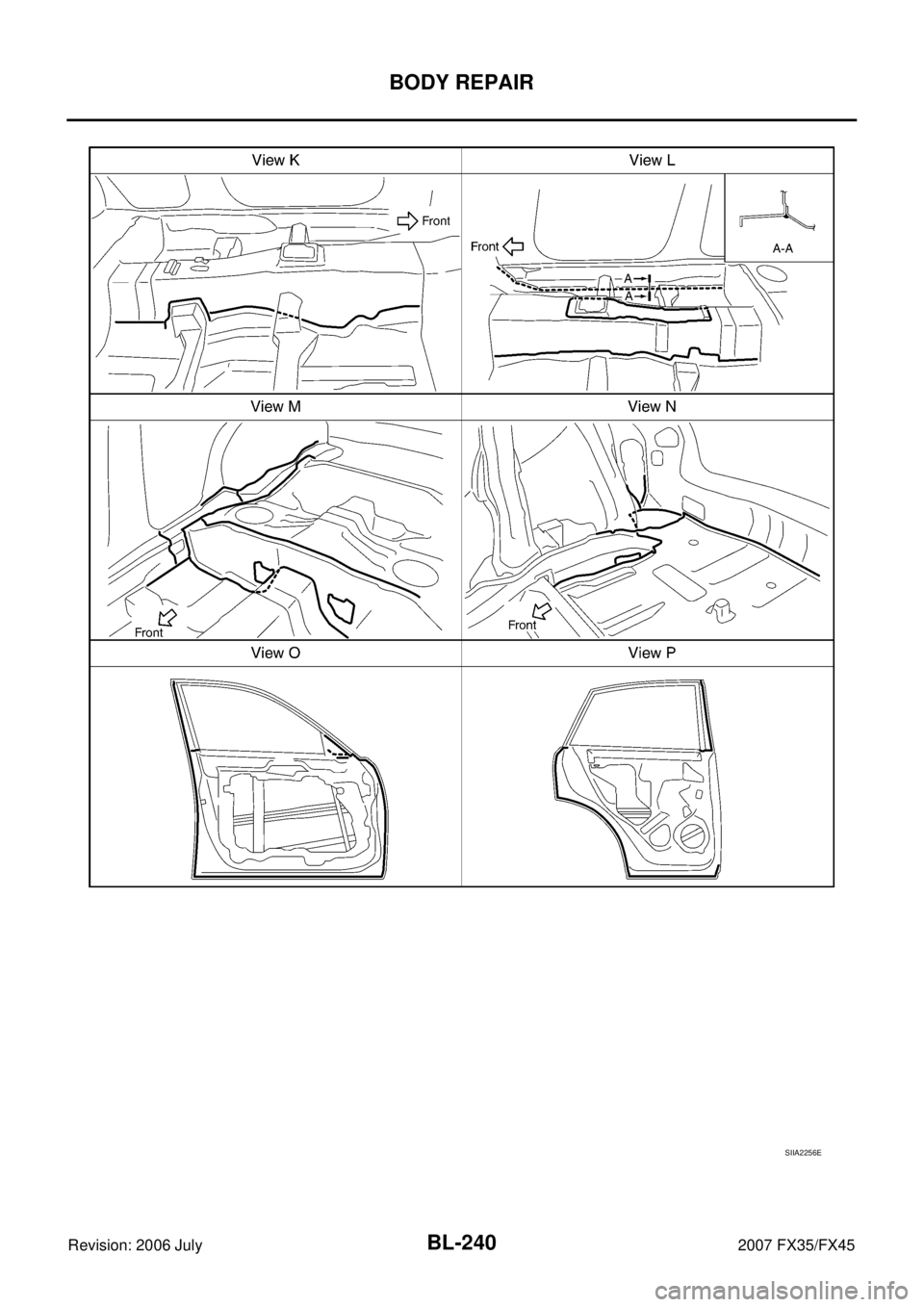

INFINITI FX35 2007 Service Manual BODY REPAIR BL-239 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 SIIA2255E

Page 1052 of 4366

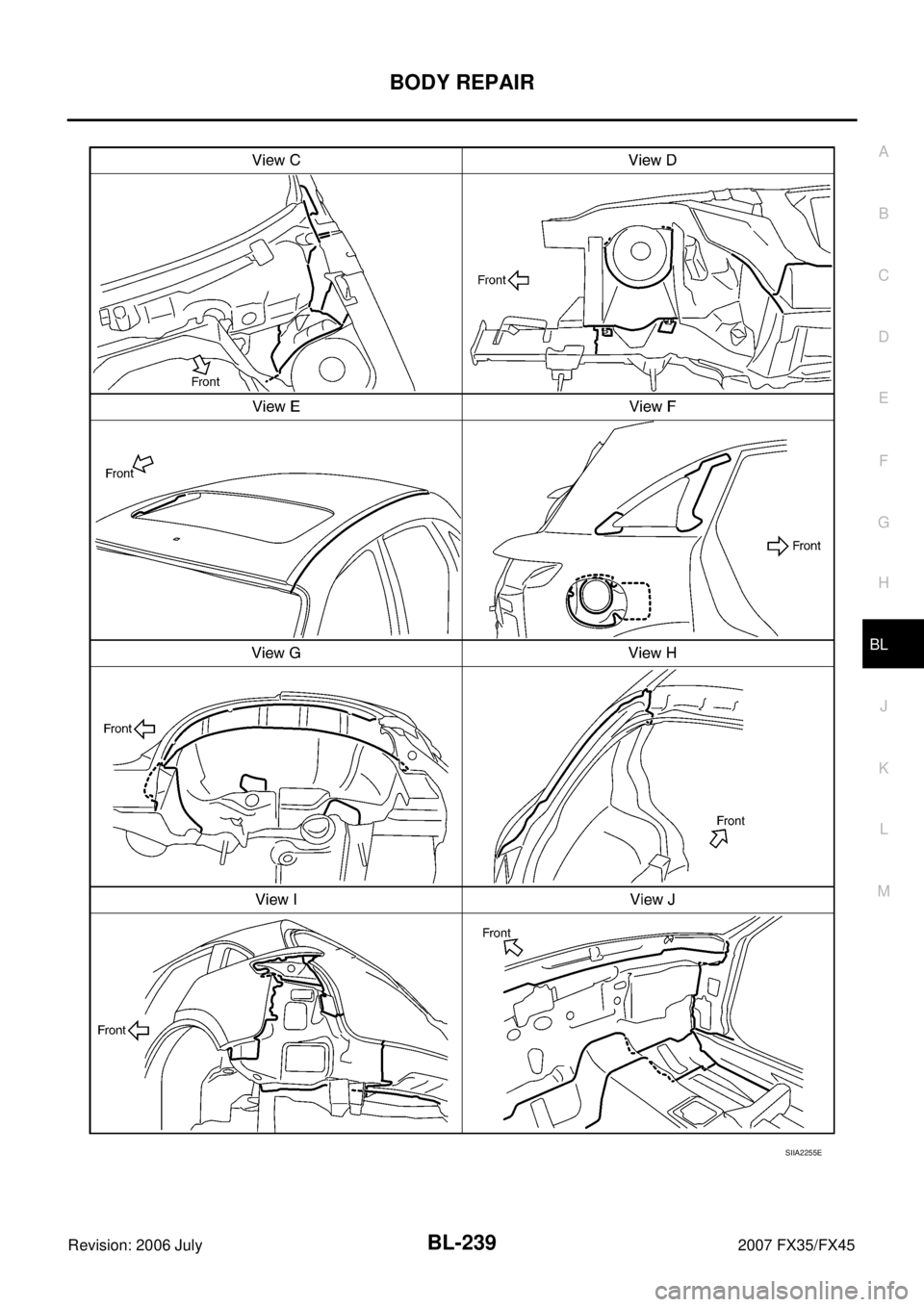

INFINITI FX35 2007 Service Manual BL-240 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 SIIA2256E

Page 1053 of 4366

INFINITI FX35 2007 Service Manual BODY REPAIR BL-241 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 Body ConstructionNIS001QA BODY CONSTRUCTION SIIA2257E

Page 1054 of 4366

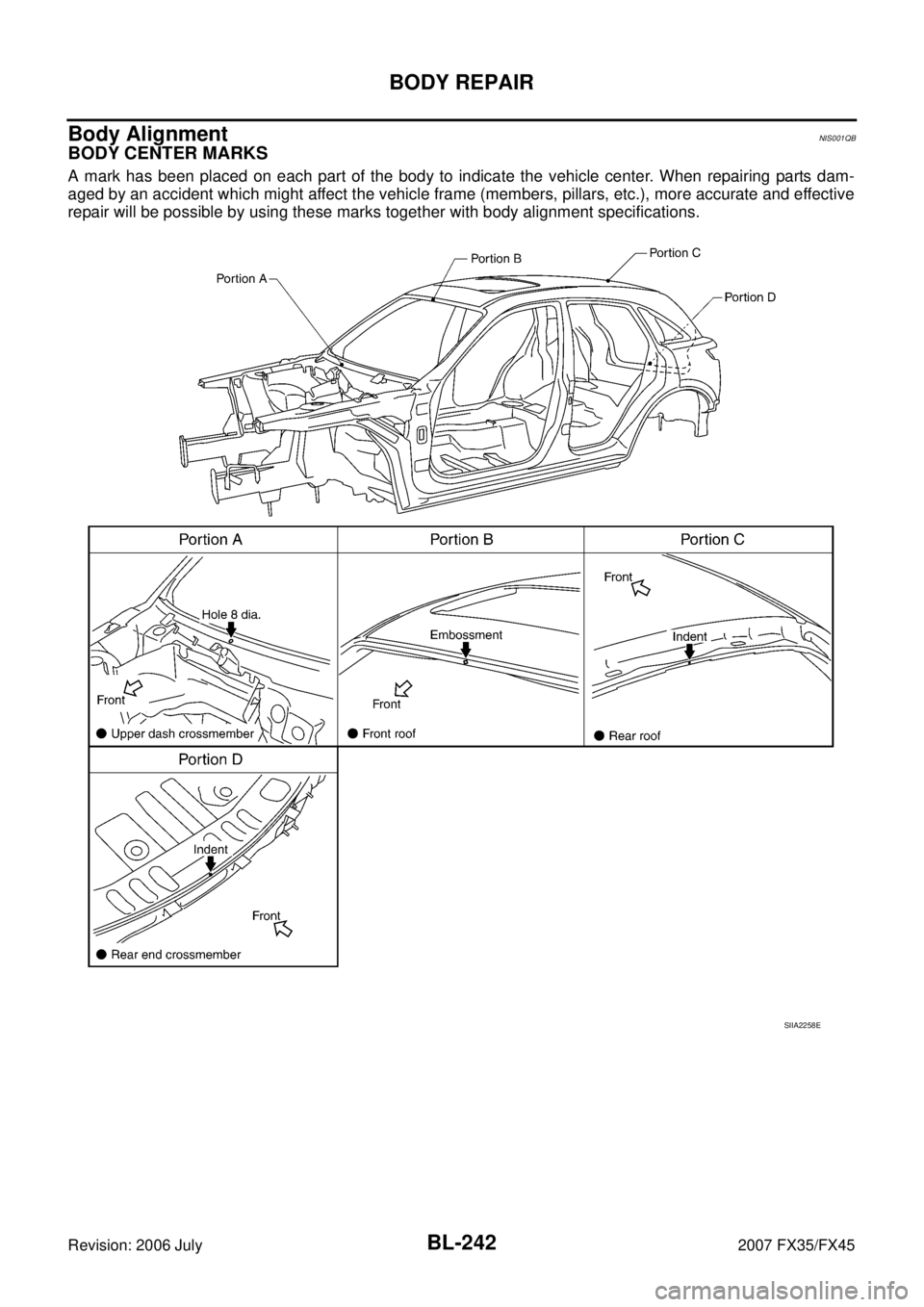

INFINITI FX35 2007 Service Manual BL-242 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 Body AlignmentNIS001QB BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

Page 1055 of 4366

INFINITI FX35 2007 Service Manual BODY REPAIR BL-243 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positi

Page 1056 of 4366

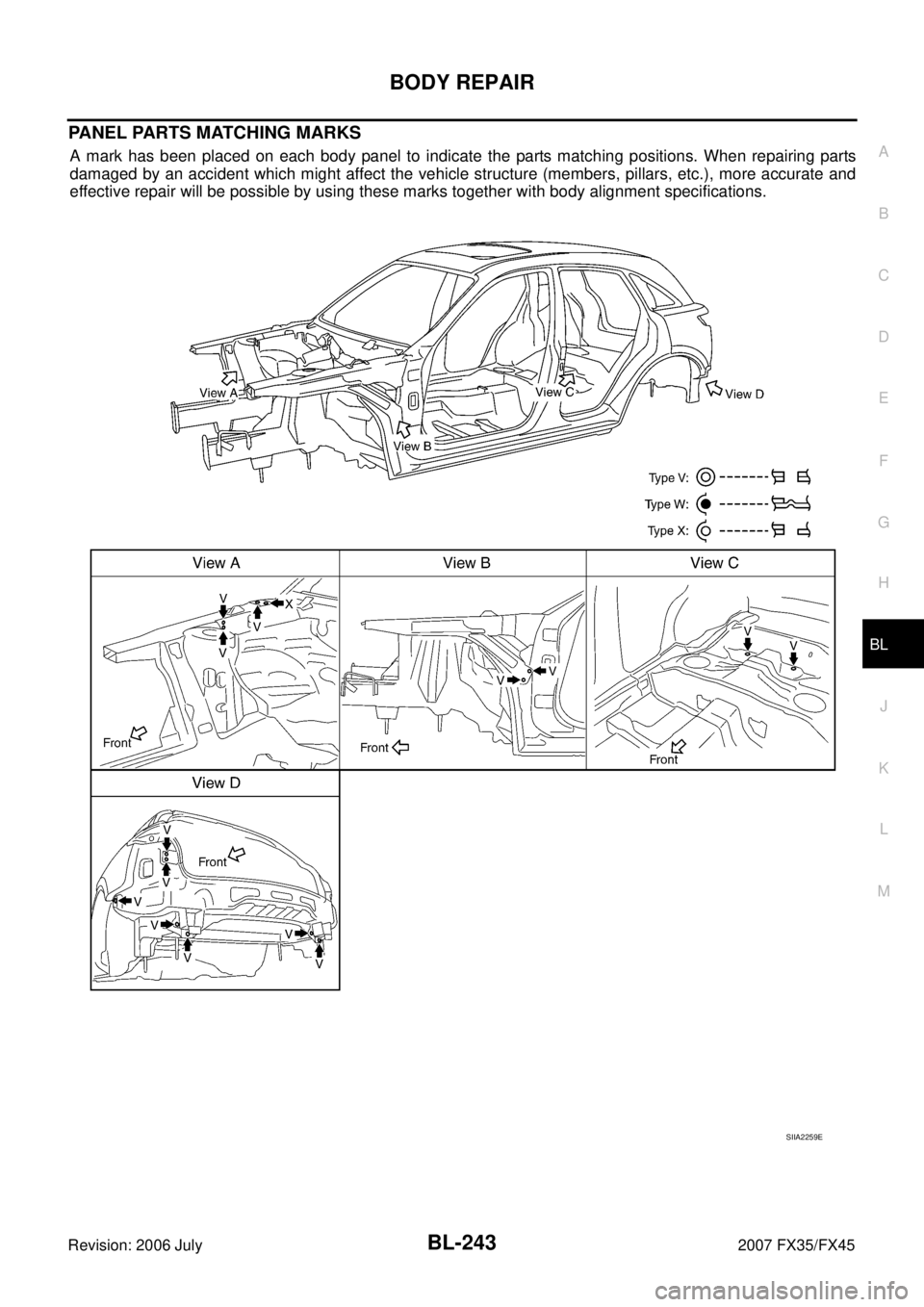

INFINITI FX35 2007 Service Manual BL-244 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 DESCRIPTION All dimensions indicated in the figures are actual. When using a tracking gauge, adjust both pointers to equal length. Then check th
