Check Tilt Switch CircuitNIS001VR
1. CHECK FUNCTION
With CONSULT-II

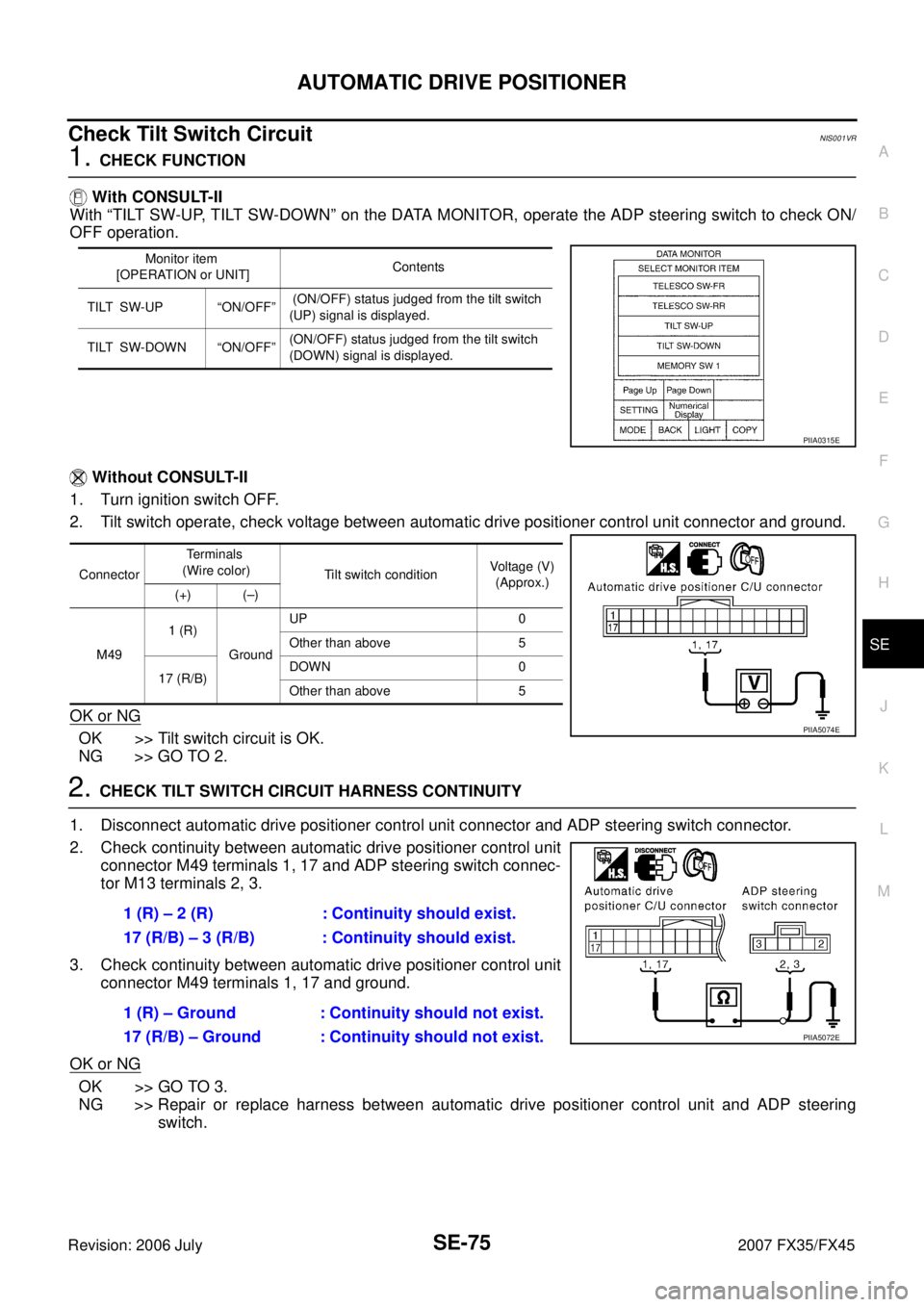

With “TILT SW-UP, TILT SW-DOWN” on the DATA MONITOR, operate the ADP steering switch to check ON/
OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Tilt switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Tilt switch circuit is OK.
NG >> GO TO 2.
2. CHECK TILT SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and ADP steering switch connector.
2. Check continuity between automatic drive positioner control unit connector M49 terminals 1, 17 and ADP steering switch connec-
tor M13 terminals 2, 3.
3. Check continuity between automatic drive positioner control unit connector M49 terminals 1, 17 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between automatic drive positioner control unit and ADP steering
switch.
Monitor item
[OPERATION or UNIT] Contents
TILT SW-UP “ON/OFF” (ON/OFF) status judged from the tilt switch
(UP) signal is displayed.
TILT SW-DOWN “ON/OFF” (ON/OFF) status judged from the tilt switch
(DOWN) signal is displayed.
PIIA0315E
Connector Terminals
(Wire color) Tilt switch condition Voltage (V)
(Approx.)
(+) (–)
M49 1 (R)
Ground UP 0
Other than above 5
17 (R/B) DOWN 0
Other than above 5
PIIA5074E
1 (R) – 2 (R) : Continuity should exist.
17 (R/B) – 3 (R/B) : Continuity should exist.
1 (R) – Ground : Continuity should not exist.
17 (R/B) – Ground : Continuity should not exist.
PIIA5072E
Page 4114 of 4366
SE-76
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
3. CHECK ADP TILT STEERING SWITCH
ADP steering switch operate, check continuity between ADP steering switch.
OK or NG
OK >> GO TO 6.
NG >> Replace ADP steering switch.
4. CHECK ADP STEERING SWITCH GROUND CIRCUIT
Check continuity between ADP steering switch connector M13 termi-
nal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between ADP steering switch and ground.
Connector Terminal ADP steering switch condition Continuity
M13 2
1 UP Yes
Other than above No
3 DOWN Yes
Other than above No
PIIA4482E
1 (B) – Ground : Continuity should exist.
PIIA3310E
Page 4115 of 4366

AUTOMATIC DRIVE POSITIONER SE-77
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Check Door Mirror Remote Control Switch (Changeover Switch) CircuitNIS001VS
1. CHECK FUNCTION
With CONSULT-II
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch ACC.
2. Changeover switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK
orNG
OK >> Door mirror remote control switch (changeover switch) circuit is OK.
NG >> GO TO 2.
2. CHECK CHANGEOVER SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 2, 18 and door mirror remote control
switch connector M18 terminal 2, 3.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 2, 18 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between automatic drive positioner control unit and door remote control switch.
Monitor item
[OPERATION or UNIT] Contents
MIR CHNG SW–R “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (switching to RIGHT) signal
is displayed.
MIR CHNG SW–L “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (switching to LEFT) signal
is displayed.
PIIA0191E
Connector Terminals (Wire color)
Changeover switch
condition Voltage (V)
(Approx.)
(+) (-)
M49 2 (G/W)
Ground RIGHT 0
Other than above 5
18 (L/OR) LEFT 0
Other than above 5
PIIA4767E
2 (G/W) – 3 (G/W) : Continuity should exist.
18 (L/OR) – 2 (L/OR) : Continuity should exist.
2 (G/W) – Ground : Continuity should not exist.
18 (L/OR) – Ground : Continuity should not exist.
PIIB3165E
Page 4116 of 4366
SE-78
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connec-
tor M18 terminal 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CANGEOVER SWITCH)
Changeover switch operate, check continuity between door mirror remote control switch connector M18 termi-
nal 2, 3 and 13.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror remote control switch. 13 (B) – Ground : Continuity should exist.
PIIB3166E
Connector Terminal Changeover switch condition Continuity
M18 3
13 RIGHT Yes
Other than above No
2 LEFT Yes
Other than above No
PIIB3167E
Page 4117 of 4366

AUTOMATIC DRIVE POSITIONER SE-79
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Check Door Mirror Remote Control Switch (Mirror Switch) CircuitNIS001VT
1. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL
With CONSULT-II
Check the operation on “MIR CON SW–UP/DN” and “MIR CON SW–RH/LH” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch ACC.
2. Mirror switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Door mirror remote control switch (mirror switch) circuit is OK.
NG >> GO TO 2.
Monitor item
[OPERATION or UNIT] Contents
MIR CON SW–UP “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (UP) signal is displayed.
MIR CON SW–DN “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (DOWN) signal is dis-
played.
MIR CON SW–RH “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (RIGHT) signal is dis-
played.
MIR CON SW–LH “ON/
OFF” ON/OFF status judged from the door mirror
remote control switch (LEFT) signal s displayed.
PIIA0199E
Connector Terminals (Wire color)
Mirror switch condition Voltage (V)
(Approx.)
(+) (-)
M49 3 (GY)
Ground UP 0
Other than above 5
4 (Y) LEFT 0
Other than above 5
19 (GY/L) DOWN 0
Other than above 5
20 (PU) RIGHT 0
Other than above 5
PIIA4771E
Page 4118 of 4366

SE-80
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 3, 4, 19, 20 and door mirror remote con-
trol switch connector M18 terminal 4, 5, 6, 14.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 3, 4, 19, 20 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror remote
control switch.
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connec-
tor M18 terminal 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)
Mirror switch operate, check continuity between door mirror remote control switch connector M18 terminal 4,
5, 6, 14 and 13.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror remote control switch. 3 (GY) – 6 (GY) : Continuity should exist.
4 (Y) – 5 (Y) : Continuity should exist.
19 (GY/L) – 14 (GY/L) : Continuity should exist.
20 (PU) – 4 (PU) : Continuity should exist.
3 (GY) – Ground : Continuity should not exist.
4 (Y) – Ground : Continuity should not exist.
19 (GY/L) – Ground : Continuity should not exist.
20 (PU) – Ground : Continuity should not exist.
PIIB3168E
13 (B) – Ground : Continuity should exist.
PIIB3166E
Connector Terminal Mirror switch condition Continuity
M18 4
13 RIGHT Yes
Other than above No
5 LEFT Yes
Other than above No
6 UP Yes
Other than above No
14 DOWN Yes
Other than above No
PIIB3169E
Page 4119 of 4366

AUTOMATIC DRIVE POSITIONER SE-81
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Check A/T Device (Park Position Switch) CircuitNIS001VU
1. CHECK FUNCTION
With CONSULT-II

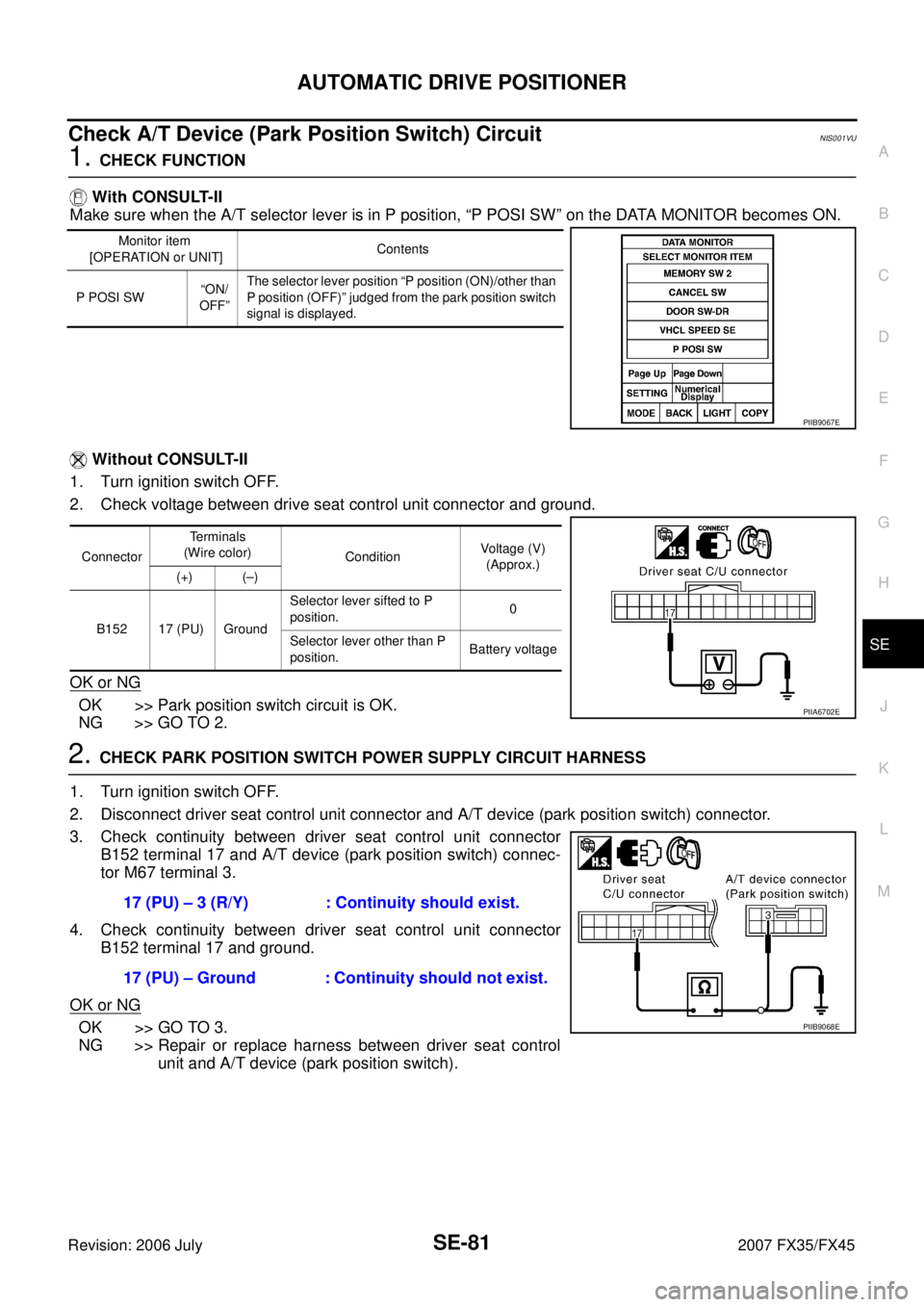

Make sure when the A/T selector lever is in P position, “P POSI SW” on the DATA MONITOR becomes ON.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between drive seat control unit connector and ground.
OK or NG
OK >> Park position switch circuit is OK.
NG >> GO TO 2.
2. CHECK PARK POSITION SWITCH POWER SUPPLY CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect driver seat control unit connector and A/T device (park position switch) connector.
3. Check continuity between driver seat control unit connector B152 terminal 17 and A/T device (park position switch) connec-
tor M67 terminal 3.
4. Check continuity between driver seat control unit connector B152 terminal 17 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and A/T device (park position switch).
Monitor item
[OPERATION or UNIT] Contents
P POSI SW “ON/
OFF” The selector lever position “P position (ON)/other than
P position (OFF)” judged from the park position switch
signal is displayed.
PIIB9067E
Connector Terminals
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
B152 17 (PU) Ground Selector lever sifted to P
position. 0
Selector lever other than P
position. Battery voltage
PIIA6702E
17 (PU) – 3 (R/Y) : Continuity should exist.
17 (PU) – Ground : Continuity should not exist.
PIIB9068E
Page 4120 of 4366

SE-82
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
3. CHECK A/T DEVICE (PARK POSITION SWITCH)
Check continuity between A/T device (park position switch) connec-
tor M67 terminal 2 and 3.
OK or NG
OK >> GO TO 4.
NG >> Replace A/T device (park position switch).
4. CHECK A/T DEVICE (PARK POSITION SWITCH) GROUND HARNESS
Check continuity between A/T device (park position switch) connec-
tor M67 terminal 2 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between A/T device (park
position switch) and ground.
Check Key Switch Circuit (With Intelligent Key)NIS001VV
1. CHECK KEY SWITCH POWER SUPPRY CIRCUIT (WITH CONSULT-II)
With CONSULT-II
Touch “BCM”. With “IGN KEY SW” on the DATA MONITOR, Check ON/OFF operation.
*: Refer to BL-37, "
Data Monitor" .
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2.
Connector Terminal Condition Continuity
M67 2 3 P position Yes
Other than P position No
PIIB9069E
2 (B) – Ground : Continuity should exist.
PIIB9071E
Monitor item [OPERA- TION or UNIT] Contents
IGN KEY SW
*“ON/
OFF” Key inserted (ON)/key removed (OFF) status judged
from the key-in detection switch is displayed.
PIIA0298E
