INFINITI FX35 2007 Service Manual STARTING SYSTEM SC-11 C D E F G H I J L M A B SC Revision: 2006 July 2007 FX35/FX45 STARTING SYSTEMPFP:23300 System Description NKS002UQ Power is supplied at all times through 40A fusibl

Page 4010 of 4366

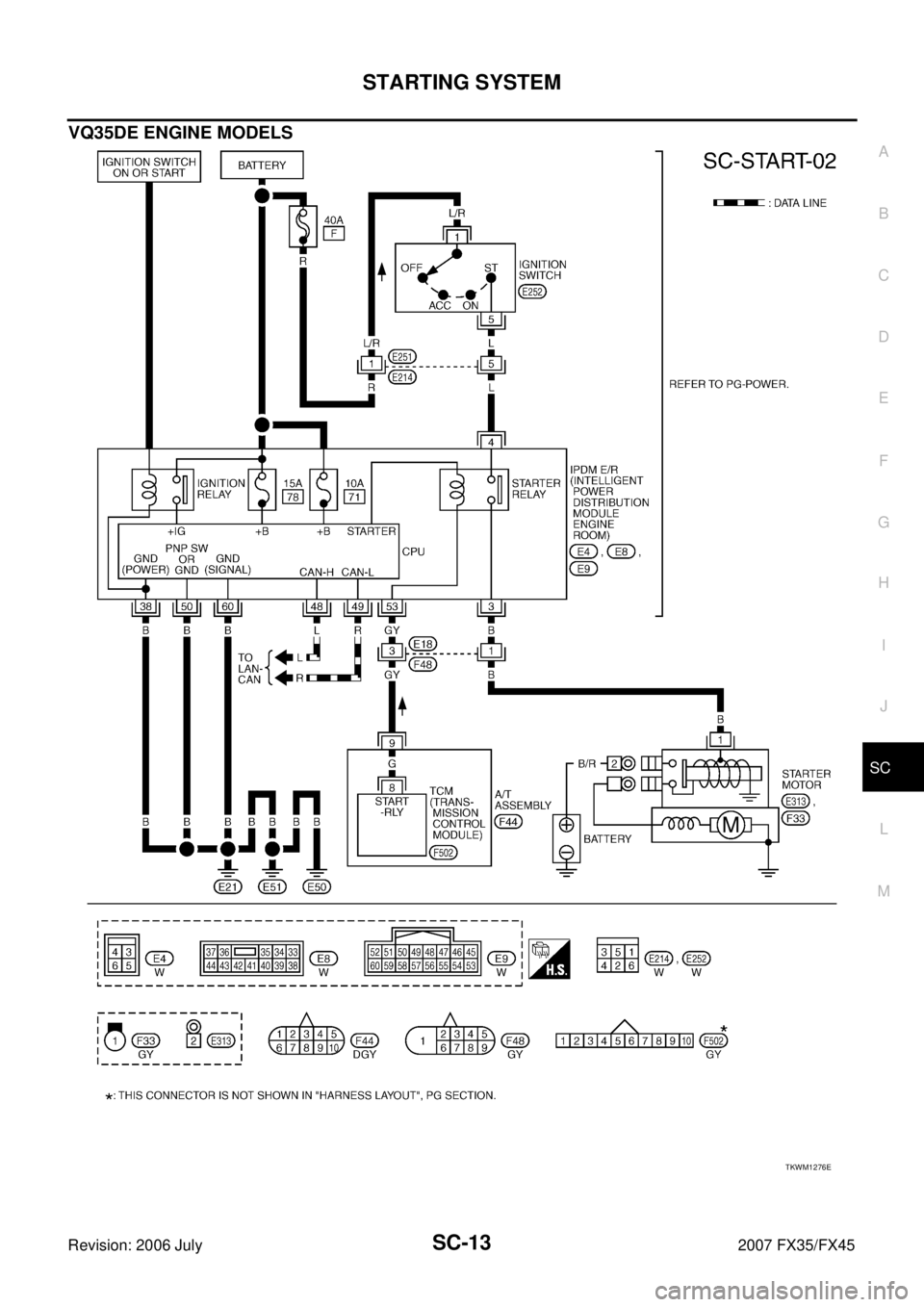

INFINITI FX35 2007 Service Manual SC-12 STARTING SYSTEM Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — START —NKS002UR VK45DE ENGINE MODELS TKWM1275E

Page 4011 of 4366

INFINITI FX35 2007 Service Manual STARTING SYSTEM SC-13 C D E F G H I J L M A B SC Revision: 2006 July 2007 FX35/FX45 VQ35DE ENGINE MODELS TKWM1276E

Page 4012 of 4366

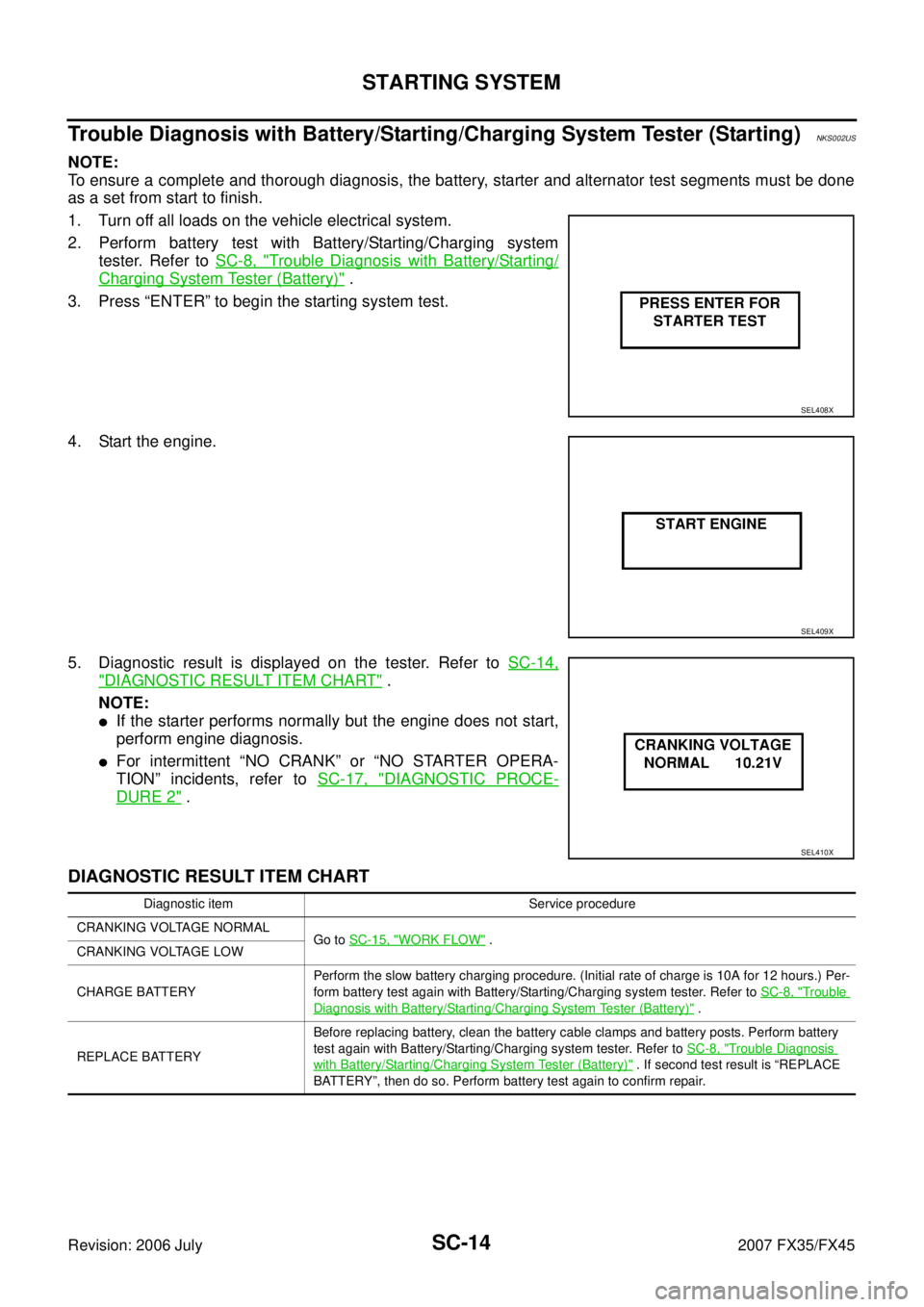

INFINITI FX35 2007 Service Manual SC-14 STARTING SYSTEM Revision: 2006 July 2007 FX35/FX45 Trouble Diagnosis with Battery/Starting/Charging System Tester (Starting)NKS002US NOTE: To ensure a complete and thorough diagnosis, the batte

Page 4013 of 4366

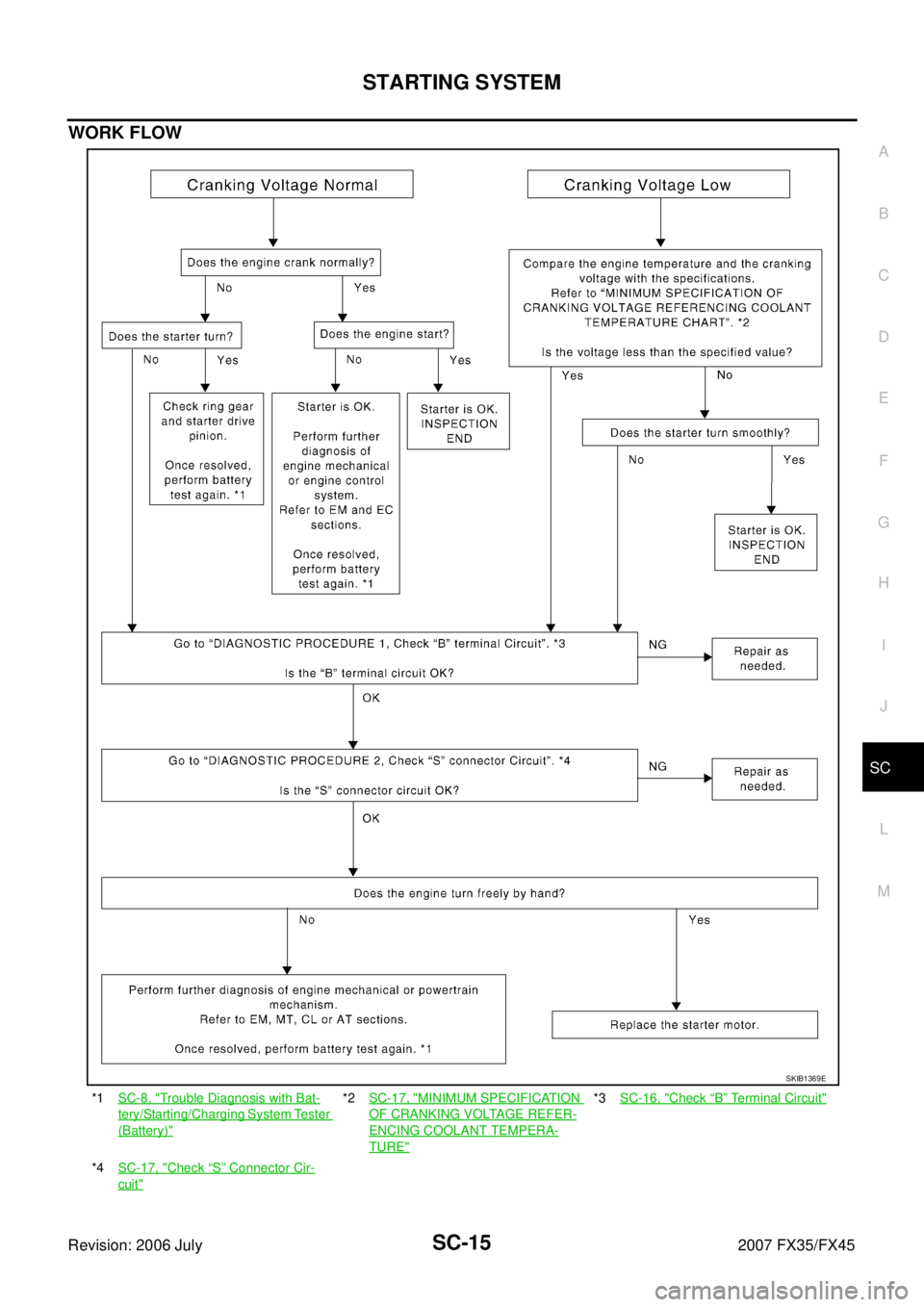

INFINITI FX35 2007 Service Manual STARTING SYSTEM SC-15 C D E F G H I J L M A B SC Revision: 2006 July 2007 FX35/FX45 WORK FLOW *1SC-8, "Trouble Diagnosis with Bat- tery/Starting/Charging System Tester (Battery)" *2SC-17

Page 4014 of 4366

INFINITI FX35 2007 Service Manual SC-16 STARTING SYSTEM Revision: 2006 July 2007 FX35/FX45 DIAGNOSTIC PROCEDURE 1 Check “B” Terminal Circuit 1. CHECK POWER SUPPLY FOR STARTER MOTOR “B” TERMINAL 1. Remove fuel pump fuse. 2.

Page 4015 of 4366

INFINITI FX35 2007 Service Manual STARTING SYSTEM SC-17 C D E F G H I J L M A B SC Revision: 2006 July 2007 FX35/FX45 DIAGNOSTIC PROCEDURE 2 Check “S” Connector Circuit 1. CHECK POWER SUPPLY FOR STARTER MOTOR “S”

Page 4016 of 4366

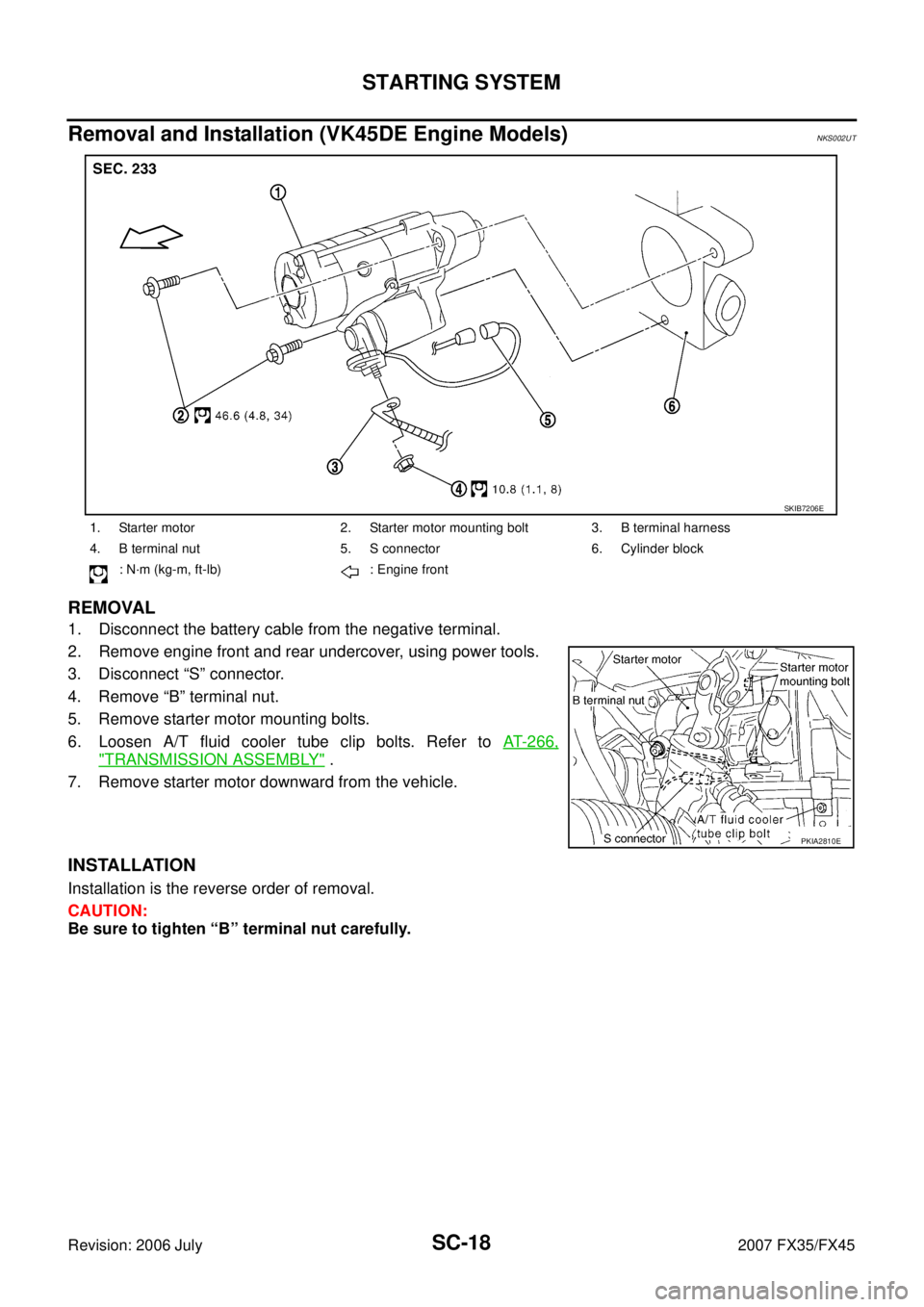

INFINITI FX35 2007 Service Manual SC-18 STARTING SYSTEM Revision: 2006 July 2007 FX35/FX45 Removal and Installation (VK45DE Engine Models)NKS002UT REMOVAL 1. Disconnect the battery cable from the negative terminal. 2. Remove engin
