CYLINDER HEAD EM-105
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
e. Turn all cylinder head bolts 90 degrees clockwise (angle tighten-
ing).
CAUTION:
Check the tightening angle by using the angle wrench
(SST). Avoid judgment by visual inspection without SST.
Check tightening angle indicated on the angle wrench indica-
tor plate.
f. Turn all cylinder head bolts 90 degrees clockwise again (angle tightening).
4. After installing cylinder head, measure distance between front end faces of cylinder block and cylinder head (left and right
banks).
If measured value is out of the standard, re-install cylinder
head.
5. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC0888E
Standard : 14.1 - 14.9 mm (0.555 - 0.587 in)
EMQ0662D
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
Page 2898 of 4366
![INFINITI FX35 2007 Service Manual EM-106
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
Disassembly and AssemblyNBS003GZ
DISASSEMBLY
1. Remove spark plug with spark plug wrench (commercial service tool).
2. Remove valve li INFINITI FX35 2007 Service Manual EM-106
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
Disassembly and AssemblyNBS003GZ
DISASSEMBLY
1. Remove spark plug with spark plug wrench (commercial service tool).
2. Remove valve li](/manual-img/42/57018/w960_57018-2897.png)
EM-106
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
Disassembly and AssemblyNBS003GZ
DISASSEMBLY
1. Remove spark plug with spark plug wrench (commercial service tool).
2. Remove valve lifter.
Identify installation positions, and store them without mixing them up.
3. Remove valve collet.
Compress valve spring with the valve spring compressor, the
attachment and the adapter (SST). Remove valve collet with
a magnet hand.
CAUTION:
When working, take care not to damage valve lifter holes.
4. Remove valve spring retainer, valve spring and valve spring seat.
5. Push valve stem to combustion chamber side, and remove valve.
Identify installation positions, and store them without mixing them up.

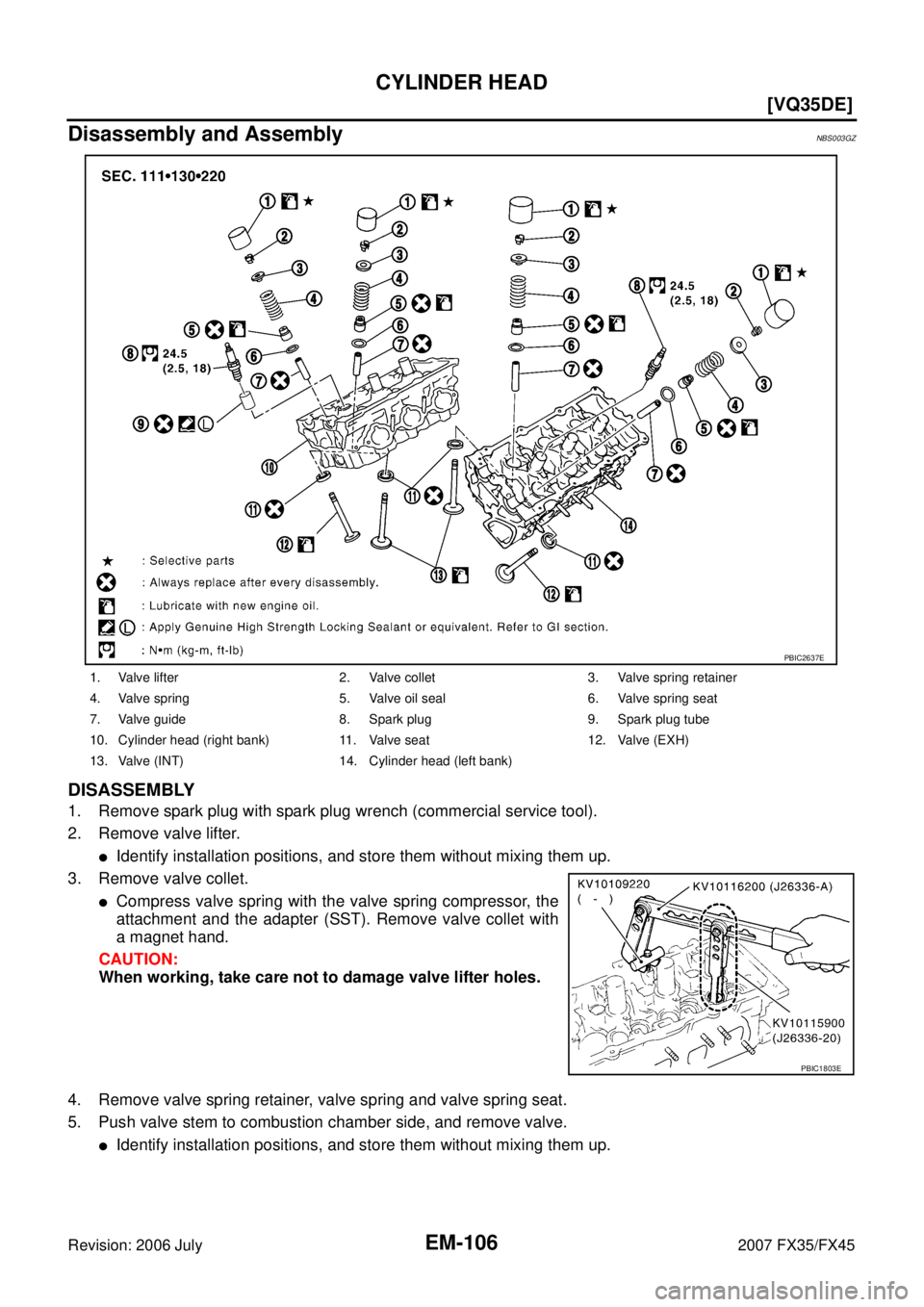

1. Valve lifter 2. Valve collet 3. Valve spring retainer
4. Valve spring 5. Valve oil seal 6. Valve spring seat
7. Valve guide 8. Spark plug 9. Spark plug tube
10. Cylinder head (right bank) 11. Valve seat 12. Valve (EXH)
13. Valve (INT) 14. Cylinder head (left bank)
PBIC2637E
PBIC1803E
Page 2899 of 4366
![INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-107
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

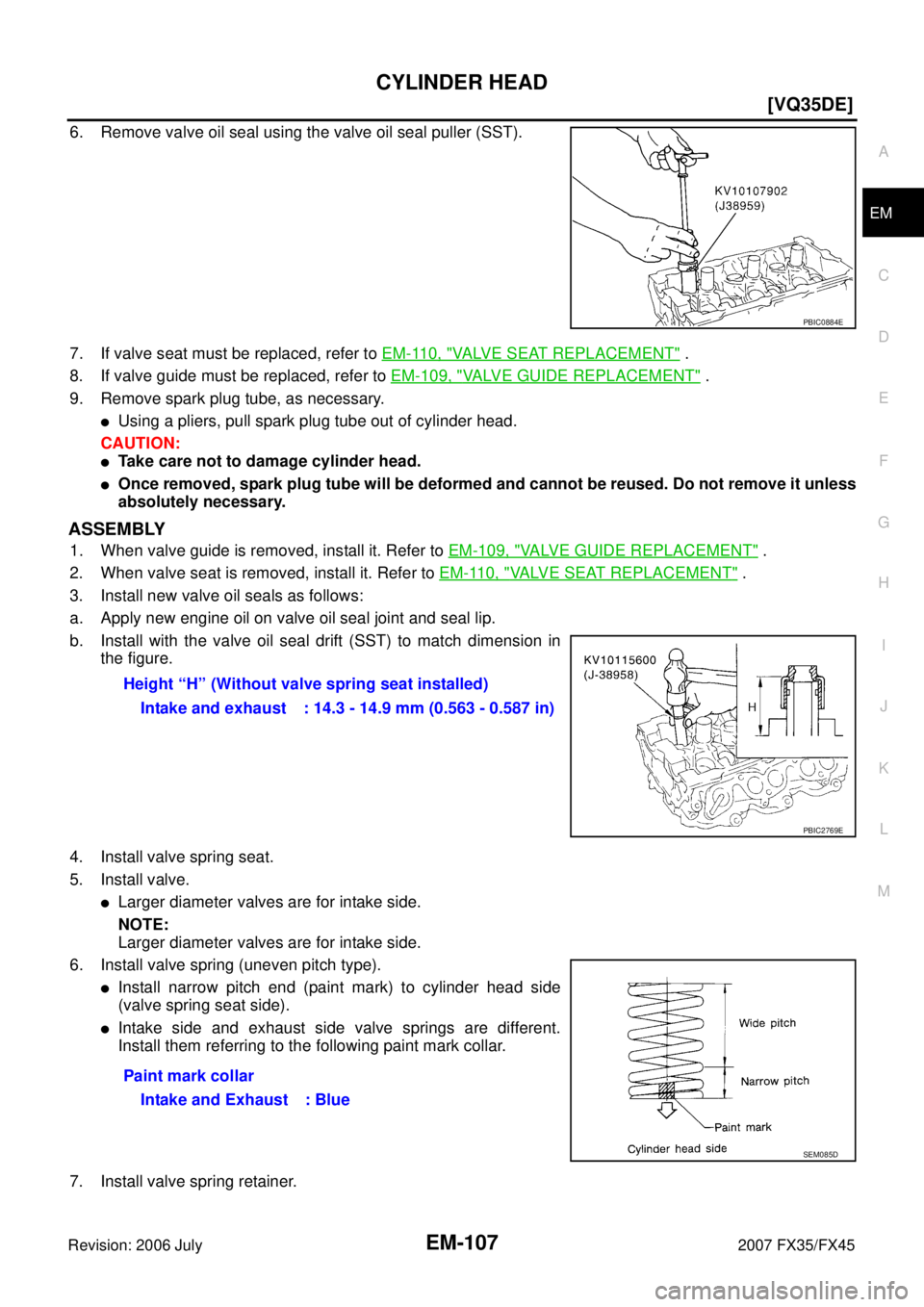

6. Remove valve oil seal using the valve oil seal puller (SST).
7. If valve seat must be repla INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-107
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Remove valve oil seal using the valve oil seal puller (SST).
7. If valve seat must be repla](/manual-img/42/57018/w960_57018-2898.png)
CYLINDER HEAD EM-107
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Remove valve oil seal using the valve oil seal puller (SST).
7. If valve seat must be replaced, refer to EM-110, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-109, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.
Using a pliers, pull spark plug tube out of cylinder head.
CAUTION:
Take care not to damage cylinder head.
Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-109, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-110, "
VALVE SEAT REPLACEMENT" .
3. Install new valve oil seals as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with the valve oil seal drift (SST) to match dimension in the figure.
4. Install valve spring seat.
5. Install valve.
Larger diameter valves are for intake side.
NOTE:
Larger diameter valves are for intake side.
6. Install valve spring (uneven pitch type).
Install narrow pitch end (paint mark) to cylinder head side
(valve spring seat side).
Intake side and exhaust side valve springs are different.
Install them referring to the following paint mark collar.
7. Install valve spring retainer.
PBIC0884E
Height “H” (Without valve spring seat installed) Intake and exhaust : 14.3 - 14.9 mm (0.563 - 0.587 in)
PBIC2769E
Paint mark collarIntake and Exhaust : Blue
SEM085D
Page 2900 of 4366
![INFINITI FX35 2007 Service Manual EM-108
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
8. Install valve collet.
Compress valve spring with the valve spring compressor, the
attachment and the adapter (SST). Install valve INFINITI FX35 2007 Service Manual EM-108
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
8. Install valve collet.
Compress valve spring with the valve spring compressor, the
attachment and the adapter (SST). Install valve](/manual-img/42/57018/w960_57018-2899.png)
EM-108
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
8. Install valve collet.
Compress valve spring with the valve spring compressor, the
attachment and the adapter (SST). Install valve collet with a
magnet hand.
CAUTION:
When working, take care not to damage valve lifter holes.
Tap valve stem edge lightly with plastic hammer after installa-
tion to check its installed condition.
9. Install valve lifter.
Install it in the original position.
10. Install spark plug tube.
Press-fit spark plug tube as follows:
a. Remove old liquid gasket adhering to cylinder head mounting hole.
b. Apply sealant to area within approximately 12 mm (0.47 in) from edge of spark plug tube press-fit side. Use Genuine High Strength Locking Sealant or equivalent. Refer to GI-48, "
RECOMMENDED
CHEMICAL PRODUCTS AND SEALANTS" .
c. Using drift, press-fit spark plug tube so that its height “H” is as specified in the figure.
CAUTION:
When press-fitting, take care not to deform spark plug
tube.
After press-fitting, wipe off liquid gasket protruding onto
cylinder-head upper face.
11. Install spark plug with spark plug wrench (commercial service tool).
Inspection After DisassemblyNBS003H0
VALVE DIMENSIONS
Check the dimensions of each valve. For the dimensions, refer to EM-155, "Valve Dimensions" .
If dimensions are out of the standard, replace valve and check valve seat contact. Refer to EM-110,
"VALVE SEAT CONTACT" .
VALVE GUIDE CLEARANCE
Valve Stem Diameter
Measure the diameter of valve stem with micrometer.
Valve Guide Inner Diameter
Measure the inner diameter of valve guide with an inside micrometer.
PBIC1803E
Standard press-fit height “H”:
: 38.1 - 39.1 mm (1.500 - 1.539 in)
PBIC2638E
StandardIntake : 5.965 - 5.980 mm (0.2348 - 0.2354 in)
Exhaust : 5.955 - 5.970 mm (0.2344 - 0.2350 in)
SEM938C
Page 2901 of 4366
![INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem di INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem di](/manual-img/42/57018/w960_57018-2900.png)
CYLINDER HEAD EM-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter)
If the calculated value exceeds the limit, replace valve and/or valve guide When valve guide must be
replaced, refer to EM-109, "
VALVE GUIDE REPLACEMENT" .
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.

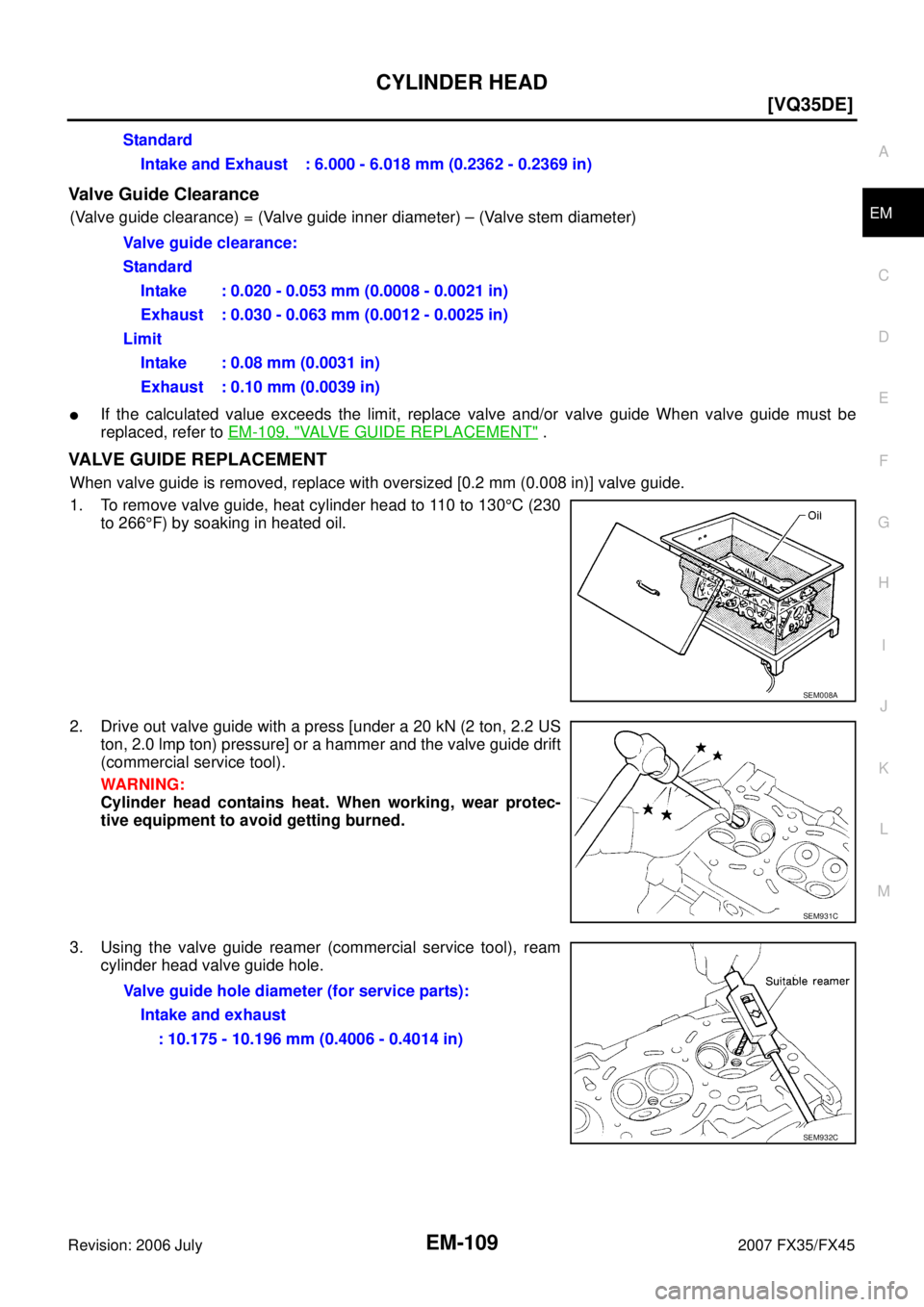

1. To remove valve guide, heat cylinder head to 110 to 130 °C (230
to 266 °F) by soaking in heated oil.
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US ton, 2.0 lmp ton) pressure] or a hammer and the valve guide drift
(commercial service tool).
WARNING:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
3. Using the valve guide reamer (commercial service tool), ream cylinder head valve guide hole. Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.030 - 0.063 mm (0.0012 - 0.0025 in)
Limit Intake : 0.08 mm (0.0031 in)
Exhaust : 0.10 mm (0.0039 in)
SEM008A
SEM931C
Valve guide hole diameter (for service parts): Intake and exhaust: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C
Page 2902 of 4366
![INFINITI FX35 2007 Service Manual EM-110
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
4. Heat cylinder head to 110 to 130°C (230 to 266 °F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service INFINITI FX35 2007 Service Manual EM-110
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
4. Heat cylinder head to 110 to 130°C (230 to 266 °F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service](/manual-img/42/57018/w960_57018-2901.png)
EM-110
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
4. Heat cylinder head to 110 to 130°C (230 to 266 °F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service tool), press valve guide from camshaft side to the dimensions as in the figure.
WARNING:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
6. Using the valve guide reamer (commercial service tool), apply reamer finish to valve guide.
VALVE SEAT CONTACT
After confirming that the dimensions of valve guides and valves
are within the specifications, perform this procedure.
Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.
Check if the contact area band is continuous all around the cir-
cumference.
If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has “NG” conditions even after the re-check,
replace valve seat. Refer to EM-110, "
VALVE SEAT REPLACE-
MENT" .
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess in cylinder head. Set the machine depth stop to ensure this. Refer to EM-157, "
Va l v e S e a t" .
CAUTION:
Prevent to scratch cylinder head by excessive boring.
SEM008A
Projection “L”
Intake and exhaust: 12.6 - 12.8 mm (0.496 - 0.504 in)
SEM950E
Standard:Intake and exhaust: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E
Page 2903 of 4366
![INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-111
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
2. Ream cylinder head recess diameter for service valve seat.
Be sure to ream in circles conce INFINITI FX35 2007 Service Manual CYLINDER HEAD EM-111
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
2. Ream cylinder head recess diameter for service valve seat.
Be sure to ream in circles conce](/manual-img/42/57018/w960_57018-2902.png)
CYLINDER HEAD EM-111
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
2. Ream cylinder head recess diameter for service valve seat.
Be sure to ream in circles concentric to valve guide center.
This will enable valve to fit correctly.
3. Heat cylinder head to 110 to 130 °C (230 to 266 °F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Force fit valve seat into cylinder head. WARNING:
Cylinder head contains heat. When working, wear protective equipment to avoid getting burned.
CAUTION:
Avoid directly touching cold valve seats.
5. Using the valve seat cutter set (commercial service tool) or valve seat grinder, finish seat to the specified dimensions. Refer to
EM-157, "
Valve Seat" .
CAUTION:
When using the valve seat cutter, firmly grip cutter handle
with both hands. Then, press on the contacting surface all
around the circumference to cut in a single drive. Improper
pressure on with cutter or cutting many different times may
result in stage valve seat.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to EM-110, "
VALVE SEAT CONTACT" .
VALVE SPRING SQUARENESS
Set a try square along the side of valve spring and rotate spring.
Measure the maximum clearance between the top of spring and
try square.
If it exceeds the limit, replace valve spring. Oversize [0.5 mm (0.020 in)]
Intake : 38.500 - 38.516 mm (1.5157 - 1.5164 in)
Exhaust : 32.700 - 32.716 mm (1.2874 - 1.2880 in)
SEM795A
SEM008A
SEM934C
Limit : 2.1 mm (0.083 in)
PBIC0080E
Page 2904 of 4366
EM-112
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD
Check the valve spring pressure at specified spring height.
If the installation load or load with valve open is out of the standard, replace valve spring. Standard:
Intake and exhaustFree height: 47.07 mm (1.8531 in)
Installation height : 37.0 mm (1.457 in)
Installation load : 166 - 188 N (16.9 - 19.2 kg, 37 - 42 lb)
Height during valve open : 27.2 mm (1.071 in)
Load with valve open : 373 - 421 N (38.0 - 42.9 kg, 84 - 95 lb)
SEM113
