AT-350
ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
1. Measure dimensions “K” and “L” and then calculate dimension
“J”.
a. Measure dimension “K”.
b. Measure dimension “L”.
c. Calculate dimension “J”.
2. Measure dimensions “M
1 ” and “M2 ” and then calculate dimen-
sion “M”.
a. Place bearing race and needle bearing on oil pump assembly.
SCIA7073E
SCIA7074E
“J” : Distance between oil pump fitting surface of transmission case and needle bearing mating
surface of front sun gear.
J = K – L
SCIA5352E
SCIA3125E
SCIA3124E

AV-96
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
GPS (Global Positioning System)
GPS (Global Positioning System) was developed for and is con-
trolled by the US Department of Defense. The system utilizes GPS
satellites (NAVSTAR), sending out radio waves while flying on an
orbit around the earth at an altitude of approximately 21,000 km
(13,100 miles).
The GPS receiver calculates the vehicle's position in three dimen-
sions (latitude/longitude/altitude) according to the time lag of the
radio waves received from four or more GPS satellites (three-dimen-
sional positioning). If radio waves were received only from three
GPS satellites, the GPS receiver calculates the vehicle's position in
two dimensions (latitude/longitude), and utilize the altitude data cal-
culated previously with radio waves from four or more GPS satellites
(two-dimensional positioning).
Position correction by GPS is not available while the vehicle is stopped.
Accuracy of GPS will deteriorate under the following conditions:

In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position
changes.

The accuracy can be even lower depending on the arrangement of the GPS satellites utilized for the posi-
tioning.

Position detection is not possible when vehicle is in an area where radio waves from the GPS satellite do
not reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves from
the GPS satellites may not be received when some object is located over the GPS antenna.
NOTE:

Even a high-precision three dimensional positioning, the detection result has an error about 10 m (30ft).

Because the signals of GPS satellite is controlled by the Tracking and Control Center in the United States,
the accuracy may be degraded lower intentionally or the radio waves may stop.
SEL526V

BL-244
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45
DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

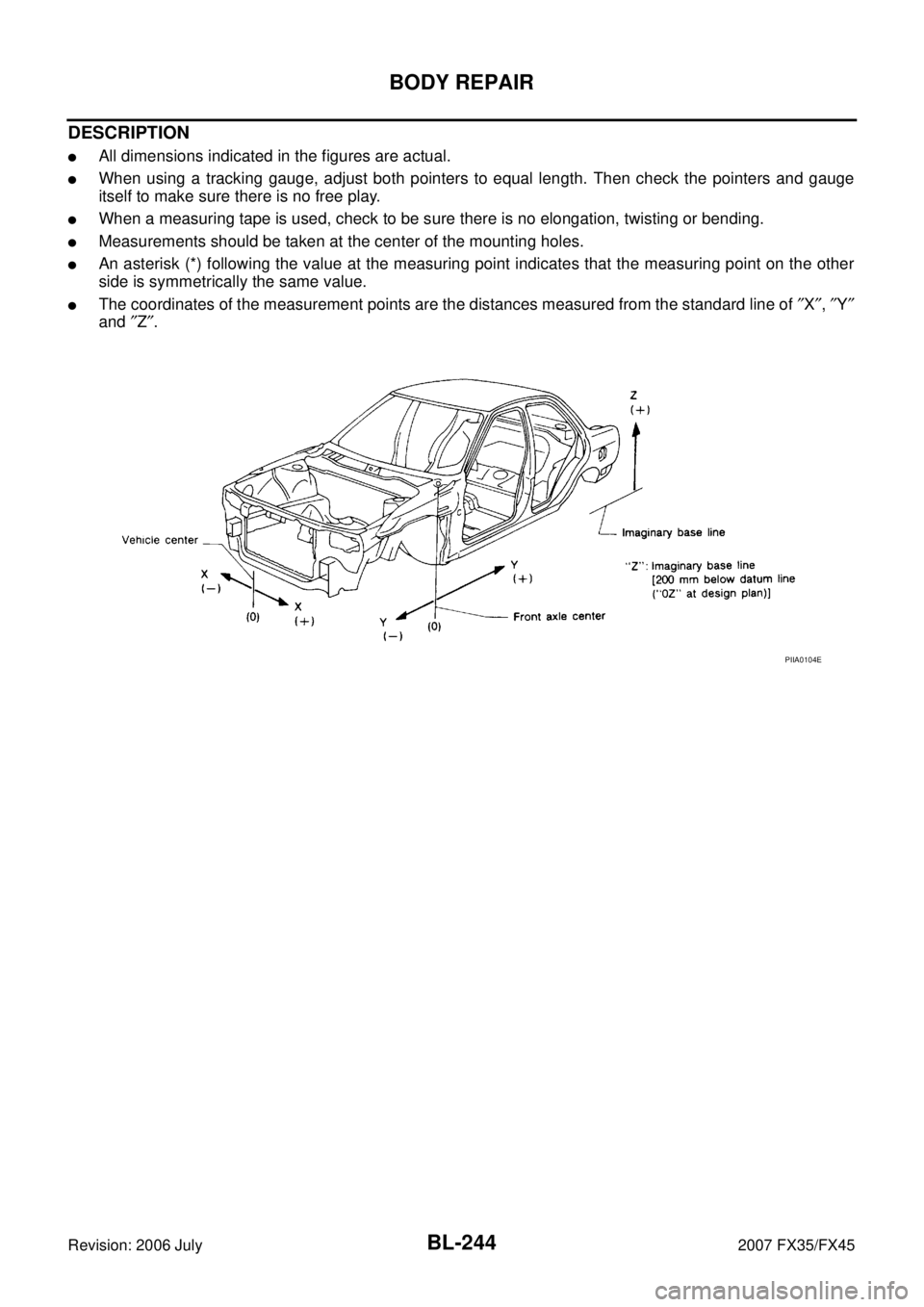

The coordinates of the measurement points are the distances measured from the standard line of ″X ″, ″Y ″
and ″Z ″.
PIIA0104E

CO-4
[VQ35DE]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
3. Attach liquid gasket tube to the tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
4. Apply liquid gasket without breaks to the specified location with the specified dimensions.

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.

As for the bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten after mounting bolts and nuts the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.
EMA0622D
SEM159F

DI-96
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 July 2007 FX35/FX45
2. CHECK CAMERA UNIT INSTALLATION CONDITION
Check camera unit installation condition (installation position, properly tightened, a bent bracket).
OK or NG
OK >> GO TO 3.
NG >> Install camera unit properly, and adjust camera aiming. Refer to DI-80, "
Camera Aiming Adjust-
ment" .
3. CHECK VEHICLE HEIGHT
Check vehicle height. Refer to GI-51, "
Dimensions" .
Is vehicle height appropriate?
OK >> GO TO 4.
NG >> Repair vehicle to appropriate height.
4. CHECK LDW CAMERA UNIT (CONSULT-II)
Perform self-diagnosis of LDW camera unit. Refer to DI-92, "
CONSULT-II Function (LDW)" .
Self
-diagnosis results
No malfunction detected >> GO TO 5.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.
5. CHECK COMBINATION METER
Check combination meter function.
Do speedometer and turn signal indicator normal function?
YES >> INSPECTION END
NO >> Check combination meter. Refer to DI-16, "
Trouble Diagnosis" .
Power Supply and Ground Circuit InspectionNKS0031D
1. CHECK FUSE
Check for blown LDW camera unit fuse.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-80, "
FUSE
BLOCK - JUNCTION BOX (J/B)" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between LDW camera unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between LDW camera unit and fuse.
Power source Fuse No.
Ignition power supply 12
Terminals Ignition switch position
(+) (–) OFF ON
Connector Terminal
R9 1 Ground 0 V Battery voltage
PKIC0246E

EM-2Revision: 2006 July 2007 FX35/FX45
IGNITION COIL ......................................................
... 42
Components ........................................................ ... 42
Removal and Installation ..................................... ... 42
REMOVAL ........................................................ ... 42
INSTALLATION ................................................. ... 42
SPARK PLUG (PLATINUM-TIPPED TYPE) .......... ... 43
Components ........................................................ ... 43
Removal and Installation ..................................... ... 43
REMOVAL ........................................................ ... 43
INSPECTION AFTER REMOVAL ..................... ... 43
INSTALLATION ................................................. ... 44
FUEL INJECTOR AND FUEL TUBE ..................... ... 45
Components ........................................................ ... 45
Removal and Installation ..................................... ... 45
REMOVAL ........................................................ ... 45
INSTALLATION ................................................. ... 47
INSPECTION AFTER INSTALLATION ............. ... 50
ROCKER COVER .................................................. ... 51
Components ........................................................ ... 51
Removal and Installation ..................................... ... 51
REMOVAL ........................................................ ... 51
INSTALLATION ................................................. ... 52
FRONT TIMING CHAIN CASE .............................. ... 54
Removal and Installation ..................................... ... 54
REMOVAL ........................................................ ... 54
INSTALLATION ................................................. ... 58
INSPECTION AFTER INSTALLATION ............. ... 62
TIMING CHAIN ....................................................... ... 64
Components ........................................................ ... 64
Removal and Installation ..................................... ... 65
REMOVAL ........................................................ ... 65
INSPECTION AFTER REMOVAL ..................... ... 72
INSTALLATION ................................................. ... 72
INSPECTION AFTER INSTALLATION ............. ... 82
CAMSHAFT ............................................................ ... 83
Components ........................................................ ... 83
Removal and Installation ..................................... ... 84
REMOVAL ........................................................ ... 84
INSPECTION AFTER REMOVAL ..................... ... 85
INSTALLATION ................................................. ... 88
INSPECTION AFTER INSTALLATION ............. ... 92
Valve Clearance ................................................... ... 93
INSPECTION .................................................... ... 93
ADJUSTMENT ................................................. ... 96
OIL SEAL ............................................................... ... 98
Removal and Installation of Valve Oil Seal .......... ... 98
REMOVAL ........................................................ ... 98
INSTALLATION ................................................. ... 98
Removal and Installation of Front Oil Seal .......... ... 99
REMOVAL ........................................................ ... 99
INSTALLATION ................................................. ... 99
Removal and Installation of Rear Oil Seal ........... ... 99
REMOVAL ........................................................ ... 99
INSTALLATION ................................................. .100
CYLINDER HEAD .................................................. .101
On-Vehicle Service .............................................. .101
CHECKING COMPRESSION PRESSURE ...... .101
Components ........................................................ .102 Removal and Installation ......................................
.102
REMOVAL ......................................................... .102
INSPECTION AFTER REMOVAL ..................... .103
INSTALLATION ................................................. .104
INSPECTION AFTER INSTALLATION ............. .105
Disassembly and Assembly ................................. .106
DISASSEMBLY ................................................. .106
ASSEMBLY ....................................................... .107
Inspection After Disassembly ............................... .108
VALVE DIMENSIONS ....................................... .108
VALVE GUIDE CLEARANCE ........................... .108
VALVE GUIDE REPLACEMENT ...................... .109
VALVE SEAT CONTACT ................................... .110
VALVE SEAT REPLACEMENT ......................... .110
VALVE SPRING SQUARENESS ...................... . 111
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................. .112
ENGINE ASSEMBLY .............................................. .113
Components (2WD Models) ................................. .113
Removal and Installation (2WD Models) .............. .113
REMOVAL ......................................................... .114
INSTALLATION ................................................. .116
INSPECTION AFTER INSTALLATION ............. .117
Components (AWD Models) ................................ .118
Removal and Installation (AWD Models) ............. .118
REMOVAL ......................................................... .119
INSTALLATION ................................................. .121
INSPECTION AFTER INSTALLATION ............. .122
CYLINDER BLOCK ................................................ .123
Components ......................................................... .123
Disassembly and Assembly ................................. .124
DISASSEMBLY ................................................. .124
ASSEMBLY ....................................................... .129
How to Select Piston and Bearing ....................... .136
DESCRIPTION ................................................. .136
HOW TO SELECT PISTON .............................. .136
HOW TO SELECT CONNECTING ROD BEAR-
ING .................................................................... .137
HOW TO SELECT MAIN BEARING ................. .138
Inspection After Disassembly ............................... .141
CRANKSHAFT END PLAY ............................... .141
CONNECTING ROD SIDE CLEARANCE ........ .141
PISTON TO PISTON PIN OIL CLEARANCE .... .141
PISTON RING SIDE CLEARANCE .................. .142
PISTON RING END GAP ................................. .142
CONNECTING ROD BEND AND TORSION .... .143
CONNECTING ROD BIG END DIAMETER ..... .143
CONNECTING ROD BUSHING OIL CLEAR-
ANCE ................................................................ .143
CYLINDER BLOCK DISTORTION ................... .144
MAIN BEARING HOUSING INNER DIAMETER .145
PISTON TO CYLINDER BORE CLEARANCE . .145
CRANKSHAFT MAIN JOURNAL DIAMETER .. .146
CRANKSHAFT PIN JOURNAL DIAMETER ..... .147
CRANKSHAFT OUT-OF-ROUND AND TAPER .147
CRANKSHAFT RUNOUT ................................. .147
CONNECTING ROD BEARING OIL CLEAR-

EM-4Revision: 2006 July 2007 FX35/FX45
ROCKER COVER ..................................................
.200
Components ........................................................ .200
Removal and Installation ..................................... .200
REMOVAL ........................................................ .200
INSTALLATION ................................................. .202
TIMING CHAIN ....................................................... .203
Components ........................................................ .203
Removal and Installation ..................................... .204
REMOVAL ........................................................ .204
INSPECTION AFTER REMOVAL ..................... .208
INSTALLATION ................................................. .208
INSPECTION AFTER INSTALLATION ............. .214
CAMSHAFT ............................................................ .215
Components ........................................................ .215
Removal and Installation ..................................... .215
REMOVAL ........................................................ .215
INSPECTION AFTER REMOVAL ..................... .216
INSTALLATION ................................................. .219
INSPECTION AFTER INSTALLATION ............. .221
Valve Clearance ................................................... .222
INSPECTION .................................................... .222
ADJUSTMENT ................................................. .224
OIL SEAL ............................................................... .228
Removal and Installation of Valve Oil Seal .......... .228
REMOVAL ........................................................ .228
INSTALLATION ................................................. .228
Removal and Installation of Front Oil Seal .......... .229
REMOVAL ........................................................ .229
INSTALLATION ................................................. .229
Removal and Installation of Rear Oil Seal ........... .230
REMOVAL ........................................................ .230
INSTALLATION ................................................. .230
CYLINDER HEAD .................................................. .232
On-Vehicle Service .............................................. .232
CHECKING COMPRESSION PRESSURE ...... .232
Components ........................................................ .233
Removal and Installation ..................................... .233
REMOVAL ........................................................ .233
INSPECTION AFTER REMOVAL ..................... .234
INSTALLATION ................................................. .234
Disassembly and Assembly ................................. .236
COMPONENTS ................................................ .236
DISASSEMBLY ................................................ .236
ASSEMBLY ...................................................... .237
Inspection After Disassembly .............................. .238
VALVE DIMENSIONS ....................................... .238
VALVE GUIDE CLEARANCE ........................... .239
VALVE GUIDE REPLACEMENT ...................... .239
VALVE SEAT CONTACT .................................. .241
VALVE SEAT REPLACEMENT ........................ .241
VALVE SPRING SQUARENESS ...................... .242
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................ .242 ENGINE ASSEMBLY ..............................................
.243
Components ......................................................... .243
Removal and Installation ...................................... .243
REMOVAL ......................................................... .243
INSTALLATION ................................................. .246
INSPECTION AFTER INSTALLATION ............. .246
CYLINDER BLOCK ................................................ .248
Components ......................................................... .248
Disassembly and Assembly ................................. .249
DISASSEMBLY ................................................. .249
ASSEMBLY ....................................................... .253
How to Select Piston and Bearing ....................... .258
DESCRIPTION ................................................. .258
HOW TO SELECT PISTON .............................. .259
HOW TO SELECT CONNECTING ROD BEAR-
ING .................................................................... .260
HOW TO SELECT MAIN BEARING ................. .261
Inspection After Disassembly ............................... .265
CRANKSHAFT END PLAY ............................... .265
CONNECTING ROD SIDE CLEARANCE ........ .265
PISTON TO PISTON PIN OIL CLEARANCE .... .265
PISTON RING SIDE CLEARANCE .................. .266
PISTON RING END GAP ................................. .266
CONNECTING ROD BEND AND TORSION .... .267
CONNECTING ROD BIG END DIAMETER ..... .267
CONNECTING ROD BUSHING OIL CLEAR-
ANCE ................................................................ .267
CYLINDER BLOCK DISTORTION ................... .268
MAIN BEARING HOUSING INNER DIAMETER .269
PISTON TO CYLINDER BORE CLEARANCE . .269
CRANKSHAFT MAIN JOURNAL DIAMETER .. .270
CRANKSHAFT PIN JOURNAL DIAMETER ..... .271
CRANKSHAFT OUT-OF-ROUND AND TAPER .271
CRANKSHAFT RUNOUT ................................. .271
CONNECTING ROD BEARING OIL CLEAR-
ANCE ................................................................ .272
MAIN BEARING OIL CLEARANCE .................. .273
CRUSH HEIGHT OF MAIN BEARING ............. .274
CRUSH HEIGHT OF CONNECTING ROD
BEARING .......................................................... .274
DRIVE PLATE ................................................... .274
SERVICE DATA AND SPECIFICATIONS (SDS) ... .275
Standard and Limit ............................................... .275
GENERAL SPECIFICATIONS .......................... .275
DRIVE BELTS ................................................... .275
INTAKE MANIFOLD AND EXHAUST MANI-
FOLD ................................................................ .275
SPARK PLUG ................................................... .276
CAMSHAFT AND CAMSHAFT BEARING ........ .276
CYLINDER HEAD ............................................. .278
CYLINDER BLOCK ........................................... .281
PISTON, PISTON RING AND PISTON PIN ..... .282
CONNECTING ROD ......................................... .283
CRANKSHAFT .................................................. .284
MAIN BEARING ................................................ .286
CONNECTING ROD BEARING ........................ .287

PRECAUTIONS EM-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
3. Attach liquid gasket tube to the tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
4. Apply liquid gasket without breaks to the specified location with the specified dimensions.

If there is a groove for liquid gasket application, apply liquid
gasket to the groove.

As for bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of this manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe
them.
EMA0622D
SEM159F
