SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-75
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0121 Throttle/Pedal Position Sensor/
Switch “A” Circuit Range/Perfor-
mance<Ref. to EN(H4DOTC)-122, DTC P0121 THROTTLE/PEDA

EN(H4DOTC)-75
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0121 Throttle/Pedal Position Sensor/
Switch “A” Circuit Range/Perfor-
mance SENSOR/SWITCH “A” CIRCUIT RANGE/PERFORMANCE, Diagnostic Pro-
cedure with Diagnostic Trouble Code (DTC).>
P0122 Throttle/Pedal Position Sensor/
Switch “A” Circuit Low Input SENSOR/SWITCH “A” CIRCUIT LOW INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0123 Throttle/Pedal Position Sensor/
Switch “A” Circuit High Input SENSOR/SWITCH “A” CIRCUIT HIGH INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0125 Insufficient Coolant Temperature
For Closed Loop Fuel Control PERATURE FOR CLOSED LOOP FUEL CONTROL, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
P0129 Barometric Pressure Too Low LOW, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0131 O
2 Sensor Circuit Low Voltage
(Bank 1 Sensor 1) AGE (BANK 1 SENSOR1), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0132 O
2 Sensor Circuit High Voltage
(Bank 1 Sensor 1) VOLTAGE (BANK 1 SENSOR 1), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0133 O
2 Sensor Circuit Slow Response
(Bank 1 Sensor 1) RESPONSE (BANK 1 SENSOR 1), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0134 O
2 Sensor Circuit No Activity
Detected (Bank 1 Sensor 1) ITY DETECTED (BANK 1 SENSOR 1), Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
P0137 O
2 Sensor Circuit Low Voltage
(Bank 1 Sensor 2) AGE (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0138 O
2 Sensor Circuit High Voltage
(Bank 1 Sensor 2) VOLTAGE (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0139 O
2 Sensor Circuit Slow Response
(Bank 1 Sensor 2) RESPONSE (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0171 System Too Lean (Bank 1) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0172 System Too Rich (Bank 1) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0230 Fuel Pump Primary Circuit Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0244 Turbo/Super Charger Wastegate
Solenoid “A” Range/Performance WASTEGATE SOLENOID “A” RANGE/PERFORMANCE, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
P0245 Turbo/Super Charger Wastegate
Solenoid “A” Low WASTEGATE SOLENOID “A” LOW, Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0246 Turbo/Super Charger Wastegate
Solenoid “A” High WASTEGATE SOLENOID “A” HIGH, Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0301 Cylinder 1 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0302 Cylinder 2 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0303 Cylinder 3 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).> DTC Item NOTE

Page 1706 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-76
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0304 Cylinder 4 Misfire Detected <Ref. to EN(H4DOTC)-163, DTC P0304 CYLINDER 4 MISFIRE
DETECTED, Diagnostic Procedure with Dia

EN(H4DOTC)-76
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0304 Cylinder 4 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0327 Knock Sensor 1 Circuit Low Input
(Bank 1 or Single Sensor) INPUT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
P0328 Knock Sensor 1 Circuit High Input
(Bank 1 or Single Sensor) INPUT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
P0335 Crankshaft Position Sensor “A” Cir-
cuit SOR “A” CIRCUIT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0336 Crankshaft Position Sensor “A” Cir-
cuit Range/Performance SOR “A” CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0340 Camshaft Position Sensor “A” Cir-
cuit (Bank 1 or Single Sensor) “A” CIRCUIT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0341 Camshaft Position Sensor “A” Cir-
cuit Range/Performance (Bank 1 or
Single Sensor) “A” CIRCUIT RANGE/PERFORMANCE (BANK 1 OR SINGLE SENSOR),
Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0365 Camshaft Position Sensor “B” Cir-
cuit (Bank 1) “B” CIRCUIT (BANK 1), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0390 Camshaft Position Sensor “B” Cir-
cuit (Bank 2) “B” CIRCUIT (BANK 2), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0420 Catalyst System Efficiency Below
Threshold (Bank 1) BELOW THRESHOLD (BANK 1), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0458 Evaporative Emission Control Sys-
tem Purge Control Valve Circuit
Low TROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW, Diagnostic Pro-
cedure with Diagnostic Trouble Code (DTC).>
P0459 Evaporative Emission Control Sys-
tem Purge Control Valve Circuit
High TROL SYSTEM PURGE CONTROL VALVE CIRCUIT HIGH, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
P0461 Fuel Level Sensor Circuit Range/
Performance RANGE/PERFORMANCE, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0462 Fuel Level Sensor Circuit Low
Input LOW INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0463 Fuel Level Sensor Circuit High
Input HIGH INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0464 Fuel Level Sensor Circuit Intermit-
tent INTERMITTENT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0483 Cooling Fan Rationality Check CHECK, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0502 Vehicle Speed Sensor Circuit Low
Input CUIT LOW INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0503 Vehicle Speed Sensor Intermittent/
Erratic/High CUIT HIGH INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0506 Idle Control System RPM Lower
Than Expected LOWER THAN EXPECTED, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).> DTC Item NOTE

Page 1707 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-77
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0507 Idle Control System RPM Higher
Than Expected<Ref. to EN(H4DOTC)-211, DTC P0507 IDLE CONTROL SYSTEM RPM
HIGHER THAN EXPEC

EN(H4DOTC)-77
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P0507 Idle Control System RPM Higher
Than Expected HIGHER THAN EXPECTED, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0508 Idle Control System Circuit Low CUIT LOW, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0509 Idle Control System Circuit High CUIT HIGH, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0512 Starter Request Circuit Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0513 Incorrect Immobilizer Key Procedure with Diagnostic Trouble Code (DTC).>
P0519 Idle Control System Malfunction
(Fail-Safe) FUNCTION (FAIL-SAFE), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0545 Exhaust Gas Temperature Sensor
Circuit Low - Bank 1 SENSOR CIRCUIT LOW - BANK 1, Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
P0546 Exhaust Gas Temperature Sensor
Circuit High - Bank 1 SENSOR HIGH - BANK 1, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0558 Generator Circuit Low Input INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0559 Generator Circuit High Input INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0600 Serial Communication Link Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0604 Internal Control Module Random
Access Memory (RAM) Error READ ONLY MEMORY (ROM) ERROR, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
P0691 Cooling Fan 1 Control Circuit Low CUIT LOW, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0692 Cooling Fan 1 Control Circuit High CUIT HIGH, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0700 Transmission Control System (MIL
Request) TEM (MIL REQUEST), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0851 Neutral Switch Input Circuit Low CUIT LOW (AT MODEL), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).> or SWITCH INPUT CIRCUIT LOW (MT MODEL), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0852 Neutral Switch Input Circuit High CUIT HIGH (AT MODEL), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).> or SWITCH INPUT CIRCUIT HIGH (MT MODEL), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1086 Tumble Generated Valve Position
Sensor 2 Circuit Low POSITION SENSOR 2 CIRCUIT LOW, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
P1087 Tumble Generated Valve Position
Sensor 2 Circuit High POSITION SENSOR 2 CIRCUIT HIGH, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
P1088 Tumble Generated Valve Position
Sensor 1 Circuit Low POSITION SENSOR 1 CIRCUIT LOW, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).> DTC Item NOTE

Page 1708 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-78
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P1089 Tumble Generated Valve Position
Sensor 1 Circuit High<Ref. to EN(H4DOTC)-259, DTC P1089 TUMBLE GENERATED VALVE
POSITION

EN(H4DOTC)-78
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P1089 Tumble Generated Valve Position
Sensor 1 Circuit High POSITION SENSOR 1 CIRCUIT HIGH, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
P1090 Tumble Generated Valve System 1
(Valve Open) SYSTEM 1 (VALVE OPEN), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1091 Tumble Generated Valve System 1
(Valve Close) SYSTEM 1 (VALVE CLOSE), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1092 Tumble Generated Valve System 2
(Valve Open) SYSTEM 2 (VALVE OPEN), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1093 Tumble Generated Valve System 2
(Valve Close) SYSTEM 2 (VALVE CLOSE), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1094 Tumble Generated Valve Signal 1
Circuit Malfunction (Open) SIGNAL 1 CIRCUIT MALFUNCTION (OPEN), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1095 Tumble Generated Valve Signal 1
Circuit Malfunction (Short) SIGNAL 1 CIRCUIT MALFUNCTION (SHORT), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1096 Tumble Generated Valve Signal 2
Circuit Malfunction (Open) SIGNAL 2 CIRCUIT MALFUNCTION (OPEN), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1097 Tumble Generated Valve Signal 2
Circuit Malfunction (Short) SIGNAL 2 CIRCUIT MALFUNCTION (SHORT), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1110 Atmospheric Pressure Sensor Cir-
cuit Malfunction (Low Input) SOR CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1111 Atmospheric Pressure Sensor Cir-
cuit Malfunction (High Input) SOR CIRCUIT MALFUNCTION (HIGH INPUT), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1152 O
2 Sensor Circuit Range/Perfor-
mance (Low) (Bank 1 Sensor 1) PERFORMANCE (LOW) (BANK 1 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1153 O
2 Sensor Circuit Range/Perfor-
mance (High) (Bank 1 Sensor 1) PERFORMANCE (HIGH) (BANK 1 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1301 Misfire Detected (High Tempera-
ture Exhaust Gas) PERATURE EXHAUST GAS), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1312 Exhaust Gas Temperature Sensor
Malfunction CUIT RANGE/PERFORMANCE, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P1518 Starter Switch Circuit Low Input INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1544 Exhaust Gas Temperature Too
High TOO HIGH, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1560 Back-Up Voltage Circuit Malfunc-
tion MALFUNCTION, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P1570 ANTENNA nostic Trouble Code (DTC).>
P1571 Reference Code Incompatibility nostics Procedure with Diagnostic Trouble Code (DTC).> DTC Item NOTE

Page 1709 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-79
ENGINE (DIAGNOSTIC)
List of Diagnostic Trouble Code (DTC)
P1572 IMM Circuit Failure (Except
Antenna Circuit)<Ref. to IM-19, DTC P1574 KEY COMMUNICATION FAILURE, Diagnostics
Procedure w

Page 1710 of 2870

SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE3

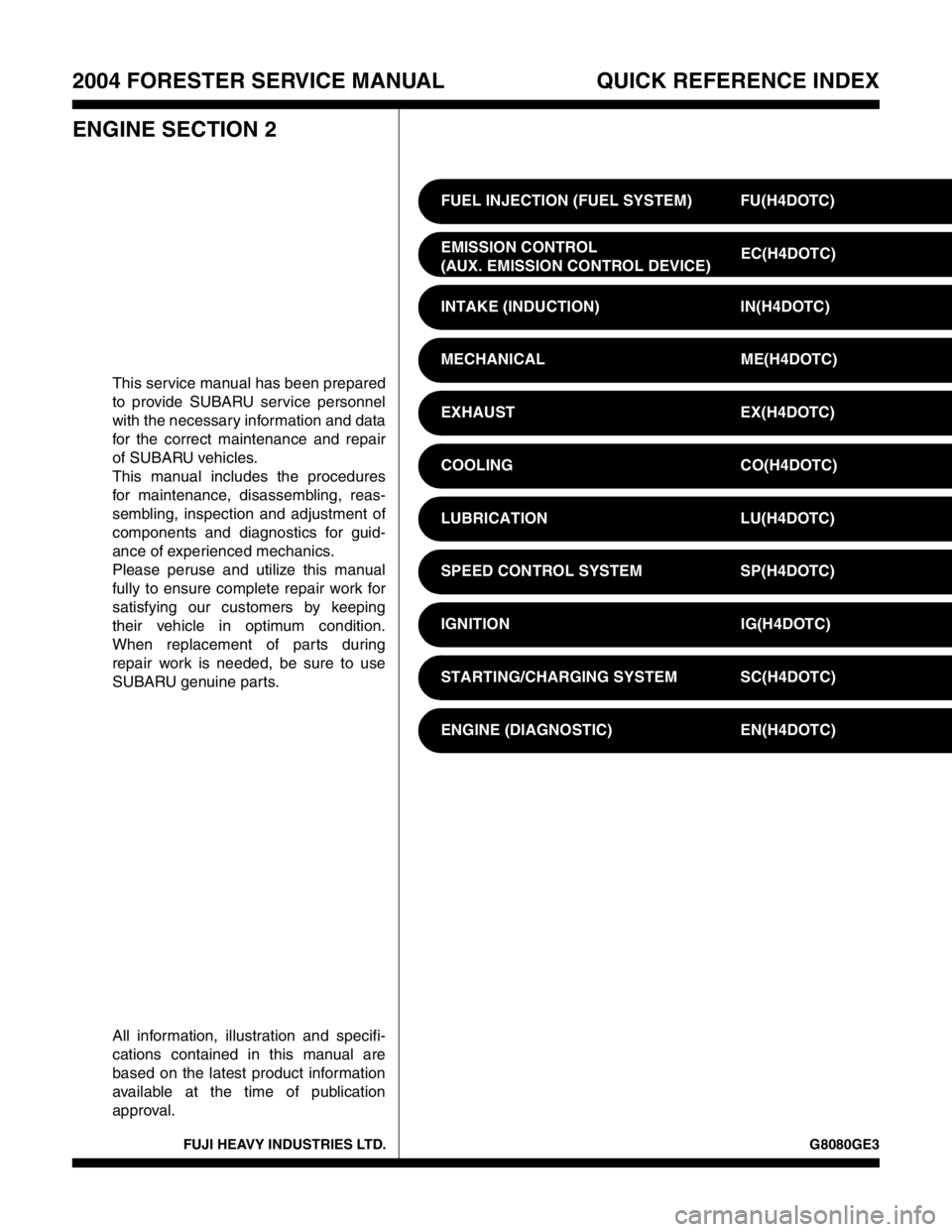

2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX
ENGINE SECTION 2
This service manual has been prepared
to provide SUBARU service personnel
with the necessary inf

Page 1711 of 2870

SUBARU FORESTER 2004 Service Repair Manual

Page 1712 of 2870

SUBARU FORESTER 2004 Service Repair Manual ENGINE (DIAGNOSTIC)
EN(H4DOTC)
Page
1. Basic Diagnostics Procedure ......................................................................2
2. Check List for Interview .................................

ENGINE (DIAGNOSTIC)
EN(H4DOTC)
Page
1. Basic Diagnostics Procedure ......................................................................2
2. Check List for Interview ...............................................................................4
3. General Description ....................................................................................6
4. Electrical Component Location ...................................................................9
5. Engine Control Module (ECM) I/O Signal .................................................23
6. Engine Condition Data ..............................................................................27
7. Transmission Control Module (TCM) I/O Signal .......................................28
8. Data Link Connector .................................................................................29
9. OBD-II General Scan Tool ........................................................................30
10. Subaru Select Monitor...............................................................................33
11. Read Diagnostic Trouble Code (DTC) ......................................................39
12. Inspection Mode ........................................................................................40
13. Drive Cycle ................................................................................................45
14. Clear Memory Mode..................................................................................47
15. Compulsory Valve Operation Check Mode ...............................................48
16. Malfunction Indicator Light ........................................................................50
17. Diagnostics for Engine Starting Failure .....................................................59
18. List of Diagnostic Trouble Code (DTC) .....................................................74
19. Diagnostic Procedure with Diagnostic Trouble Code (DTC) .....................80
20. General Diagnostic Table........................................................................295

Load next 8 pages

Page: < prev 1-10 ... 1673-1680 1681-1688 1689-1696 1697-1704 1705-1712 1713-1720 1721-1728 1729-1736 1737-1744 ... 2872 next >

turn signal key fob brake sensor catalytic converter wiper size bonnet
