Page 2545 of 2870

4AT(H4SO)-86
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK FWD SWITCH.
Connect the Subaru Select Monitor to data link
connector, and then change to LED display
screen.When the fuse is inserted to
FWD switch, does LED light
up?Go to step CHECK
BRAKE SWITCH.
4AT(H4SO)-88,
CHECK BRAKE
SWITCH, Diag-
nostic Procedure
without Diagnostic
Trouble Code
(DTC).>Go to step 2.
2 CHECK FWD INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the TCM connector.
3) Turn the ignition switch to ON.
4) Short the combination meter connector to
chassis ground.
CAUTION:
Be sure to short through fuse.
Connector & terminal
(i10) No. 22 — Chassis ground:Does the FWD indicator light
illuminate?Go to step 3.Inspect the combi-
nation meter.
Combination
Meter Assembly.>
3 CHECK HARNESS CONNECTOR BETWEEN
TCM AND FWD SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from TCM and
FWD switch.
3) Measure the resistance of harness
between TCM and FWD switch connector.
Connector & terminal
(B55) No. 20 — (F27) No. 36:Is the resistance less than 1
Ω?Go to step 4.Repair the open
circuit in harness
between TCM and
FWD switch con-
nector.
4 CHECK HARNESS CONNECTOR BETWEEN
TCM AND FWD SWITCH.
Measure the resistance of harness connector
between TCM and body to make sure that cir-
cuit does not short.
Connector & terminal
(B55) No. 20 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 5.Repair the short
circuit in harness
between TCM and
FWD switch con-
nector.
5 CHECK HARNESS CONNECTOR BETWEEN
FWD SWITCH AND CHASSIS GROUND.
Measure the resistance of harness between
FWD switch and chassis ground.
Connector & terminal
(F27) No. 35 — Chassis ground:Is the resistance less than 1
Ω?Go to step 6.Repair the open
circuit in harness
between FWD
switch connector
and chassis
ground.
6 CHECK INPUT SIGNAL FOR TCM.
1) Turn the ignition switch to OFF.
2) Connect the connector to TCM and FWD
switch.
3) Turn the ignition switch to ON.
4) Measure the signal voltage for TCM while
installing the fuse to FWD switch connector.
Connector & terminal
(B55) No. 20 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 7.Go to step 11.
7 CHECK INPUT SIGNAL FOR TCM.
Measure the signal voltage for TCM while
removing the fuse from FWD switch connector.
Connector & terminal
(B55) No. 20 (+) — Chassis ground (
−):Is the voltage 6 — 9.1 V? Go to step 8.Replace the TCM.
Transmission Con-
trol Module
(TCM).>
Page 2546 of 2870

4AT(H4SO)-87
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
8 CHECK HARNESS CONNECTOR BETWEEN
TCM AND COMBINATION METER.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from TCM and
combination meter.
3) Measure the resistance of harness
between TCM and combination meter.
Connector & terminal
(B56) No. 2 — (i11) No. 4:Is the resistance less than 1
Ω?Go to step 9.Repair the open
circuit in harness
between TCM and
combination meter
and poor contact
in coupling con-
nector.
9 CHECK HARNESS CONNECTOR BETWEEN
TCM AND COMBINATION METER.
Measure the resistance of harness connector
between TCM and chassis ground.
Connector & terminal
(B56) No. 2 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 10.Repair the short
circuit in harness
between TCM and
combination meter
connector.
10 CHECK OUTPUT SIGNAL EMITTED FROM
TCM.
1) Turn the ignition switch to OFF.
2) Connect the connector to TCM and combi-
nation meter.
3) Turn the ignition switch to ON.
4) Measure the signal voltage for TCM while
installing the fuse to FWD switch connector.
Connector & terminal
(B56) No. 2 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 11.Go to step 12.
11 CHECK OUTPUT SIGNAL EMITTED FROM
TCM.
Measure the signal voltage for TCM while
removing the fuse from FWD switch connector.
Connector & terminal
(B56) No. 2 (+) — Chassis ground (
−):Is the voltage 6 — 9.1 V? Go to step 12.Replace the TCM.
Transmission Con-
trol Module
(TCM).>
12 CHECK POOR CONTACT.Is there poor contact in FWD
switch circuit?Repair the poor
contact.Replace the TCM.
Transmission Con-
trol Module
(TCM).> Step Check Yes No
Page 2547 of 2870

4AT(H4SO)-88
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
B: CHECK BRAKE SWITCH
C: CHECK ABS SWITCH
D: CHECK CRUISE CONTROL SWITCH
Step Check Yes No
1 CHECK BRAKE SWITCH.When the brake pedal is
depressed, does LED light up?Go to step CHECK
ABS SWITCH.
4AT(H4SO)-88,
CHECK CRUISE
CONTROL
SWITCH, Diag-
nostic Procedure
without Diagnostic
Trouble Code
(DTC).>Check the brake
switch circuit.
EN(H4SO)-206,
DTC P0703
TORQUE CON-
VERTER/BRAKE
SWITCH “B” CIR-
CUIT, Diagnostic
Procedure with
Diagnostic Trou-
ble Code (DTC).>
Step Check Yes No
1 CHECK ABS SWITCH.Does the LED of ABS switch
light up?Check the ABS
switch circuit.
DTC 44 ABS-AT
CONTROL (NON
CONTROLLED),
Diagnostics Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>
ABS-142, DTC 44
ABS-AT CON-
TROL (CON-
TROLLED),
Diagnostics Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>Go to step CHECK
CRUISE CON-
TROL SWITCH.
4AT(H4SO)-88,
CHECK CRUISE
CONTROL
SWITCH, Diag-
nostic Procedure
without Diagnostic
Trouble Code
(DTC).>
Step Check Yes No
1 CHECK CRUISE CONTROL SWITCH.When the cruise control is set,
does LED light up?Go to step CHECK
KICK-DOWN
SWITCH.
4AT(H4SO)-89,
CHECK KICK–
DOWN SWITCH,
Diagnostic Proce-
dure without Diag-
nostic Trouble
Code (DTC).>Check the cruise
control.
CC(H4SO)-29,
Diagnostic Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>
Page 2548 of 2870

4AT(H4SO)-89
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
E: CHECK KICK–DOWN SWITCH
DETECTING CONDITION:
The kick down switch circuit is open or shorted.
TROUBLE SYMPTOM:
No kick-down occurs (when the throttle is fully opened).
WIRING DIAGRAM:
Step Check Yes No
1 CHECK KICK-DOWN SWITCH OPERATION.
Select “Current Data Display” in Subaru Select
Monitor.When the accelerator pedal is
fully depressed, does “ON” dis-
played?Go to step CHECK
POWER MODE
SWITCH.
4AT(H4SO)-91,
CHECK POWER
MODE SWITCH,
Diagnostic Proce-
dure without Diag-
nostic Trouble
Code (DTC).>Go to step 2.
2 CHECK KICK-DOWN SWITCH GROUND
LINE.
1) Disconnect the connector from kick-down
switch.
2) Measure the resistance of harness connec-
tor between kick-down switch and chassis
ground.
Connector & terminal
(B129) No. 1 — Chassis ground:Is the resistance less than 1
Ω?Go to step 3.Repair the open
circuit in harness
between kick-
down switch and
chassis ground.
3 CHECK KICK-DOWN SWITCH.
Measure the resistance for kick-down switch
when depressing the accelerator pedal.
Te r m i n a l s
No. 1 — No. 2:Is the resistance less than 1
Ω?Go to step 4.Replace the kick-
down switch.
to SP(H4SO)-4,
Accelerator
Pedal.>
AT-00594
E
B55
B55 TCM
KICK-DOWN
SWITCH
B129 1 2
B129
11
1
23410 11 12
19
20 21135614 1578916 17 18
22 23 241
2
Page 2549 of 2870

4AT(H4SO)-90
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
4 CHECK KICK-DOWN SWITCH.
Measure the resistance for kick-down switch
when releasing the accelerator pedal.
Te r m i n a l s
No. 1 — No. 2:Is the resistance more than 1
MΩ?Go to step 5.Replace the kick-
down switch.
to SP(H4SO)-4,
Accelerator
Pedal.>
5 CHECK HARNESS CONNECTOR BETWEEN
TCM AND KICK-DOWN SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from kick-down
switch.
3) Measure the resistance of harness connec-
tor between TCM and kick-down switch.
Connector & terminal
(B55) No. 11 — (B129) No. 2:Is the resistance less than 1
Ω?Go to step 6.Repair the open
circuit in harness
between TCM and
kick-down switch.
6 CHECK HARNESS CONNECTOR BETWEEN
TCM AND KICK-DOWN SWITCH.
Measure the resistance of harness connector
between TCM and chassis ground.
Connector & terminal
(B55) No. 11 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 7.Repair the short
circuit in harness
between TCM and
chassis ground.
7 CHECK INPUT SIGNAL FOR TCM.
1) Turn the ignition switch to OFF.
2) Connect the connector to kick-down switch.
3) Turn the ignition switch to ON (engine OFF).
4) Measure the signal voltage for TCM when
depressing the accelerator pedal.
Connector & terminal
(B55) No. 11 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 8.Go to step 9.
8 CHECK INPUT SIGNAL FOR TCM.
Measure the signal voltage for TCM when
releasing the accelerator pedal.
Connector & terminal
(B55) No. 11 (+) — Chassis ground (
−):Is the voltage more than 6.5 V? A temporary poor
contact of the con-
nector and har-
ness may be the
cause. Repair the
harness and con-
nector in TCM.Go to step 9.
9 CHECK POOR CONTACT.Is there poor contact? Repair the poor
contact.Replace the TCM.
Transmission Con-
trol Module
(TCM).> Step Check Yes No
Page 2550 of 2870
4AT(H4SO)-91
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
F: CHECK POWER MODE SWITCH
DETECTING CONDITION:
The LED does not come on when POWER switch is ON.
The POWER switch circuit is open or shorted.
TROUBLE SYMPTOM:
No power mode occurs.

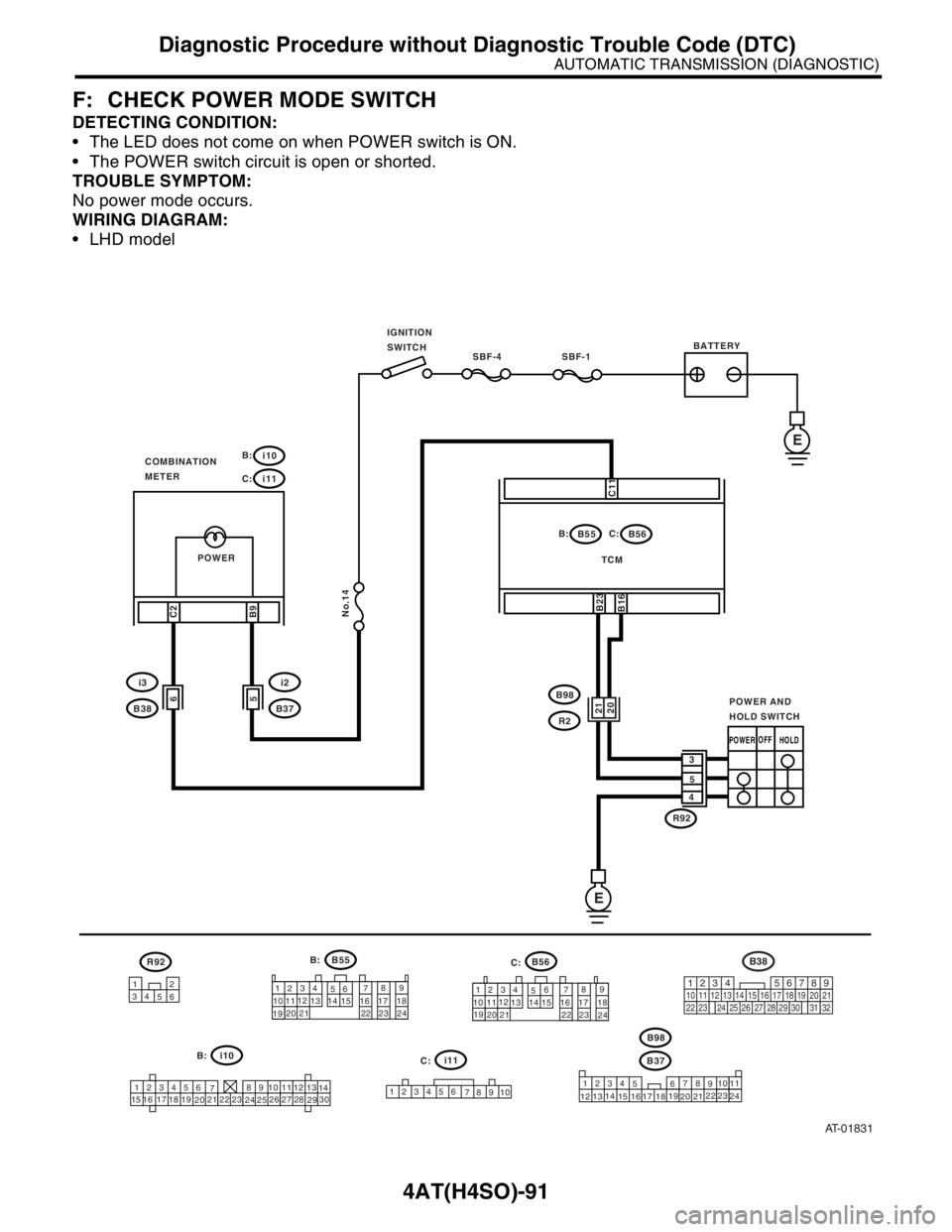

WIRING DIAGRAM:
LHD model
AT-01831
SBF-4 SBF-1
No.14
IGNITION
SWITCH
i10
i2
B37 B:
B55
TCM B:B56
R92 C: C:
i11
C2
B9
C11
B23
COMBINATION
METER
E
B55R92B56
1234
56789
10 1112
13 14 15 16 17 18
192021
2223 241234
56789
101112
13
1415 16 17 18
19
202122 23
24
123456
78 9 10 1112
13
14
15 16 17
1819
2021
2223
24
2526
2728
2930
i10B37
1234
578
910112324
121314
156
16 17 1819
20 2122123456
78 910
i11
B16
POWER AND
HOLD SWITCH
BATTERY
E
POWEROFF
3
5
4 POWER
56
i3
B38
12
34
56219
32
B38
1234
5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
21
20B98
R2
HOLD
B98
B:
C:
C: B:
Page 2551 of 2870
4AT(H4SO)-92
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)

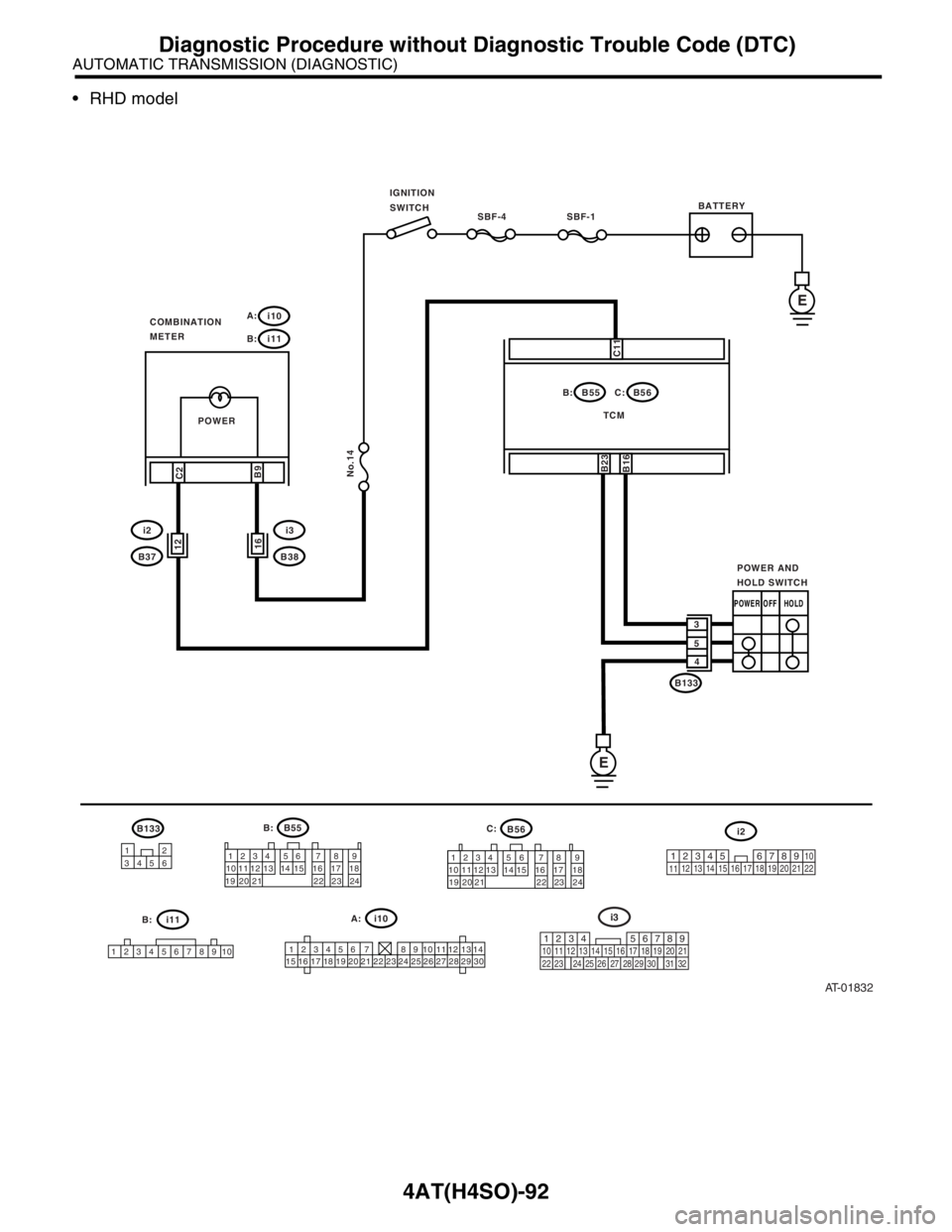

RHD model
AT-01832
SBF-4 SBF-1
No.14
IGNITION
SWITCH
i10BATTERY
A:
B55
TCM B:B56
B133 C: B:
i11
C2
B9
C11
B23
COMBINATION
METER
E
E
B55
B56
1234 56 7 8 9
10 11 12 13 14 15 16 17 18
19 20 21 22 23 241234 5 6 7 8 9
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24
123456 7 891011121314
15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
i10
12345678910
i11
B16
POWER AND
HOLD SWITCH
3
5
4 POWER
POWER OFF
i2
34 12 8910
1112 13 14 15 16 17 18 19 20 21 22567
B133
12
3456
i3
B3816i2
B3712
219
32
i3
1234
5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
HOLD
C:
A: B:
B:
Page 2552 of 2870

4AT(H4SO)-93
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK POWER SWITCH OPERATION.When the POWER switch is
turned to OFF, does LED light
up?Go to step 5.Go to step 2.
2 CHECK POWER SWITCH OPERATION.When the POWER switch is
turned to ON, does LED light
up?Go to step CHECK
INHIBITOR
SWITCH.
4AT(H4SO)-95,
CHECK INHIBI-
TOR SWITCH,
Diagnostic Proce-
dure without Diag-
nostic Trouble
Code (DTC).>Go to step 3.
3 CHECK POWER INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Remove the combination meter.
3) Remove the POWER indicator light bulb
from combination meter.Is the POWER indicator light
bulb OK?Go to step 4.Inspect the combi-
nation meter.
Combination
Meter Assembly.>
4 CHECK POWER SWITCH GROUND LINE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from POWER
switch.
3) Measure the resistance of harness connec-
tor between POWER switch and chassis
ground.
Connector & terminal
LHD model
(R92) No. 4 — Chassis ground:
RHD model
(B133) No. 4 — Chassis ground:Is the resistance less than 1
Ω?Go to step 5.Repair the open
circuit in harness
between POWER
switch and chas-
sis ground.
5 CHECK POWER SWITCH.
1) Turn the POWER switch to ON.
2) Measure the resistance between terminals
of POWER switch.
Te r m i n a l s
No. 5 — No. 4:Is the resistance less than 1
Ω?Go to step 6.Repair the
POWER switch.
6 CHECK POWER SWITCH.
1) Turn the POWER switch to OFF.
2) Measure the resistance between terminals
of POWER switch.
Te r m i n a l s
No. 5 — No. 4:Is the resistance more than 1
MΩ?Go to step 7.Repair the
POWER switch.
7 CHECK HARNESS CONNECTOR BETWEEN
TCM AND POWER SWITCH.
Measure the resistance of harness connector
between TCM and POWER switch.
Connector & terminal
(B55) No. 23 — (B133) No. 3:Is the resistance less than 1
Ω?Go to step 8.Repair the open
circuit in harness
between TCM and
POWER switch
connector.
8 CHECK HARNESS CONNECTOR BETWEEN
TCM AND POWER SWITCH.
Measure the resistance of harness connector
between TCM and chassis ground.
Connector & terminal
(B55) No. 23 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 9.Repair the short
circuit in harness
between TCM and
POWER switch
connector.
