Page 2441 of 2870

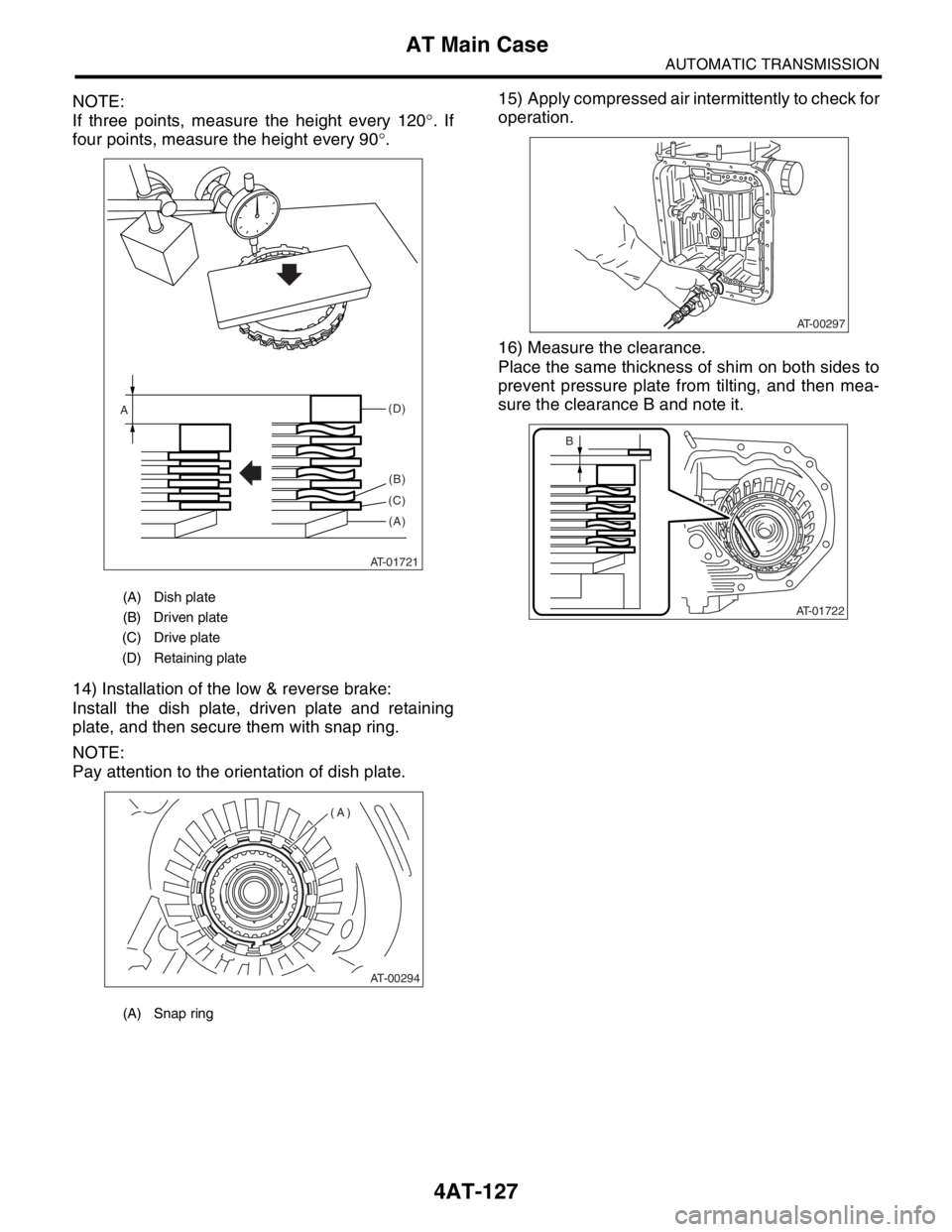

SUBARU FORESTER 2004 Service Repair Manual 4AT-127 AUTOMATIC TRANSMISSION AT Main Case NOTE: If three points, measure the height every 120°. If four points, measure the height every 90°. 14) Installation of the low & reverse brake: Install t

Page 2442 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-128 AUTOMATIC TRANSMISSION AT Main Case 17) Calculation of piston stroke Calculate from noted dimension A and B, and then select the retaining plate to adjust it within specifi- cation. If the cal

Page 2443 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-129 AUTOMATIC TRANSMISSION AT Main Case 22) Install the planetary gear and low clutch as- sembly to transmission case. CAUTION: When install the low clutch and planetary gear assembly with rotati

Page 2444 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-130 AUTOMATIC TRANSMISSION AT Main Case 27) Install the leaf spring of 2-4 brake. CAUTION: Do not install in the wrong place. 28) Install the thrust needle bearing in correct di- rection. 29) Inst

Page 2445 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-131 AUTOMATIC TRANSMISSION AT Main Case 35) Install the oil pump housing assembly with a new gasket. 36) Install the torque converter clutch case assem- bly into transmission case assembly. <Ref.

Page 2446 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-132 AUTOMATIC TRANSMISSION AT Main Case 4) Take out the clutch cover, spring retainer, high clutch piston and reverse clutch piston. 5) Remove the D-ring and lip seal from high clutch piston and r

Page 2447 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-133 AUTOMATIC TRANSMISSION AT Main Case 5) Take out the rear internal gear. 6) Remove the snap ring from low clutch drum. 7) Compress the spring retainer of low & reverse brake, and remove the sna

Page 2448 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-134 AUTOMATIC TRANSMISSION AT Main Case 3. 2-4 BRAKE Separate the 2-4 brake piston and piston retainer. 4. ONE-WAY CLUTCH INNER RACE 1) Remove the seal ring. 2) Remove the needle bearing using ST.
