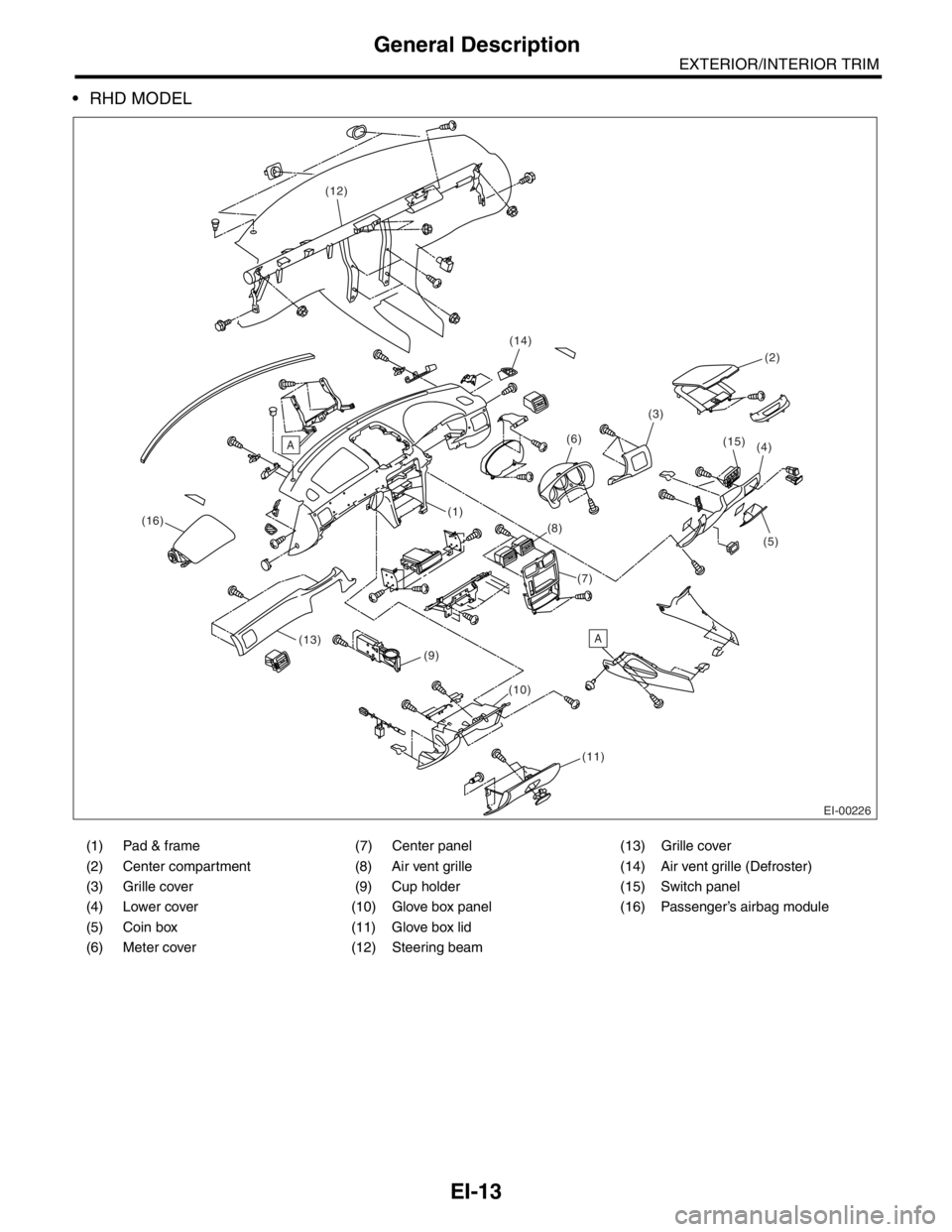

SUBARU FORESTER 2004 Service Repair Manual EI-13 EXTERIOR/INTERIOR TRIM General Description  RHD MODEL (1) Pad & frame (7) Center panel (13) Grille cover (2) Center compartment (8) Air vent grille (14) Air vent grille (Defroster) (3) Grille c

Page 490 of 2870

SUBARU FORESTER 2004 Service Repair Manual EI-14 EXTERIOR/INTERIOR TRIM General Description 15.INNER TRIM (1) Front pillar upper trim (8) Rear skirt trim (15) Center pillar inner rib (2) Center pillar upper trim (9) Side sill rear cover (16) B

Page 491 of 2870

SUBARU FORESTER 2004 Service Repair Manual EI-15 EXTERIOR/INTERIOR TRIM General Description 16.ROOF TRIM 17.FLOOR MAT (A) Vehicle front (1) Floor mat EI-00016 EI-00111 (A) (1)

Page 492 of 2870

SUBARU FORESTER 2004 Service Repair Manual EI-16 EXTERIOR/INTERIOR TRIM General Description 18.LUGGAGE FLOOR MAT (1) Front floor mat (3) Side floor mat RH (5) Side floor mat LH (2) Floor box (4) Center floor mat EI-00220 (3) (2) (4) (5) (1)

Page 493 of 2870

SUBARU FORESTER 2004 Service Repair Manual EI-17 EXTERIOR/INTERIOR TRIM General Description 19.INNER ACCESSORIES B: PREPARATION TOOL (1) Hook (3) Assist grip (Retractable)Tightening torque: N·m (kgf-m, ft-lb) (2) Sun visorT: 2 (0.20, 1.46) TO

Page 494 of 2870

SUBARU FORESTER 2004 Service Repair Manual EI-18 EXTERIOR/INTERIOR TRIM Front Grille 2. Front Grille A: REMOVAL 1) Open the front hood. 2) Remove the two upper clips of front grille side. Slide the front grille side to vehicle outside, then re

Page 495 of 2870

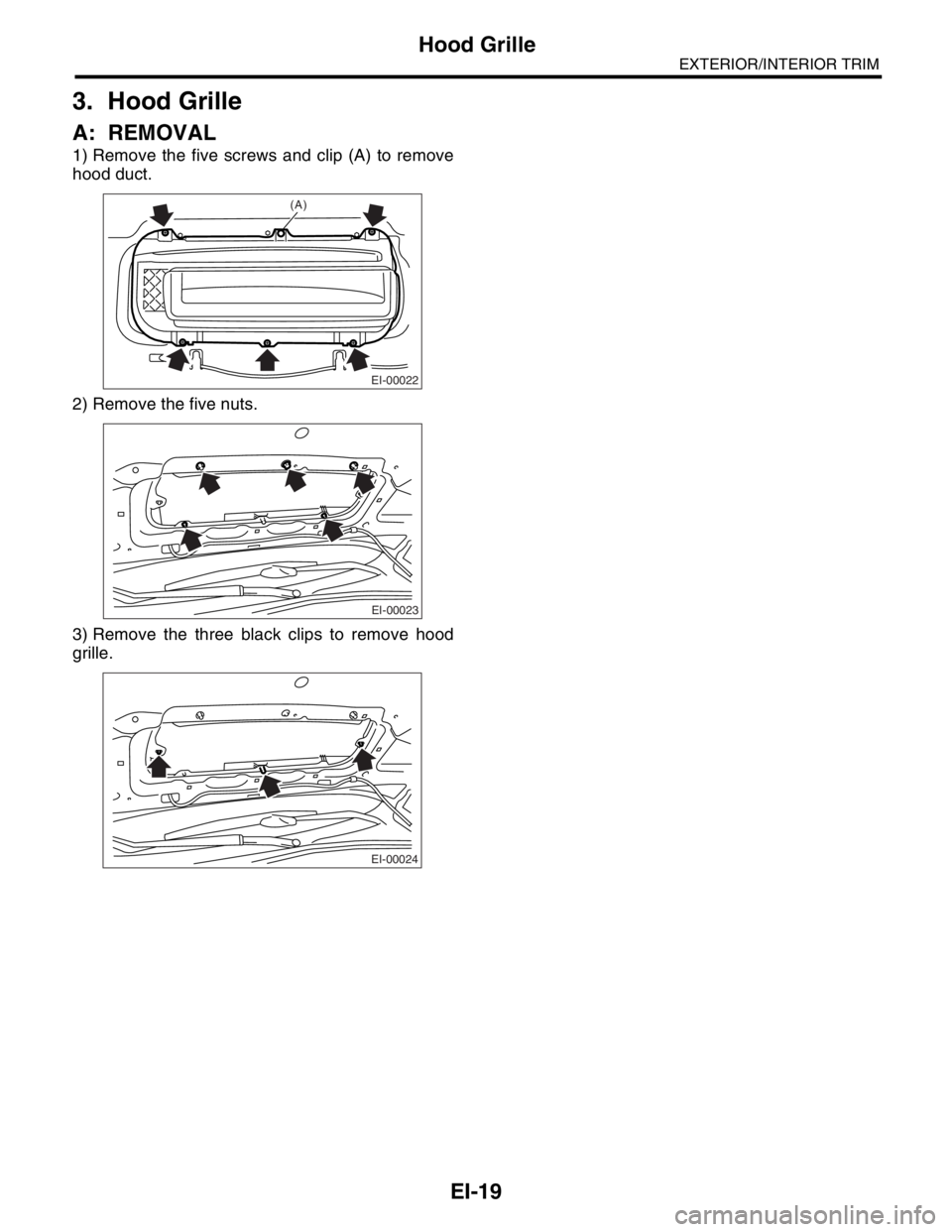

SUBARU FORESTER 2004 Service Repair Manual EI-19 EXTERIOR/INTERIOR TRIM Hood Grille 3. Hood Grille A: REMOVAL 1) Remove the five screws and clip (A) to remove hood duct. 2) Remove the five nuts. 3) Remove the three black clips to remove hood g

Page 496 of 2870

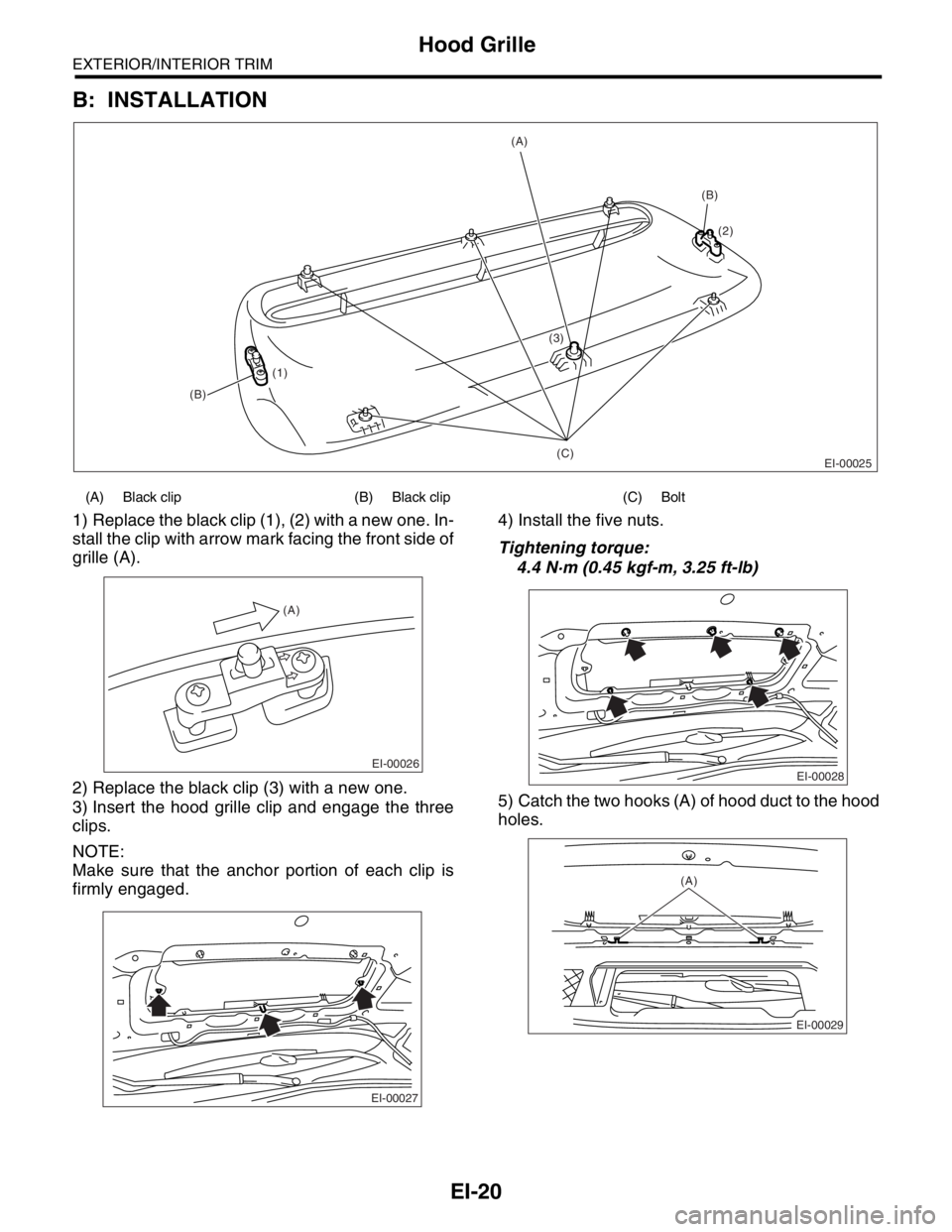

SUBARU FORESTER 2004 Service Repair Manual EI-20 EXTERIOR/INTERIOR TRIM Hood Grille B: INSTALLATION 1) Replace the black clip (1), (2) with a new one. In- stall the clip with arrow mark facing the front side of grille (A). 2) Replace the black
