Page 41 of 2870

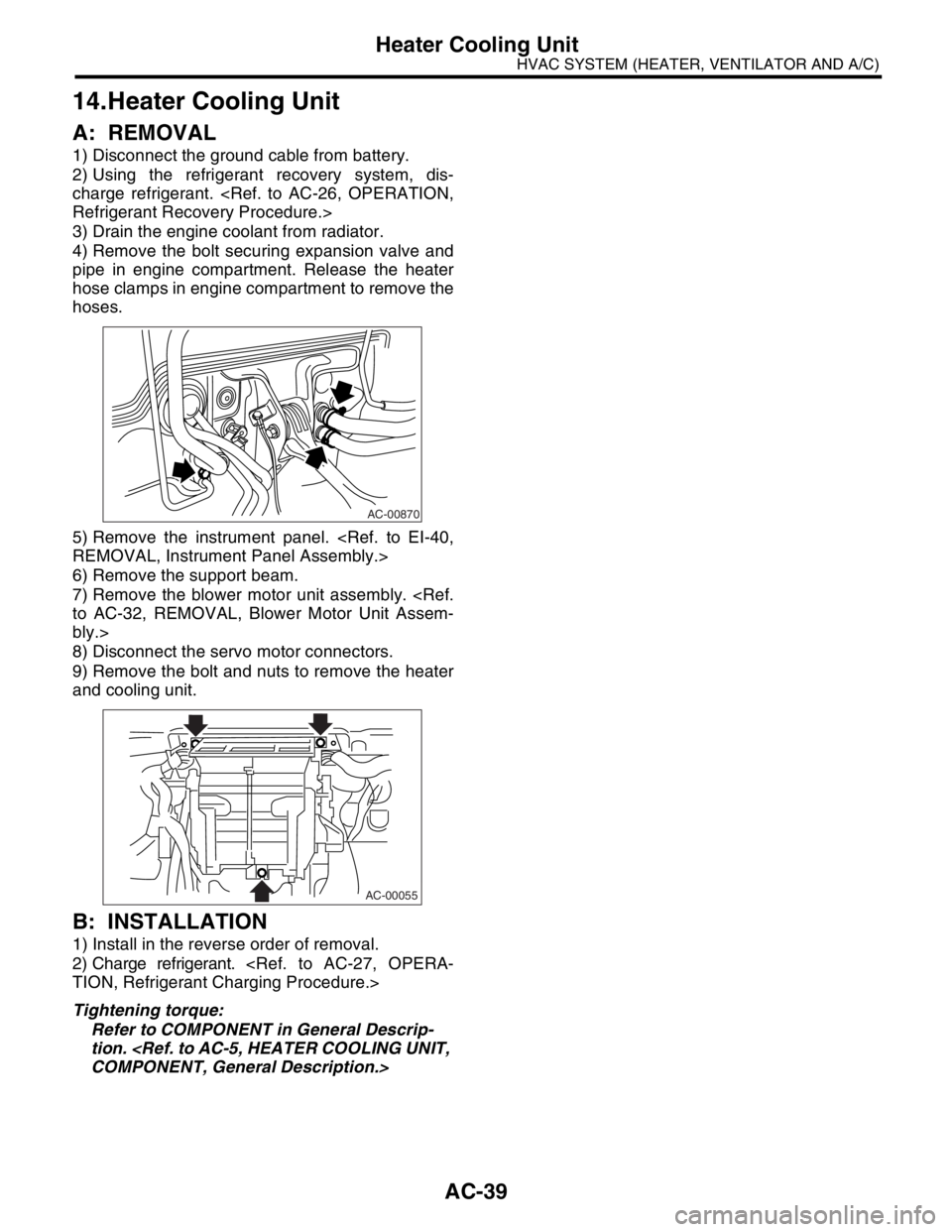

SUBARU FORESTER 2004 Service Repair Manual AC-39 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Heater Cooling Unit 14.Heater Cooling Unit A: REMOVAL 1) Disconnect the ground cable from battery. 2) Using the refrigerant recovery system, dis- charge

Page 42 of 2870

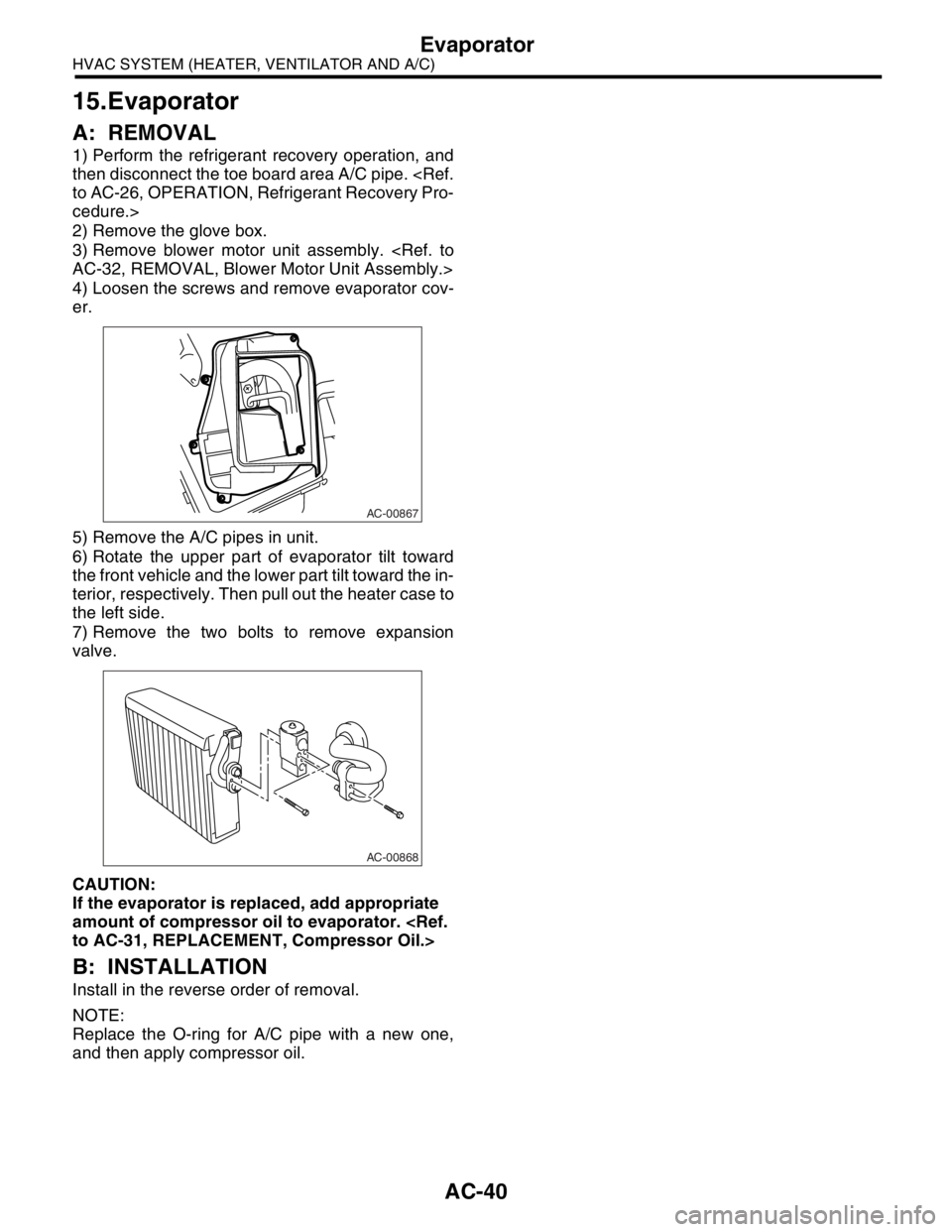

SUBARU FORESTER 2004 Service Repair Manual AC-40 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Evaporator 15.Evaporator A: REMOVAL 1) Perform the refrigerant recovery operation, and then disconnect the toe board area A/C pipe. <Ref. to AC-26, OPERA

Page 43 of 2870

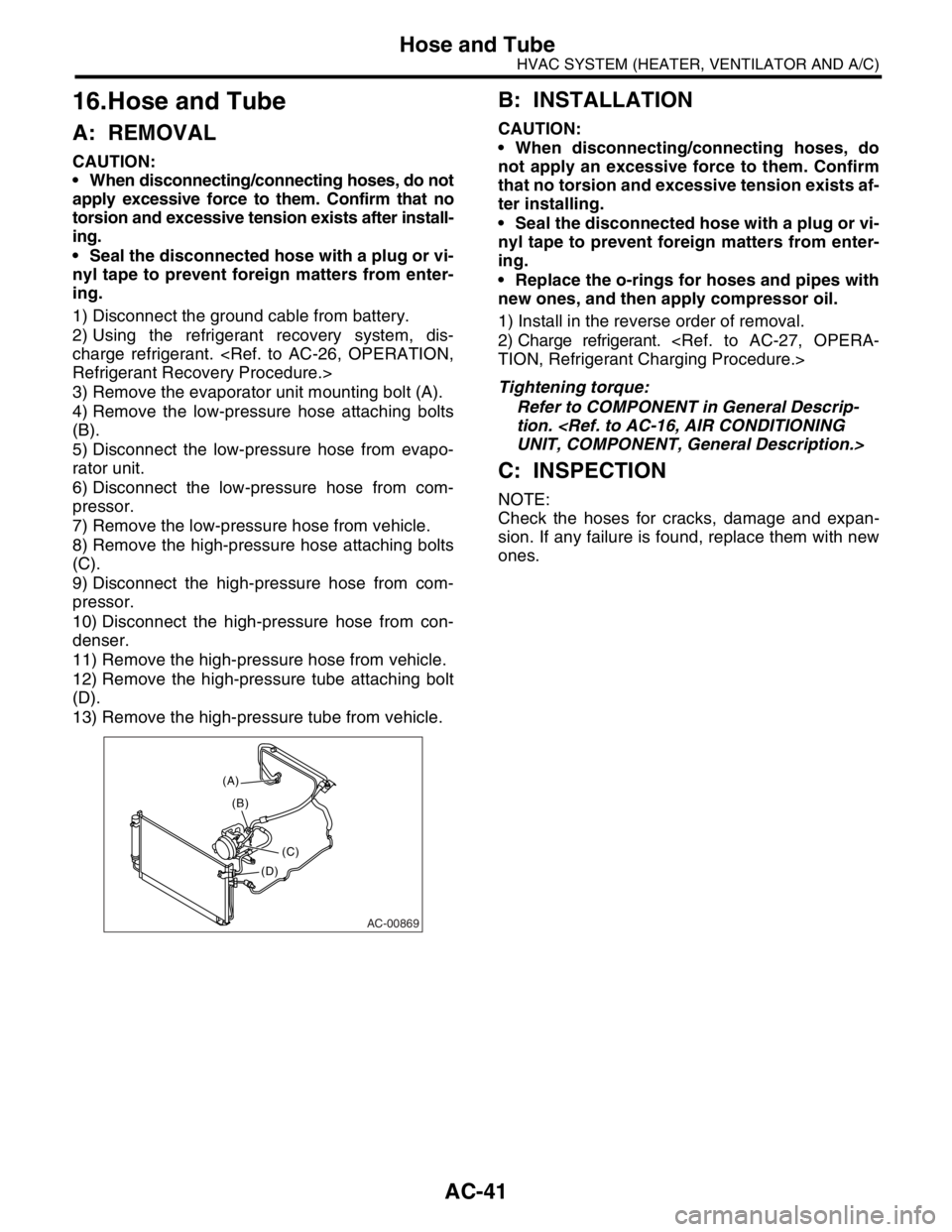

SUBARU FORESTER 2004 Service Repair Manual AC-41 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Hose and Tube 16.Hose and Tube A: REMOVAL CAUTION:  When disconnecting/connecting hoses, do not apply excessive force to them. Confirm that no torsion a

Page 44 of 2870

SUBARU FORESTER 2004 Service Repair Manual AC-42 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Relay and Fuse 17.Relay and Fuse A: LOCATIONB: INSPECTION While applying battery voltage between the termi- nals (1) and (2), check continuity between th

Page 45 of 2870

SUBARU FORESTER 2004 Service Repair Manual AC-43 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Pressure Switch (Triple Pressure Switch) 18.Pressure Switch (Triple Pres- sure Switch) A: INSPECTION 1) Connect the manifold gauge to the service valve o

Page 46 of 2870

SUBARU FORESTER 2004 Service Repair Manual AC-44 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Ambient Sensor (Auto A/C Model) 19.Ambient Sensor (Auto A/C Model) A: REMOVAL 1) Open the front hood. 2) Disconnect the ground cable from battery. 3) Di

Page 47 of 2870

SUBARU FORESTER 2004 Service Repair Manual AC-45 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Sunload Sensor (Auto A/C Model) 20.Sunload Sensor (Auto A/C Model) A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disconnect the sunload sen

Page 48 of 2870

SUBARU FORESTER 2004 Service Repair Manual AC-46 HVAC SYSTEM (HEATER, VENTILATOR AND A/C) Air Vent Grille 21.Air Vent Grille A: REMOVAL 1. CENTER GRILLE 1) Disconnect the ground cable from battery. 2) Remove the center console panel. <Ref. to
