Page 233 of 2870

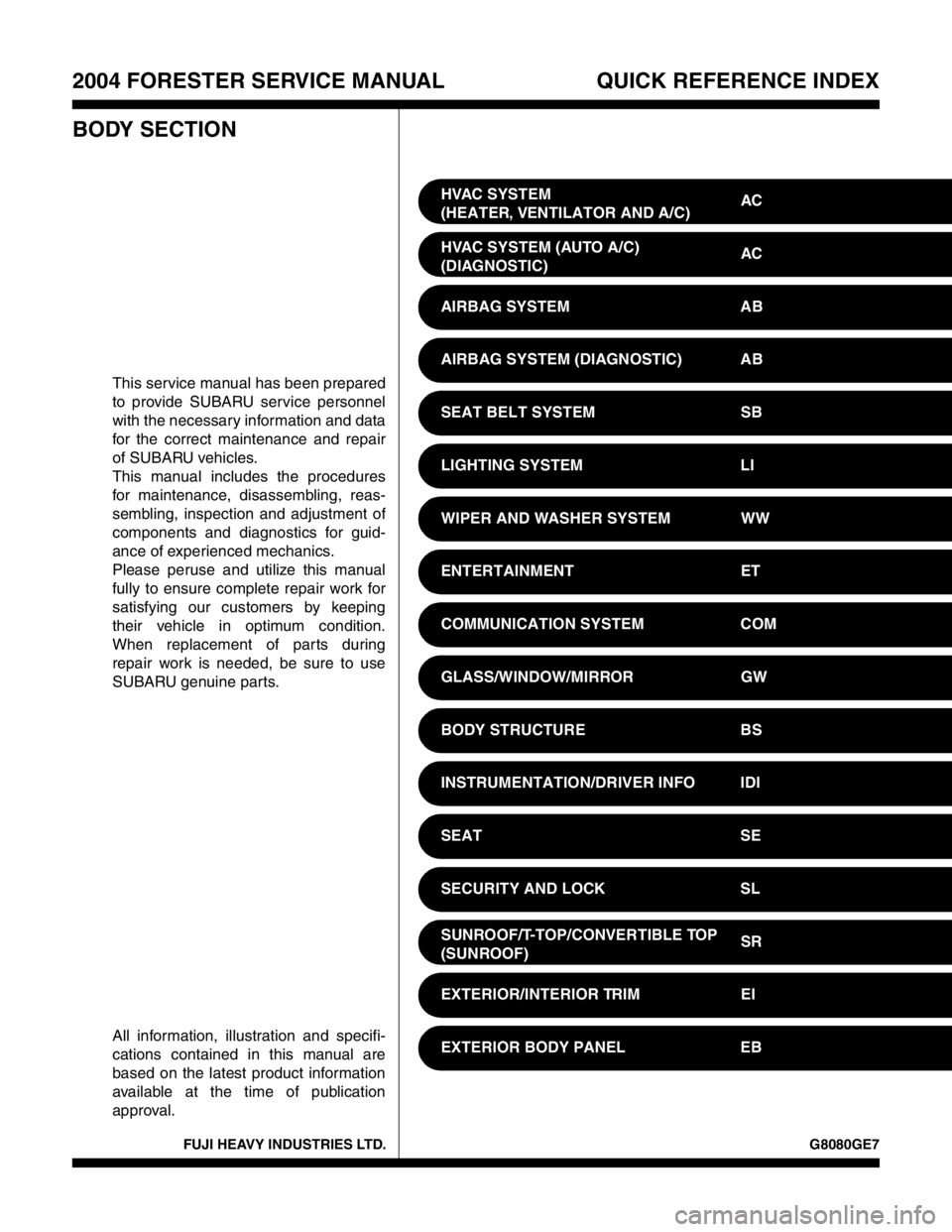

SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE7 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION This service manual has been prepared to provide SUBARU service personnel with the necessary informa

Page 234 of 2870

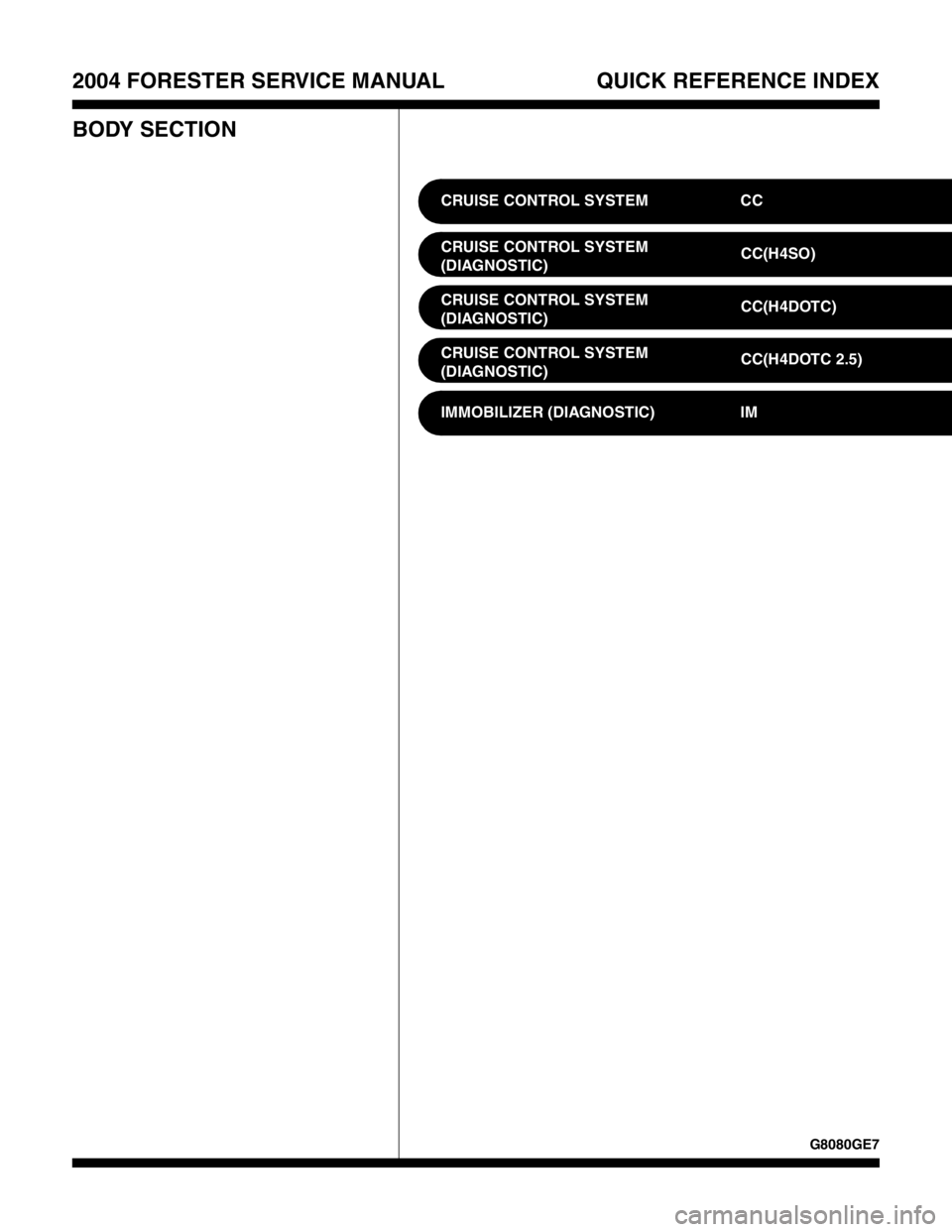

SUBARU FORESTER 2004 Service Repair Manual 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION G8080GE7 CRUISE CONTROL SYSTEM CC CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4SO) CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4DOTC) CRUISE CONTROL

Page 235 of 2870

SUBARU FORESTER 2004 Service Repair Manual SEAT BELT SYSTEM SB Page 1. General Description ....................................................................................2 2. Inspection Locations After a Collision ........................

Page 236 of 2870

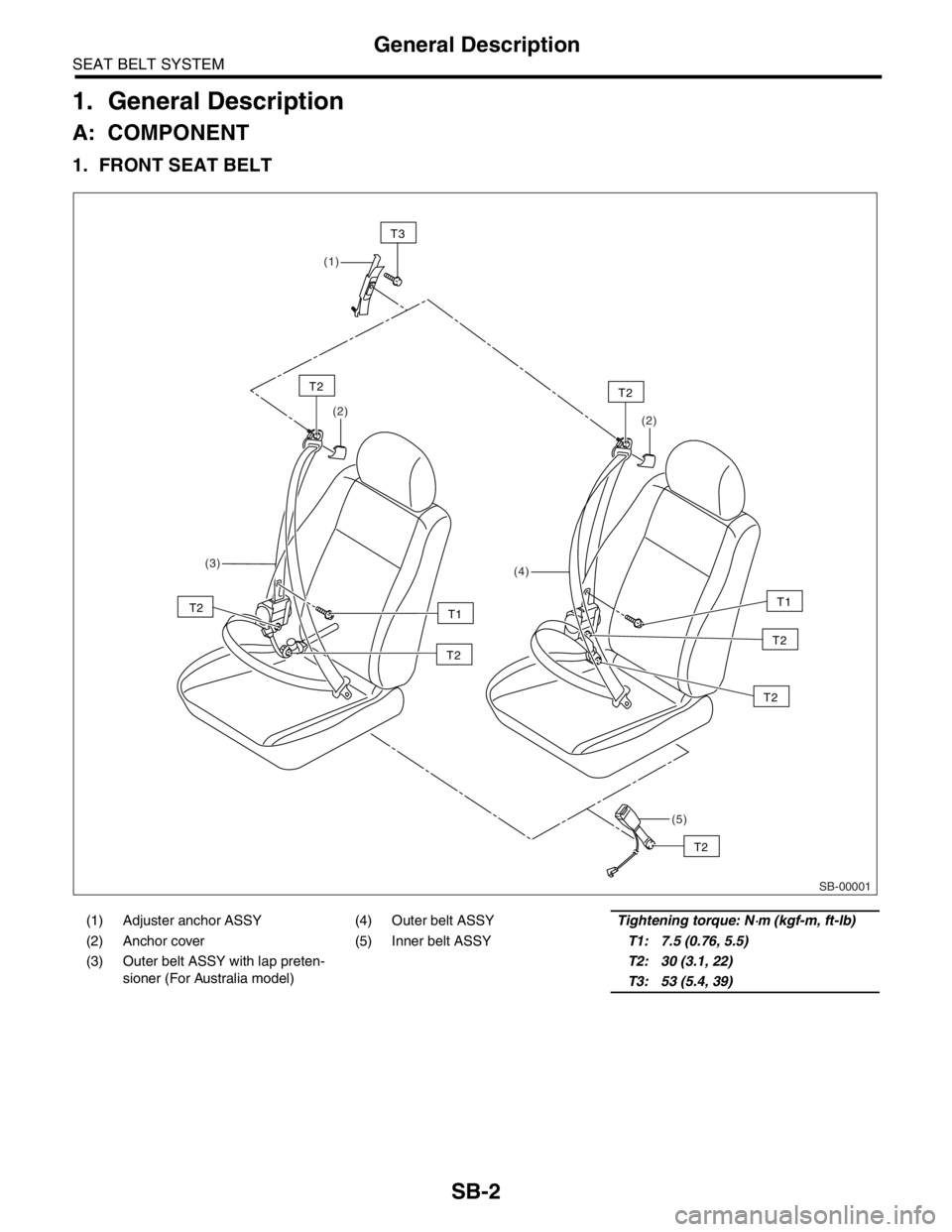

SUBARU FORESTER 2004 Service Repair Manual SB-2 SEAT BELT SYSTEM General Description 1. General Description A: COMPONENT 1. FRONT SEAT BELT (1) Adjuster anchor ASSY (4) Outer belt ASSYTightening torque: N⋅m (kgf-m, ft-lb) (2) Anchor cover (5

Page 237 of 2870

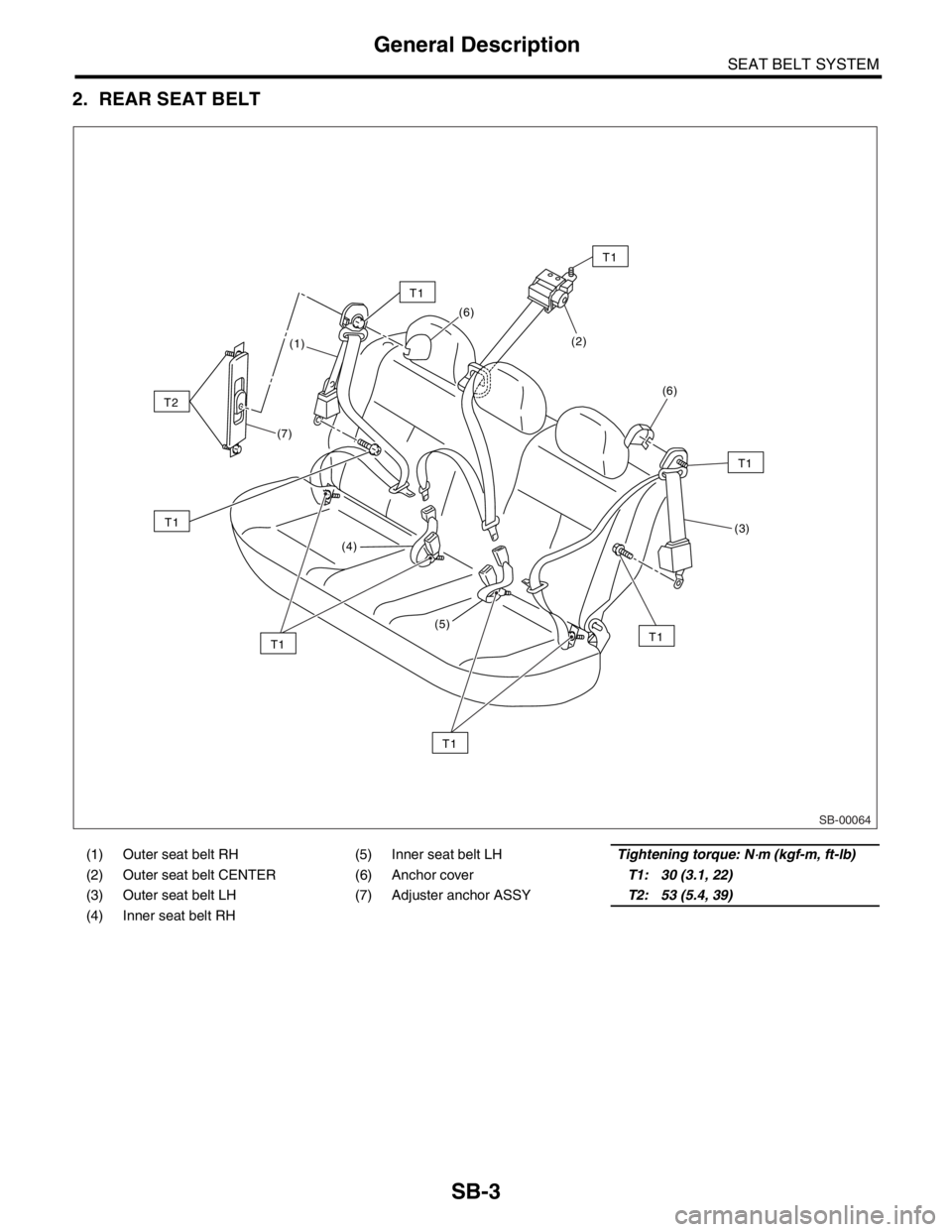

SUBARU FORESTER 2004 Service Repair Manual SB-3 SEAT BELT SYSTEM General Description 2. REAR SEAT BELT (1) Outer seat belt RH (5) Inner seat belt LHTightening torque: N⋅m (kgf-m, ft-lb) (2) Outer seat belt CENTER (6) Anchor coverT1: 30 (3.1

Page 238 of 2870

SUBARU FORESTER 2004 Service Repair Manual SB-4 SEAT BELT SYSTEM General Description B: CAUTION  Before starting, turn the ignition switch to OFF, disconnect the battery ground cable and wait for 20 seconds or more.  The pretension system ha

Page 239 of 2870

SUBARU FORESTER 2004 Service Repair Manual SB-5 SEAT BELT SYSTEM General Description C: PREPARATION TOOL 1. SPECIAL TOOL 2. GENERAL TOOL ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299SA010 DEPLOYMENT ADAPTER D Used for deploying the pret

Page 240 of 2870

SUBARU FORESTER 2004 Service Repair Manual SB-6 SEAT BELT SYSTEM Inspection Locations After a Collision 2. Inspection Locations After a Collision A: INSPECTION Check for the following, and then replace with new parts if necessary.  Center pi
