Page 369 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-3
BODY STRUCTURE
Datum Points

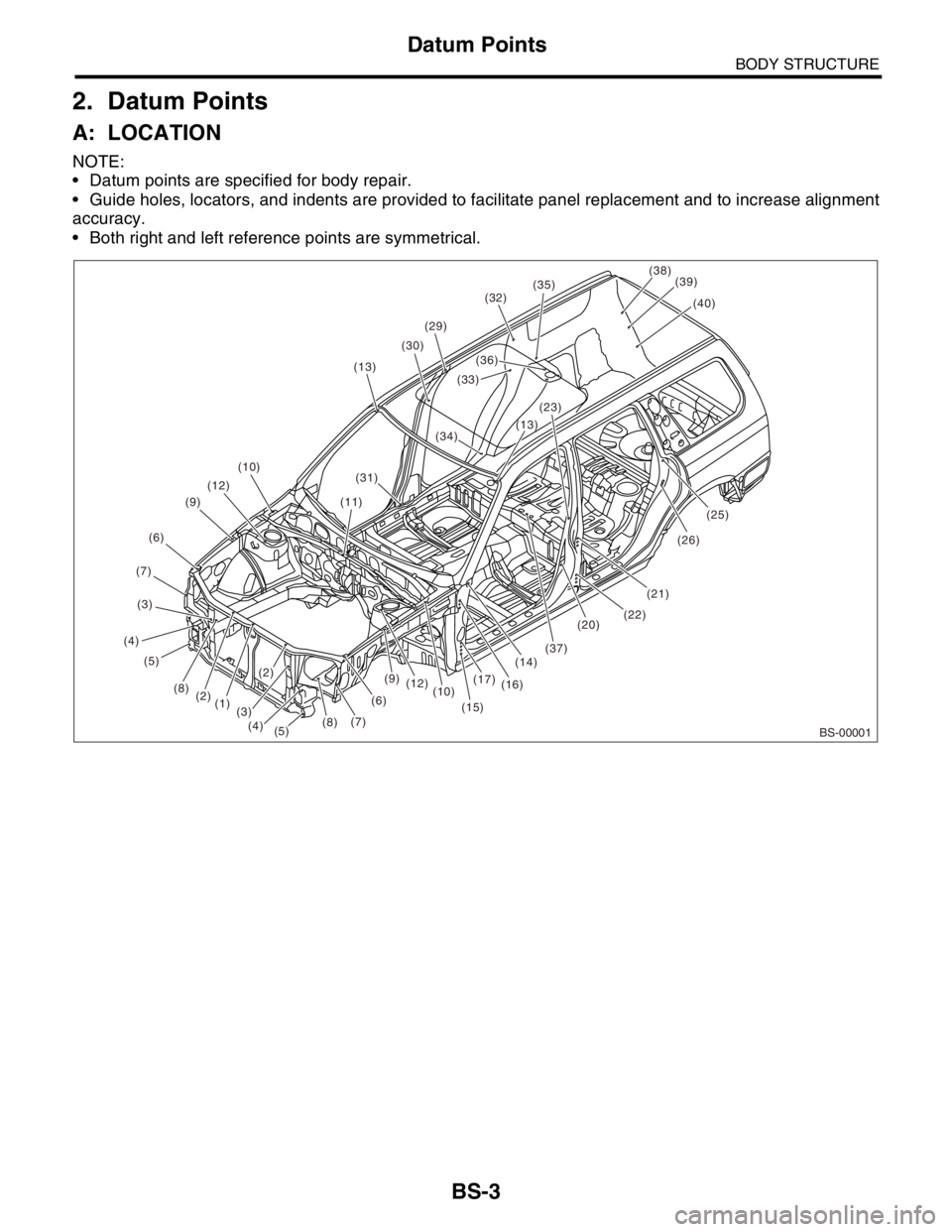

2. Datum Points
A: LOCATION
NOTE:
Datum points are specified for body repair.
Guide holes, locators, and indents are provided to facilitate panel replacement and t

Page 370 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-4
BODY STRUCTURE
Datum Points
(1) Radiator panel gauge hole 6 mm
(0.24 in) dia. (Vehicle center)(14) Fender attaching hole 10 mm
(0.39 in) dia. (Symmetrical)(31) Harness attaching hole 7 mm
(0.2

BS-4
BODY STRUCTURE
Datum Points
(1) Radiator panel gauge hole 6 mm
(0.24 in) dia. (Vehicle center)(14) Fender attaching hole 10 mm
(0.39 in) dia. (Symmetrical)(31) Harness attaching hole 7 mm
(0.28 in) dia. (Symmetrical)
(2) Radiator attaching hole 12 mm
(0.47 in) dia.(15) Fender attaching hole 10 mm
(0.39 in) dia. (Symmetrical)(32) Trim attaching hole 8.5 mm (0.33
in) dia. (Symmetrical)
(3) Headlight attaching hole 7 mm
(0.28 in) dia. (Symmetrical)(16) Front door hinge attaching hole 12
mm (0.47 in) dia. (Symmetrical)(33) Trim attaching hole 7 mm (0.28 in)
dia. (Symmetrical)
(4) Frame plate gauge hole 8 mm
(0.31 in) dia. (Symmetrical)(17) Front door hinge attaching hole 12
mm (0.47 in) dia. (Symmetrical)(34) Harness attaching hole 7×7 mm
(0.28×0.28 in) (Symmetrical)
(5) Bumper beam attaching hole 11
mm (0.43 in) dia. (Symmetrical)(20) Front door switch attaching hole
4.1 mm (0.16 in) dia. (Symmetri-
cal)(35) Tonneau cover bracket attaching
hole 5.5 mm (0.22 in) dia. (Sym-
metrical)
(6) Fender attaching hole 7 mm (0.28
in) dia. (Symmetrical)
(21) Rear door hinge attaching hole 12
mm (0.47 in) dia. (Symmetrical)(36) Rear strut attaching hole 10 mm
(0.39 in) (Symmetrical)
(7) Fender attaching hole 9 mm (0.35
in) dia. (Symmetrical)
(22) Rear door hinge attaching hole 12
mm (0.47 in) dia. (Symmetrical)(37) Floor mat attaching hole 8 mm
(0.31 in) dia.
(8) Power steering tank attaching hole
RH ATF cooler pipe attaching hole
LH 9 mm (0.35 in) dia.(23) Front weather strip attaching hole
5.2 mm (0.20 in) dia. (Symmetri-
cal)(38) Trim attaching hole 9×9 mm
(0.35×0.35 in) (Symmetrical)
(9) Fender attaching hole 10 mm
(0.39 in) dia. (Symmetrical)(39) Trim attaching hole 8 mm (0.31 in)
dia. (Symmetrical)
(25) Rear weather strip attaching hole
5.2 mm (0.20 in) dia. (Symmetri-
cal) (10) Fender attaching hole 7 mm (0.28
in) dia. (Symmetrical)(40) Trim attaching hole 8 mm (0.31 in)
dia. (Symmetrical)
(11) Modular bracket gauge hole 8 mm
(0.31 in) dia. (Vehicle center)(26) Rear door switch attaching hole
4.1 mm (0.16 in) dia. (Symmetri-
cal)
(12) Front strut attaching hole 9.5 mm
(0.37 in) dia. (Symmetrical)
(29) Trim attaching hole 8.5 mm (0.33
in) dia. (Symmetrical)
(13) Front glass attaching hole LH
6.5×10.5 mm (0.26×0.41 in) RH
6.5×7 mm (0.26×0.28 in)(30) Pad attaching hole 5 mm (0.20 in)
dia. (Symmetrical)

Page 371 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-5
BODY STRUCTURE
Datum Points
(18) Front weather strip attaching hole
5.2 mm (0.20 in) dia. (Symmetri-
cal)(31) Harness attaching hole 7 mm
(0.28 in) dia. (Symmetrical)(45) Combination light atta

Page 372 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-6
BODY STRUCTURE
Datum Points
(12) Front strut attaching hole 9.5 mm
(0.37 in) dia. (Symmetrical)(56) Transverse link attaching hole 16
mm (0.63 in) dia. (Symmetrical)(62) Rear cross member gauge

Page 373 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-7
BODY STRUCTURE
Datum Points
(1)
(2)
(2)
BS-00004BS-00005
(4)
(5) (3)
BS-00006
(6)
(7) (8)
BS-00007
(8)
BS-00008
(9)(10)
(12)
BS-00009
(11)
BS-00010
(13)
BS-00011
(14)
(16)(18)
(17)
(15)
(19)

Page 374 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-8
BODY STRUCTURE
Datum Points
BS-00014
(23)
(20)(21)
(22)
BS-00015 (24)
BS-00016
(25)
(26)
BS-00017
(27)
(28)
BS-00018
(29)
(30)
BS-00019
(34)
(31)
BS-00020
(32)
(33)(35)
(36)
BS-00021
(37)

Page 375 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-9
BODY STRUCTURE
Datum Points
(38)
(39)
(40)
BS-00022(41)(42)BS-00023
(43)
BS-00024
(44)
BS-00025
(46)
(45)
(47)
(48)
BS-00026
(51)(52)
(53)(54)
(65)
BS-00027
(56)
(58)
(57) (55)
BS-00028(59)
(60)B

Page 376 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-10
BODY STRUCTURE
Datum Points
(61)BS-00030
(66)
(62)(63)
BS-00031
(64)
BS-00032
