SUBARU FORESTER 2004 Service Repair Manual SL-5
SECURITY AND LOCK
General Description

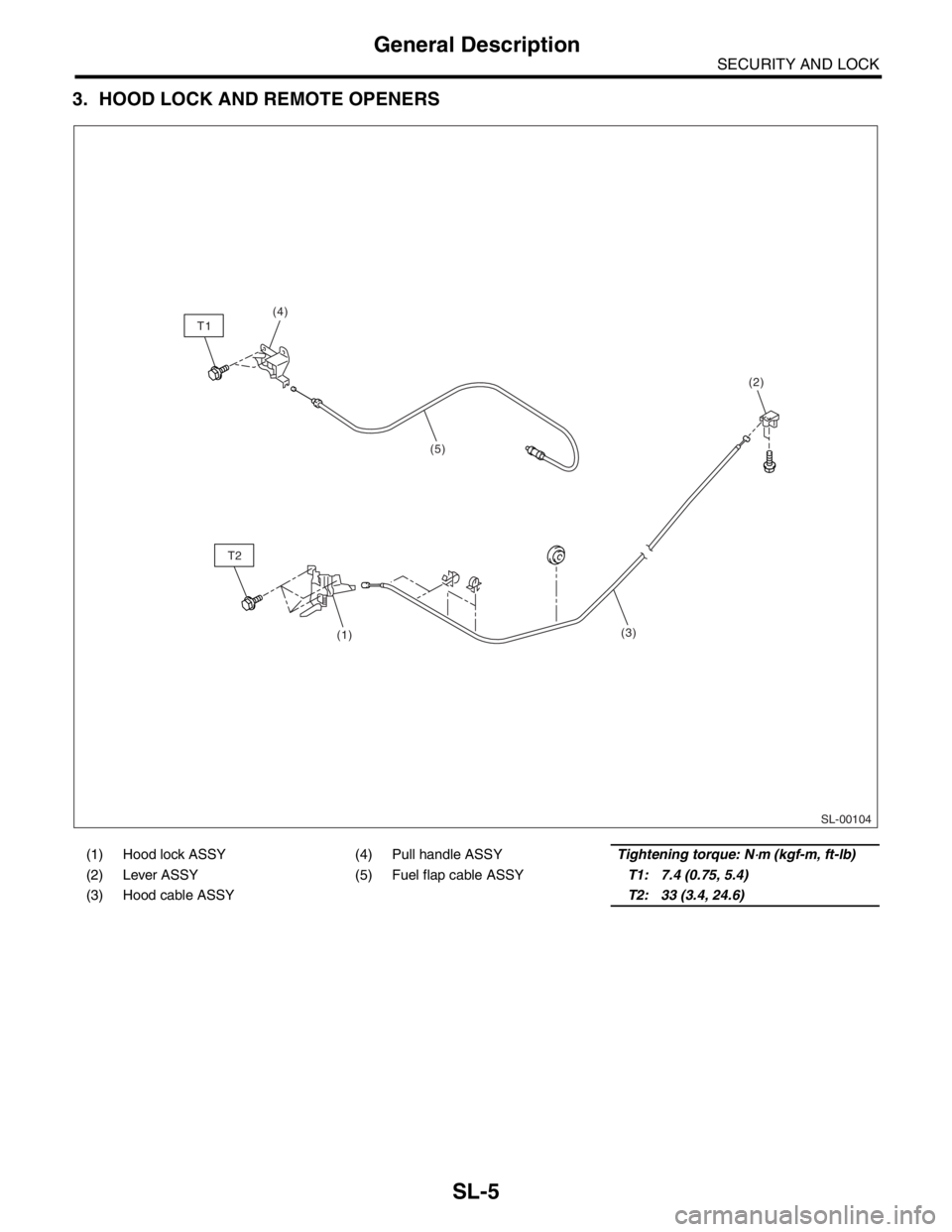

3. HOOD LOCK AND REMOTE OPENERS
(1) Hood lock ASSY (4) Pull handle ASSYTightening torque: N⋅m (kgf-m, ft-lb)
(2) Lever ASSY (5) Fuel flap cable ASSYT1: 7.4

Page 426 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-6
SECURITY AND LOCK
General Description
4. IMMOBILIZER SYSTEM
NOTE:
IMM ECM location for RHD model is symmetrically opposite.
(1) Antenna (3) Immobilizer control module (IMM
ECM)(4) Transponder
(2

Page 427 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-7
SECURITY AND LOCK
General Description
5. KEYLESS ENTRY SYSTEM
B: CAUTION
Before disassembling or reassembling parts,
always disconnect the ground cable from battery.
When repairing radio, contr

Page 428 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-8
SECURITY AND LOCK
General Description
C: PREPARATION TOOL
1. SPECIAL TOOL
2. GENERAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
925580000 PULLER Used for removing trim clip.
TOOL NAME REMA

Page 429 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-9
SECURITY AND LOCK
Door Lock Control System
2. Door Lock Control System
A: WIRING DIAGRAM
1. DOOR LOCK CONTROL
<Ref. to WI-198, WIRING DIAGRAM, Door Lock System.>
B: INSPECTION
1. SYMPTOM CHART
Sy

Page 430 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-10
SECURITY AND LOCK
Door Lock Control System
2. CHECK FUSE
3. CHECK POWER SUPPLY AND GROUND CIRCUIT
Step Check Yes No
1 CHECK FUSE.
Remove and visually check the fuse No. 2 (in
the main fuse box)

Page 431 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-11
SECURITY AND LOCK
Door Lock Control System
4. CHECK DOOR LOCK SWITCH AND CIRCUIT
Step Check Yes No
1 CHECK DOOR LOCK SWITCH CIRCUIT.
1) Disconnect the keyless entry control mod-
ule or double lo

Page 432 of 2870

SUBARU FORESTER 2004 Service Repair Manual SL-12
SECURITY AND LOCK
Door Lock Control System
5. CHECK DOOR LOCK ACTUATOR AND CIRCUIT
6. CHECK KEY CYLINDER LOCK SWITCH AND CIRCUIT
Step Check Yes No
1 CHECK OUTPUT SIGNAL.
Measure the voltage betw

SL-12
SECURITY AND LOCK
Door Lock Control System
5. CHECK DOOR LOCK ACTUATOR AND CIRCUIT
6. CHECK KEY CYLINDER LOCK SWITCH AND CIRCUIT
Step Check Yes No
1 CHECK OUTPUT SIGNAL.
Measure the voltage between the harness con-
nector terminal of keyless entry control module
or double lock module and chassis ground
when moving the door lock switch to LOCK.
Connector & terminal
Without double lock:
(B176) No. 18 (+) — Chassis ground (
−):
With double lock:
(B324) No. 3 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2.Replace the key-
less entry control
module or double
lock module.
2 CHECK OUTPUT SIGNAL.
Measure the voltage between the harness con-
nector terminal of keyless entry control module
or double lock module and chassis ground
when moving the door lock switch to UNLOCK.
Connector & terminal
Without double lock:
(B176) No. 17 (+) — Chassis ground (
−):
With double lock:
(B324) No. 5 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 3.Replace the key-
less entry control
module or double
lock module.
3 CHECK DOOR LOCK ACTUATOR.
Check the door lock actuator.
Front door lock actuator: Door Lock Actuator.>
Rear door lock actuator: Door Lock Actuator.>
Rear gate latch lock actuator: Rear Gate Latch Lock Actuator.>Is the door lock actuator OK? Check the harness
for open circuits or
shorts between
the keyless entry
control module or
double lock mod-
ule and the door
lock actuator.Replace the door
lock actuator.
Step Check Yes No
1 CHECK KEY CYLINDER LOCK SWITCH CIR-
CUIT.
1) Disconnect the double lock module har-
ness connector.
2) Measure the resistance between harness
connector terminal and chassis ground when
turning the key cylinder lock switch to lock
position.
Connector & terminal
(B325) No. 2 — Chassis ground:Is the resistance less than 10
Ω?Go to step 2.Go to step 3.
2 CHECK KEY CYLINDER LOCK SWITCH CIR-
CUIT.
Measure the resistance between harness con-
nector terminal and chassis ground when turn-
ing the key cylinder lock switch to unlock
position.
Connector & terminal
(B325) No. 3 — Chassis ground:Is the resistance less than 10
Ω?Key cylinder lock
switch is nor mal.Go to step 3.
