Page 1937 of 2870
FU(H4DOTC 2.5)-7
FUEL INJECTION (FUEL SYSTEM)
General Description

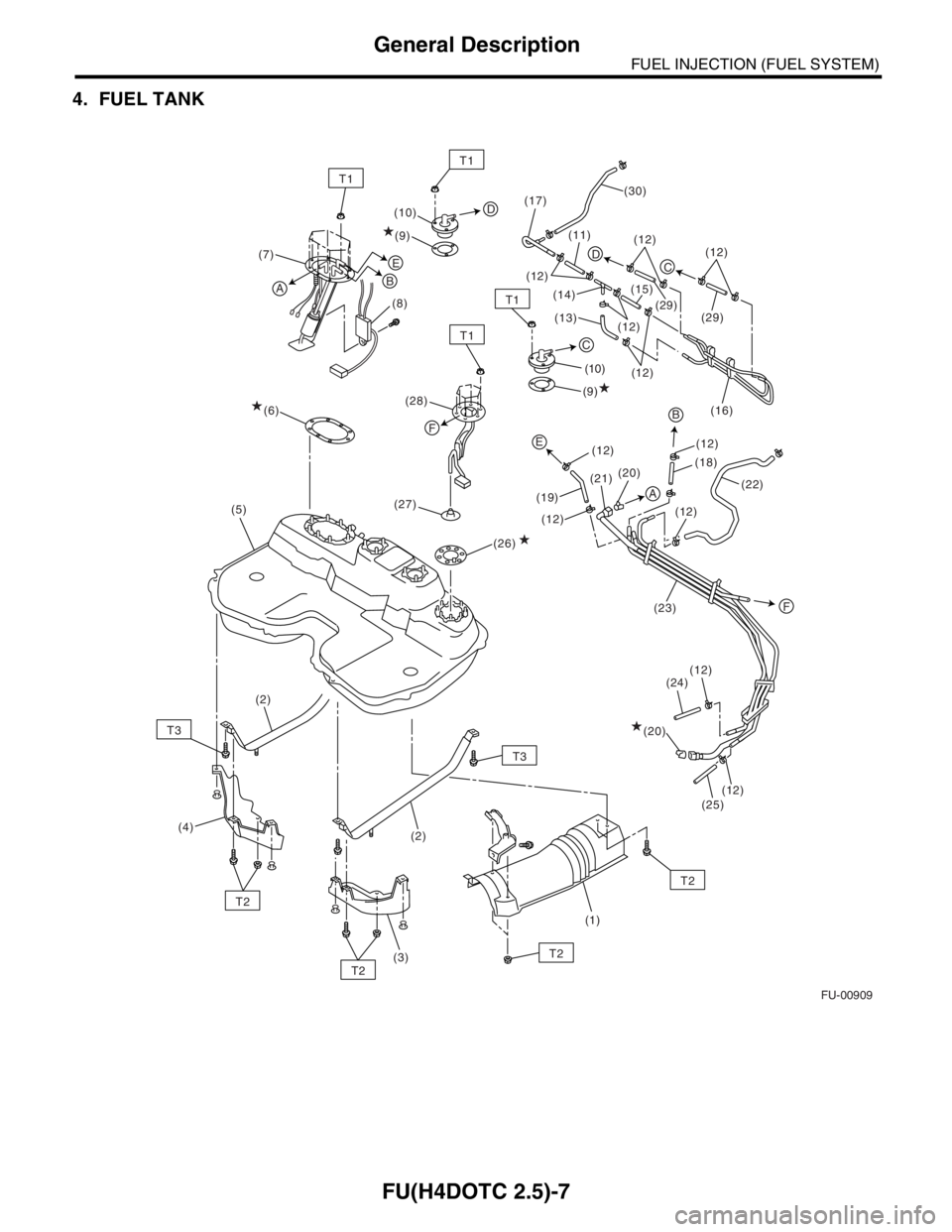

4. FUEL TANK
FU-00909
T1
T1
T3
T2
T2
T2
T2
T3 (7)
(6)(8)(9) (10)
(10)
(9)
(19)(18)
(22) (12)(12)
(12)
(23)
(12)
(12) (24)
(25) (12)(21)(20)
(1) (2)
(3) (4)(2) (5)
AB
(28)
(29)
(16)
F
F
A
E
T1
T1
DC
D
C
(20)
(12)(12)
(12)
(12)
(12)
(29)
(13) (14)(11) (17)(30)
(27)
(26)
(15)
E
B
Page 1938 of 2870
FU(H4DOTC 2.5)-8
FUEL INJECTION (FUEL SYSTEM)
General Description
(1) Heat shield cover (13) Evaporation hose B (25) Evaporation hose E
(2) Fuel tank band (14) Joint pipe (26) Fuel sub level sensor gasket
(3) Protector LH (15) Evaporation hose C (27) Jet pump filter
(4) Protector RH (16) Evaporation pipe ASSY (28) Fuel sub level sensor
(5) Fuel tank (17) Evaporation pipe (29) Evaporation hose F
(6) Fuel pump gasket (18) Fuel return hose A (30) Evaporation hose G
(7) Fuel pump ASSY (19) Jet pump hose
(8) Fuel level sensor (20) RetainerTightening torque: N·m (kgf-m, ft-lb)
(9) Fuel cut valve gasket (21) Quick connectorT1: 4.4 (0.45, 3.3)
(10) Fuel cut valve (22) Evaporation hose DT2: 7.4 (0.75, 5.4)
(11) Evaporation hose A (23) Fuel pipe ASSYT3: 33 (3.4, 24.3)
(12) Clip (24) Fuel return hose B
Page 1939 of 2870
FU(H4DOTC 2.5)-9
FUEL INJECTION (FUEL SYSTEM)
General Description

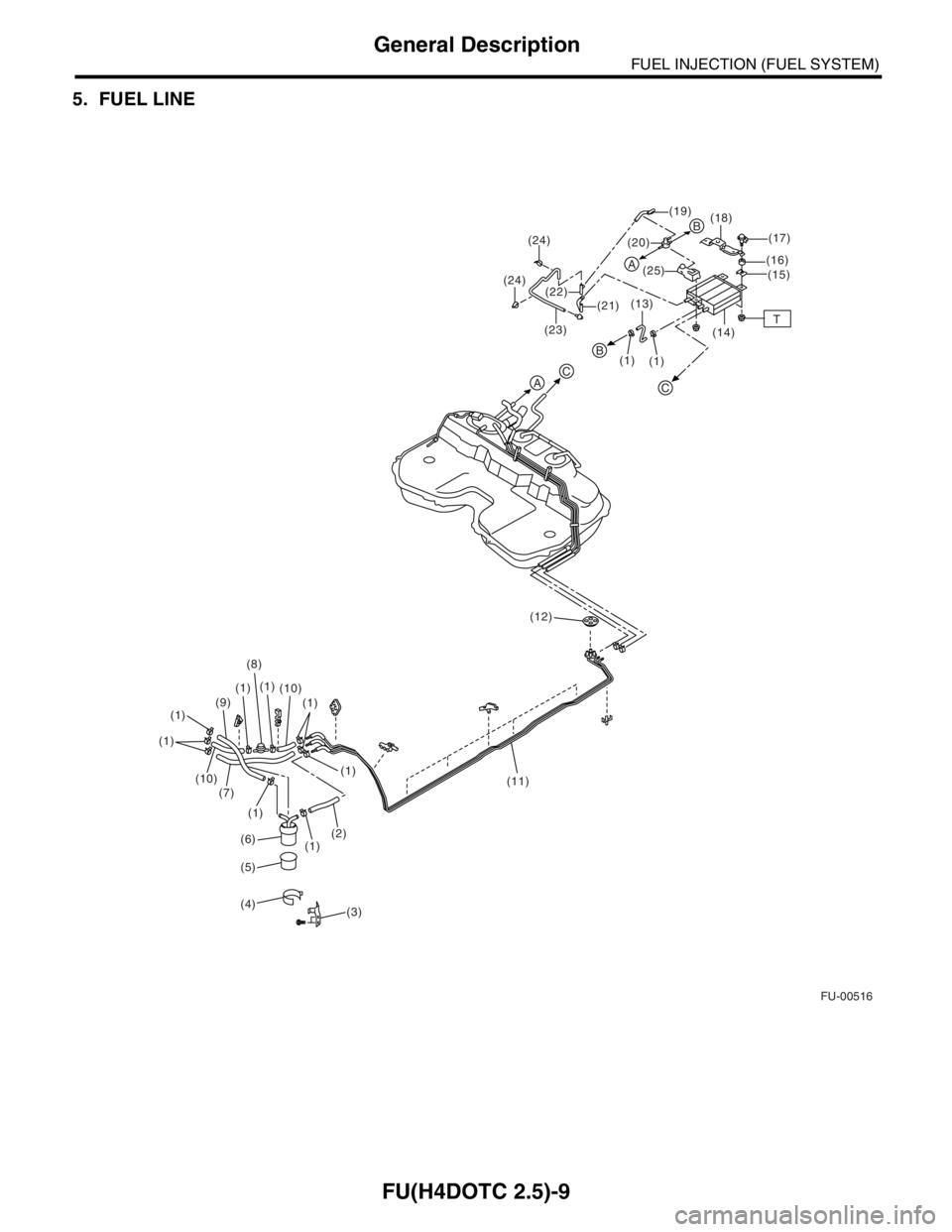

5. FUEL LINE
FU-00516
(12)
(11) (1)
(1) (1) (7) (1)(1)(9)(10)
(10)(1)
(6)
(5)
(4)
(3) (2)
(1)(1) (8)
(24)
(24)
(18)
(23)
(13)
(14)
(1)
(1) (21)(20)
(25)
(22)
(19)
(17)
(16)(15)
C
B
B
A
CA
T
Page 1940 of 2870
FU(H4DOTC 2.5)-10
FUEL INJECTION (FUEL SYSTEM)
General Description
(1) Clip (11) Fuel pipe ASSY (21) Two-way valve drain hose A
(2) Fuel delivery hose A (12) Grommet (22) Connector
(3) Fuel filter bracket (13) Canister hose A (23) Two-way valve drain hose B
(4) Fuel filter holder (14) Canister (24) Clamp
(5) Fuel filter cup (15) Canister bracket plate (25) Front canister bracket
(6) Fuel filter (16) Cushion
(7) Evaporation hose (17) Canister bracket spacerTightening torque: N·m (kgf-m, ft-lb)
(8) Fuel damper (18) Rear canister bracketT: 23 (2.3, 17.0)
(9) Fuel deliver y hose B (19) Two-way valve return hose
(10) Fuel return hose (20) Two-way valve
Page 1941 of 2870
FU(H4DOTC 2.5)-11
FUEL INJECTION (FUEL SYSTEM)
General Description

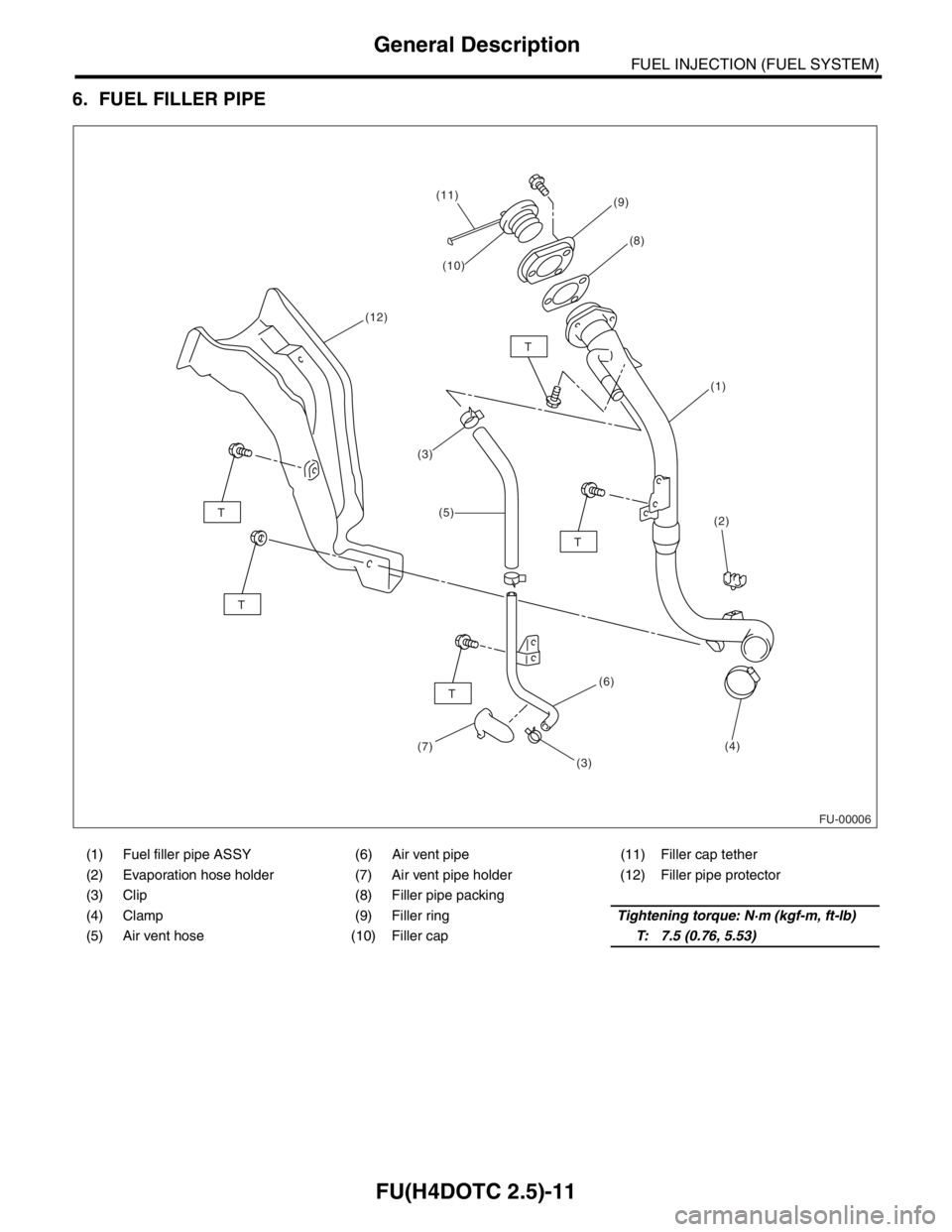

6. FUEL FILLER PIPE
(1) Fuel filler pipe ASSY (6) Air vent pipe (11) Filler cap tether
(2) Evaporation hose holder (7) Air vent pipe holder (12) Filler pipe protector
(3) Clip (8) Filler pipe packing
(4) Clamp (9) Filler ringTightening torque: N·m (kgf-m, ft-lb)
(5) Air vent hose (10) Filler capT: 7.5 (0.76, 5.53)
FU-00006
(4)
(2)
(8)
(1)
(12)(11)
(6)
(7)
(9)
(10)
(5)
(3)
(3)
T
T
T
T
T
Page 1942 of 2870

FU(H4DOTC 2.5)-12
FUEL INJECTION (FUEL SYSTEM)
General Description
C: CAUTION
Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
Keep the disassembled parts in order and pro-
tect them from dust or dirt.
Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement. Be careful not to burn yourself, because each
part on the vehicle is hot after running.
Be sure to tighten fasteners including bolts and
nuts to the specified torque.
Place shop jacks or rigid racks at the specified
points.
Before disconnecting electrical connectors of
sensors or units, be sure to disconnect negative
terminal from battery.
Place “NO FIRE” signs near the working area.
Be careful not to spill fuel on the floor.
D: PREPARATION TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
24082AA230
(Newly adopted tool)CARTRIDGE Troubleshooting for electrical system.
22771AA030 SUBARU SELECT
MONITOR KITTroubleshooting for electrical systems.
English: 22771AA030 (Without printer)
German: 22771AA070 (Without printer)
French: 22771AA080 (Without printer)
Spanish: 22771AA090 (Without printer)
ST24082AA230
ST22771AA030
Page 1943 of 2870
FU(H4DOTC 2.5)-13
FUEL INJECTION (FUEL SYSTEM)
Throttle Body
2. Throttle Body
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the intercooler.
10, REMOVAL, Intercooler.>
3) Disconnect the connector from the throttle posi-
tion sensor (A) and manifold absolute pressure sen-
sor (B).
4) Disconnect the engine coolant hoses from the
throttle body.
5) Remove the bolts which secure the throttle body
to intake manifold.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Always use a new gasket.
Tightening torque:
8 N·m (0.8 kgf-m, 5.8 ft-lb)
FU-00009
FU-01073
(A)
(B)
FU-01074
FU-01075
Page 1944 of 2870

FU(H4DOTC 2.5)-14
FUEL INJECTION (FUEL SYSTEM)
Intake Manifold
3. Intake Manifold
A: REMOVAL
1) Release the fuel pressure.
FUEL PRESSURE, OPERATION, Fuel.>
2) Open the fuel filler flap lid and remove the fuel
filler cap.
3) Disconnect the ground cable from battery.
4) Lift up the vehicle.
5) Remove the under cover.
6) Drain the engine coolant about 3.02 (3.2 US qt,
2.6 Imp qt).
7) Remove the air cleaner upper cover and air in-
take boot.
Cleaner.>
8) Remove the air cleaner element.
9) Remove the intercooler.
10, REMOVAL, Intercooler.>
10) Remove the coolant filler tank.
CO(H4SO)-42, REMOVAL, Coolant Filler Tank.>
11) Remove the power steering pump.
(1) Remove the front side V-belt.
ME(H4DOTC)-52, REMOVAL, V-belt.>(2) Disconnect the power steering switch con-
nector.
(3) Remove the bolts which secure the power
steering pipe brackets to the intake manifold.
NOTE:
Do not disconnect the power steering hose.
(4) Remove the bolts which secure the power
steering pump bracket.
(5) Remove the reservoir tank from the bracket
by pulling it upward.
FU-00009
FU-00016
FU-00017
FU-00018
FU-00019
FU-00020
