Page 529 of 2870

SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE7 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION This service manual has been prepared to provide SUBARU service personnel with the necessary informa

Page 530 of 2870

SUBARU FORESTER 2004 Service Repair Manual 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION G8080GE7 CRUISE CONTROL SYSTEM CC CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4SO) CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4DOTC) CRUISE CONTROL

Page 531 of 2870

SUBARU FORESTER 2004 Service Repair Manual EXTERIOR BODY PANEL EB Page 1. General Description ....................................................................................2 2. Front Hood Panel ...........................................

Page 532 of 2870

SUBARU FORESTER 2004 Service Repair Manual EB-2 EXTERIOR BODY PANEL General Description 1. General Description A: SPECIFICATION (1) Front hood panel (4) Rear door panel (7) Side sill (2) Front fender panel (5) Rear quarter panel (3) Front door

Page 533 of 2870

SUBARU FORESTER 2004 Service Repair Manual EB-3 EXTERIOR BODY PANEL General Description B: COMPONENT 1. FRONT HOOD (1) Front hood (3) SealTightening torque: N·m (kgf-m, ft-lb) (2) HingeT1: 24.5 (2.5, 18.1) EB-00038 (3) T1 T1(2) (1)

Page 534 of 2870

SUBARU FORESTER 2004 Service Repair Manual EB-4 EXTERIOR BODY PANEL General Description 2. FRONT FENDER PANEL (1) Front fender panelTightening torque: N·m (kgf-m, ft-lb) T: 7.4 (0.75, 5.5) EB-00003 T T (1)

Page 535 of 2870

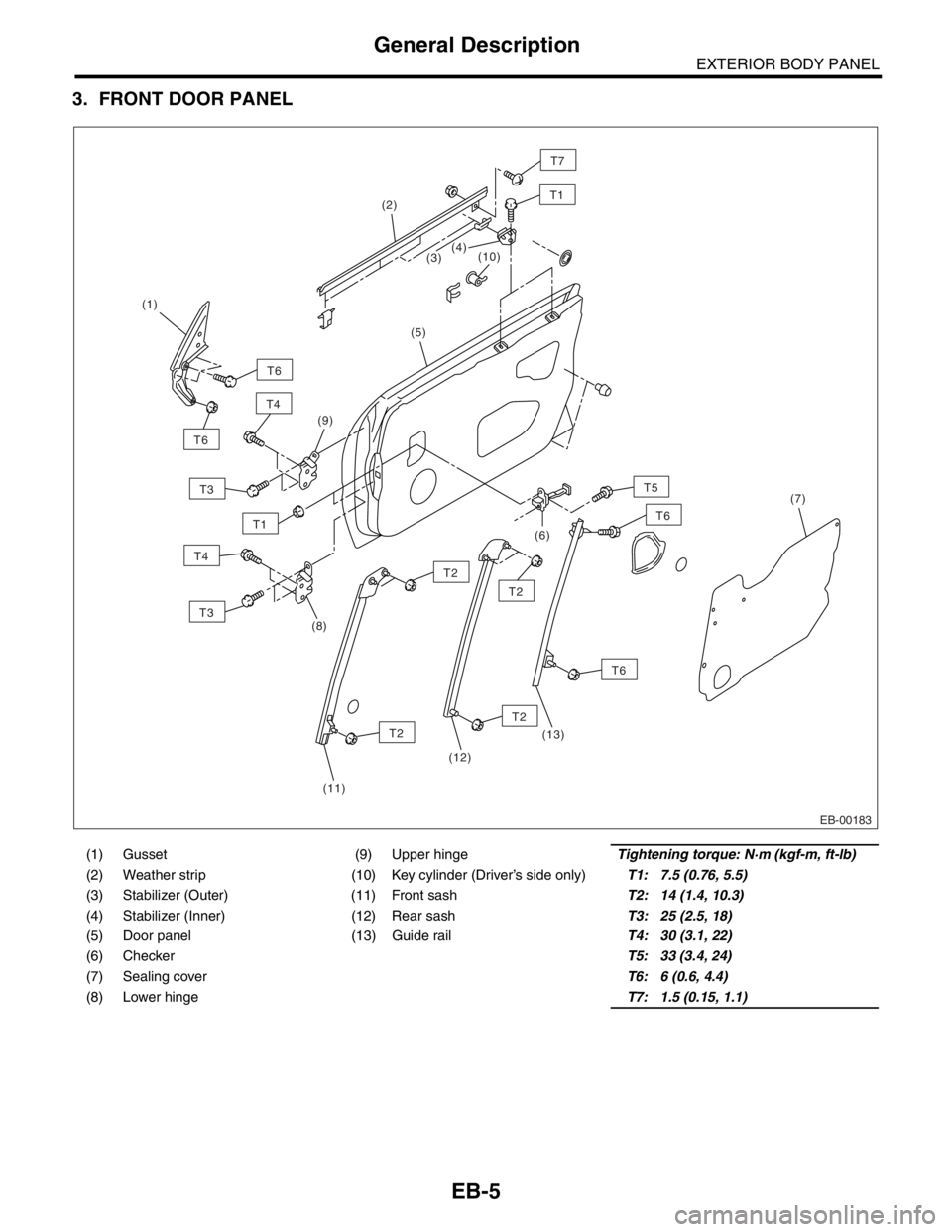

SUBARU FORESTER 2004 Service Repair Manual EB-5 EXTERIOR BODY PANEL General Description 3. FRONT DOOR PANEL (1) Gusset (9) Upper hingeTightening torque: N·m (kgf-m, ft-lb) (2) Weather strip (10) Key cylinder (Driver’s side only)T1: 7.5 (0.7

Page 536 of 2870

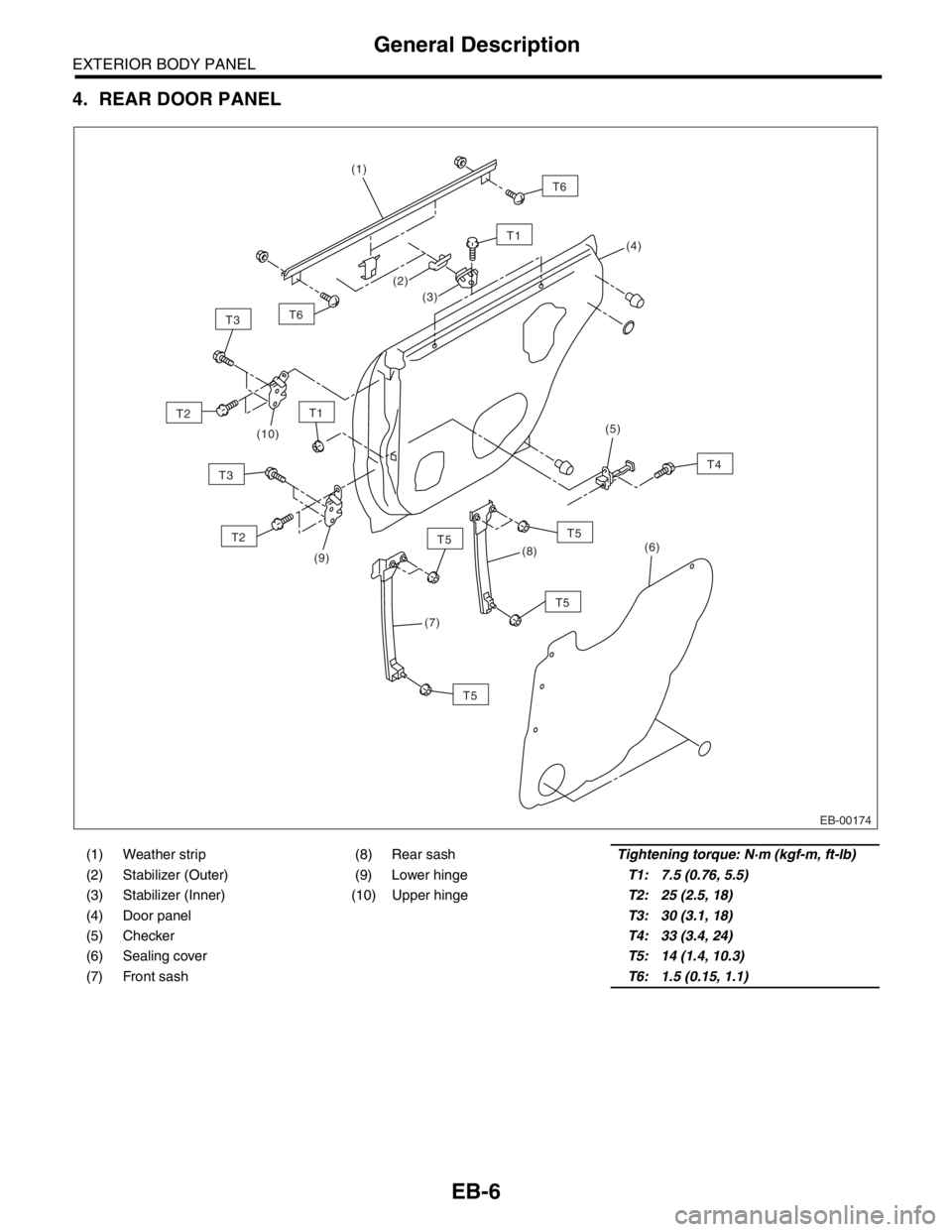

SUBARU FORESTER 2004 Service Repair Manual EB-6 EXTERIOR BODY PANEL General Description 4. REAR DOOR PANEL (1) Weather strip (8) Rear sashTightening torque: N·m (kgf-m, ft-lb) (2) Stabilizer (Outer) (9) Lower hingeT1: 7.5 (0.76, 5.5) (3) Stab
