SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE2 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX ENGINE SECTION 1 This service manual has been prepared to provide SUBARU service personnel with the necessary inf

Page 850 of 2870

SUBARU FORESTER 2004 Service Repair Manual EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) EC(H4SO) Page 1. General Description ....................................................................................2 2. Front Catalytic Converter

Page 851 of 2870

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-2 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) General Description 1. General Description A: CAUTION  Wear working clothing, including a cap, protec- tive goggles, and protective shoes du

Page 852 of 2870

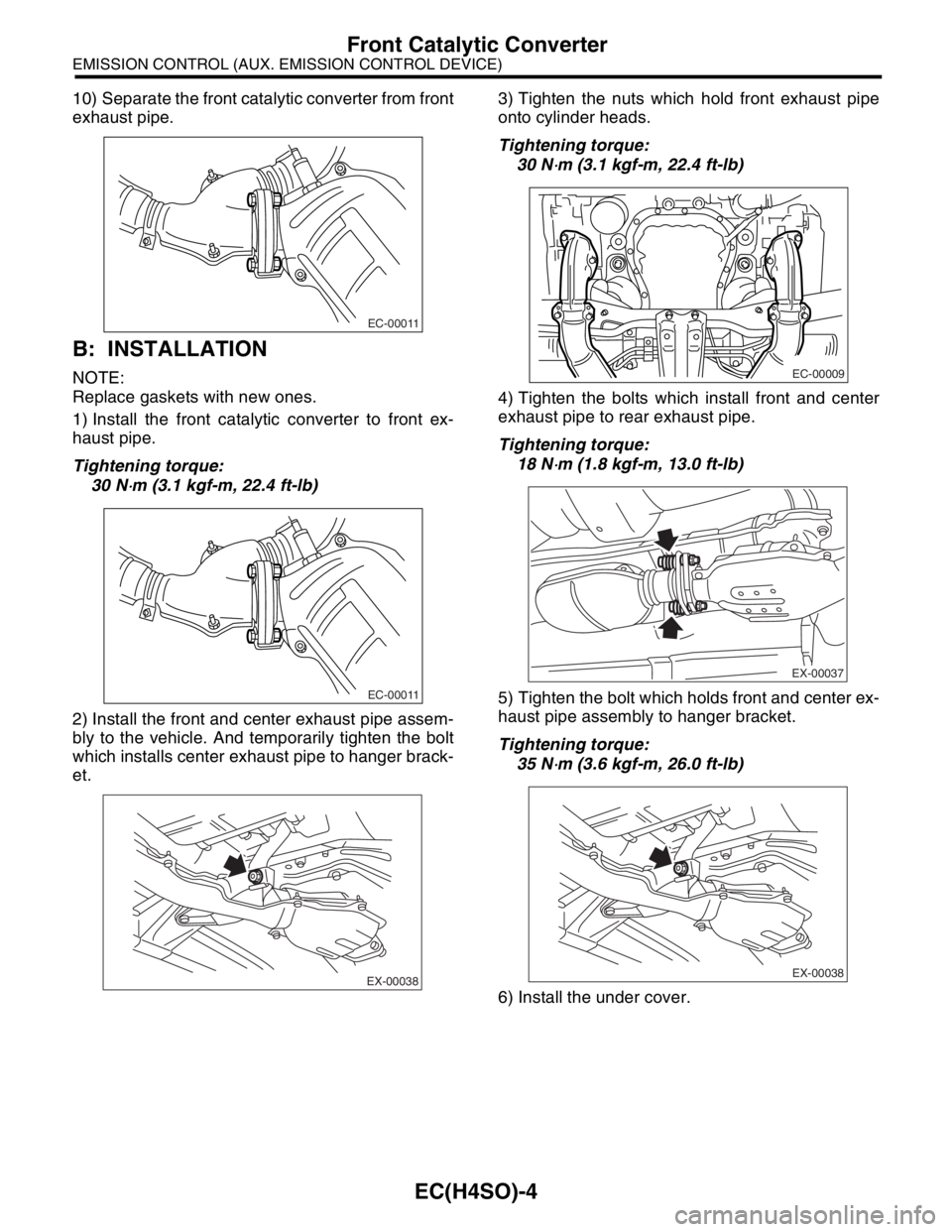

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-3 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Front Catalytic Converter 2. Front Catalytic Converter A: REMOVAL 1) Set the vehicle on a lift. 2) Disconnect the ground cable from battery.

Page 853 of 2870

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-4 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Front Catalytic Converter 10) Separate the front catalytic converter from front exhaust pipe. B: INSTALLATION NOTE: Replace gaskets with new

Page 854 of 2870

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-5 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Front Catalytic Converter 7) Lower the vehicle. 8) Connect the front oxygen (A/F) sensor connec- tor. 9) Connect the connector to rear oxygen

Page 855 of 2870

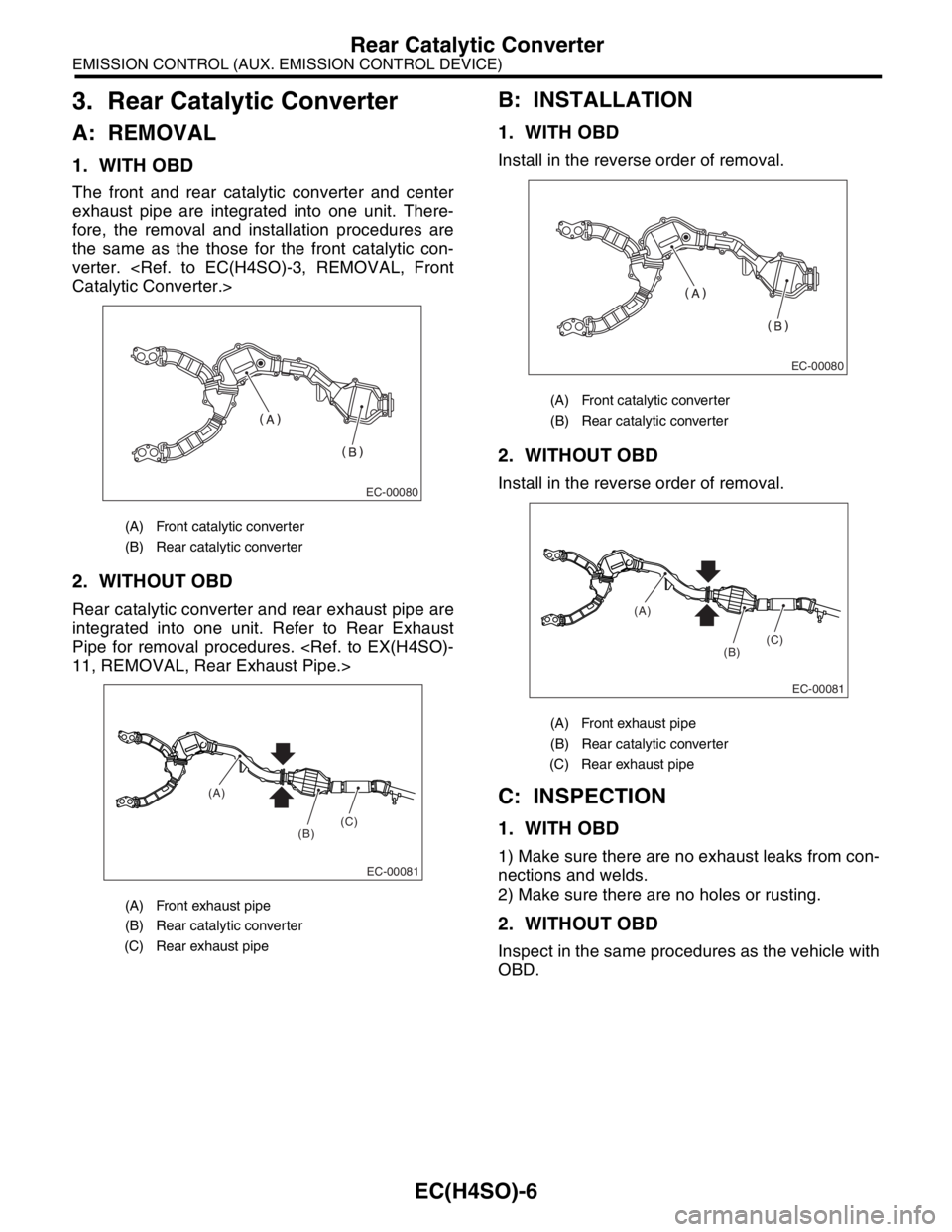

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-6 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Rear Catalytic Converter 3. Rear Catalytic Converter A: REMOVAL 1. WITH OBD The front and rear catalytic converter and center exhaust pipe ar

Page 856 of 2870

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-7 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) EGR Valve 4. EGR Valve A: PROCEDURE For EGR valve removal and installation proce- dures, refer to FU section. <Ref. to FU(H4SO)-34, EGR Valve
