ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between ECM and
oil flow control solenoid valve.
Connector & terminal
(B134) No. 18 — (E38) No. 1:
(B134) No. 28 — (E38) No. 2:Is the resistance less than 1
Ω?Go to step 2.Repair open circuit
in harness between
ECM and oil flow
control solenoid
valve connector.
N
OTE:
In this case, repair
the following
Open circuit in
harness between
ECM and oil flow
control solenoid
valve connector
Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
Measure the resistance between oil flow con-
trol solenoid valve and engine ground.
Connector & terminal
(E38) No. 1 — Engine ground:
(E38) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 3.Repair short circuit
between ECM and
oil flow control
solenoid valve
connector.
3 CHECK OIL FLOW CONTROL SOLENOID
VALVE.
1) Remove the oil flow control solenoid valve
connector.
2) Measure the resistance between oil flow
control solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 6 — 12 Ω? Repair poor con-
tact in ECM and oil
flow control sole-
noid valve.Replace the oil
flow control sole-
noid valve.
to ME(H4DOTC)-
68, Camshaft.>
Page 2242 of 2870
EN(H4DOTC 2.5)-218
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BU:DTC P2089 OCV SOLENOID VALVE SIGNAL A CIRCUIT SHORT (BANK 1)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
OPERATION, Clear Memory Mode.> and Inspection Mode
Inspection Mode.>.
WIRING DIAGRAM:
EN-02375
B22
E3
B134
E38
28 2 1
2
1
E38
B22
12
18
125678
131415169101112
34
17181920
B134
56 7
82 1
94 3
10
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
ECM
OIL FLOW CONTROL SOLENOID VALVE RH
Page 2243 of 2870

EN(H4DOTC 2.5)-219
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between ECM and
oil flow control solenoid valve.
Connector & terminal
(B134) No. 18 — (E38) No. 1:
(B134) No. 28 — (E38) No. 2:Is the resistance less than 1
Ω?Go to step 2.Repair open circuit
in harness between
ECM and oil flow
control solenoid
valve connector.
N
OTE:
In this case, repair
the following
Open circuit in
harness between
ECM and oil flow
control solenoid
valve connector
Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between oil flow
control solenoid valve and engine ground.
Connector & terminal
(E38) No. 1 — Engine ground:
(E38) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 3.Repair short circuit
between ECM and
oil flow control
solenoid valve
connector.
3 CHECK OIL FLOW CONTROL SOLENOID
VALVE.
1) Remove the oil flow control solenoid valve
connector.
2) Measure the resistance between oil flow
control solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 6 — 12 Ω? Repair poor con-
tact in ECM and oil
flow control sole-
noid valve.Replace the oil flow
control solenoid
valve.
ME(H4DOTC)-68,
Camshaft.>
Page 2244 of 2870
EN(H4DOTC 2.5)-220
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BV:DTC P2092 OCV SOLENOID VALVE SIGNAL A CIRCUIT OPEN (BANK 2)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
OPERATION, Clear Memory Mode.> and Inspection Mode
Inspection Mode.>.
WIRING DIAGRAM:
EN-02376
B22
E3
B134
E37 ECM
29 2 1
4
3
19
OIL FLOW CONTROL SOLENOID VALVE LH
E37
B22
12
125678
131415169101112
34
17181920
B134
56 7
82 1
94 3
10
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
Page 2245 of 2870

EN(H4DOTC 2.5)-221
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between ECM and
oil flow control solenoid valve.
Connector & terminal
(B134) No. 19 — (E37) No. 1:
(B134) No. 29 — (E37) No. 2:Is the resistance less than 1
Ω?Go to step 2.Repair open circuit
in harness
between ECM and
oil flow control
solenoid valve
connector.
N
OTE:
In this case, repair
the following
Open circuit in
harness between
ECM and oil flow
control solenoid
valve connector
Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
Measure the resistance between oil flow con-
trol solenoid valve and engine ground.
Connector & terminal
(E37) No. 1 — Engine ground:
(E37) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 3.Repair short circuit
between ECM and
oil flow control
solenoid valve
connector.
3 CHECK OIL FLOW CONTROL SOLENOID
VALVE.
1) Remove the oil flow control solenoid valve
connector.
2) Measure the resistance between oil flow
control solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 6 — 12 Ω? Repair poor con-
tact in ECM and oil
flow control sole-
noid valve.Replace the oil
flow control sole-
noid valve.
to ME(H4DOTC)-
68, Camshaft.>
Page 2246 of 2870
EN(H4DOTC 2.5)-222
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BW:DTC P2093 OCV SOLENOID VALVE SIGNAL A CIRCUIT SHORT (BANK 2)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
OPERATION, Clear Memory Mode.> and Inspection Mode
Inspection Mode.>.

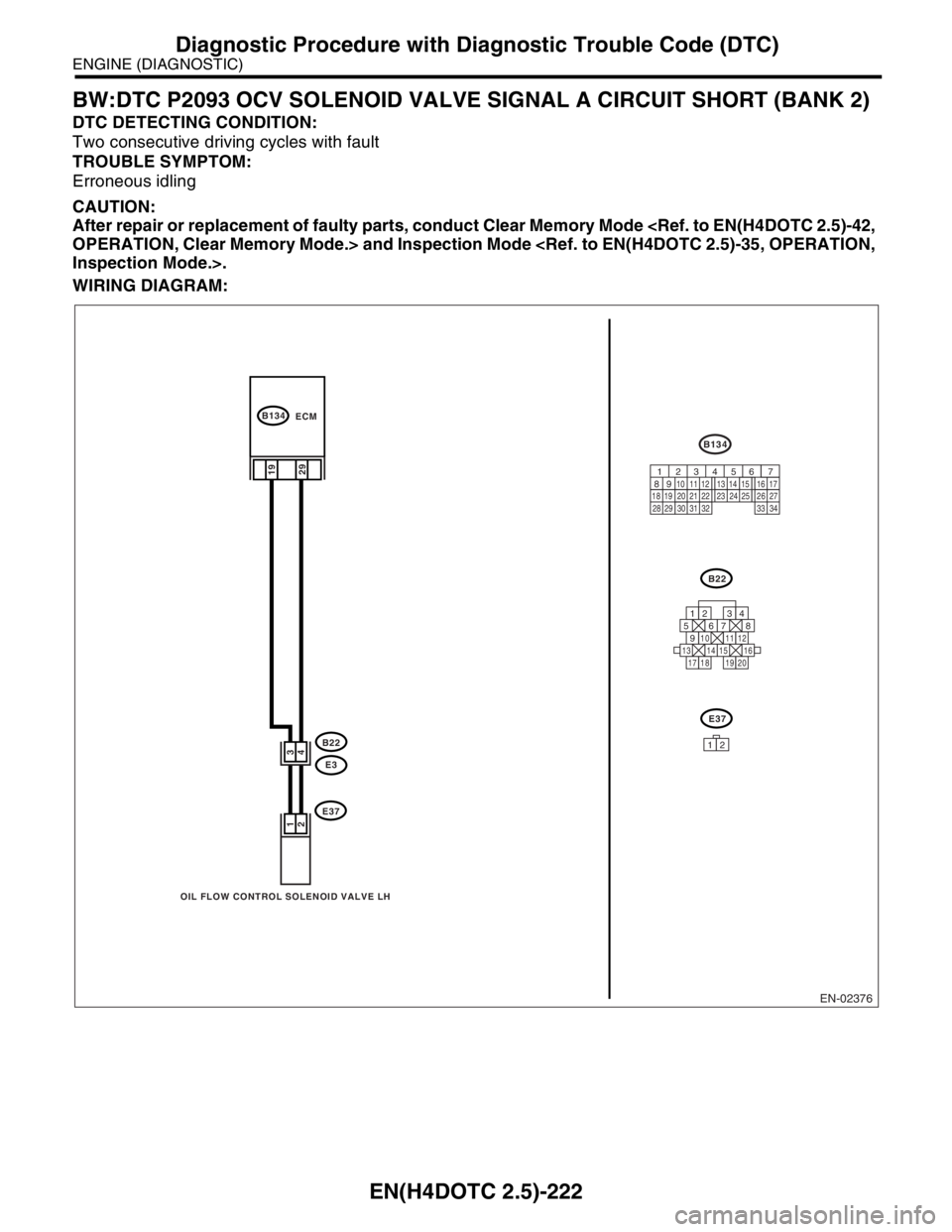

WIRING DIAGRAM:
EN-02376
B22
E3
B134
E37 ECM
29 2 1
4
3
19
OIL FLOW CONTROL SOLENOID VALVE LH
E37
B22
12
125678
131415169101112
34
17181920
B134
56 7
82 1
94 3
10
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
Page 2247 of 2870

EN(H4DOTC 2.5)-223
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between ECM and
oil flow control solenoid valve.
Connector & terminal
(B134) No. 19 — (E37) No. 1:
(B134) No. 29 — (E37) No. 2:Is the resistance less than 1
Ω?Go to step 2.Repair open circuit
in harness between
ECM and oil flow
control solenoid
valve connector.
N
OTE:
In this case, repair
the following
Open circuit in
harness between
ECM and oil flow
control solenoid
valve connector
Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN ECM AND OIL
FLOW CONTROL SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
flow control solenoid valve.
3) Measure the resistance between oil flow
control solenoid valve and engine ground.
Connector & terminal
(E37) No. 1 — Engine ground:
(E37) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 3.Repair short circuit
between ECM and
oil flow control
solenoid valve
connector.
3 CHECK OIL FLOW CONTROL SOLENOID
VALVE.
1) Remove the oil flow control solenoid valve
connector.
2) Measure the resistance between oil flow
control solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 6 — 12 Ω? Repair poor con-
tact in ECM and oil
flow control sole-
noid valve.Replace the oil
flow control sole-
noid valve.
to ME(H4DOTC)-
68, Camshaft.>
Page 2248 of 2870
EN(H4DOTC 2.5)-224
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BX:DTC P2101 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT RANGE/
PERFORMANCE
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Erroneous idling
Poor driving performance
Engine stalls.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
OPERATION, Clear Memory Mode.> and Inspection Mode
Inspection Mode.>.
